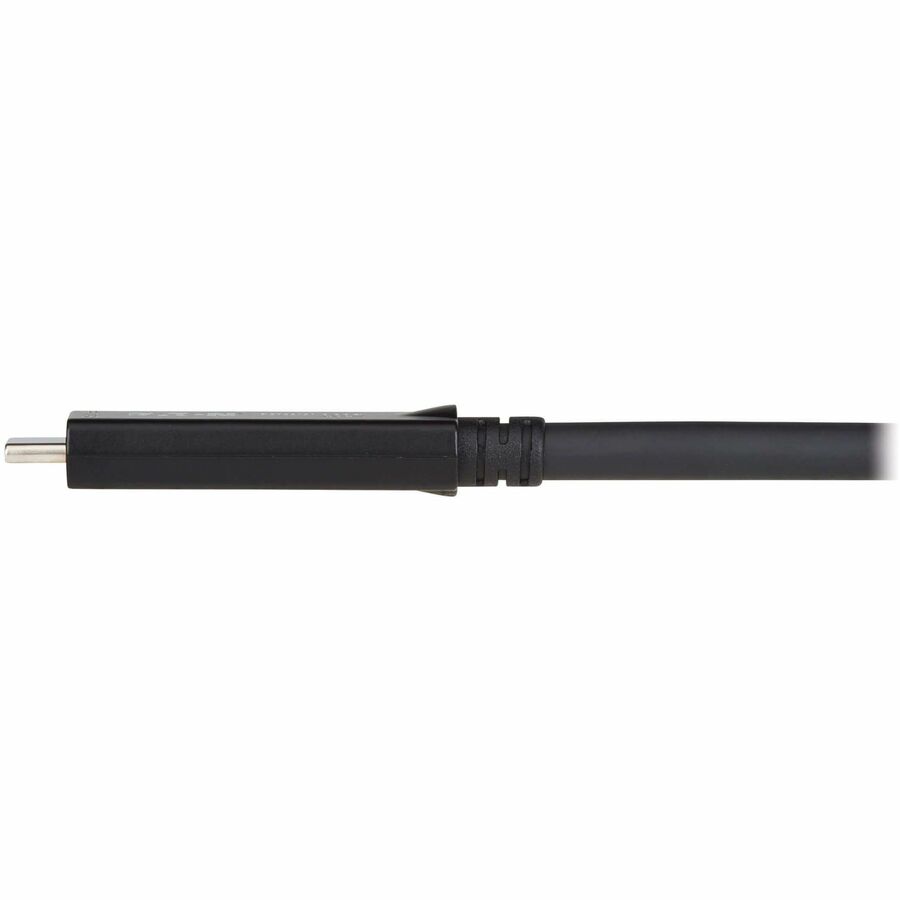

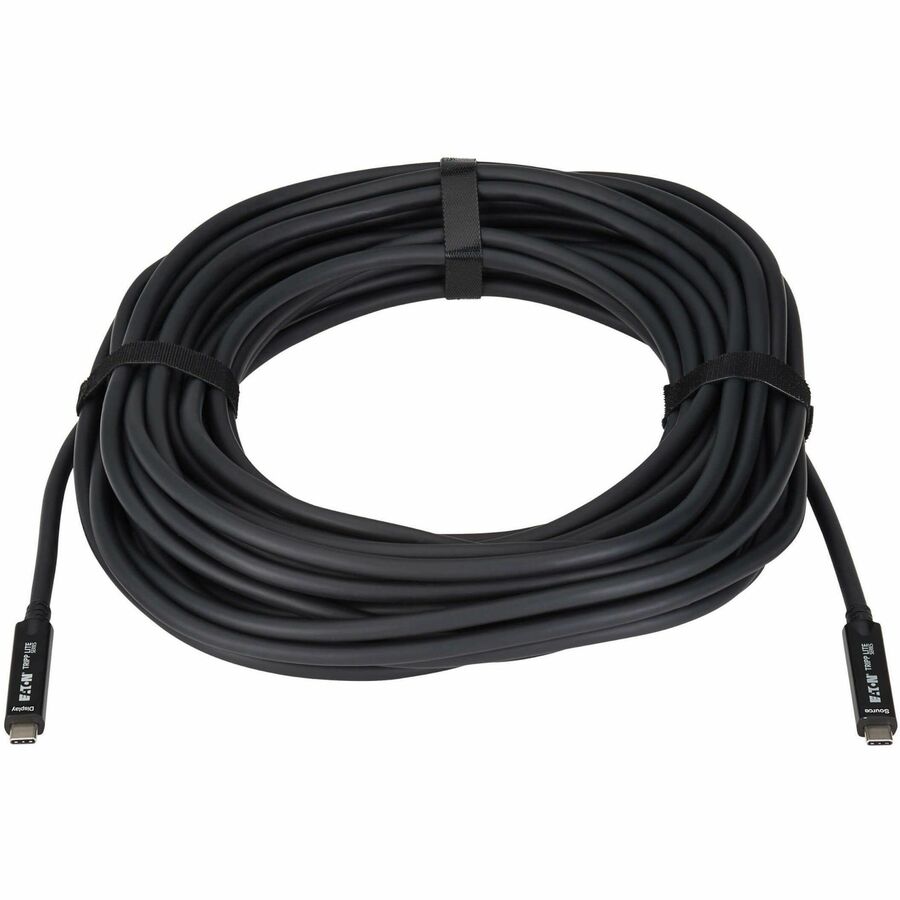

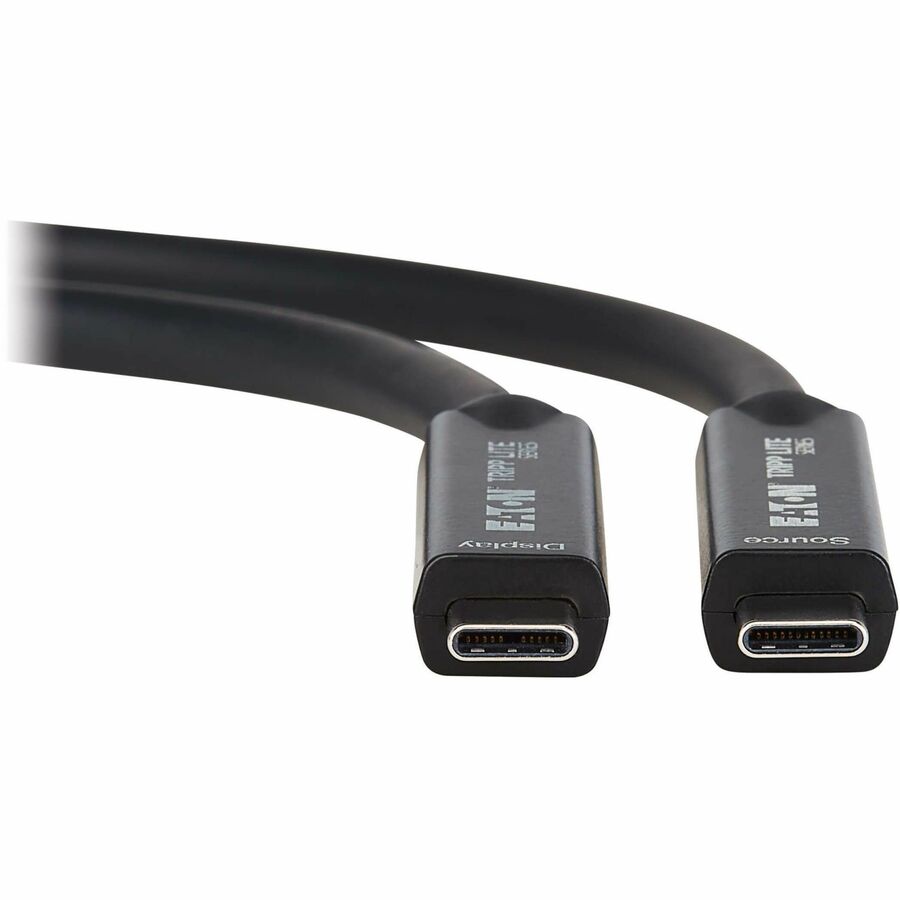

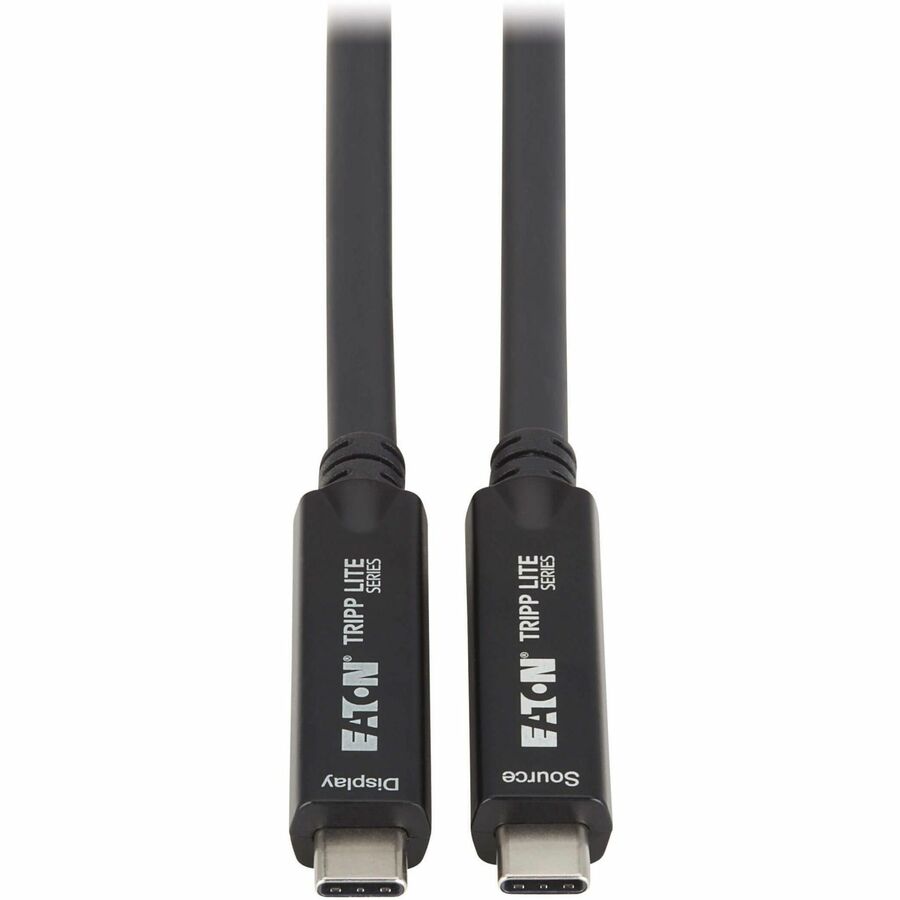

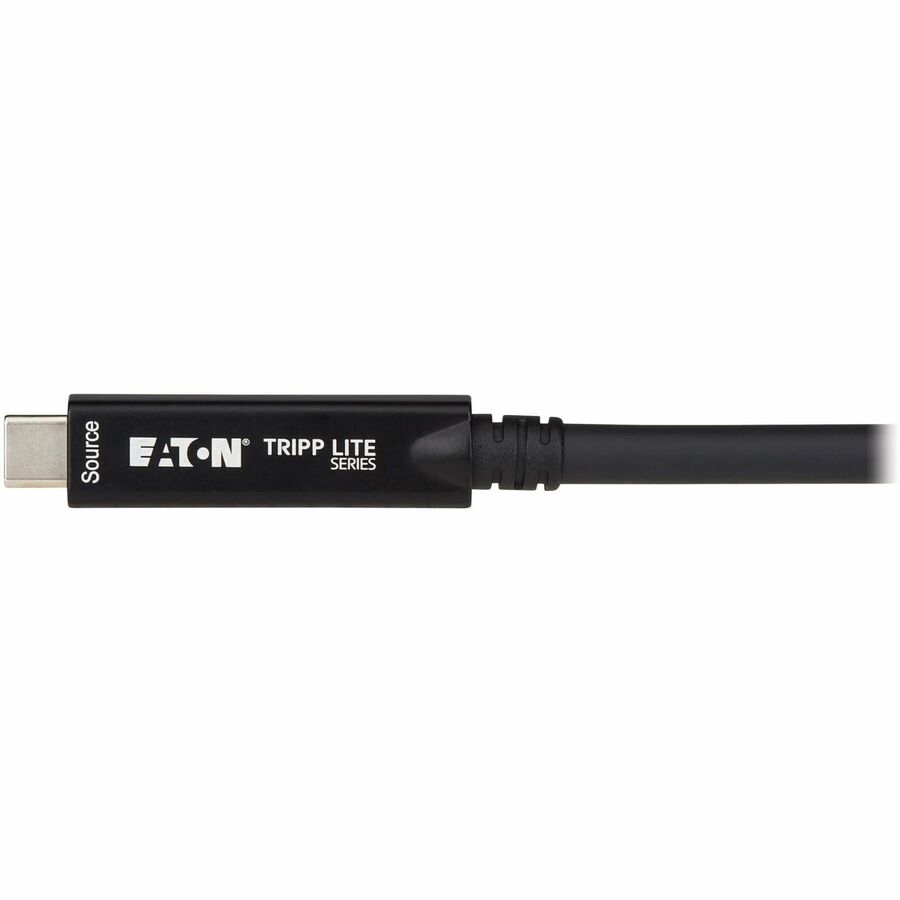

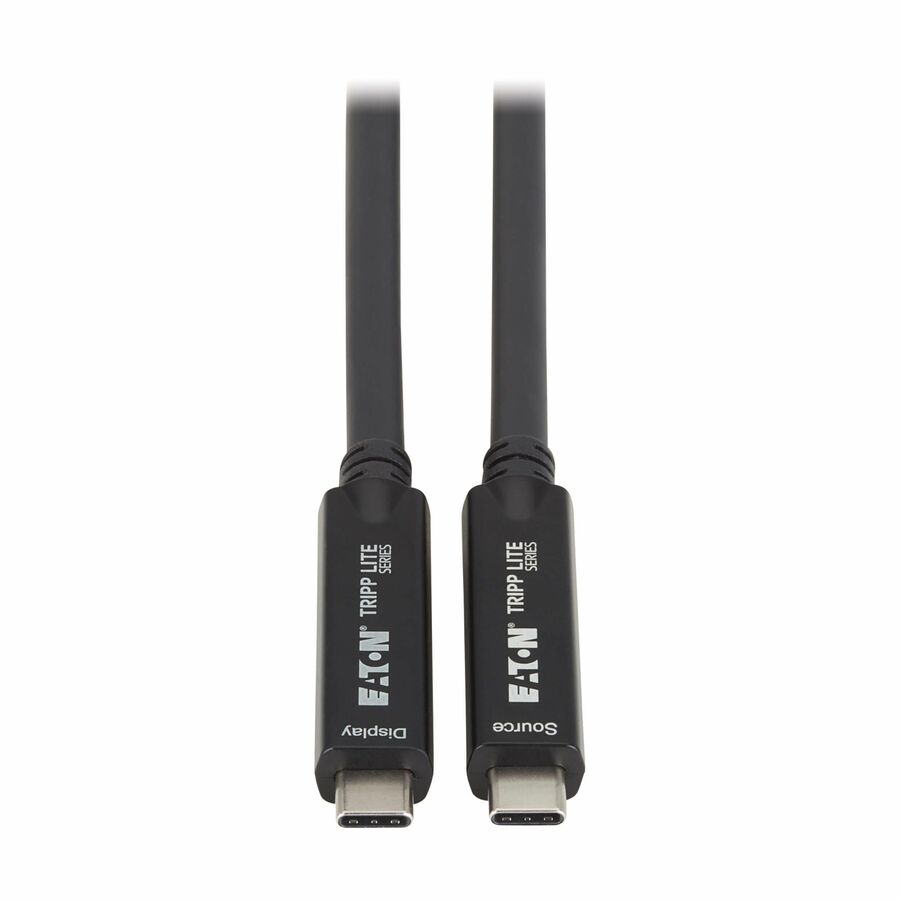

Eaton Tripp Lite Series USB-C to USB-C Full-Function Fiber Active Optical Cable (AOC) - USB 3.2 Gen 2 (10 Gbps), 8K, HDR, 4:4:4, 40W PD Charging, M/M, Black, 15 m (49 ft.)
49.21 ft Fiber Optic Data Transfer Cable for Notebook, Tablet, Smartphone, Gaming Console, Desktop Computer, Computer, Storage Device, Media Server, Surveillance Camera, Printer, Digital Signage, ... - First End: 1 x USB 3.2 (Gen 2) Type C - Male - Second End: 1 x USB 3.2 (Gen 2) Type C - Male - 10 Gbit/s - Supports up to 3840 x 4320, 7680 x 2160 - Gold Plated Connector - Gold Plated Contact - VW-1 - 21/24/28 AWG - Black
- SKU
- U420F-15M
- Category
- Connector Cables
MSRP$862.00
$326.06
Save 62%In stock: 42
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- U420F-15M
- Category
- Connector Cables
Overview
USB-C Fiber Optic Cable Combines Data Transfer and 8K/4K Video
This full-function active optical cable (M/M) securely connects the USB-C, Thunderbolt 3 or Thunderbolt 4 port on your desktop, laptop or notebook computer to a USB-C data or audio/video device, such as a storage device, media server or surveillance camera, located up to 15 meters (49 feet) away. It is ideal for high-end video conferencing, USB camera placement, 3D printers or high-resolution Pro AV devices, such as touchscreen displays, digital signage or travel displays that can be powered via USB-C PD charging.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the USB-C end to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to a USB-C monitor, television or projector without installing special software drivers.
Transmits 8K and 4K Video with HDR and 4:4:4 Color
The U420F-15M supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz and 4K resolutions up to 3840 x 2160 at 144 Hz with 30-bit Deep Color. It also supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Transfers Data and Powers Devices for Innovative Workspace Applications
The full-function U420F-15M connects your MacBook Pro, Windows laptop or other USB-C device to the USB-C port on Logitech or Poly video conferencing cameras, touchscreen displays and smartboards. It supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps. It also provides power output up to 20V 2A (40W), which is enough to power most laptops, as well as connected equipment or travel displays. The plug-and-play cable is compatible with Thunderbolt 3 and Thunderbolt 4 devices, as well as USB-C.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- All-in-one USB-C fiber optic cable supports 10 Gbps data transfer, 8K video and 40W PD charging for your IT or Pro AV application
- Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- Provides 40W power output for charging, syncing and powering the host device
- Supports 8K @ 30 Hz or 4K @ 144 Hz for high-resolution gaming or video editing
- Compatible with all USB-C, Thunderbolt 3 and Thunderbolt 4 computer ports
- Fiber optic construction ideal for long-distance connections not supported by copper
- 3-year limited warranty
Specifications
| Application/Usage | Gaming |
|---|---|
| Cable Length | 49.21 ft |
| Product Type | Data Transfer Cable |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Notebook, Tablet, Smartphone, Gaming Console, Desktop Computer, Computer, Storage Device, Media Server, Surveillance Camera, Printer, Digital Signage, HDTV Set-top Boxes, Monitor, Television, Projector, MacBook Pro, USB Device, Video Conferencing Camera |
| Jacket Type | VW-1 |
| Manufacturer Part Number | U420F-15M |
| Limited Warranty | 3 Year |
| Features | AOC Technology, Charging, HDR Support, Extended Display Identification Data (EDID), Display Stream Compression (DSC), DisplayPort Alternate (ALT) Mode, Consumer Electronics Control (CEC), HDCP 2.2, Plug & Play, USB- Power Delivery (USB PD) |
| Manufacturer | Eaton Corporation |
| Product Name | U420F-15M USB-C to USB-C Fiber Active Optical Cable, M/M, Black, 15 m (49 ft.) |
| Brand Name | Tripp Lite series |
| Cable Type | Fiber Optic |
| Connector Type on First End | USB 3.2 (Gen 2) Type C - Male |
| Connector Type on Second End | USB 3.2 (Gen 2) Type C - Male |
| Connector Plating | Gold |
| American Wire Gauge | 21/24/28 AWG |
| Supported Resolution | 3840 x 4320, 7680 x 2160 |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Contact Plating | Gold |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x USB 3.2 (Gen 2) Type C - Male |
| Connector on Second End Details | 1 x USB 3.2 (Gen 2) Type C - Male |
| Product Material | Thermoplastic Elastomer (TPE) |
| Jacket Color | Black |
| Connector Color | Black |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
