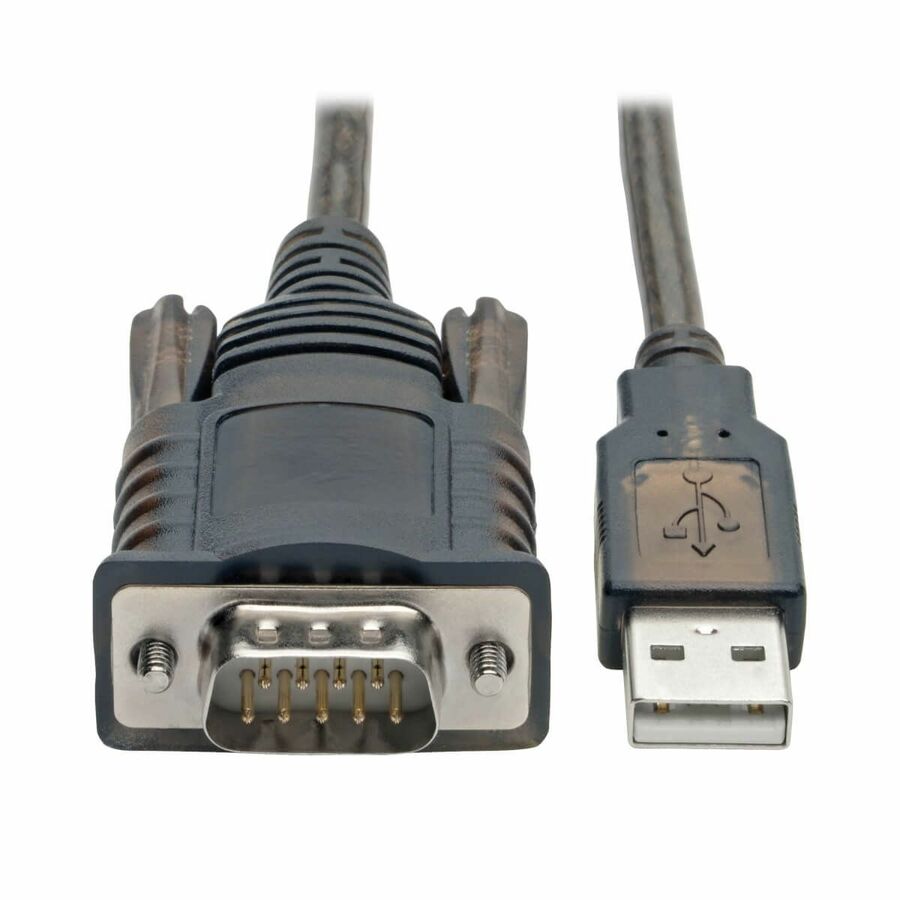

Tripp Lite by Eaton RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M) FTDI 5 ft. (1.52 m)

Connects a Barcode Scanner or Other DTE Serial Device to Your Computer's USB-A Port

This five-foot serial RS232 to USB adapter cable turns your computer's USB port into an RS232 serial port and avoids the expense of upgrading your reliable serial devices. No external power source is needed. Just connect the cable to your computer and insert the included CD into your computer's CD drive in order to launch the driver and assign the cable a COM port. It supports USB 2.0 specifications and data transfer speeds up to 230 Kbps, which is almost twice as fast as a built-in serial port. It is backward compatible with USB 1.1 devices.

COM Retention Feature for Convenient Reassigning of COM Values to Ports

The hot-swappable RS232-port-to-USB adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. The cable also supports remote wake-up and power management.

Double Shielding Protects Your Data from Destructive Line Noise

Foil and braid shielding helps fight against electromagnetic interference and radio frequency interference (EMI/RFI) that impedes your signal and can distort or destroy data. The auto-sensing feature solves DCE/DTE conflicts without the need for cross-wired serial cables or adapters.

3-Year Warranty

The U209-005-COM is backed by a 3-year warranty, ensuring reliability and performance.

More from the Manufacturer

Tripp Lite U209-005-COM Product Summary

Connects RS-232 devices to your computer’s USB port

Supports data transfer speeds up to 230 Kbps—double the speed of a built-in serial port

Automatically reassigns COM values to each port to avoid additional configuration

USB-powered, so no bulky or obtrusive external power supply is required

Double shielding protects against EMI/RFI line noise that can distort or destroy data

Compatible with Windows, Mac and Linux—works with most computers

3-year warranty

RS232 to USB Adapter Connects DTE Serial Devices to Your Computer’s USB Port

Tripp Lite’s five-foot U209-005-COM adapter cable turns your computer’s USB port into an RS-232 serial port and avoids the expense of upgrading your reliable serial devices. No external power source is needed. Just connect the plug-and-play cable to your computer and insert the included CD into your computer’s CD drive in order to launch the driver and assign the cable a COM port. Connect a printer, barcode scanner or other DTE serial device to your computer’s USB-A port for instant plug-and-play reliability.

Compatible with Almost All Computers

The U209-005-COM works with Windows, Mac and Linux computers with an available USB-A port.

Connect and control point-of-sale printers, barcode scanners, surveillance cameras, magnetic card readers and other serial-based devices

Create messages for LED sign boards with serial ports to avoid the expense of upgrading your sign board

What’s in the Box

U209-005-COM USB to RS-232 Adapter Cable, 5 ft.

Driver CD

Owner’s Manual

Features

COM Retention Feature for Convenient Reassigning of COM Values to Ports

This hot-swappable cable with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. It also supports remote wake-up and power management

Double Shielding Protects Your Data from Destructive Line Noise

Foil and braid shielding helps fight against electromagnetic interference and radio frequency interference (EMI/RFI) that impedes your signal and can distort or destroy data. The auto-sensing feature solves DCE/DTE conflicts without the need for cross-wired serial cables or adapters.

Data Transfer Speeds Double Those of a Built-In Serial Port

The U209-005-COM supports USB 2.0 specifications and data transfer speeds up to 230 Kbps, which is almost twice as fast as a built-in serial port. It is backward compatible with USB 1.1 devices.
