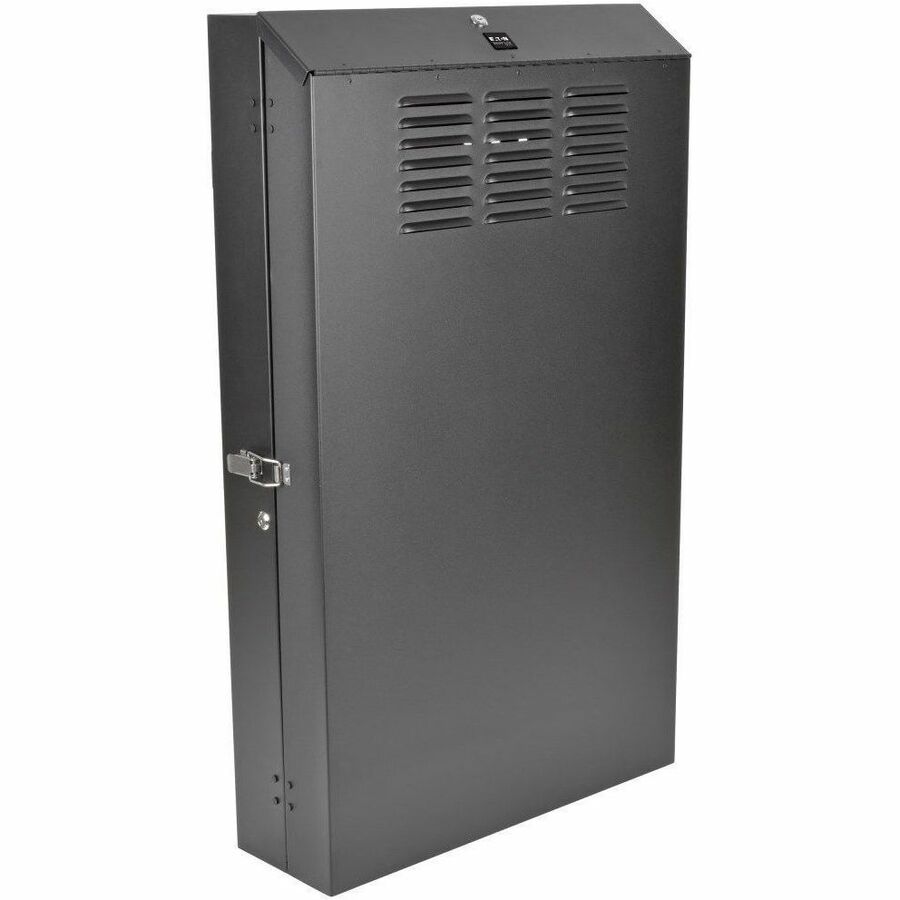

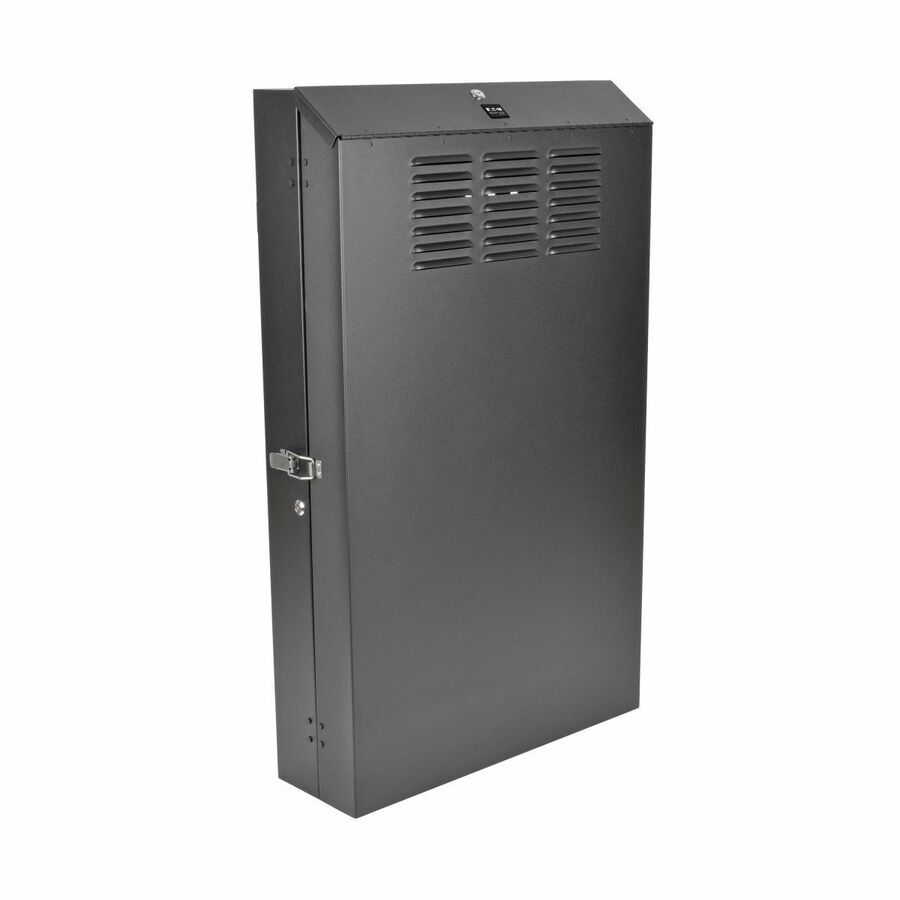

Tripp Lite by Eaton SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet

The SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.

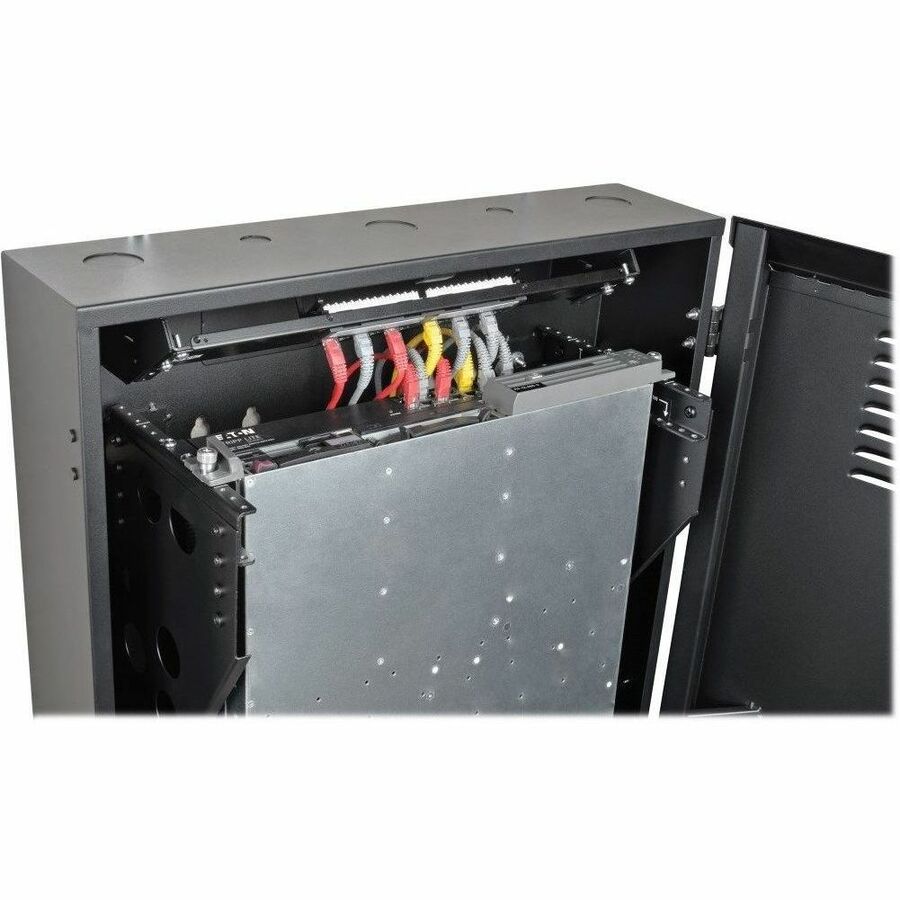

Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

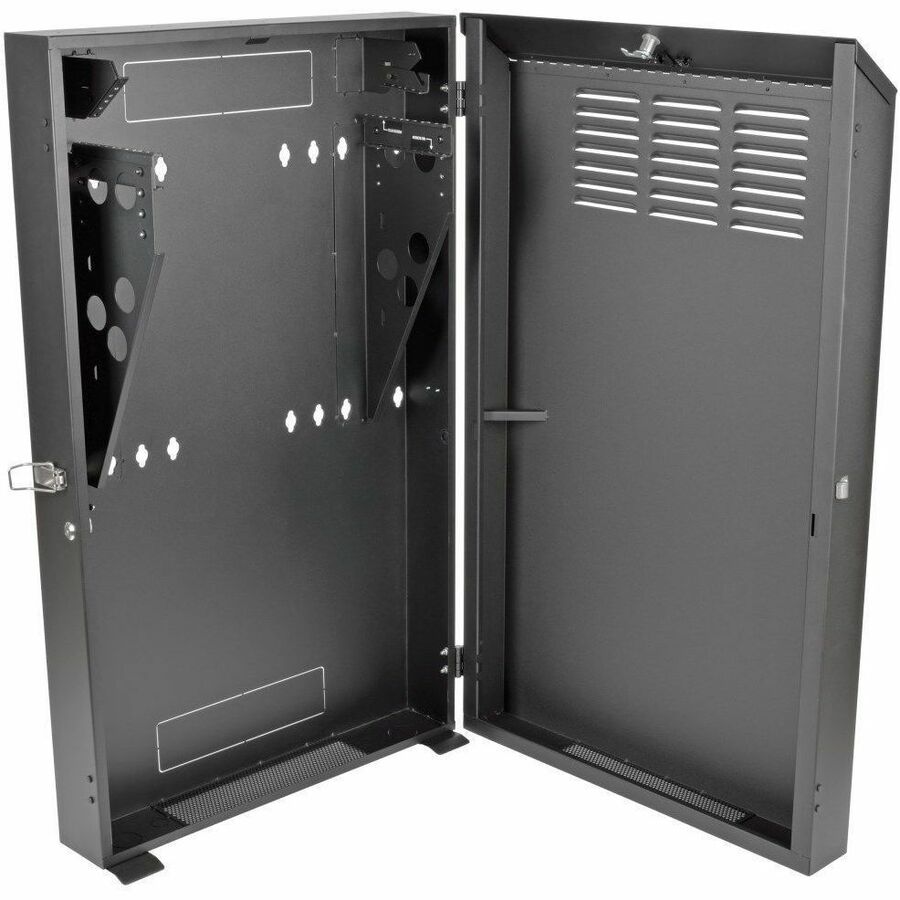

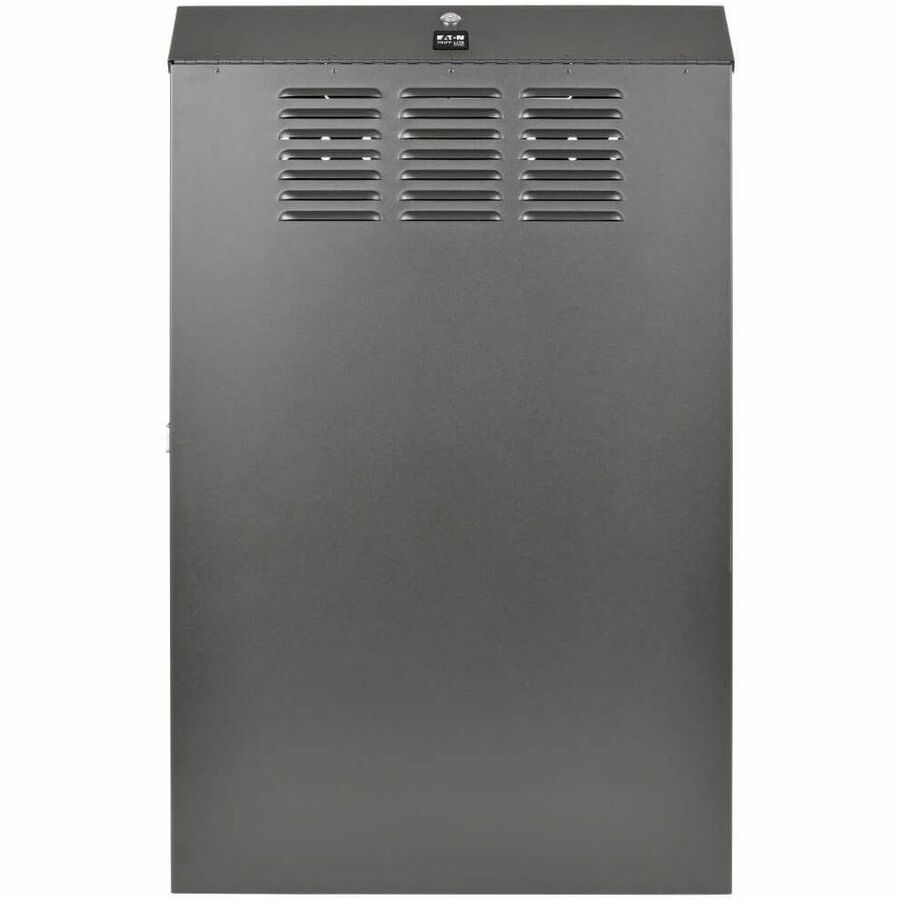

The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.

The SRWF6U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting. More from the Manufacturer

Ample Space for Network Equipment Up to 36 in. Deep and Secure Locking

Designed as a server-depth cabinet, the SRWF6U36 houses equipment up to 36 inches deep. The primary mounting area accommodates up to 6U of equipment. Use it to organize and secure 1U servers, UPS systems, battery packs and switches. A slide-out 2U mounting bracket at the top of the enclosure is for patch panels up to 2.5 inches deep. The top panel flips open for quick access, and the front door is vented to help keep equipment cool. Maximum load capacity is 150 pounds.

The SRWF6U36 provides the physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. The front door and top panel lock securely to help prevent damage, tampering and theft. You can add your own padlock to the front door latch for extra security. The cabinet is made of heavy-duty steel with a durable black powder-coated finish.

Fully Assembled and 5-Year Warranty

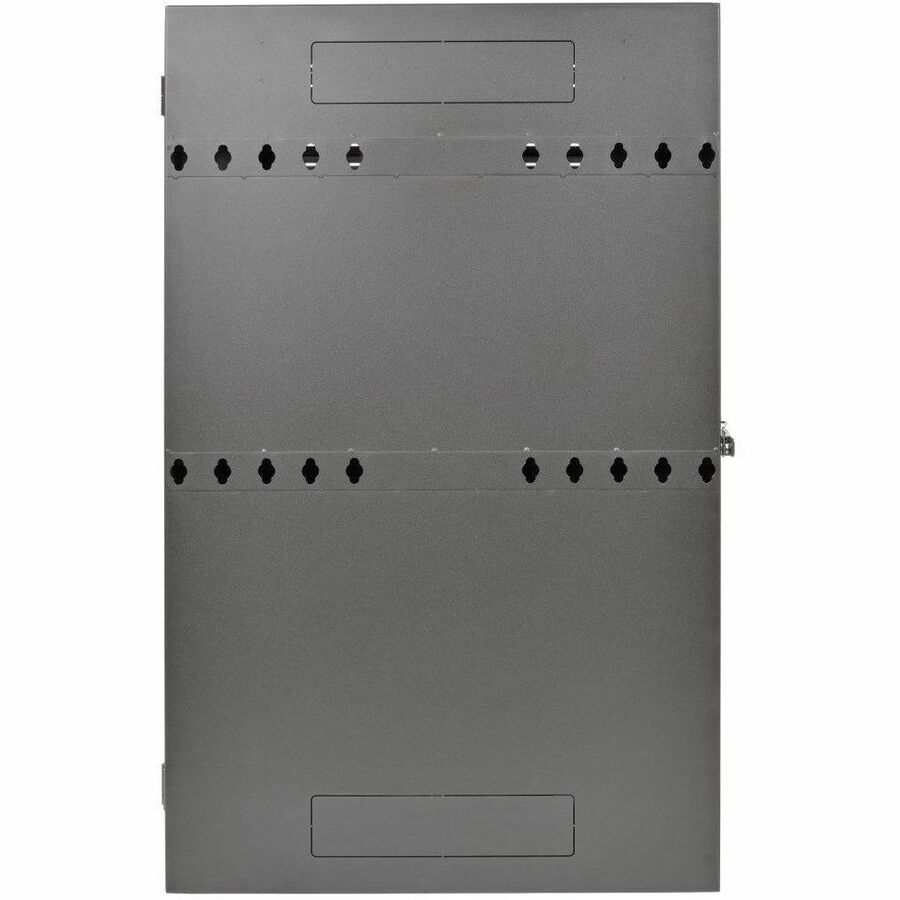

You’ll be able to install the SRWF6U36 without delay. The cabinet comes fully assembled and ready to mount. To match standard wall stud placement, the rear mounting holes are spaced 16 inches apart. The front door is reversible to open left or right. Inside the cabinet, the mounting rails have threaded holes to support M6 and 12-24 mounting with the included fasteners. Rack spaces are marked for easy reference. Ports at the top and bottom allow easy cable routing.

The SRWF6U36 comes with a 5-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
