Eaton Tripp Lite Series SmartRack 6U Vertical Wall-Mount Rack Bracket
Black
- SKU
- SRWALLBRKT6U
- Category
- Mounting Kits
MSRP$177.48
$115.75
Save 35%In stock: 923
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRWALLBRKT6U
- Category
- Mounting Kits
Overview

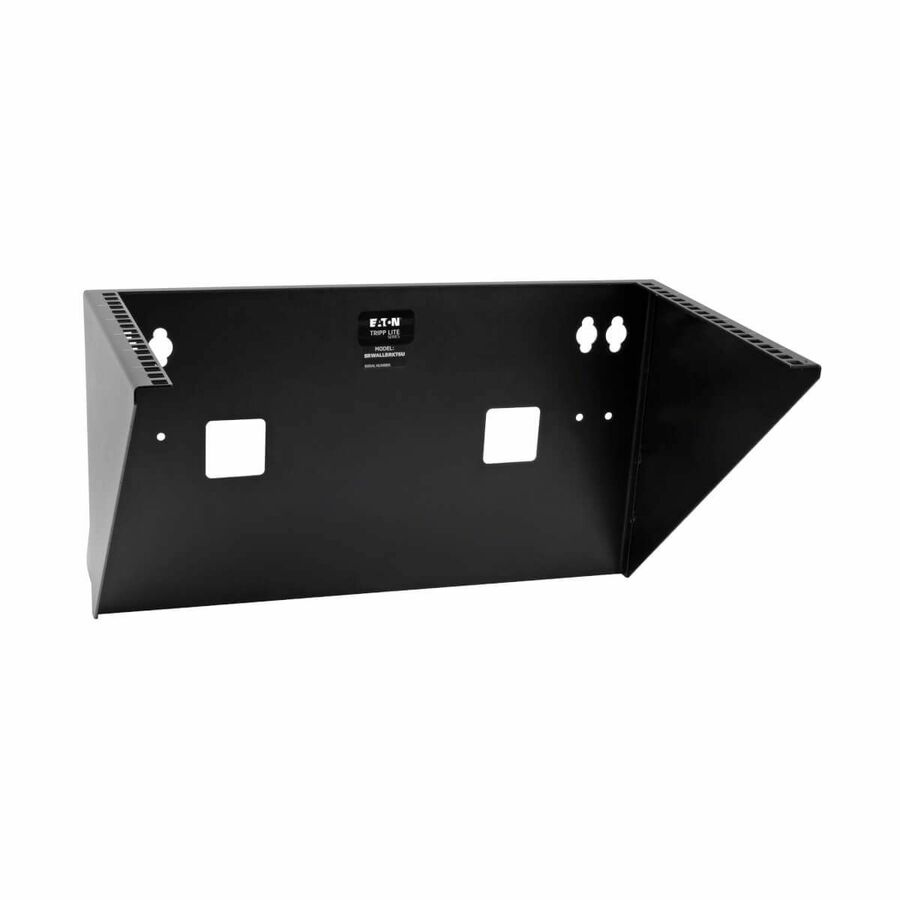

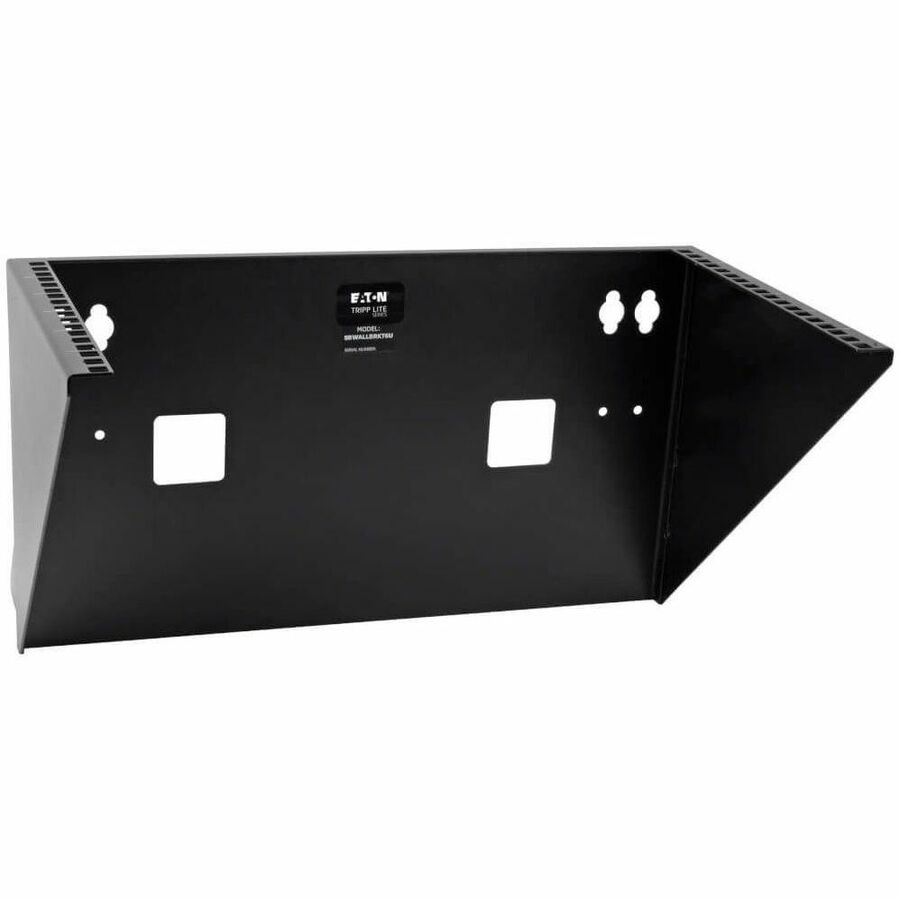

The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

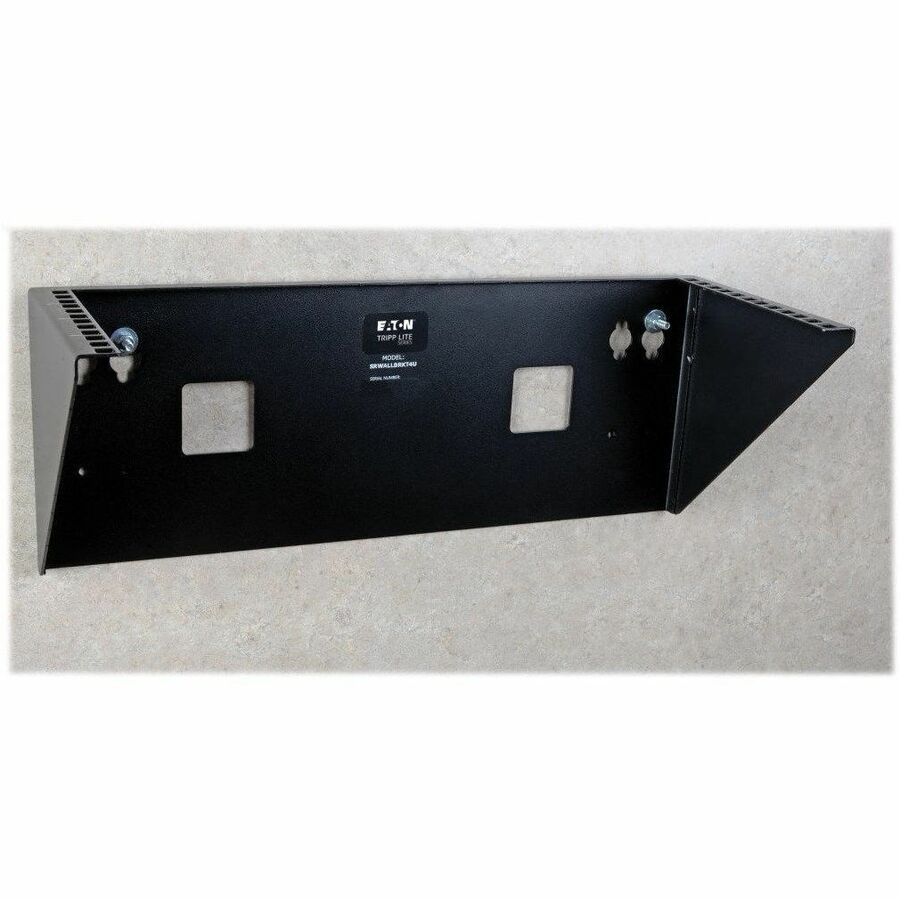

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

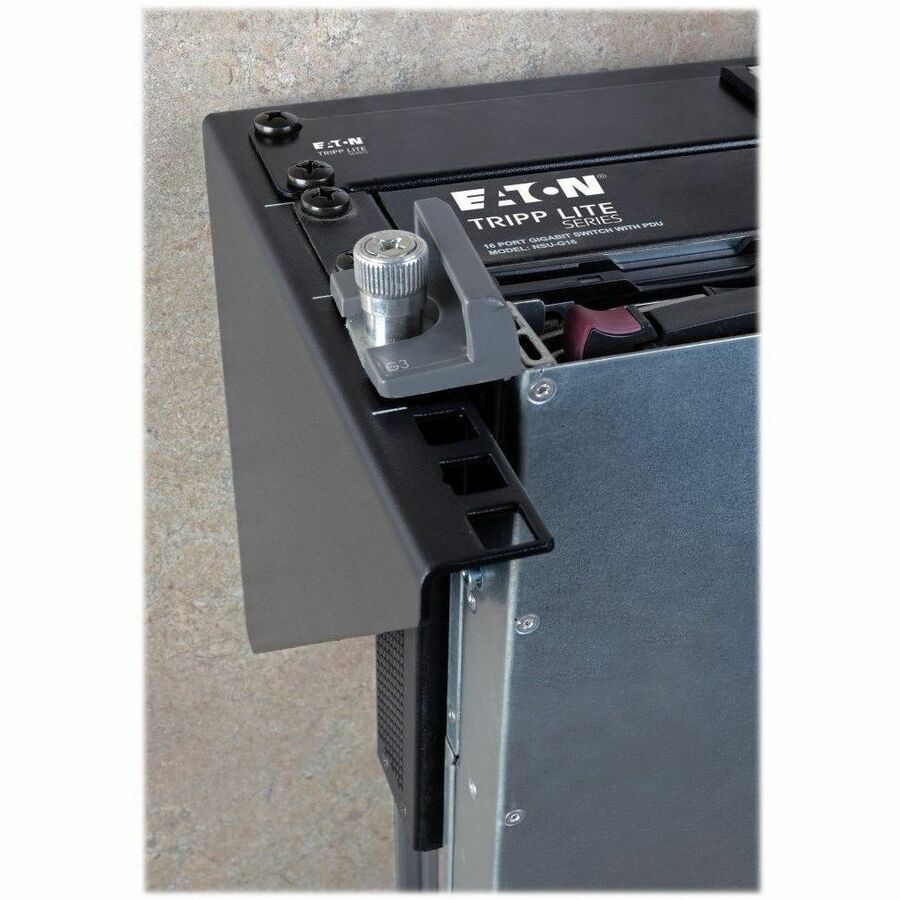

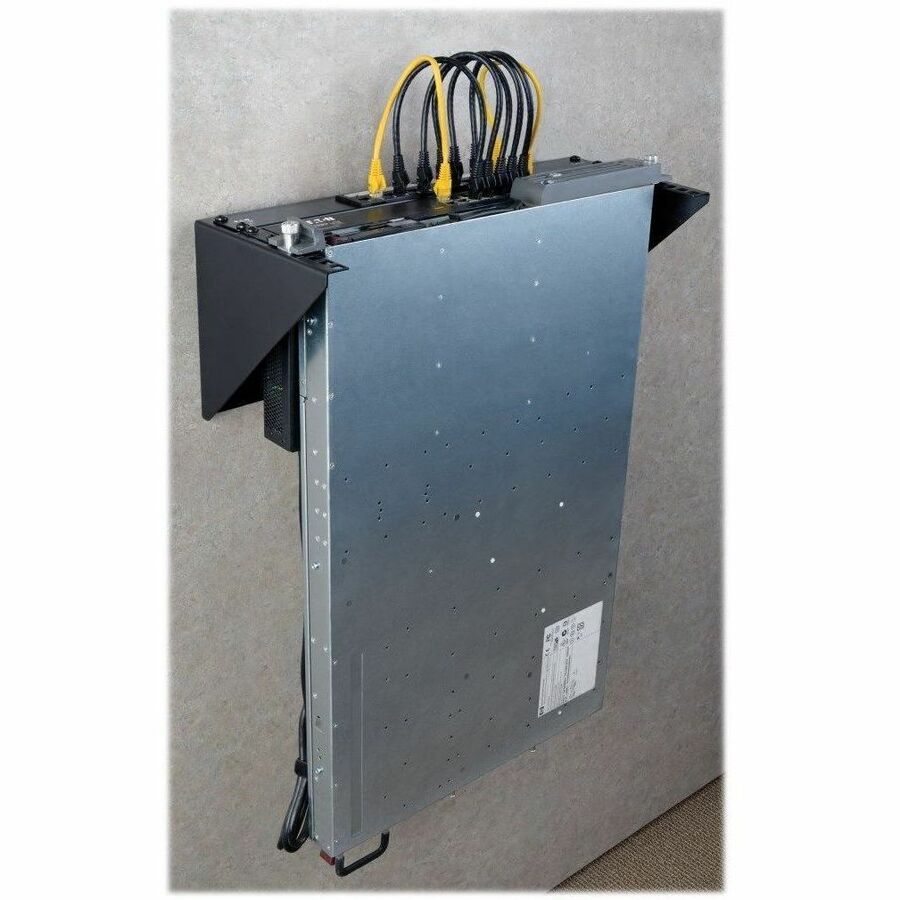

Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 pounds. Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment. More from the Manufacturer
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- 6U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office
- Recommended for home offices and small businesses with no room for standard 19 in. rack
- Provides open, unrestricted access to equipment and cabling
- Maximum load capacity of 200 lb.
- Cold-rolled steel construction with black powder-coated finish designed for long life
- Ships fully assembled for quick installation
- Attaches to the Wall with User-Supplied Hardware

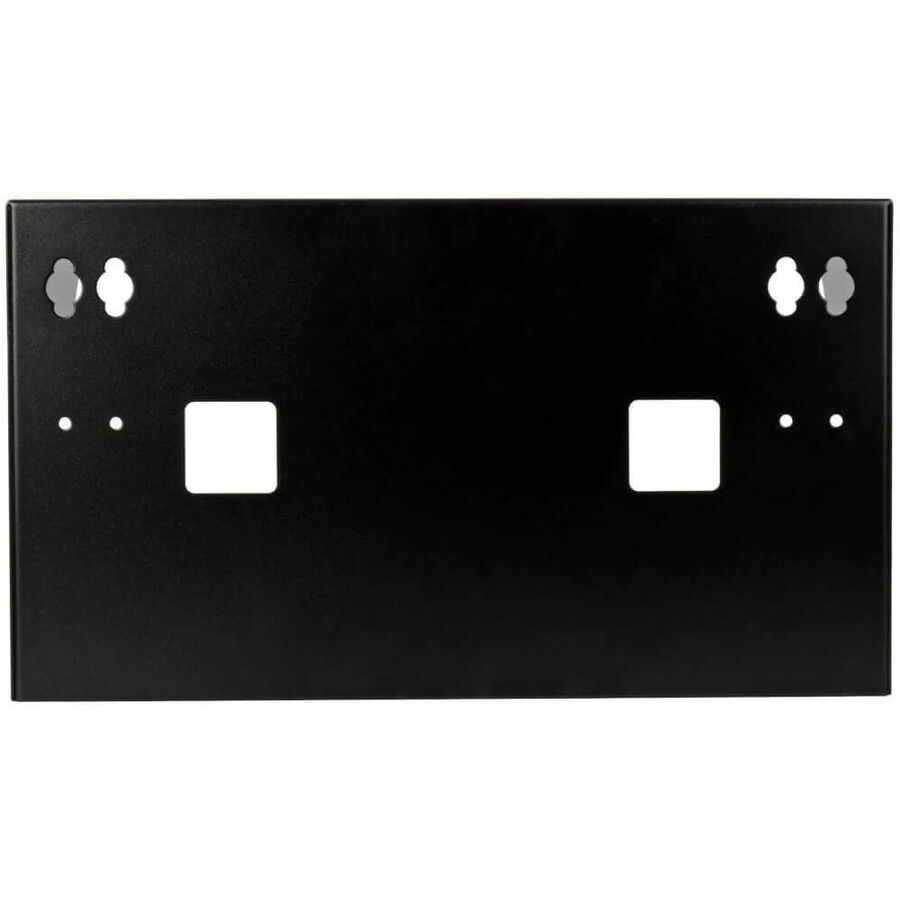

- Wall-mounting holes spaced 16 in. apart for standard wall stud placement
- Also mounts horizontally beneath a desk or workbench
- Component hangs flush against the wall for unrestricted out-of-the-way access
Specifications
| Package Contents |
|
|---|---|
| Product Type | Mounting Bracket |
| Device Supported | Server, Network Switch, UPS |
| Manufacturer Part Number | SRWALLBRKT6U |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 8.38 lb |
| Manufacturer | Eaton Corporation |
| Product Model | SRWALLBRKT6U |
| Product Name | SmartRack 6U Vertical Wall-Mount Rack Bracket |
| Product Line | SmartRack |
| Maximum Load Capacity | 200 lb |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Height | 11.15" |
| Width | 19.69" |
| Depth | 11.15" |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
