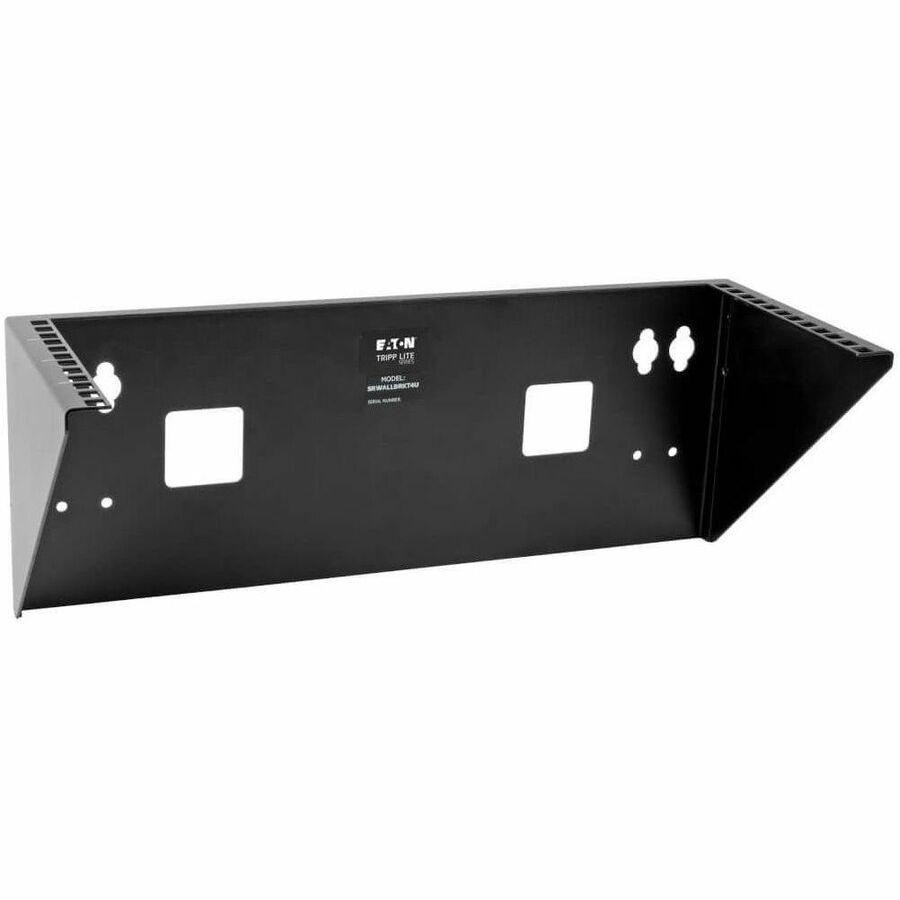

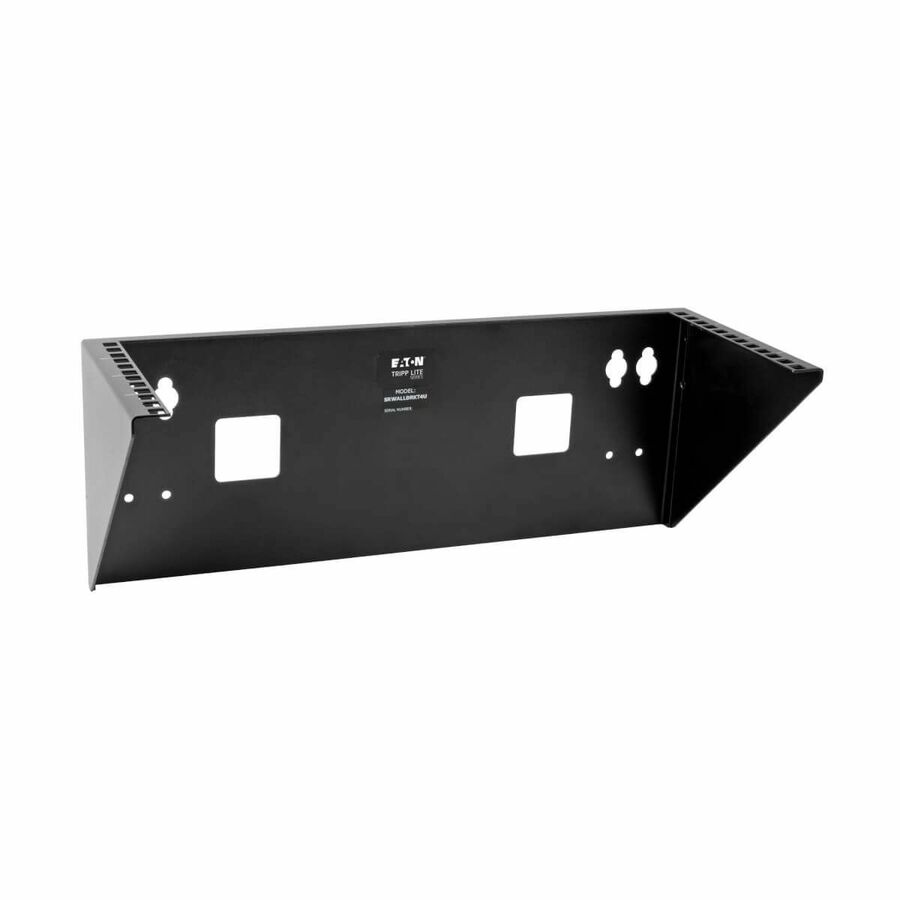

Tripp Lite by Eaton Wallmount Rack 4U Vertical Rack Bracket 175lb Capacity

The SRWALLBRKT4U SmartRack® 4U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch wall-mount rack.

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 4U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

Use the included hardware to attach your 4U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 175 pounds. Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT4U is compatible with most EIA-standard 19-inch two-post rack equipment. More from the Manufacturer

4U Bracket Allows Vertical Wall-Mounting of a 4U Rack Device in a Closet or Back Office

Tripp Lite’s SRWALLBRKT4U SmartRack® 4U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn’t need to be secured and with no room on the premises for a standard 19-inch server rack. It provides open, unrestricted access to the rack-mount components and cabling.

Ships Fully Assembled for Immediate Installation

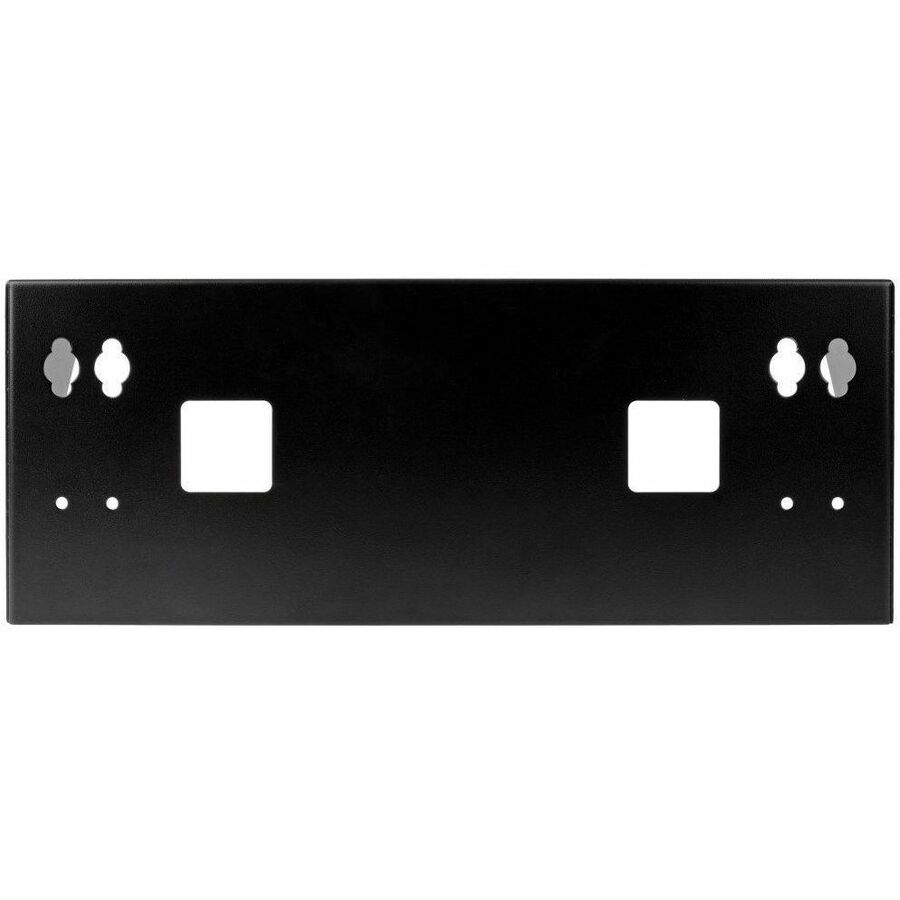

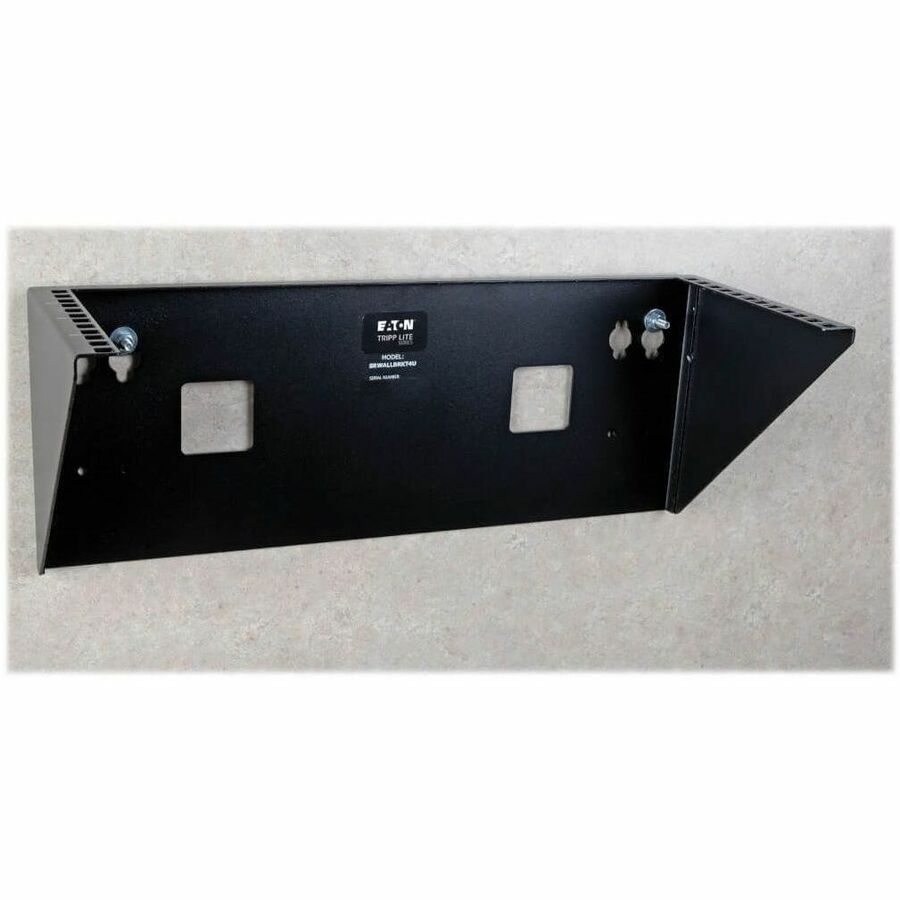

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 4U open frame bracket easily mounts to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches apart to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

Compatible with EIA-Standard 19 in. 2-Post Rack Equipment

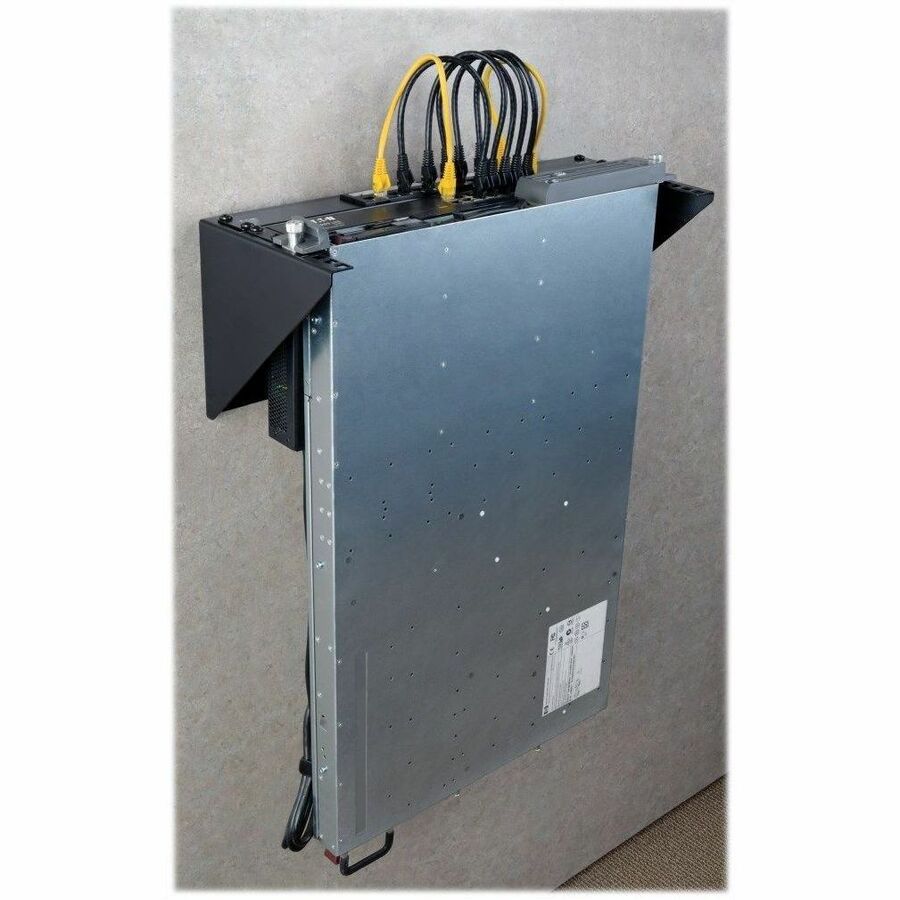

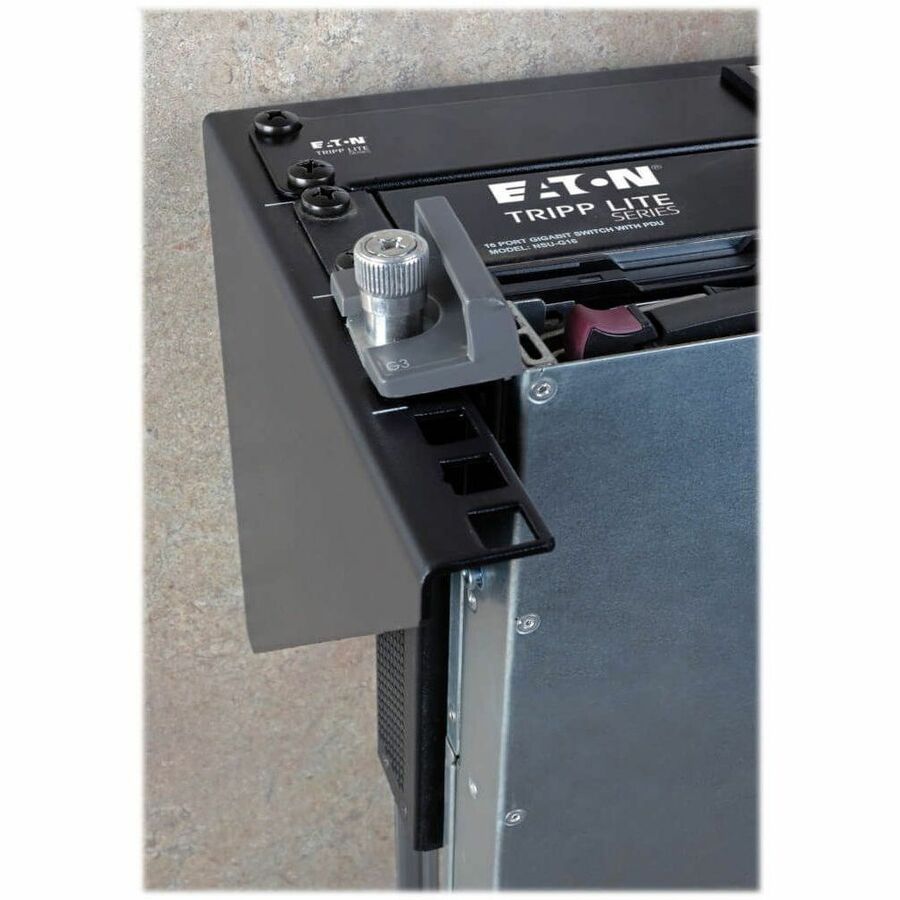

The SRWALLBRKT4U is compatible with rack equipment up to 48 inches deep. Hardware is included for mounting your 4U rack-mount equipment, such as a network switch or UPS system, to the steel bracket’s square-hole rails. The bracket’s maximum load capacity is 175 pounds. The equipment hangs flush against the wall for unrestricted out-of-the-way access.

Environmentally Responsible Design

It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
