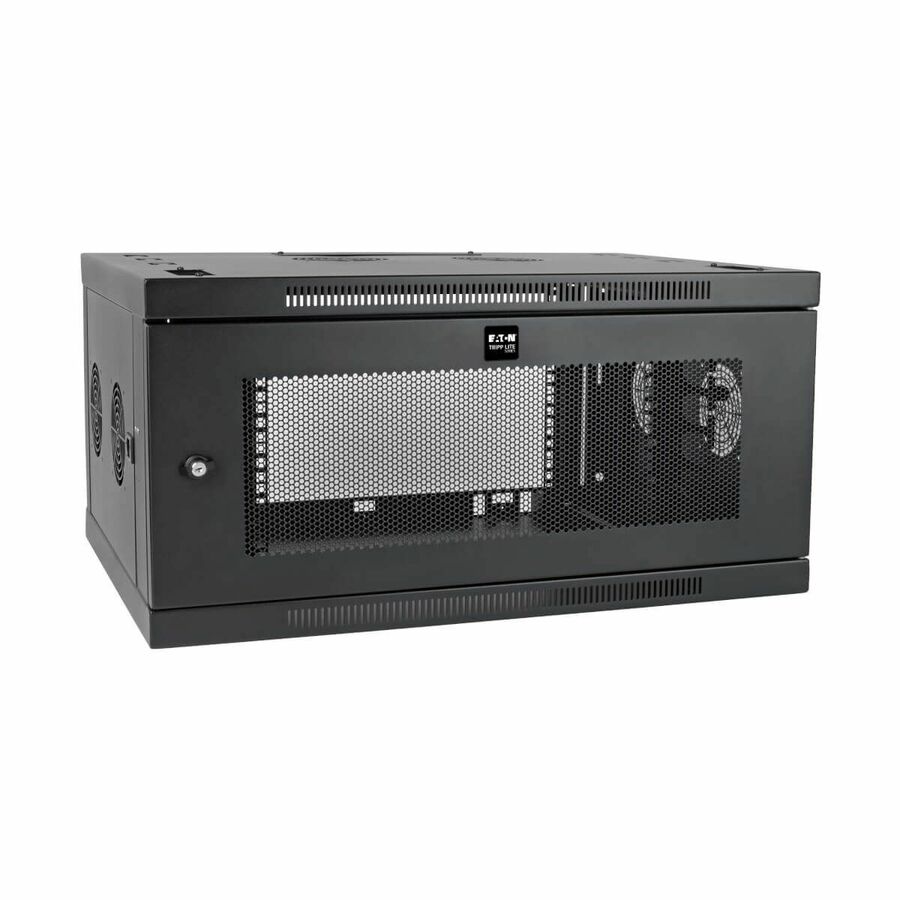

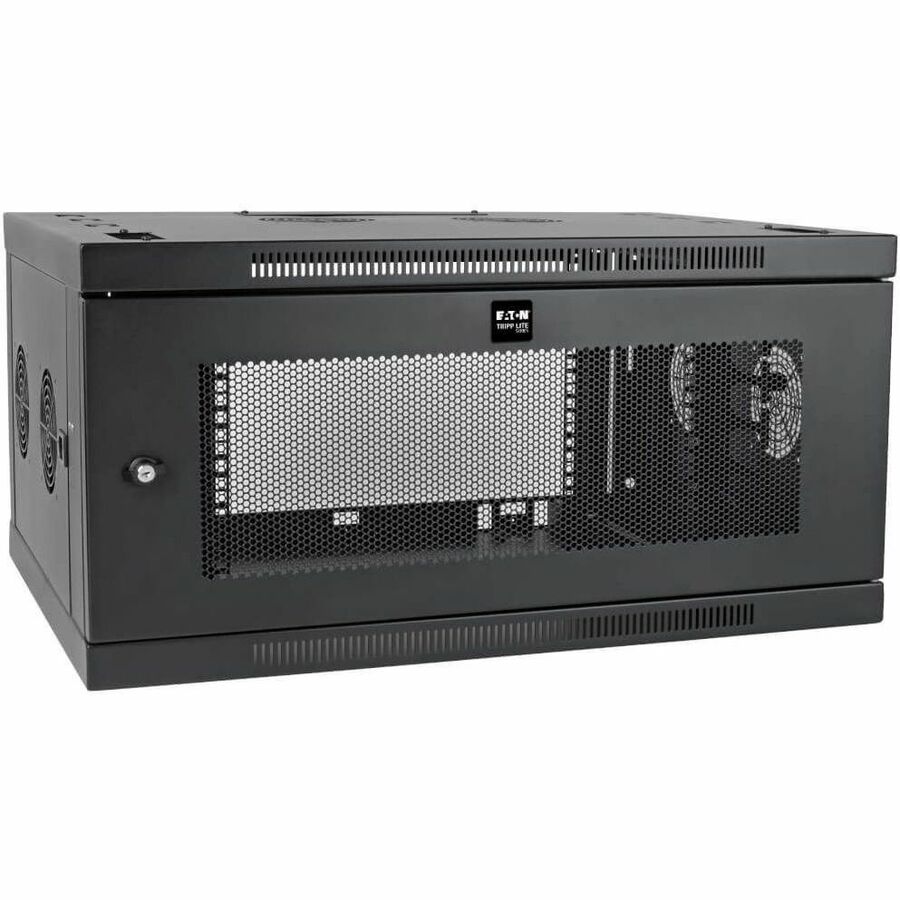

Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure Wide

6U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep

This SmartRack® rack cabinet is designed to house 6U of equipment, such as network switches and patch panels. It's recommended for branch offices, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

Lockable for Simple and Secure Equipment Access

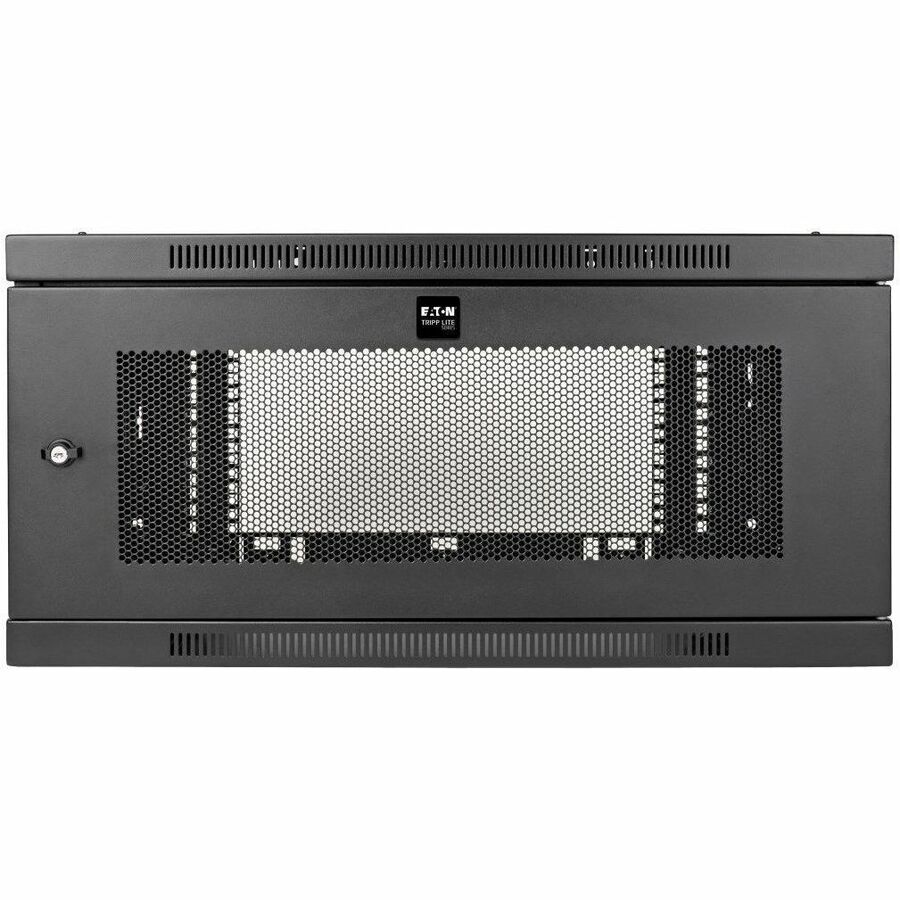

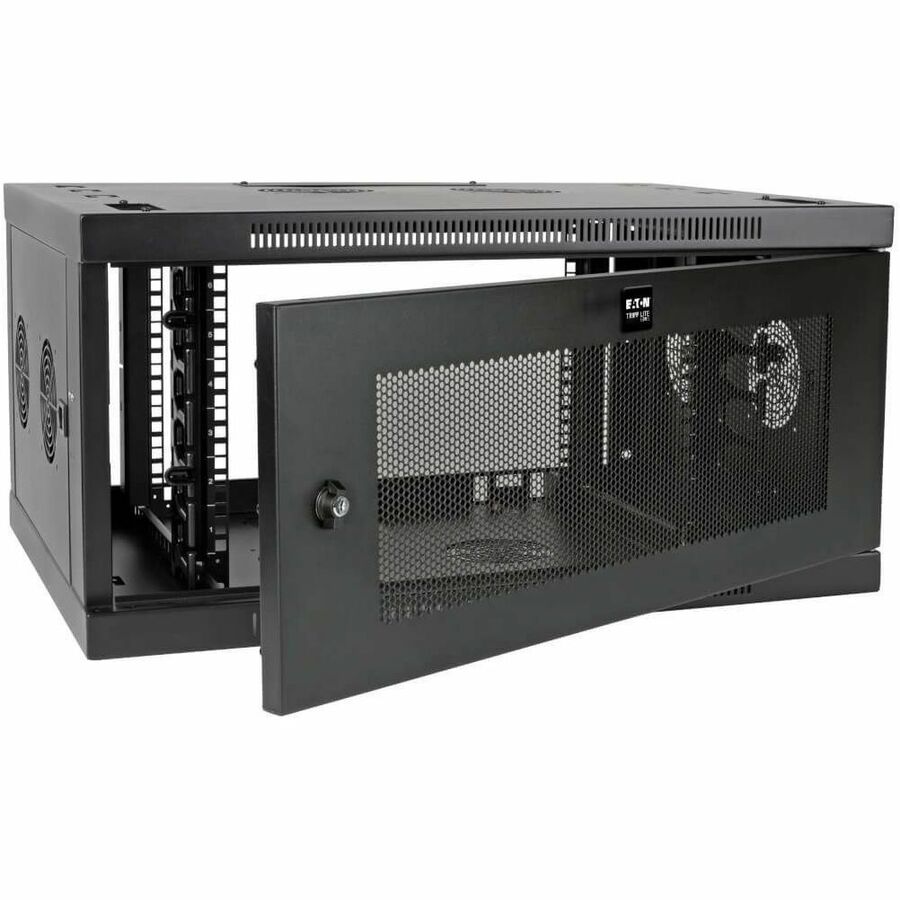

The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.

Generous Airflow Keeps Equipment Cool

Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as Tripp Lite's SRFANWM, sold separately) that keep your equipment cool and functioning at their peak.

Designed with Extra Width for Easier Cable Access and Better Airflow

The SRW6UDPVRT is three inches wider than Tripp Lite's standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.

Easy Enclosure and Equipment Installation

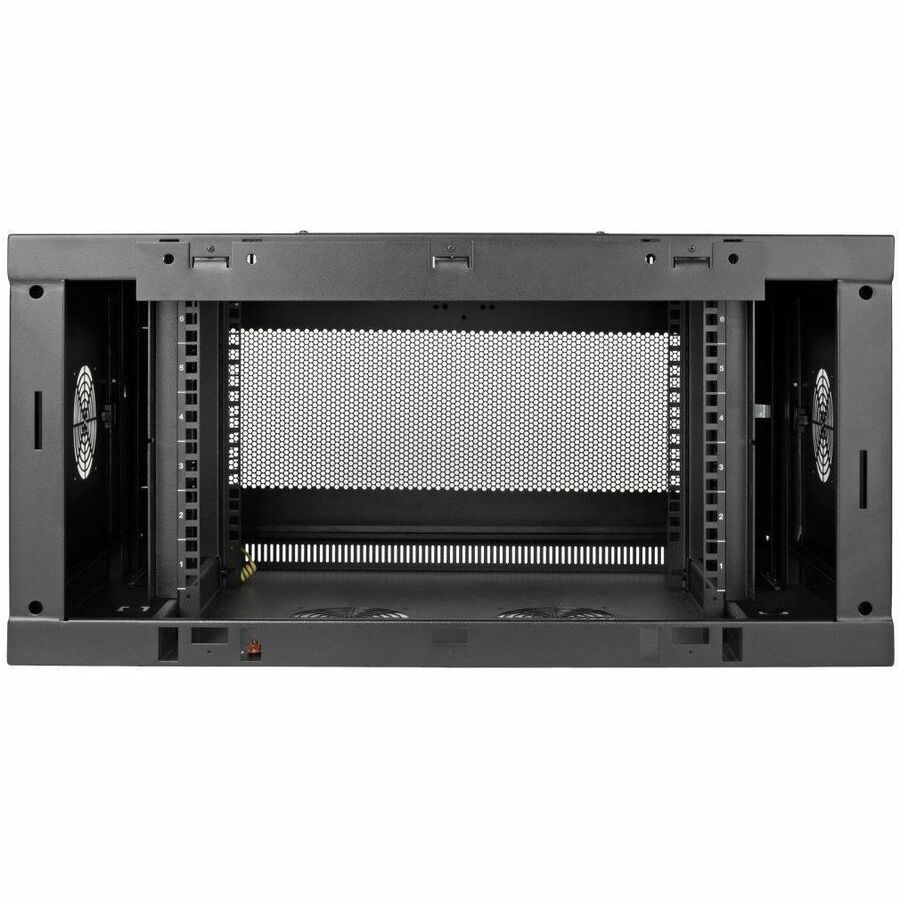

This 6U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels.

Meets Payment Card Industry Standards

The SRW6UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

Typical Applications

• Store and organize rack-mount equipment in a network wiring closet, retail location, classroom or other area where you need equipment to be secure

• Mount on a wall to save valuable floor space in a branch office or back office where floor space is limited

More from the Manufacturer

Simplifies Enclosure and Equipment Mounting

The cabinet ships fully assembled and ready for wall-mount installation with user-supplied hardware. Mounting rails are adjustable and have square and round (threaded) mounting holes. Rack spaces are numbered for easy equipment mounting with the included hardware. The side panels are removable for convenient access to equipment.

Simplifies and Improves Cable Organization

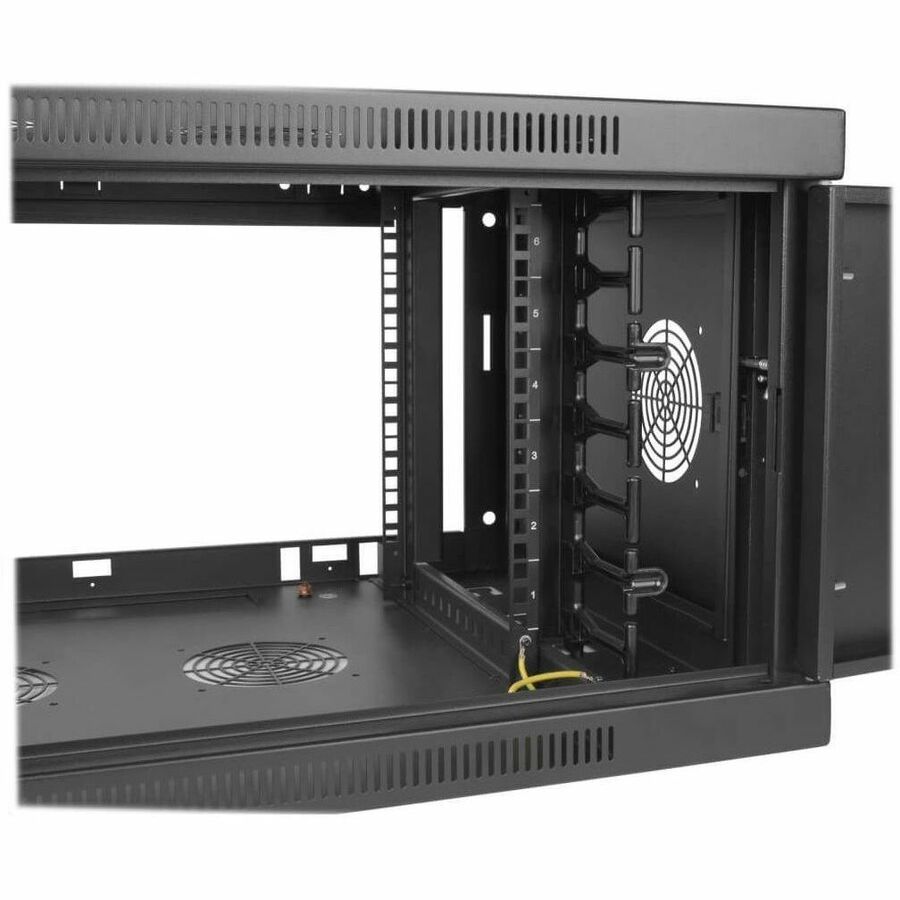

The built-in vertical cable managers with finger ducts reduce cable clutter and save the expense of adding external cable managers to the cabinet. The top and bottom of the cabinet have access openings and pass-throughs with brush strips for routing cables. Cable tie cutouts allow cable bundles to be secured to the top or bottom of the cabinet.

Improves Ventilation

Cable management reduces cable clutter, which promotes better airflow in high-density installations and makes equipment replacement easier. Top, bottom and side ports support the addition of ventilation fans, such as Tripp Lite’s SRFANWM (sold separately).

Secures Rack Equipment

This wall-mount rack enclosure is made of heavy-duty steel with a black powder-coated finish for durability. The ventilated front door and the side panels lock to help keep equipment safe and secure.
