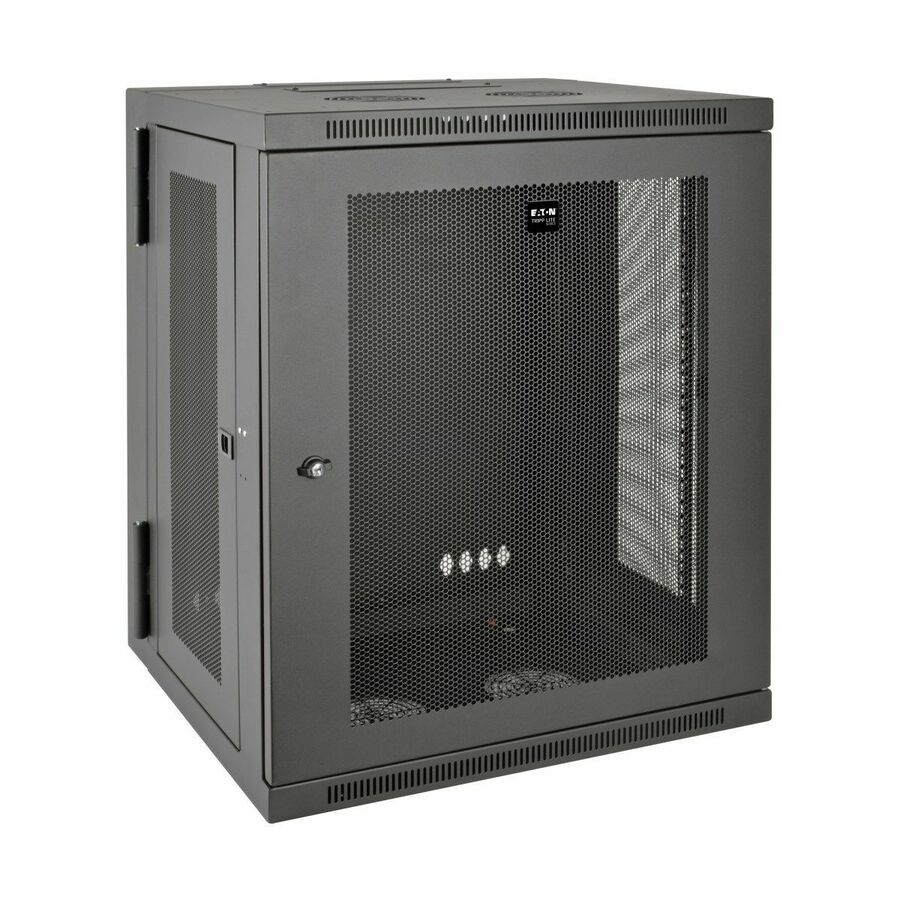

Tripp Lite by Eaton SmartRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure Hinged Back

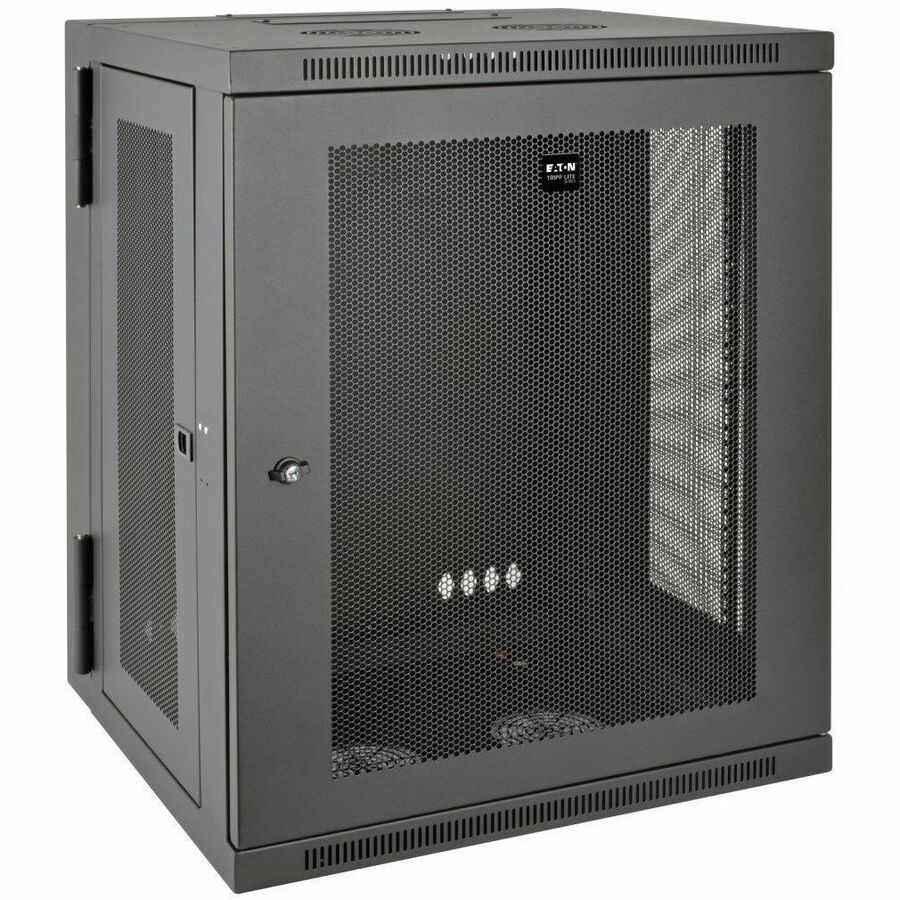

The SRW15US SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW15US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels. More from the Manufacturer

Hinged Cabinet, Secure Equipment and Optimized for Generous Airflow

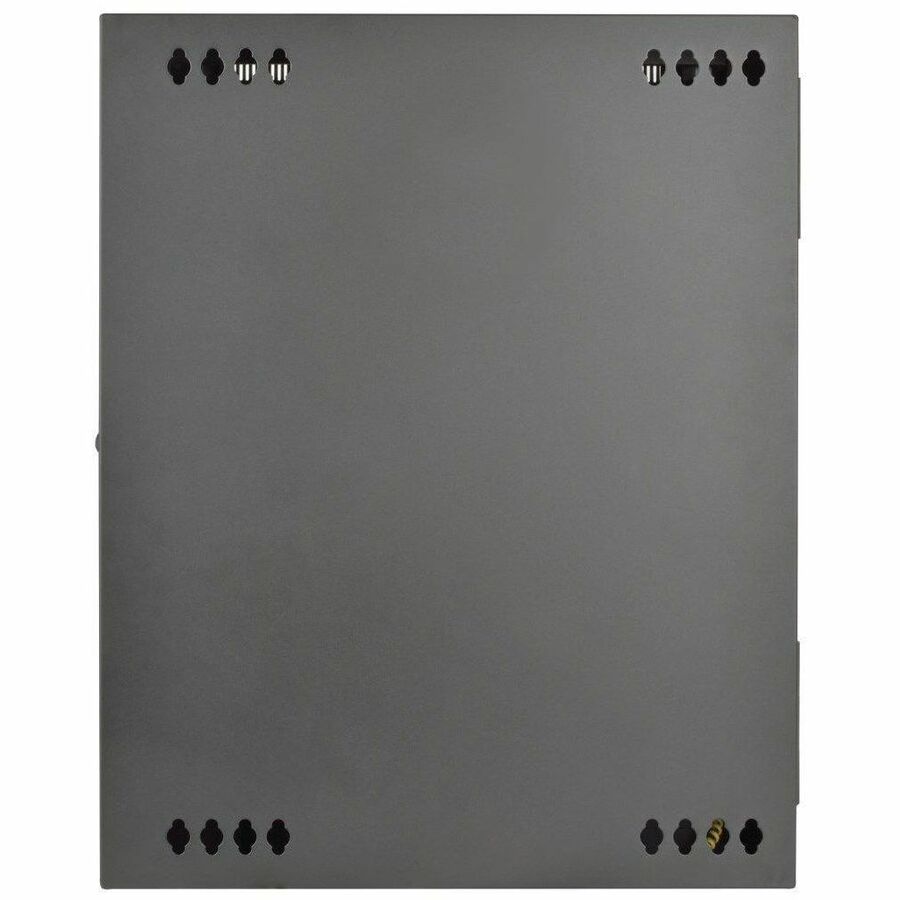

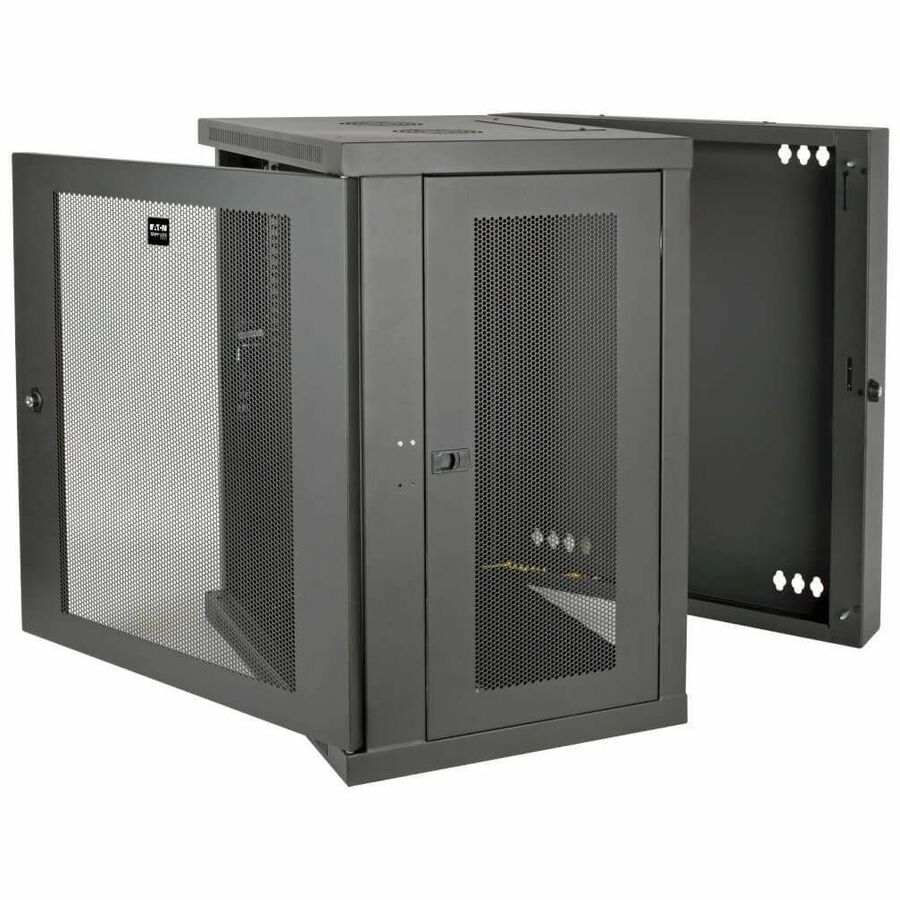

A sturdy wall bracket saves valuable space by enabling the SRW15US to be mounted off the floor. The mounting bracket uses a sturdy hinge that allows the enclosure cabinet to swing away from the wall to access equipment from back, allowing greater access for cable management and equipment maintenance. Swing direction can be reversed by rotating the enclosure cabinet 180 degrees before installation. The SRW15US’s wall bracket locks keep equipment secure in general-access areas.

The SRW15US’s vented top and bottom panels help remove warm air from the enclosure cabinet, draw in cool air by convection and also support installation of case fans like Tripp Lite’s SRFANWM Roof Fan Kit (sold separately). The top and bottom panels contain cable ports with removable covers for cable routing through the movable portion of the enclosure cabinet or the fixed wall bracket. Both door and side panels are perforated to promote efficient airflow.

Simple Equipment Installation and 5-Year Warranty

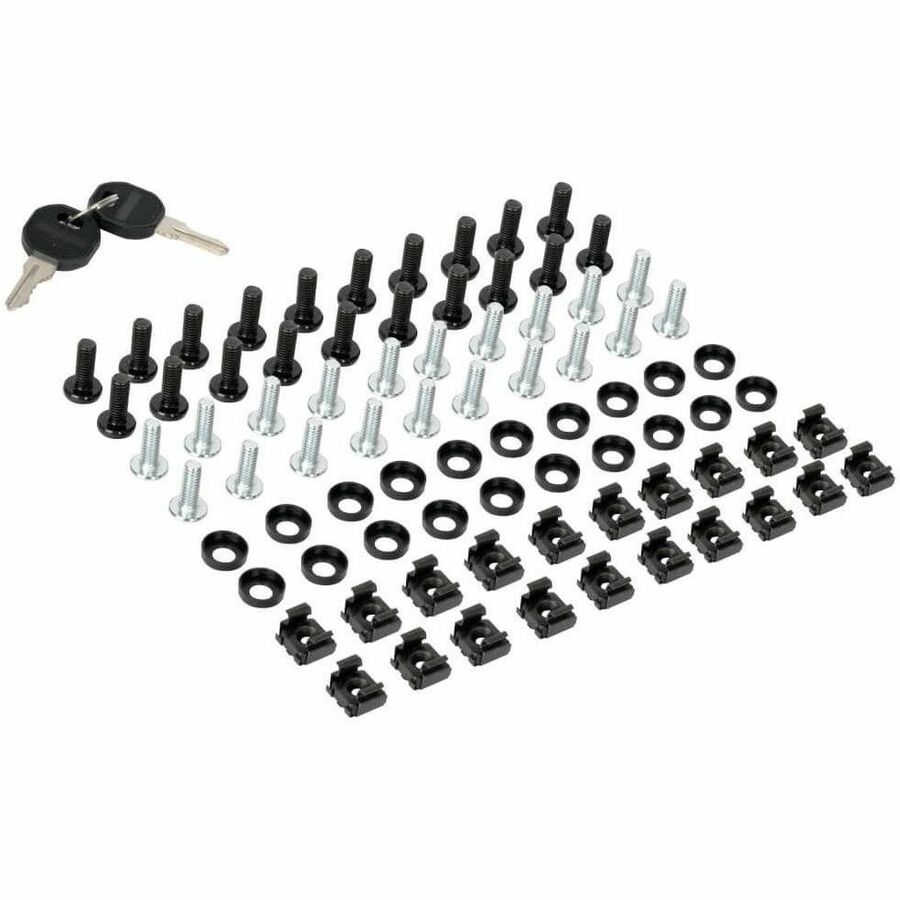

The SRW15US is compatible with all standard 19 inch rack equipment and is designed for simplified equipment installation. Its front and rear pairs of vertical mounting rails adjust in quarter-inch increments to accommodate equipment depths of 3 to 20.5 inches. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and each rack space within the enclosure cabinet is numbered for easy reference.

The SRW15US comes with a 5-year manufacturer’s product warranty and meets all requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
