Tripp Lite by Eaton SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments Hinged Back

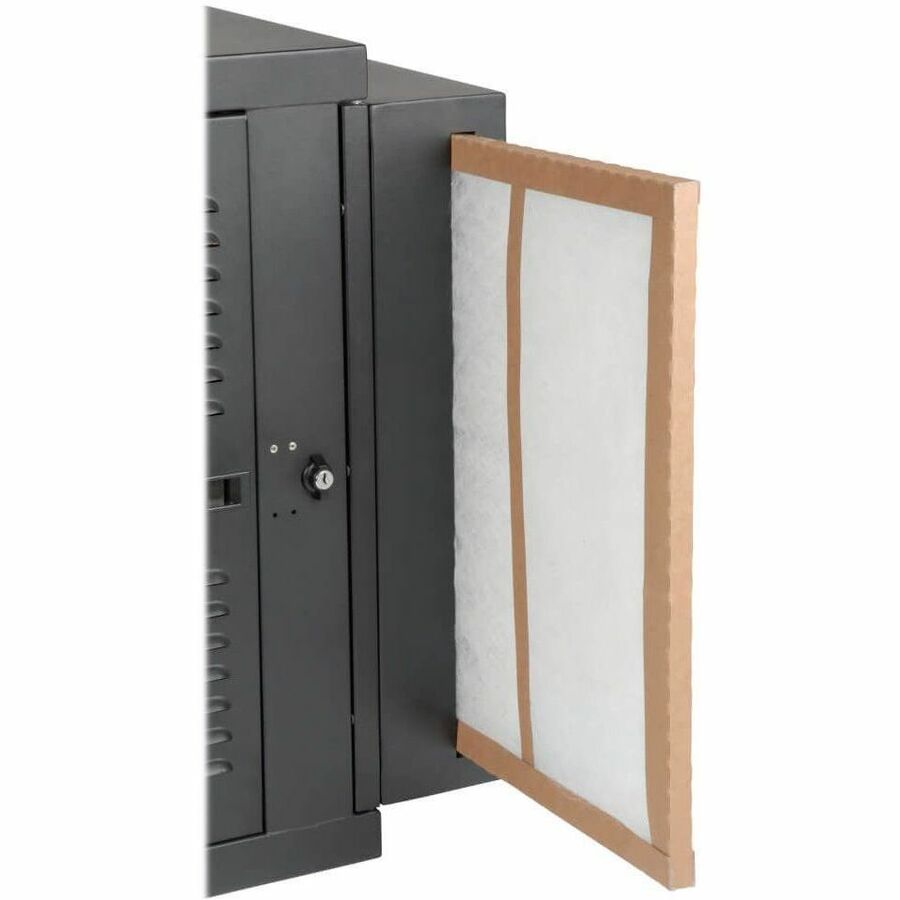

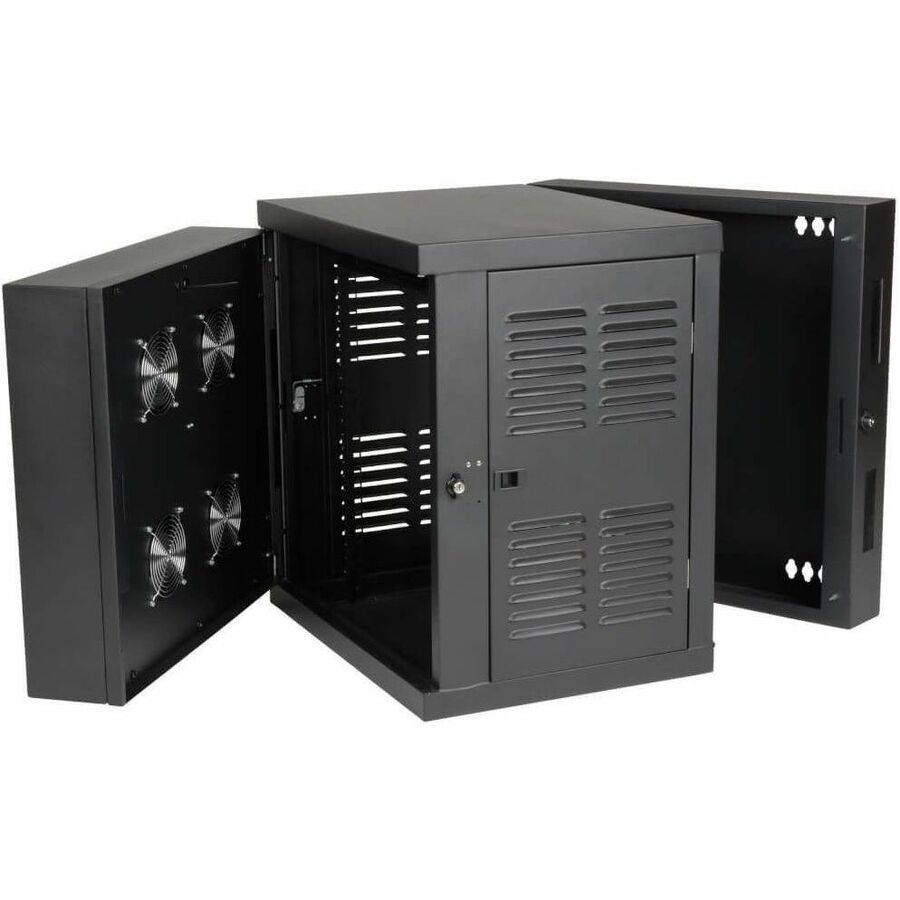

The SRW12USNEMA SmartRack 12U NEMA 12 Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The SRW12USNEMA has a NEMA 12 (IP54) protection rating, protecting sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its built-in air filter, louvered vents on the front door and side panels, sealed gasket around the door frames and brush strips around cable access points prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The reversible doors can open left or right. The doors and side panels lock securely to help prevent damage, tampering or theft. Convenient ports on the back door allow easy cable routing. The SRW12USNEMA comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels. More from the Manufacturer

Secure Equipment, Vented Top and Bottom Panels & Harsh Environment Ready

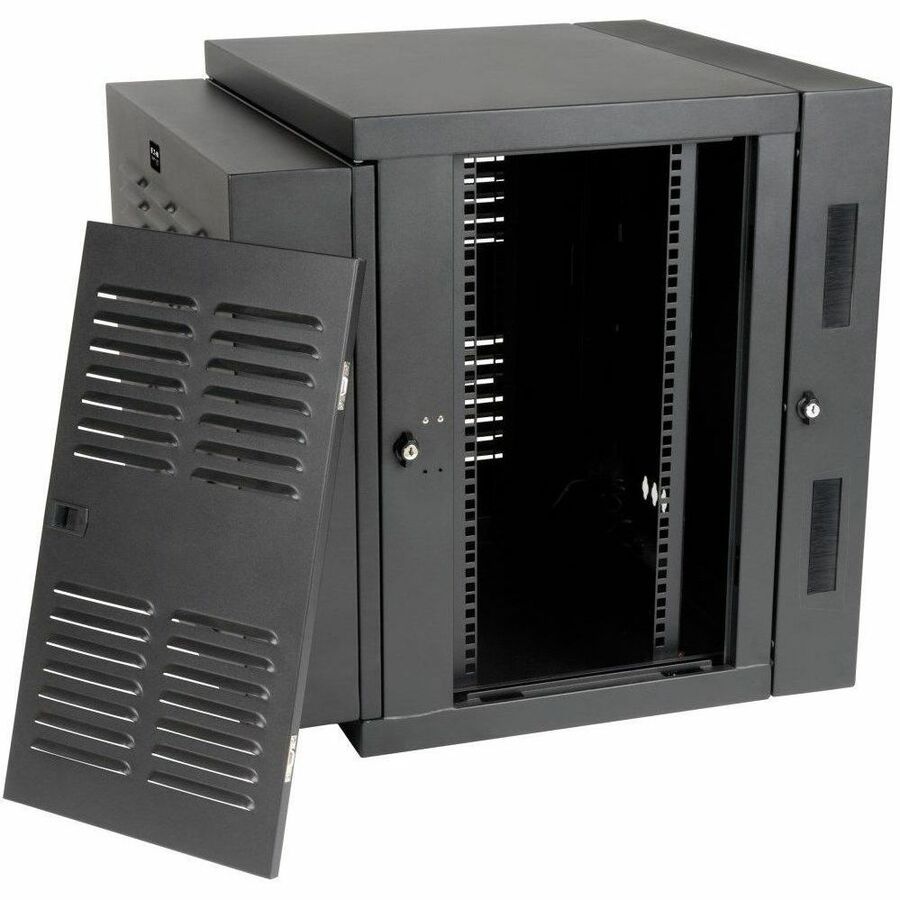

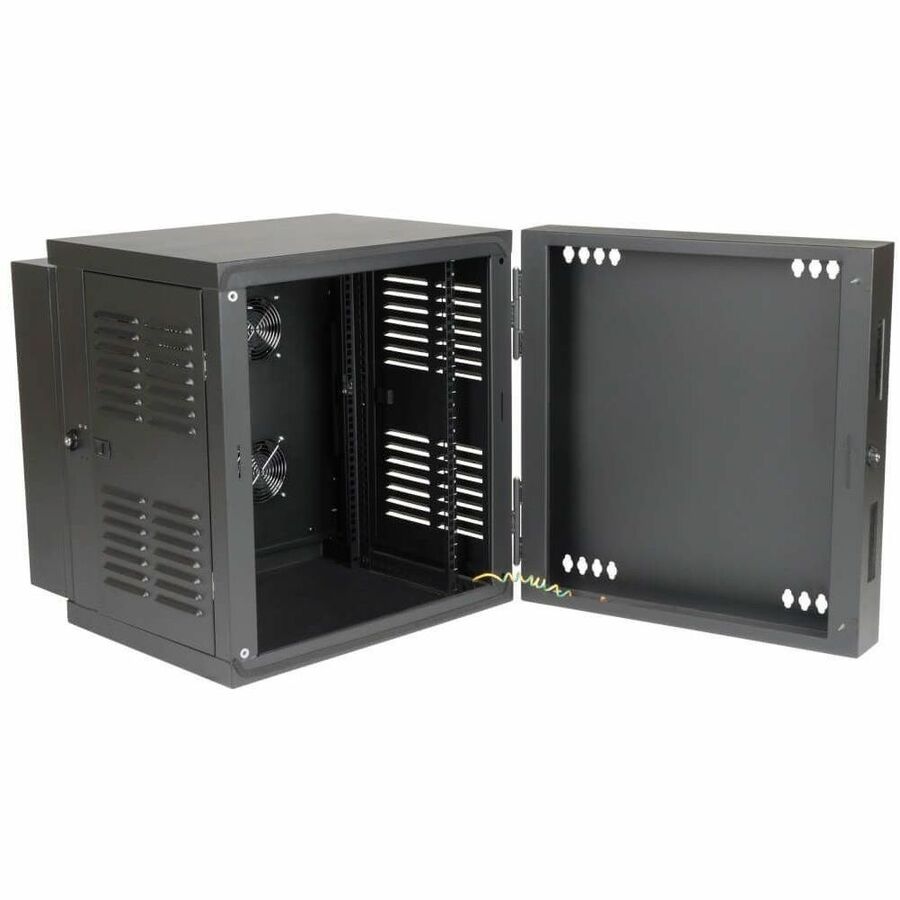

An included wall bracket with a sturdy hinge allows the SRW12USNEMA to swing away from the wall for convenient access to equipment and cabling. A locking, reversible front door and locking, removable side panels prevent unauthorized access while allowing authorized personnel to easily perform inspections and maintenance.

The top and bottom panels of the SRW12USNEMA are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels also include ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.

Ideal for harsh indoor environments that require protection from falling dirt or liquid, dust, light splashing, oil or coolant seepage, or accidental contact by personnel. It's perfect for locations like factories, construction areas, shipping facilities, warehouses and anywhere you need to protect equipment in a harsh working environments.

Simple Equipment Installation, Versatile Setup & Two Year Warranty

The SRW12USNEMA comes fully assembled, eliminating the need for time-consuming, confusing assembly and installation. When the time comes to install equipment, the front and rear pairs of rails adjust quickly and conveniently in one-inch increments. Simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware supports any standard 19-inch rack equipment in 12U of space. Mounting depths up to 20.5 inches.

An optional SRCASTER rolling caster kit, sold separately, adapts the SRW12USNEMA to floor-standing and roll-away applications under desks, tables or counters.

The SRW12USNEMA is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. For peace of mind, it comes backed by a 2-year warranty. The SRW12USNEMA also meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
