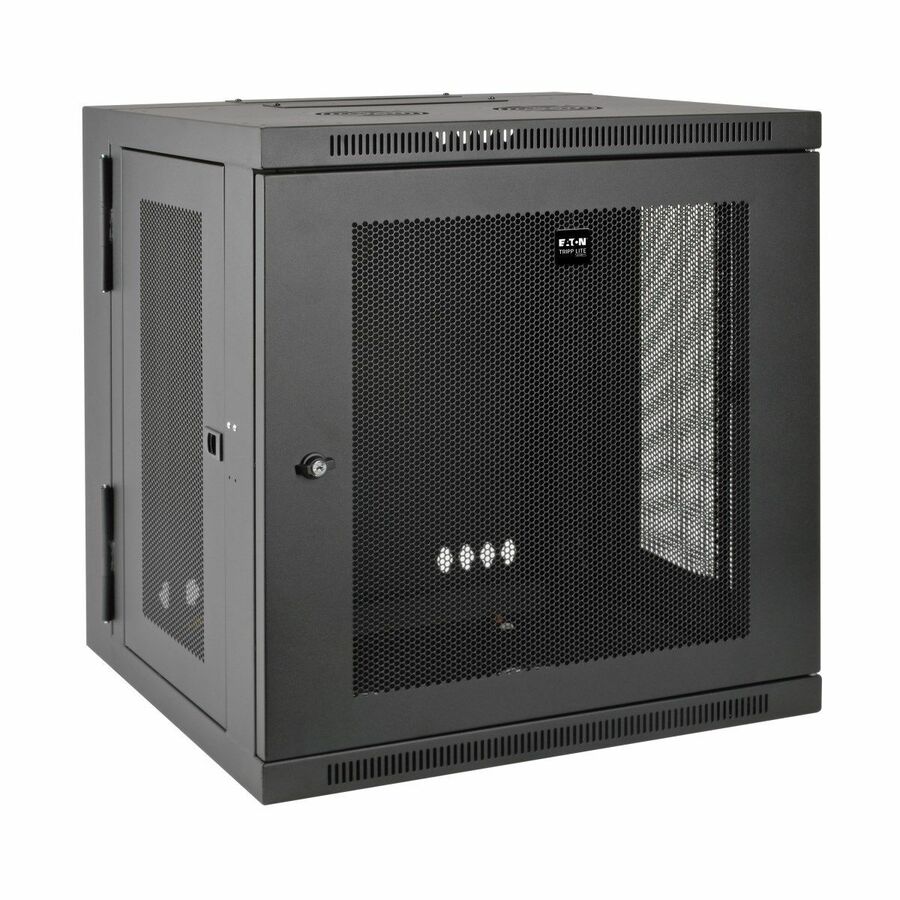

Tripp Lite by Eaton SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure Hinged Back

The SRW12US SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

More from the Manufacturer

Convenient Equipment Storage & Vented Top and Bottom Panels

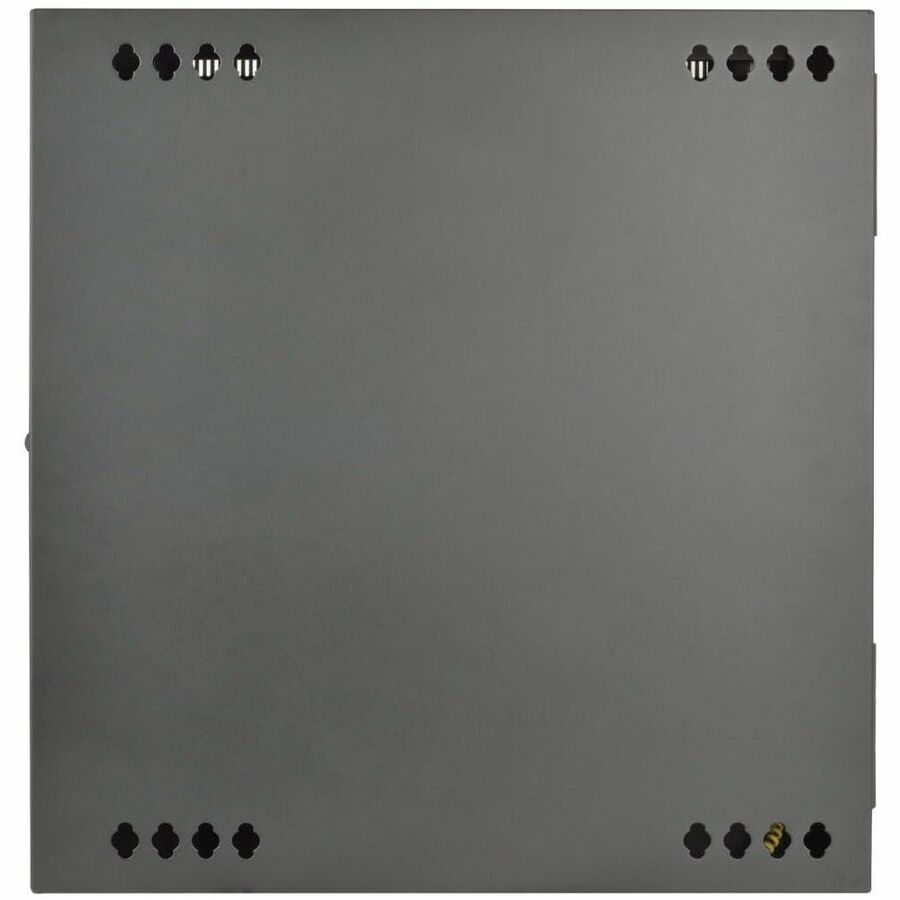

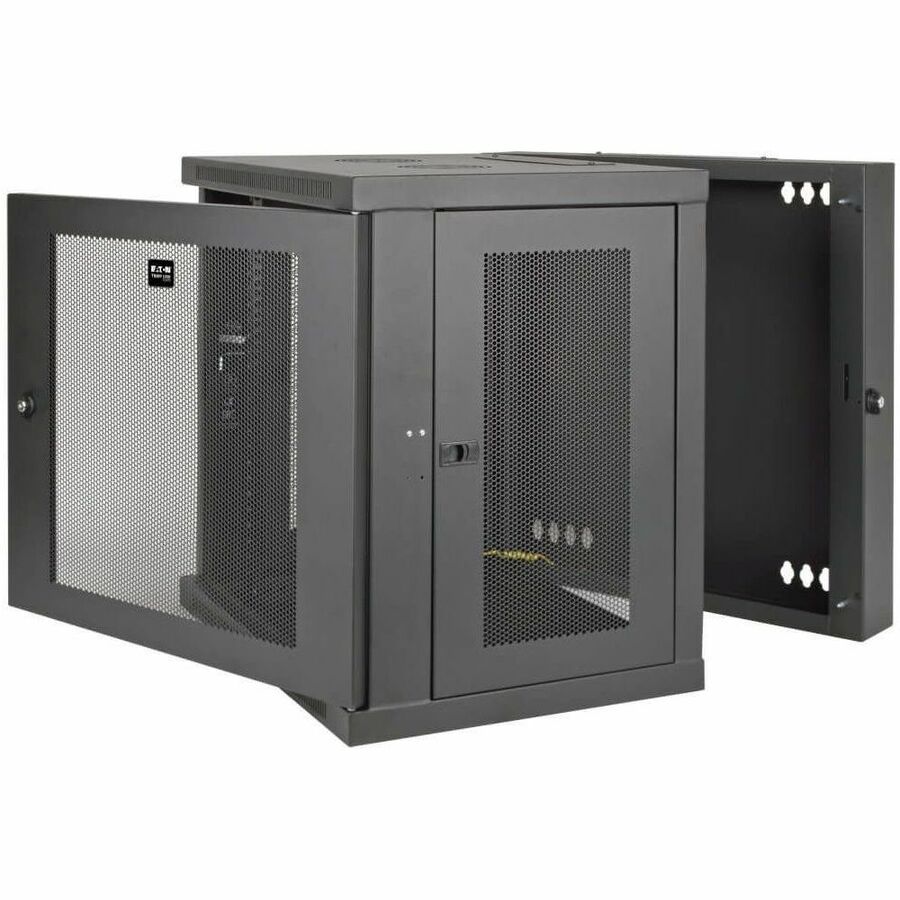

The wall bracket includes a sturdy hinge that allows the SRW12US to swing away from the wall for convenient access to equipment and cabling. The swing direction of the enclosure and door can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to provide secure access. The front door locks to provide secure access and is perforated to promote efficient airflow.

The top and bottom panels of the SRW12US are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.

Simple Equipment Installation, Versatile Setup & Five Year Warranty

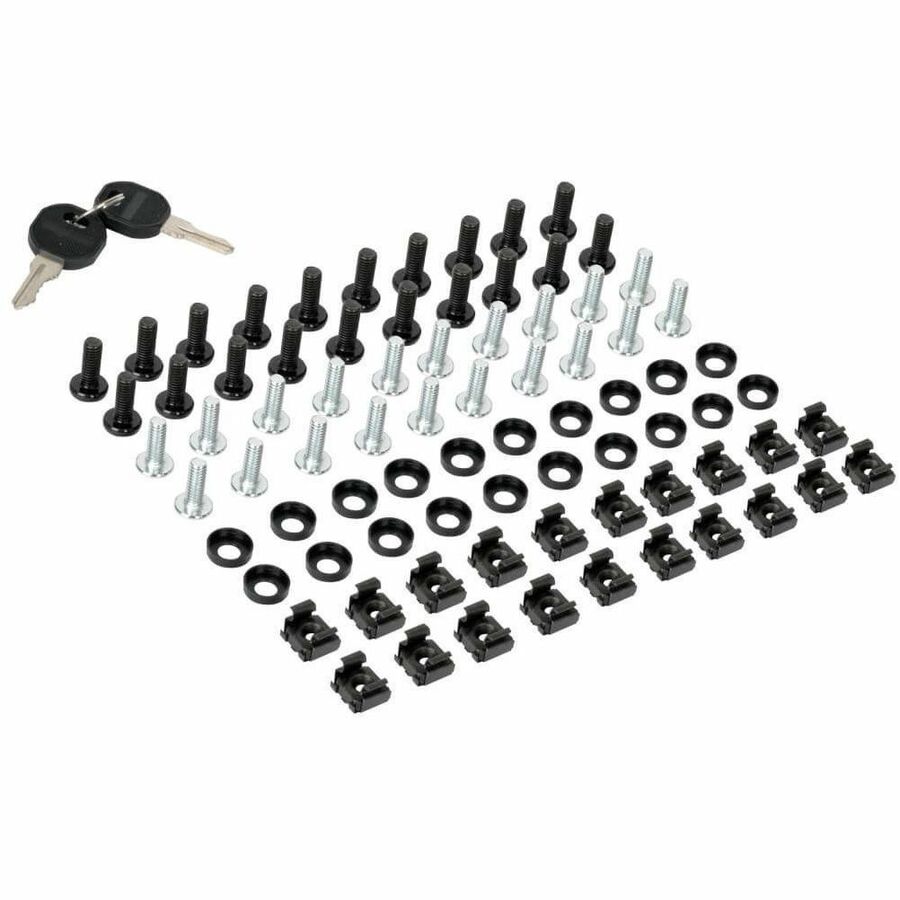

Front and rear pairs of rails adjust in one-inch increments. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware supports any standard 19-inch rack equipment. Rack spaces are numbered for easy reference. Adjustable mounting depths from 3" to 20.5" inches. The SRW12US also includes two lockable, removable side panels for ease of installation and service access. The side panels are perforated to allow generous airflow.

The SRW12US features a sturdy bracket and heavy-duty steel frame that allows the enclosure to be wall mounted—an ideal rackmount solution for any venue where floor space is limited. The SRW12US can also be configured as a freestanding, rollaway floor unit with Tripp Lite's optional Rolling Caster Kit (Model SRCASTER).

The SRW12US comes with a 5-Year Warranty and meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
