Tripp Lite series SRTHERMDUCTWDMD Cooling Duct
Eaton

Tripp Lite series SRTHERMDUCTWDMD Cooling Duct

SKU
SRTHERMDUCTWDMD
Category
Miscellaneous Kits

MSRP$1,529.76

$966.17

Save 37%

In stock: 11

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SRTHERMDUCTWDMD
Category
Miscellaneous Kits

Overview

Improves Cooling Efficiency in Your Data Center Where Airflow Management Is Key

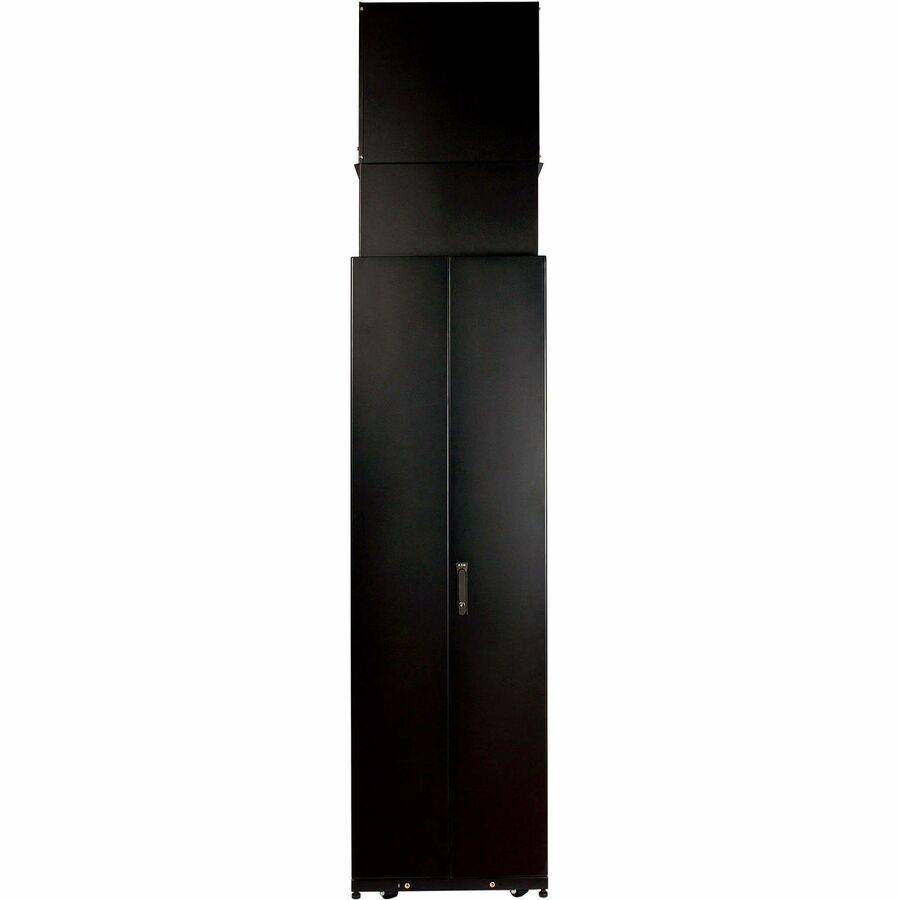

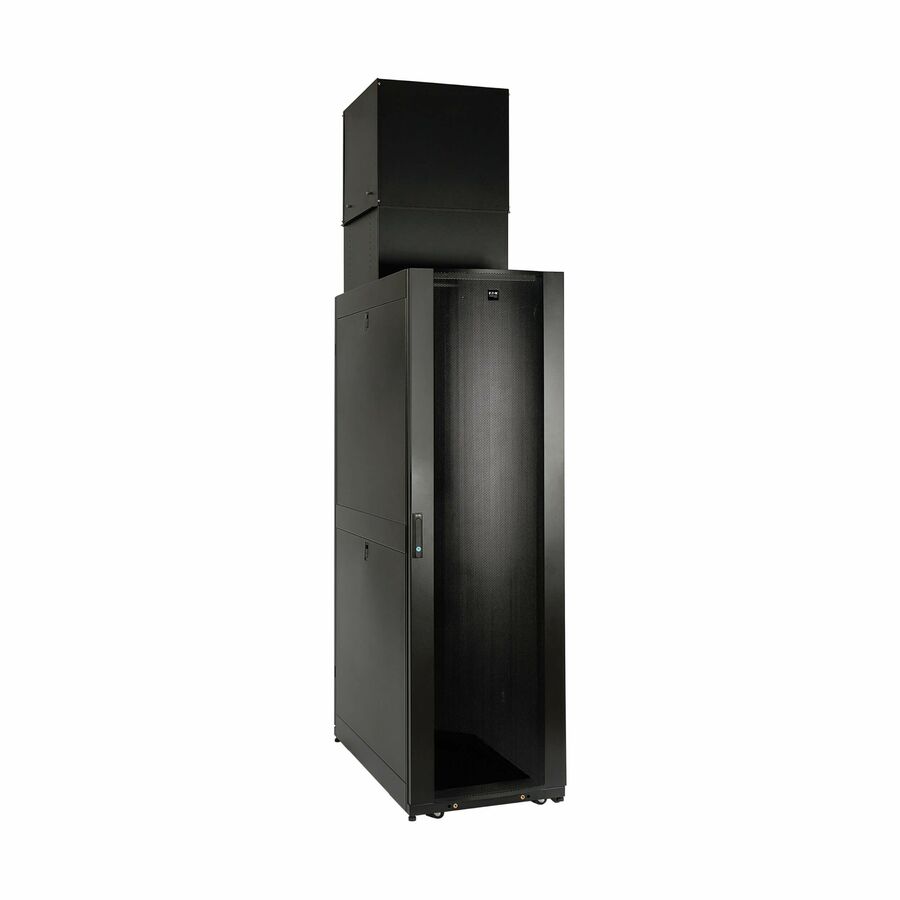

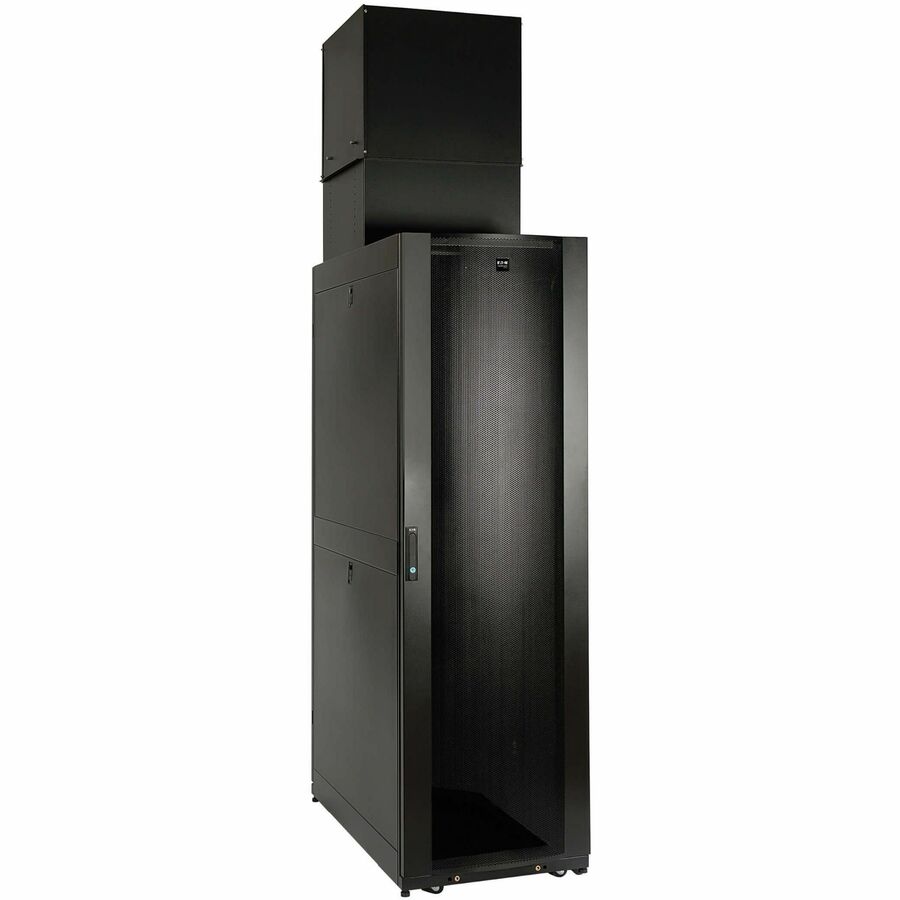

This SmartRack® SRTHERMDUCTWDMD is an adjustable three-piece venting and cable management system that fits on top of a standard-depth 42U or 48U rack enclosure that is 750 millimeters wide. The thermal duct kit allows heat built up in a typical rack configuration to be vented upwards into your facility's return air duct or other standard ventilation system, helping your equipment perform at its peak while reducing your facility's cooling and energy costs.

Mounts to the Roof of Your Rack Cabinet

To help your rack equipment perform at its peak while reducing your cooling and energy costs, the SRTHERMDUCTWDMD mounts on top of your enclosure and connects to your facility's CRAC or HVAC air return system. Included panels and seals help secure the rack to allow proper airflow. The chimney adjusts in height from 17 to 28 inches. All assembly hardware is included.

Warranty

Limited Warranty: 5 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Changes your rack cabinet into a sealed passive cooling structure
  • Adjustable roof-mount thermal duct connects to your HVAC return air system
  • Seals your enclosure airtight to allow proper airflow through the duct
  • Overall height after mounting is adjustable from 17 to 28 in.
  • Compatible with extra-wide standard-depth 42U and 48U rack enclosures
  • 5-year limited warranty

Specifications

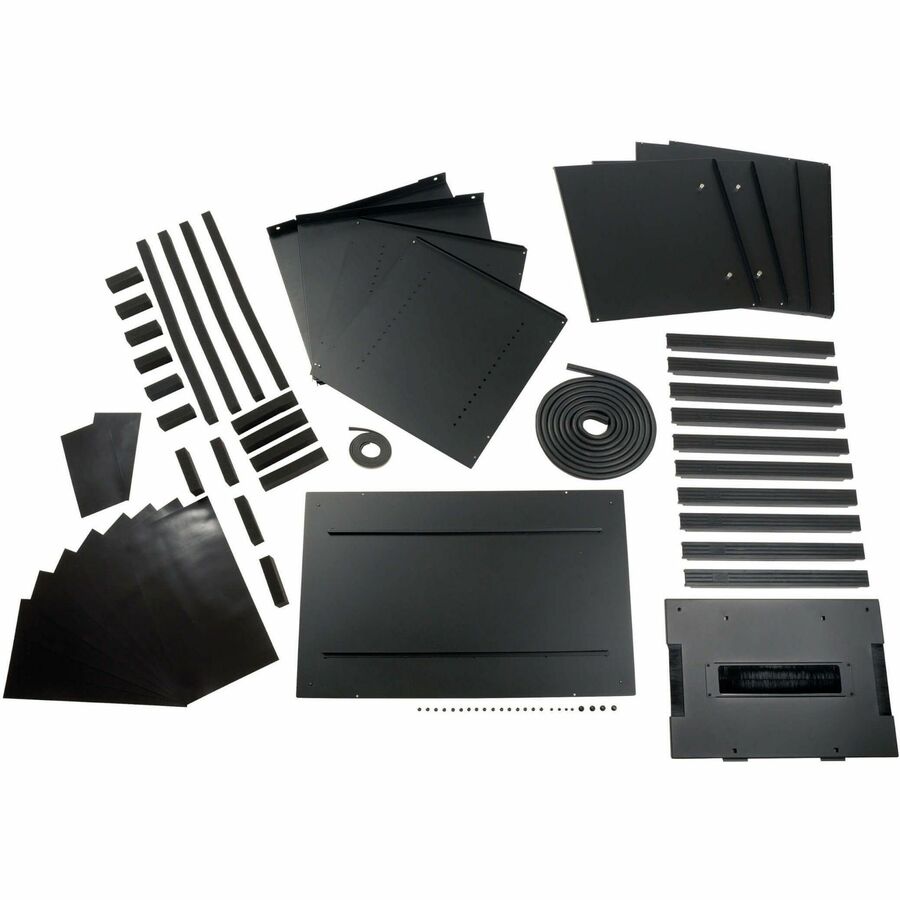

Package Contents

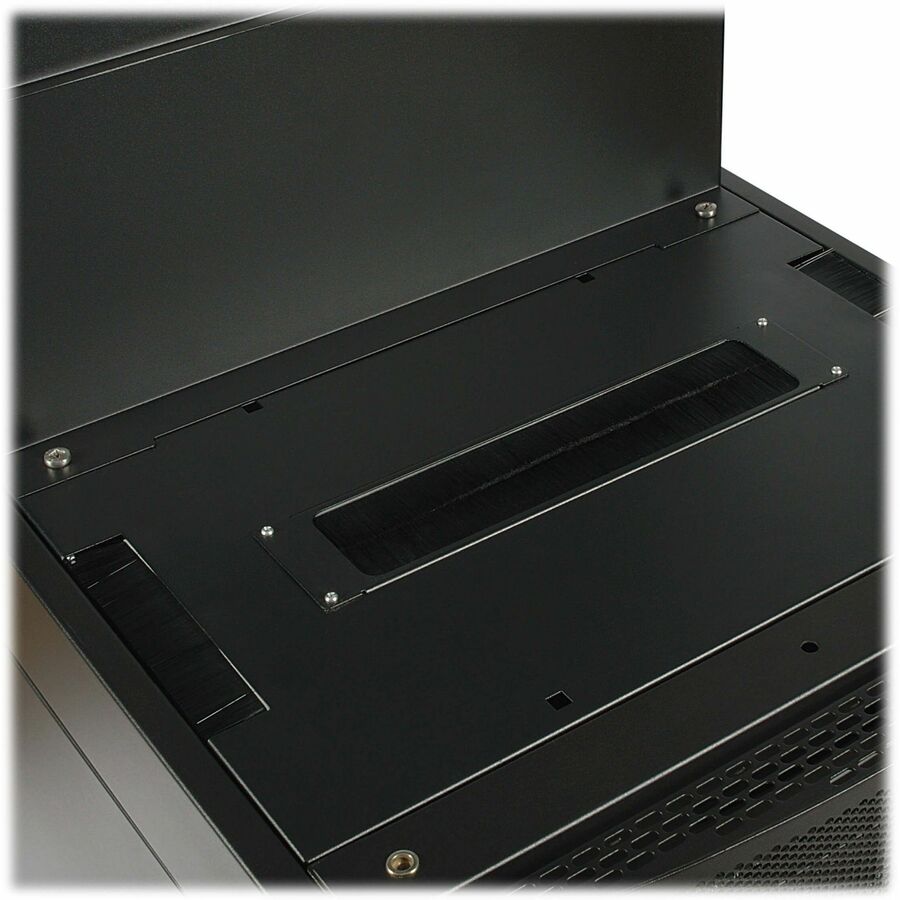

  • Cable Access Panel

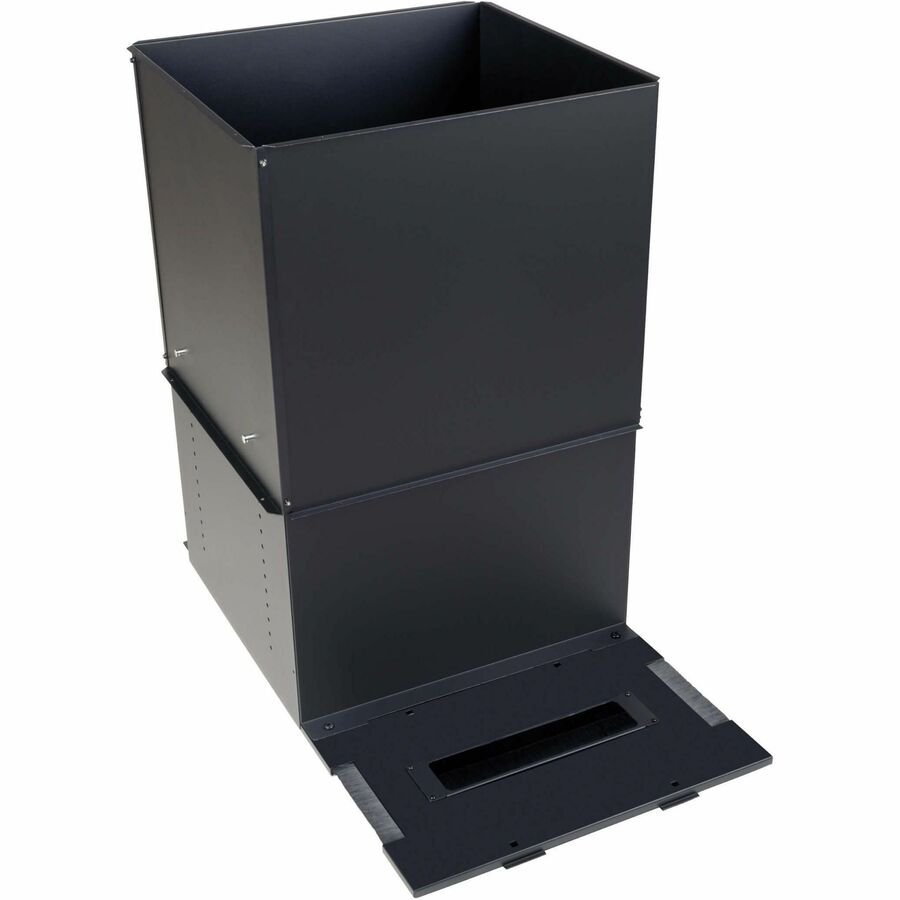

  • Chimney base
  • Adjustable chimney slider
  • 4 x M8 screws
  • 4 x M4 screws
  • 16 x M4 nuts
  • Enclosure bottom panel
  • 6 x Rectangular magnetic vinyl sheets, 252 x 476 mm
  • Cutout magnetic vinyl sheet, 252 x 476 x 325 mm
  • Cutout magnetic vinyl sheet, 252 x 476 x 452 mm
  • Tubular door seal
  • Flat door seal
  • 4 x Adjustment knobs
  • Owner's manual
Product TypeRack Accessory Kit
CompatibilityEaton 42U and 48U rack Enclosures
DimensionsUnit Dimensions (hwd / in.) 28.500 x 29.200 x 37.300
Manufacturer Part NumberSRTHERMDUCTWDMD
Limited Warranty5 Year
ManufacturerEaton Corporation
Product ModelSRTHERMDUCTWDMD
Product NameSRTHERMDUCTWDMD Cooling Duct
Brand NameTripp Lite series
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
