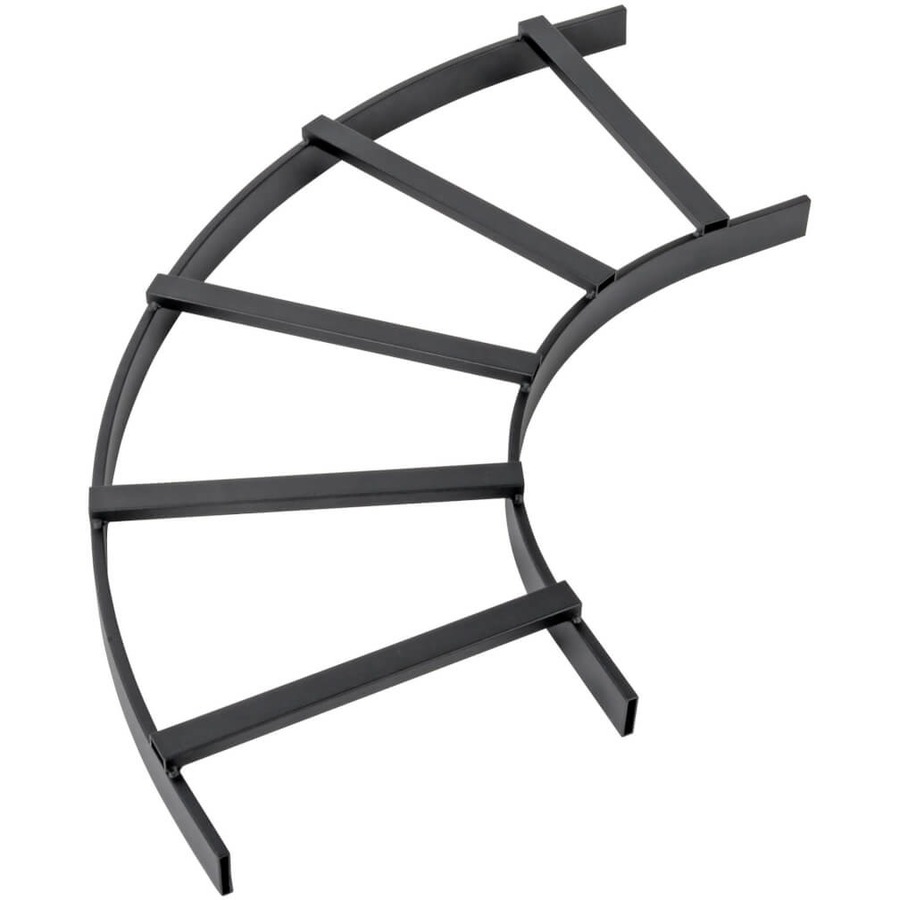

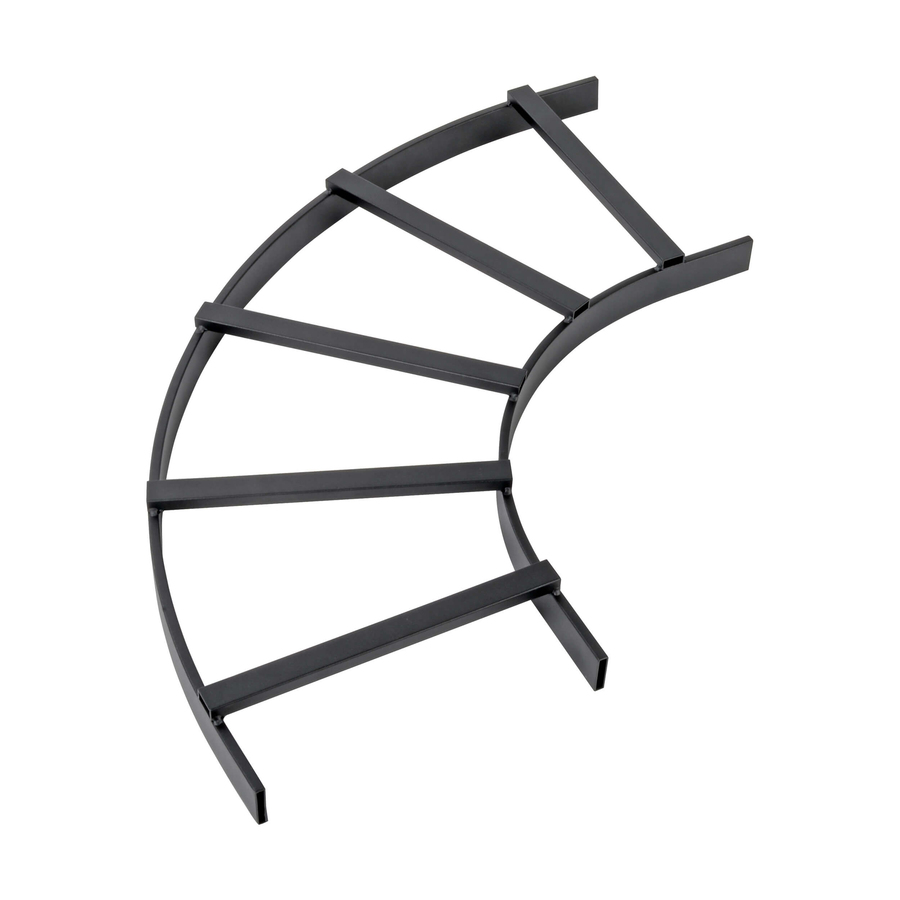

Eaton Tripp Lite Series Cable Ladder Runway E-Bend - 90 Degrees, 18 in. Width

Cable Runway E-Bend Creates a 90-Degree Gradual Sweep for Horizontal Cable Ladder Runs

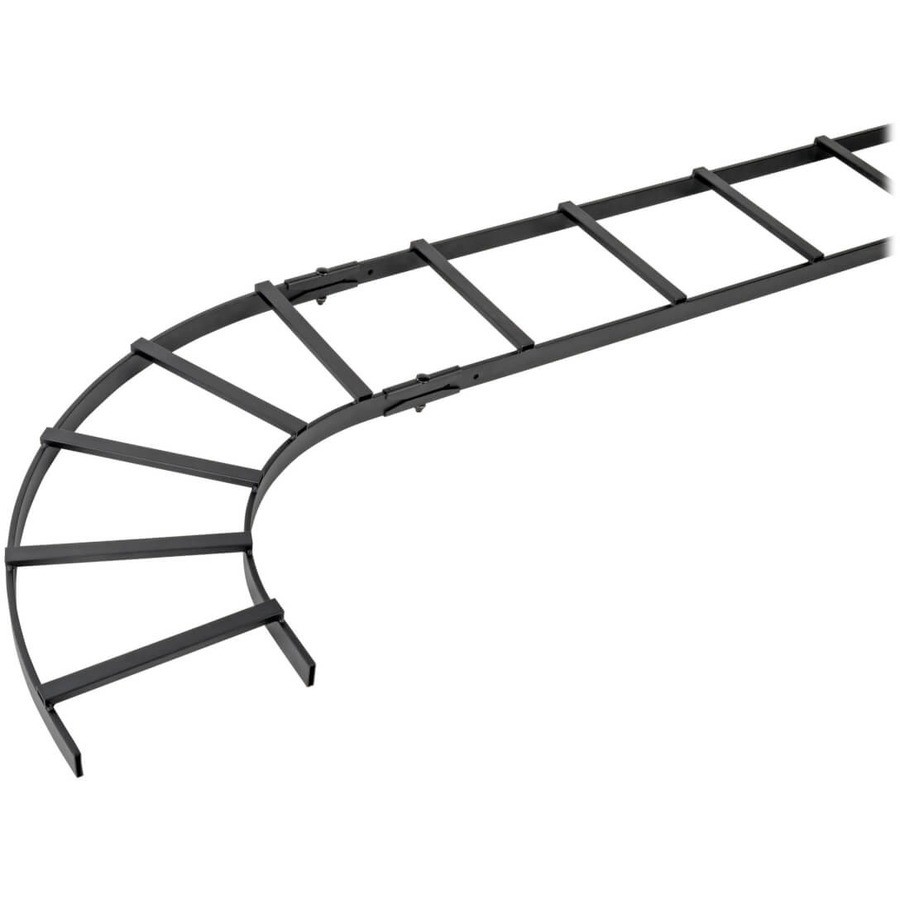

The SmartRack SRL90BEND18 allows you to place a curved right angle in your horizontal cable runway application. It connects to your 18-inch cable runway above your rack enclosure or open frame rack to allow flexibility in your overhead cable routing. Install it either parallel or perpendicular to the rack for clean, organized cable routing across an aisle or within a row.

Measures 18 in. Wide with a 33 in. Wide Bend

This cable E-bend conforms to minimum-bend radius requirements (typically four times the cable diameter). It's made from lightweight tubular steel measuring 1.5 x 0.375 inches (38 x 9.5 millimeters). It fits 18-inch (457-millimeter) cable runway widths, and meets Cat5e/6/6a requirements.

Designed for Use with Tripp Lite Rack Cabling Components

The SRL90BEND18 ships fully assembled for connecting right out of the package. It's compatible with Tripp Lite's 18-inch SRCABLELADDER18 and SRLBUTTSPLICE kit for toolless assembly. All Tripp Lite accessories are sold separately.

Typical Applications

• Neatly bundle cable across an aisle or within a row of bayed racks in your data center

System Requirements

• Works with SRCABLELADDER18 and SRLBUTTSPLICE

More from the Manufacturer

12 in. Aluminum Cable Ladder Runway E-Bend Helps De-Clutter Crowded IT Rack Environments

Tripp Lite’s SRL90BEND12 connects to other Tripp Lite SmartRack cable ladders to create a 90-degree curve in ladder runs. This 12 in. wide (with a 27 in. wide bend) aluminum runway gives you the flexibility to customize your routing to allow the best organization and protection for your cable.

12 in. wide cable ladder runway E-bend creates 90-degree curve in ladder runs

Makes toolless connection to the SRCABLELADDER12

Sturdy aluminum construction; lighter than comparable steel models

Conforms to Cat5e/6/6a standards for high-density network applications

Installation Options to Fit Your Environment

The SRL90BEND12 connects to 12 in. ladder runs above your rack enclosure or open frame rack so you can direct the runs around obstacles and optimally fit them into your data center layout. It’s ideal for applications where equipment or architectural elements (like support beams or stairs) interfere with desired cable routes.

Typical Applications

Neatly bundle cable across an aisle or within a row of bayed racks in your data center

Add a 90-degree curve to a SmartRack ladder series cable run
