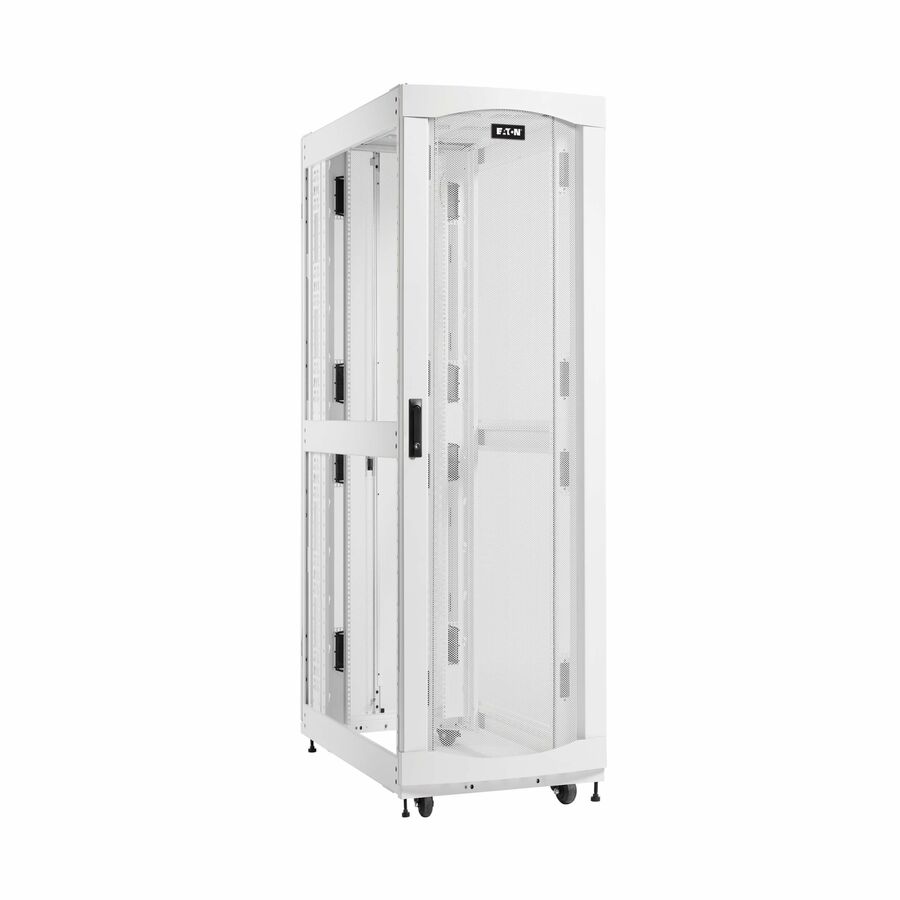

Eaton SmartRack 45U Standard-Depth Standard-Width Heavy-Duty Rack Enclosure Cabinet for AI Servers, White
For Server, Equipment, PDU - 45U Rack Height Enclosed Cabinet - White - Steel - 3500 lb Dynamic/Rolling Weight Capacity - 5000 lb Static/Stationary Weight Capacity
- SKU
- SRH45UW
- Category
- Rack Equipment
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRH45UW
- Category
- Rack Equipment
Overview
Heavy-Duty 45U Rack Cabinet Accommodates Servers Used in AI Applications
This SmartRack® 45U rack enclosure is constructed from heavy-duty steel 2.5 millimeters thick with reinforced structural elements, including extra welds and gussets for greater strength, extra connection points, and upgraded casters and levelers to support more weight. This cabinet has a maximum stationary load capacity of 5000 pounds (2268 kilograms) and a maximum rolling load capacity of 3500 pounds (1588 kilograms).
Keeps AI Servers and Other Equipment Secure
The reversible front door, split rear doors and removable side panels lock securely with the included keys to help prevent damage, tampering or theft. The doors and side panels are designed for quick release, making it simple to access connected equipment and cabling with little effort. The removable roof panel has strategically placed pass-throughs to accommodate cables from vertical 0U PDUs and other equipment. The perforated front and split rear doors allow generous airflow from front to rear to help keep your equipment cool and functioning at its peak.
White Server Rack Improves Visibility for Easier Maintenance
The SRH45UW features a white powder-coated finish both inside and outside. This white rack makes it easier to see the equipment mounted inside high-density installations. Improved visibility of ports and cables allows easier, faster installation and maintenance and helps reduce accidental disconnections.
Easy Enclosure and Equipment Installation
This 45U server rack comes fully assembled for quick deployment with pre-installed casters that let you maneuver it over a level surface, where it can be stabilized by adjusting the levelers. Toolless 0U mounting rails allow quick installation of compatible PDUs and vertical cable managers. Built-in baying brackets allow the combination of two or more rack cabinets in a row.
Meets Payment Card Industry Standards
The SRH45UW provides physical equipment and media security needed for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or send credit card information.
Warranty
Limited Warranty: 5 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Maximum capacity: 5000 lb. (2268 kg) stationary, 3500 lb. (1588 kg) rolling load
- 2.5 mm thick steel frame includes extra welds and gussets for greater strength
- White powder-coated finish makes it easier to see ports and cables inside
- Ships fully assembled for immediate deployment and equipment mounting
- Provides physical equipment and media security needed for PCI DSS compliance
Specifications
| Application/Usage | Server, Equipment, PDU |
|---|---|
| Package Contents | SmartRack SRH45UW Rack Cabinet 4 x Side Panels 4 x Side Panel Locks 2 x Keys 60 x Phillips-head Mounting Screws (M6 x 5/8 in.) 60 x Nylon Cup Washers 60 x Cage Nuts Owner's Manual |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SRH45UW |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 457 lb |
| Features | Heavy Duty, Powder Coated, Casters, Adjustable Leveling Feet, Reversible Front Door, Removable Side Panel, Key Lock, Damage Resistant, Tamper Resistant, Perforated Door, Lockable, Leveling Feet, Rear Door |
| Manufacturer | Eaton Corporation |
| Product Model | SRH45UW |
| Product Name | SmartRack SRH45UW Rack Cabinet |
| Product Line | SmartRack |
| Rack Height | 45U |
| Brand Name | Eaton |
| Country of Origin | China |
| Assembly Required | No |
| Height | 84.9" |
| Width | 23.6" |
| Depth | 44.1" |
| Static/Stationary Weight Capacity | 5000 lb |
| Dynamic/Rolling Weight Capacity | 3500 lb |
| Rack Depth | 41" |
| Product Color | White |
| Color Family | White |
| Rack Type | Enclosed Cabinet |
| Product Material | Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
