Tripp Lite series SmartRack SRFFD4230 Rack Door
For Cabinet, Enclosure, Server, Equipment Rack - 42U Rack Height - Rack-mountable - Black - Cold Rolled Steel - 2 Year Warranty
- SKU
- SRFFD4230
- Category
- Rack Equipment
MSRP$1,530.00
$967.82
Save 37%In stock: 64
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRFFD4230
- Category
- Rack Equipment
Overview
Rack Cooling Fans for 42U Wide Enclosures

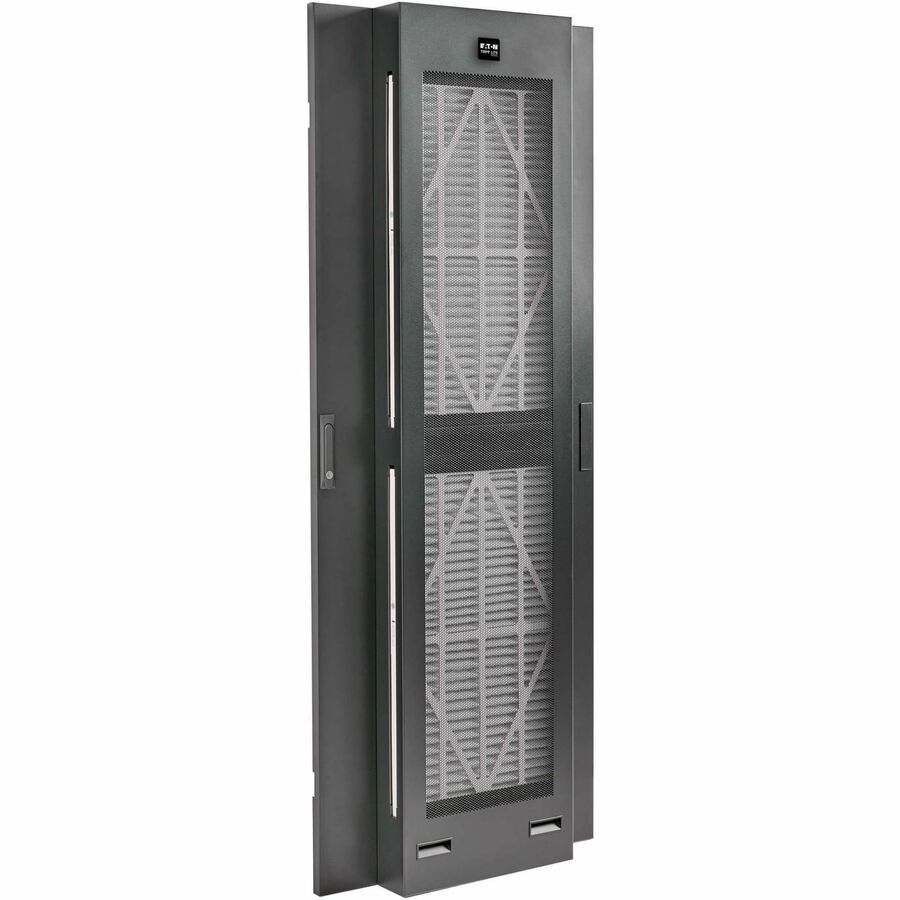

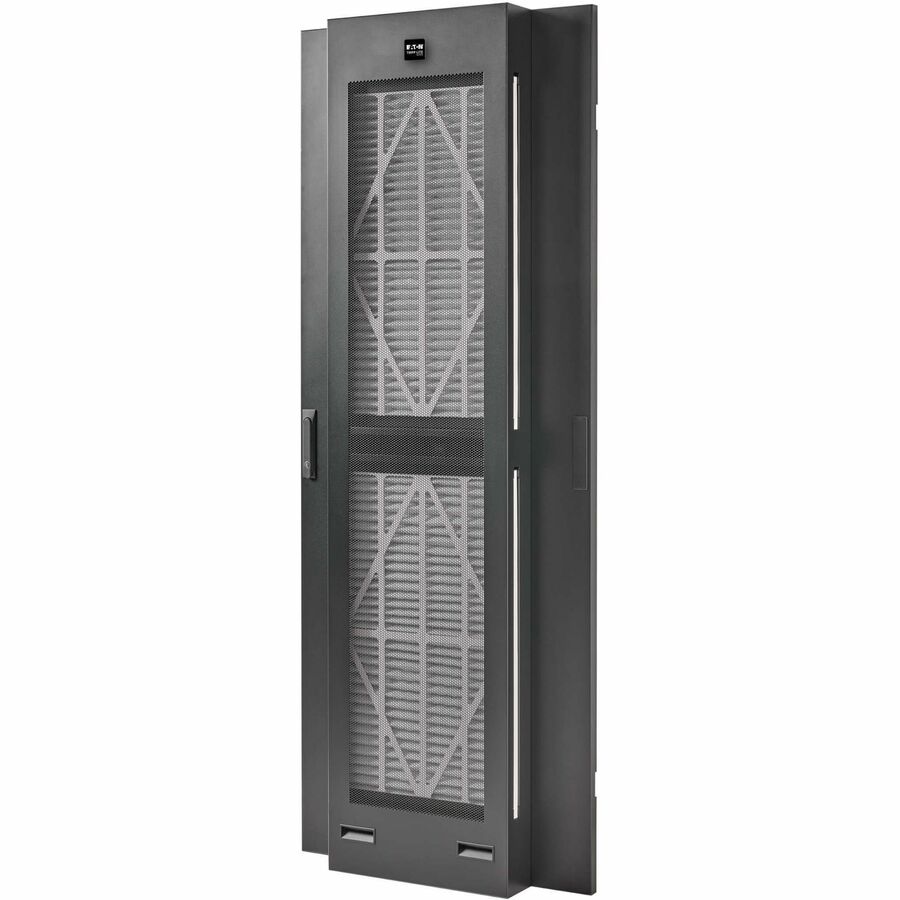

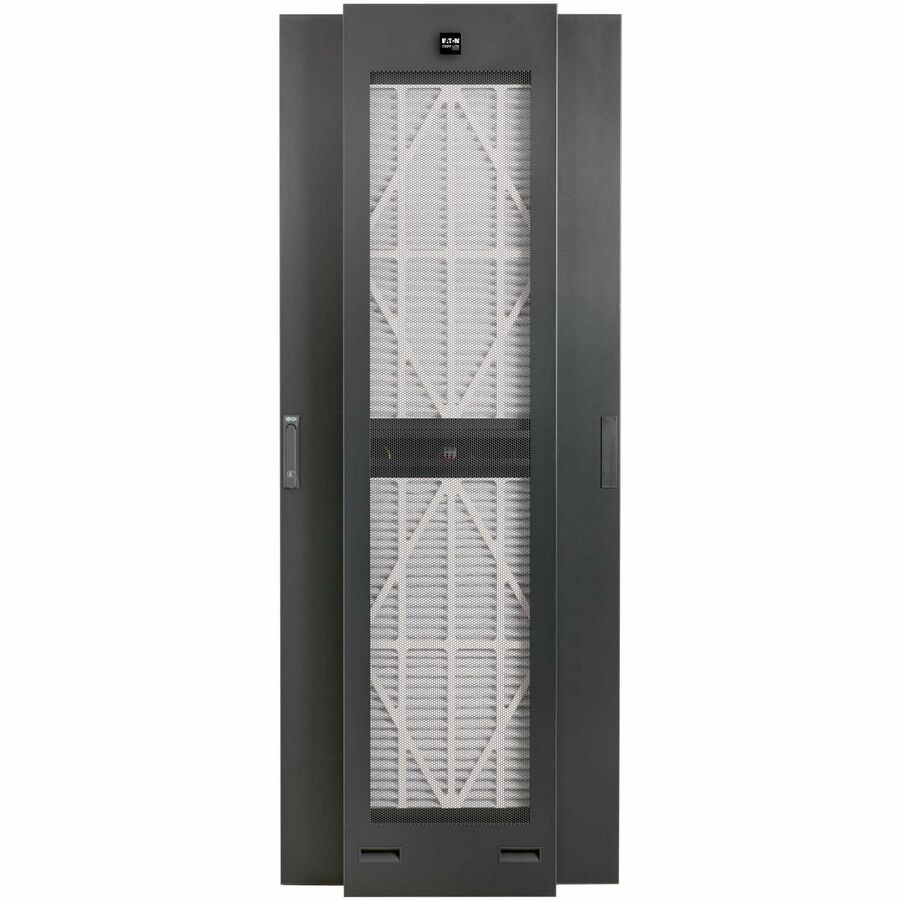

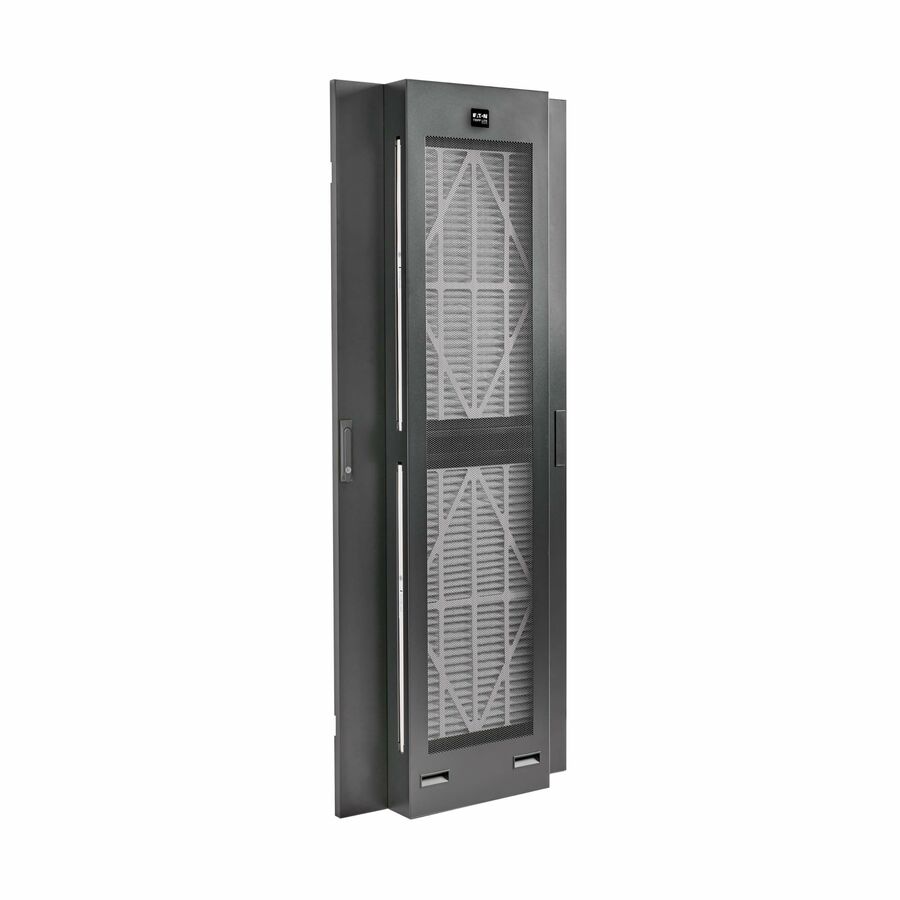

The SmartRack® SRFFD4230 is a server rack door with cooling fans and air filters integrated into it. Designed specifically for SmartRack's 42U wide rack enclosures, these fans help keep rack-mounted equipment cool to maintain top performance and avoid failures that can lead to costly downtime, damage or data loss.
Increases Airflow and Helps Keep Air Intake Clean

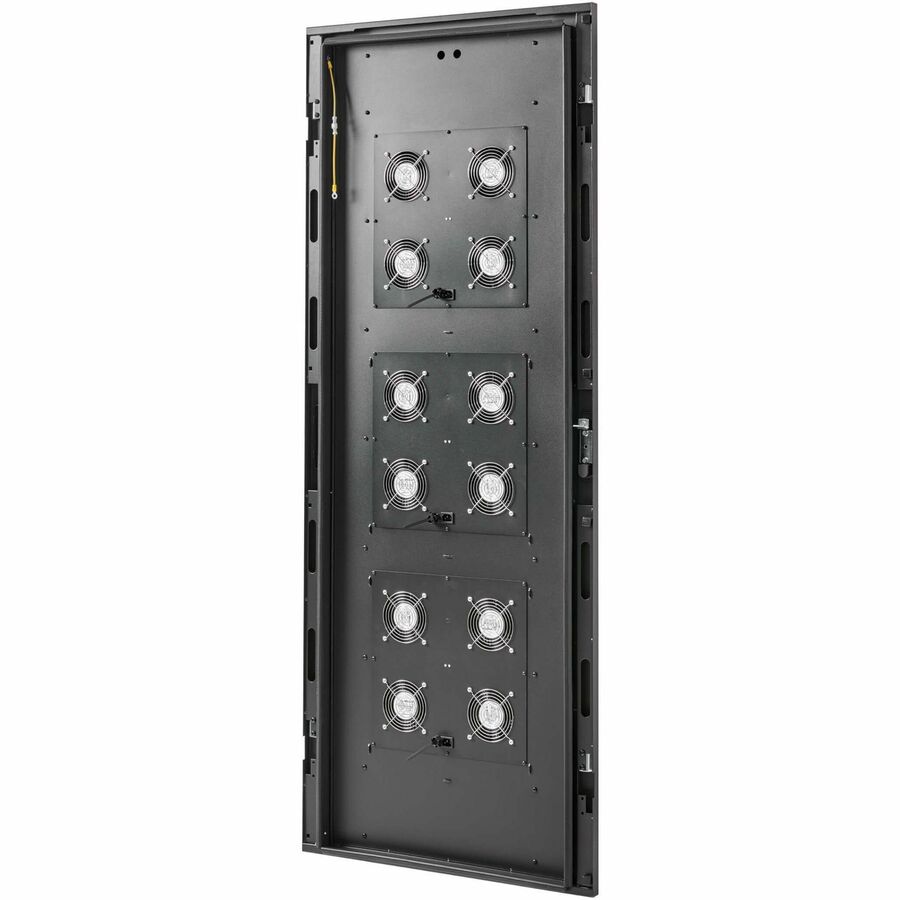

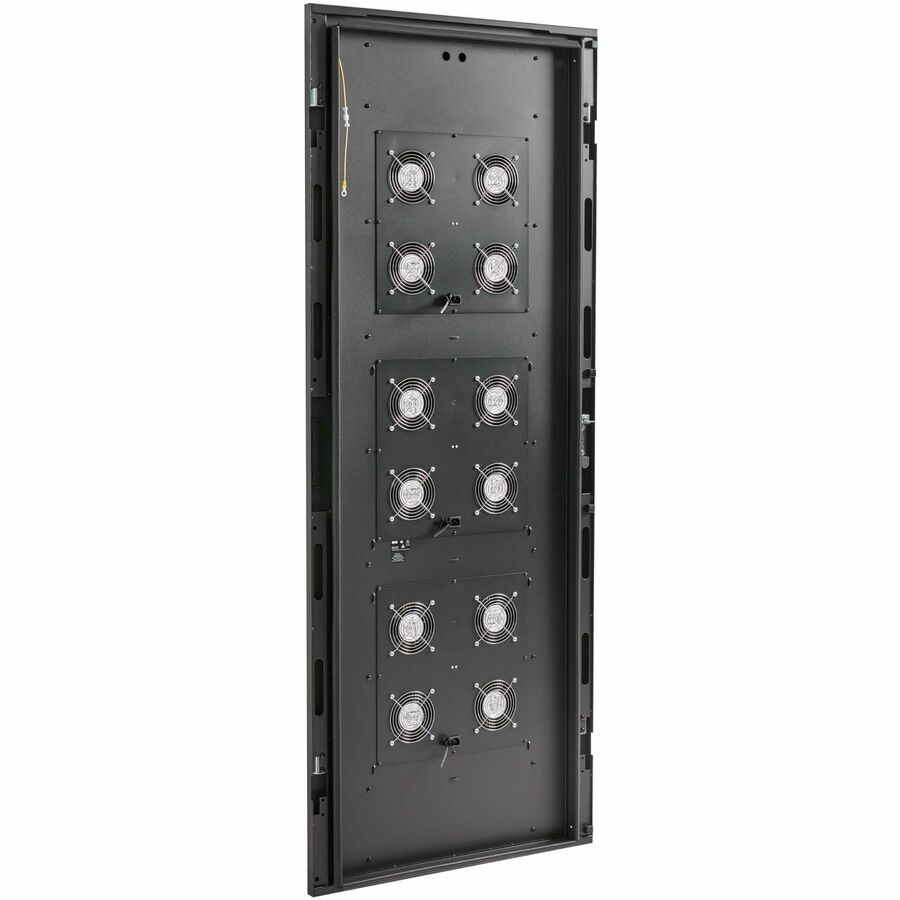

The SRFFD4230 includes three separate fan panels with four 120V fans per panel (12 fans total) that each provide a maximum airflow of 82CFM at 50Hz and 93CFM at 60Hz. It also comes with a perforated outer panel to allow air to pass through, fan guards and two pre-installed dust filters.
Plug-and-Play Construction for Easy Installation
All necessary toolless mounting hardware is included. The SRFFD4230 is made from heavy-duty cold-rolled steel with a black finish. The six-foot power cords with NEMA 5-15P plugs connect to any compatible wall outlet, PDU or UPS system.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Helps boost rack equipment performance by increasing airflow through the enclosure
- Includes 12 high-performance 120V fans pre-mounted in 3 separate door panels
- Dust filters come pre-installed in the fan door assembly's front door to keep air clean
- Plug-and-play operation with all necessary toolless mounting hardware included
- Includes 3 C13 to 5-15P input cords connects to the door's C14 power inlets
- 2-year limited warranty
Specifications
| Application/Usage | Cabinet, Enclosure, Server, Equipment Rack |
|---|---|
| Package Contents |
|
| Cable Length | 72" |
| Product Type | Rack Door |
| Manufacturer Part Number | SRFFD4230 |
| Limited Warranty | 2 Year |
| Features | Cooling Fan, Front Door, Heavy Duty |
| Form Factor | Rack-mountable |
| Manufacturer | Eaton Corporation |
| Product Model | SRFFD4230 |
| Product Name | SmartRack SRFFD4230 Rack Door |
| Product Line | SmartRack |
| Rack Height | 42U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 5-15P |
| Height | 75.2" |
| Width | 29.7" |
| Depth | 6.2" |
| Product Color | Black |
| Color Family | Black |
| Product Material | Cold Rolled Steel |
