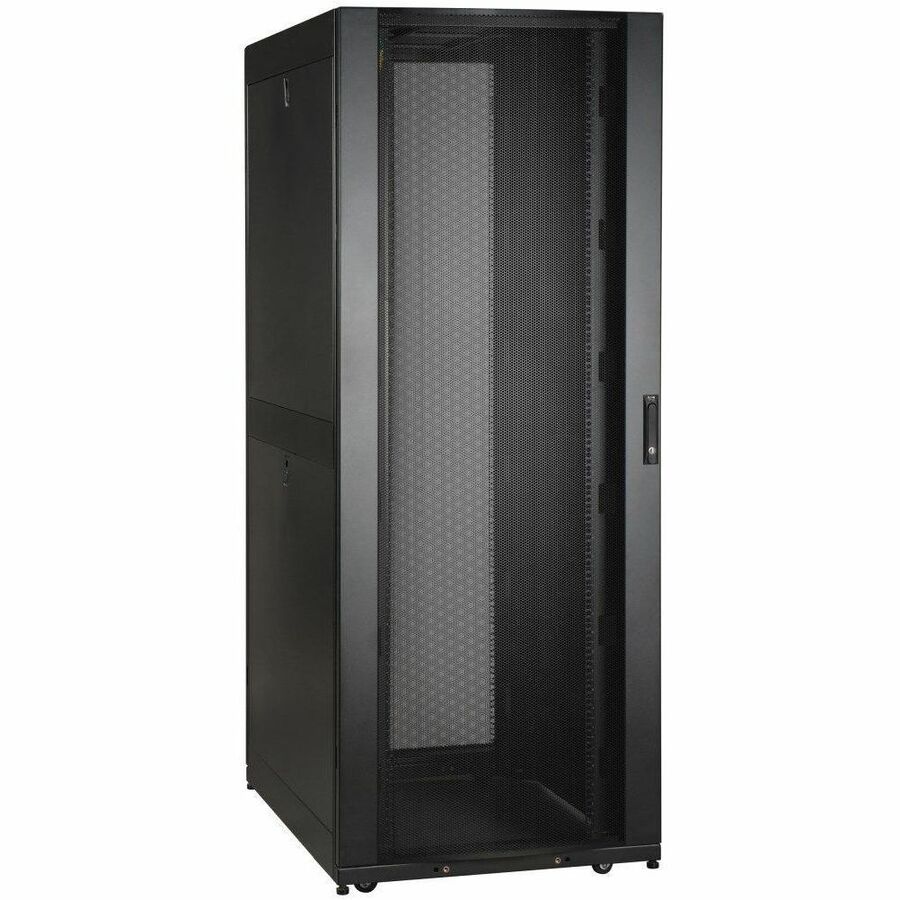

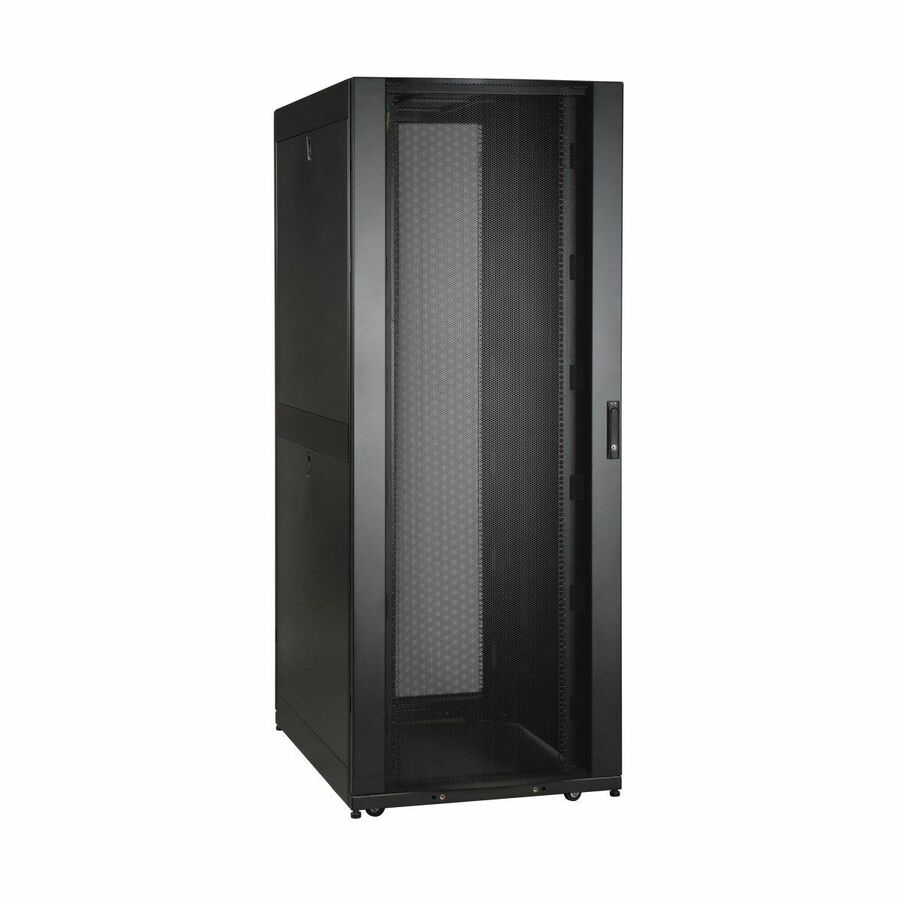

Tripp Lite by Eaton 42U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Two Pre-Installed SRCABLEVRT3 with sides & doors
42U Rack Height x 19" Rack Width - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
- SKU
- SR42UBWDVRT
- Category
- Rack Equipment
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SR42UBWDVRT
- Category
- Rack Equipment
Overview

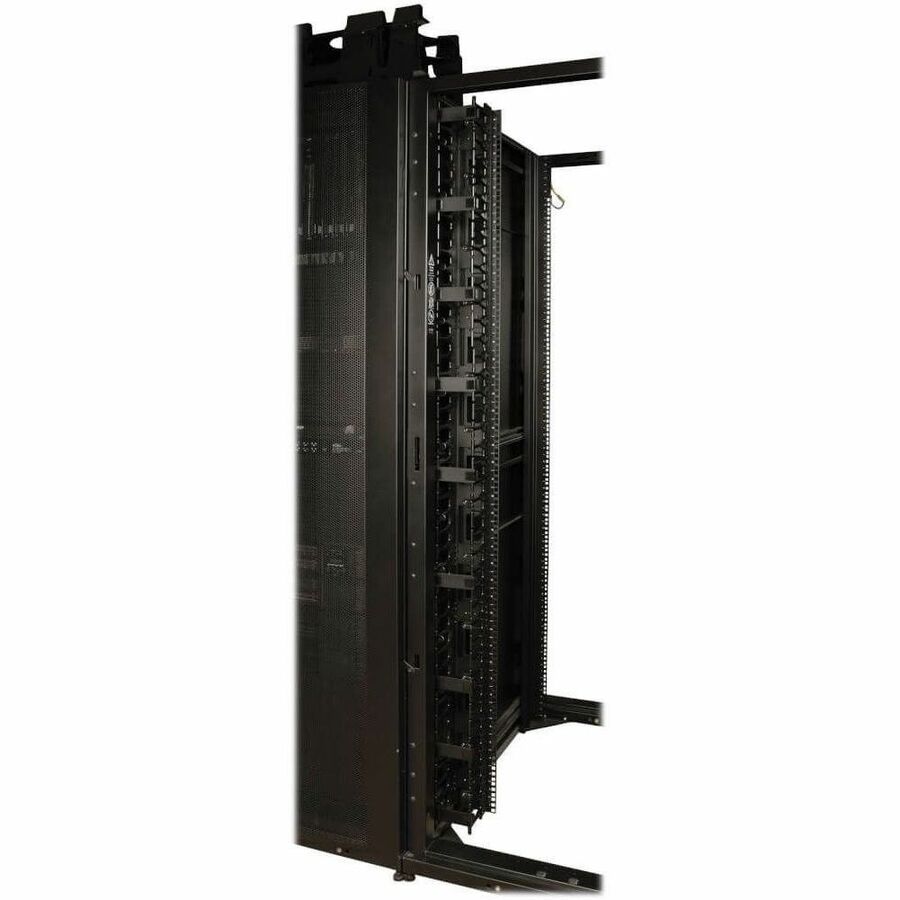

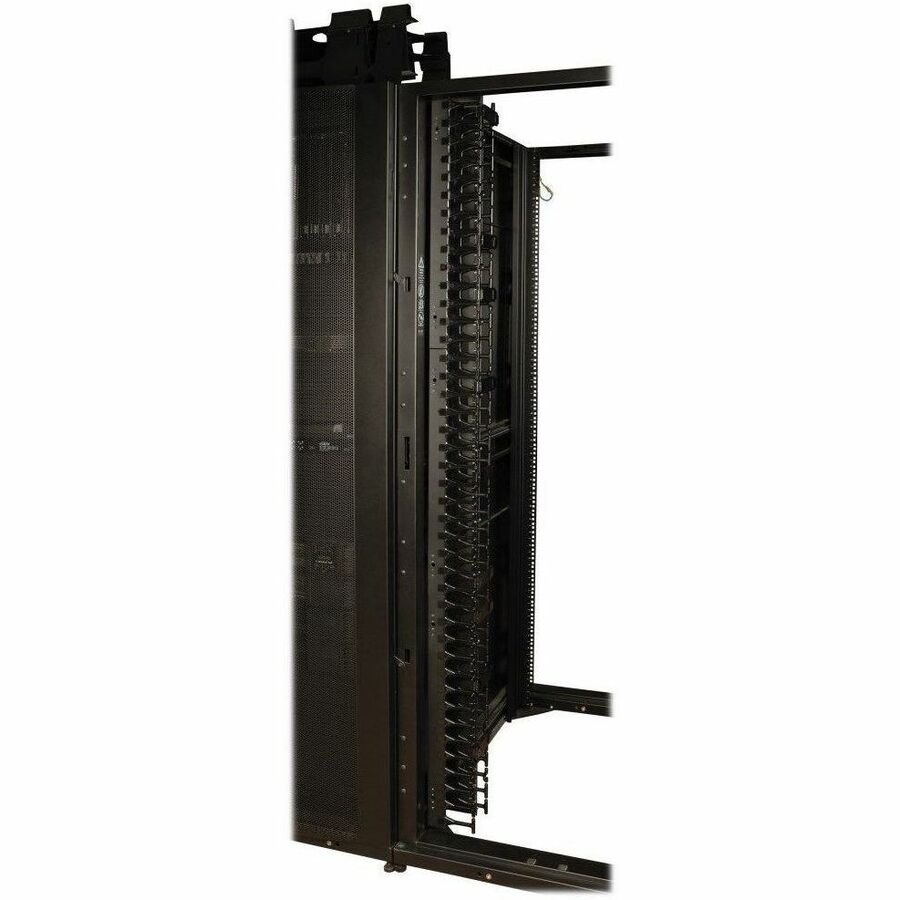

SR42UBWDVRT is a WIDE version of our standard 42U SmartRack Enclosure (750mm wide compared to the standard 600mm wide) and includes preinstalled SRCABLEVRT3. The SRCABLEVRT3 helps eliminate cable stress by organizing the cables within the enclosure. The vertical cable manager is 6-ft high and 3" wide.

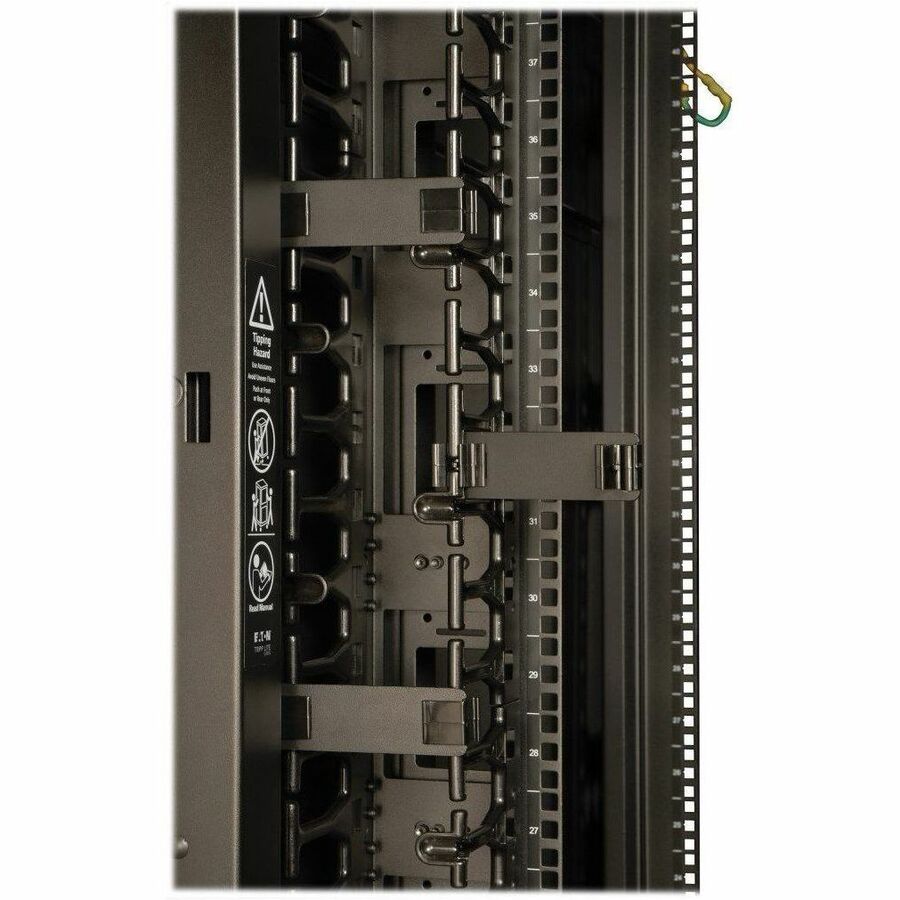

The SR42UBWDVRT houses 3000lbs of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBWDVRT provides ultimate equipment safety. The side panels are half size for ease of removal and re-installation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBWDVRT meets all requirements toward PCI DSS compliance.
The top panel of the SR42UBWDVRT is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools.
All components of the SR42UBWDVRT are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR42UBWDVRT comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving enclosures over long distances.
The SR42UBWDVRT comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.
More from the Manufacturer
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- 30" (750mm) wide and 42" (1050mm) deep enclosure with doors and side panels
- Pre-Installed 6-ft vertical cable manager - high capacity for large cable bundles
- 4 interior vertical posts with unthreaded square hole openings
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Specifications
| Package Contents |
|
|---|---|
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SR42UBWDVRT |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 315 lb |
| Manufacturer | Eaton Corporation |
| Product Model | SR42UBWDVRT |
| Product Name | SmartRack SR42UBWDVRT Rack Cabinet |
| Product Line | SmartRack |
| Rack Width | 19" |
| Rack Height | 42U |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Assembly Required | No |
| Height | 78.5" |
| Width | 29.5" |
| Depth | 43" |
| Environmentally Friendly | Yes |
| Static/Stationary Weight Capacity | 3000 lb |
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
