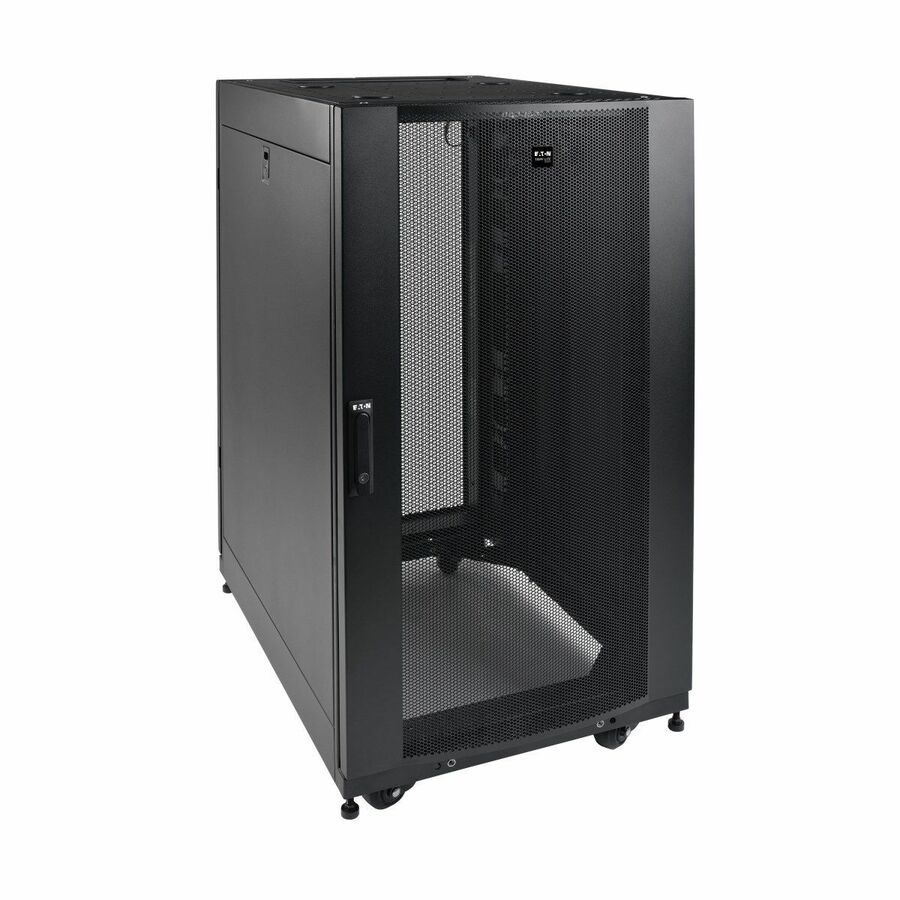

Tripp Lite by Eaton 25U SmartRack Shallow-Depth Half-Height Rack Enclosure Doors Side Panels Heavy-Duty Casters

The SR25UBSD3 25U SmartRack Shallow-Depth Rack Enclosure Cabinet houses equipment up to 27 inches in depth-ideal for storing shallow audio/video components and smaller equipment in areas with limited floor space. Constructed of steel with a resilient textured powder-coated finish, the SR25UBSD3 features adjustable mounting rails that accommodate up to 3,000 pounds of equipment in 25U of rack space.

To ensure your valuable equipment stays safe and secure, the side panels, reversible back door and reversible, removable front door lock to prevent unauthorized access. The front and rear doors are perforated, which allows air to flow freely through the rack to keep equipment cool. Vented top panels and an open bottom help remove warm air from the enclosure and draw in cool air by convention(they also support the installation of standard case fans, such as Tripp Lite's SRFANROOF ).

The SR25UBSD3 comes fully assembled with removable casters that let you roll the fully loaded enclosure to its desired location. Installing equipment within the enclosure is easy enough with its square mounting holes and numbered rack spaces. The front and rear vertical rails adjust in ¼-inch increments from 4 to 27 inches. Just unscrew the rails, slide them to the desired depth, and tighten the screws. The enclosure supports toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This makes cable routing to rack equipment easier and reduces clutter. More from the Manufacturer

Keeps Equipment Secure, Easy Cable Access, Optimum Airflow and Toolless Mounting

The side panels and doors lock securely to help prevent damage, tampering or theft. The reversible doors can open left or right to accommodate various rack applications and rooms. Removable side panels allow easy access to equipment for maintenance and replacement.

Convenient top ports and an open bottom allow easy cable routing and reduce clutter. The top panel removes in seconds without tools or having to disconnect cables.

The vented front and rear doors allow air to flow freely through the cabinet to keep equipment cool. Vented top panels and an open bottom help remove warm air from the cabinet and draw in cool air by convection. The top panels also support the installation of standard user-supplied case fans, such as Tripp Lite’s SRFANROOF (sold separately), to increase airflow.

The SR25UBSD3 supports toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This makes routing cables to rack equipment easier and reduces clutter.

Simple Equipment Installation, Combine Cabinets in a Row and 5-Year Warranty

The SR25UBSD3 comes fully assembled with removable heavy-duty casters that let you roll the fully loaded enclosure to its desired location. The split rear door reduces clearance to let you place the cabinet close to a wall. Square mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust to accommodate equipment up to 27 inches deep.

Built-in baying tabs let you combine several SR25UBSD3 units in a row. Set the center-to-center width at 24 inches to match standard floor tiles in data centers.

The SR25UBSD3 comes with a 5-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. The SR25UBSD3 provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
