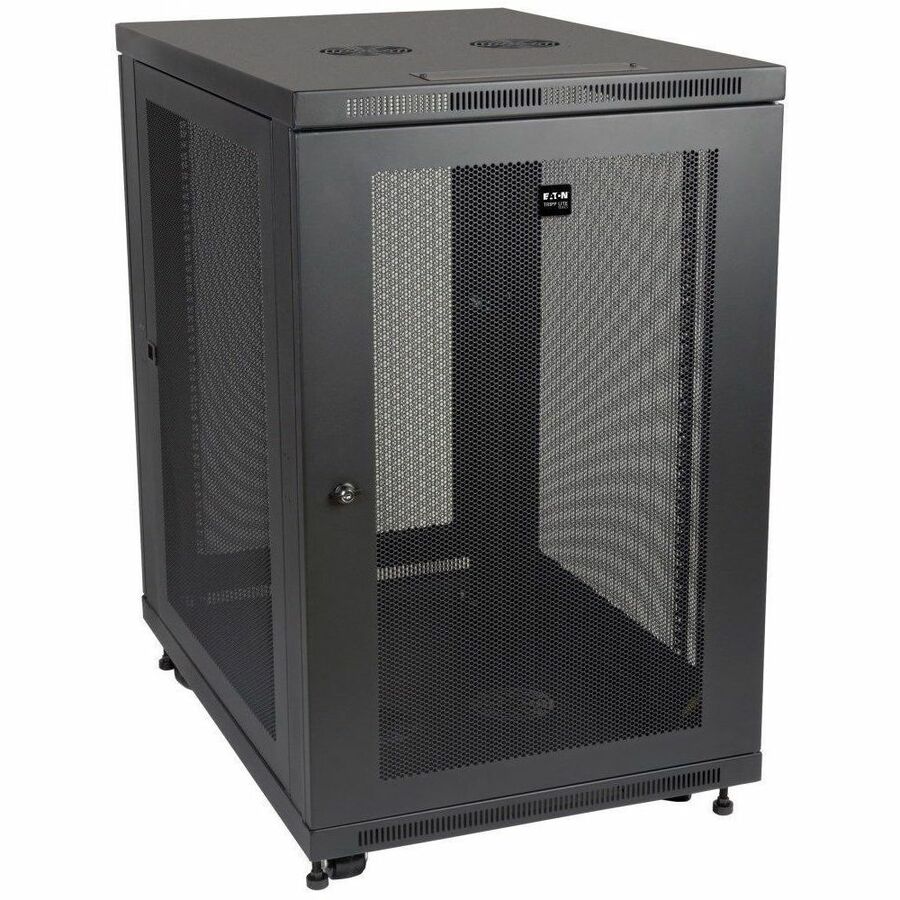

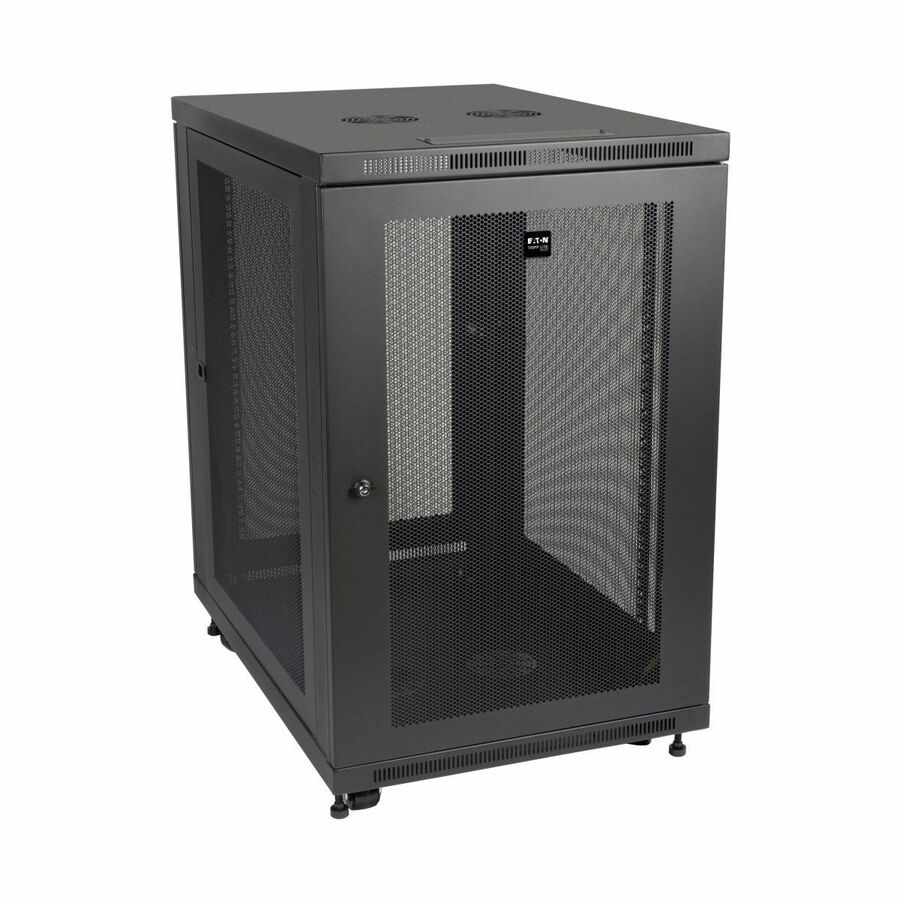

Tripp Lite by Eaton 18U Rack Enclosure Server Cabinet 33" Deep w/ Doors & Sides

Tripp Lite's SmartRack 18U Mid-Depth Rack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR18UB is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. The SR18UB ships fully assembled for quick installation and comes with a 5-year warranty.The SR18UB is compatible with all standard 19-inch rack equipment and features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches, ideal for standard server installation. Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 1,000 lbs of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.With a locking, reversible front door and locking, removable side panels, the SR18UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.The top and bottom panels of the SR18UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans(Tripp Lite SRFANWM). The top and bottom panels are also provided with ports for cable routing.To simplify deployment, the SR18UB comes with an accessory caster kit consisting of 4 casters and all required installation hardware. With casters installed, the SR18UB can easily be maneuvered into to desired location, and then secured in place by adjusting the unit's levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances. More from the Manufacturer

Simple Equipment Installation, Vented Top and Bottom Panels with Cable Cutouts

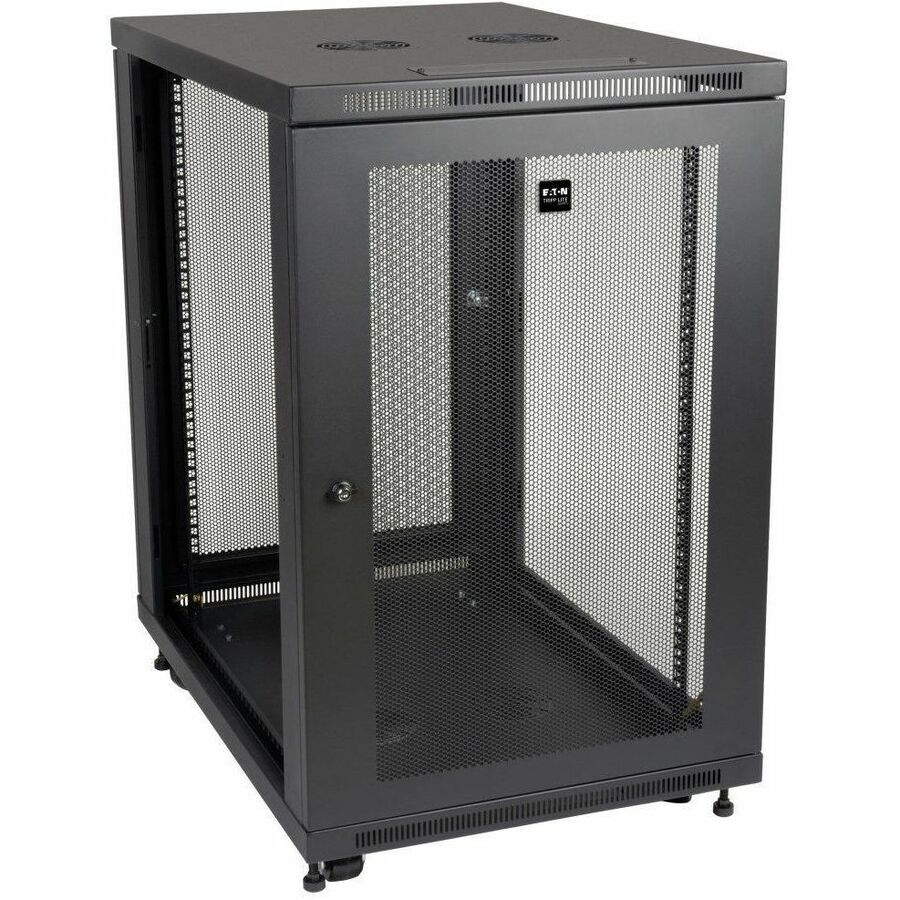

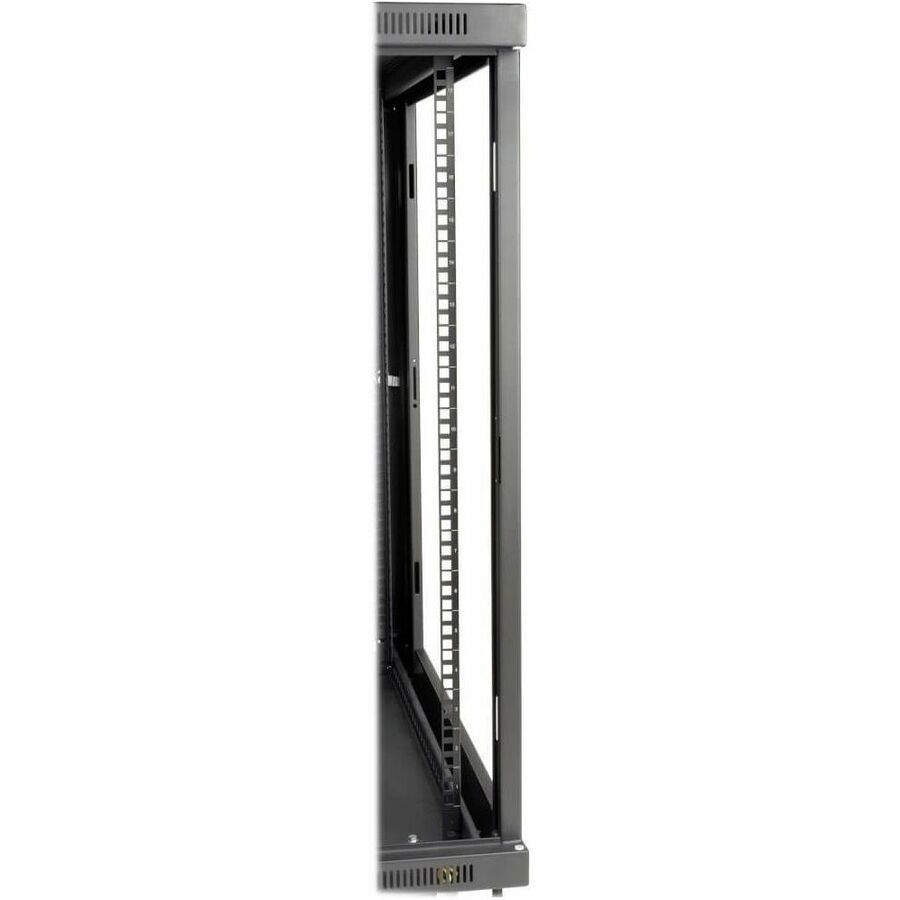

The SR18UB simplifies equipment installation with numbered rack spaces for easy reference. Front and rear pairs of vertical rails with square mounting holes are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches.

The top and bottom panels of the SR18UB come furnished with vents designed to remove warm air and draw in cool air by convection. The SR18UB's vents also support active cooling with the optional installation of standard user-supplied case fans like Tripp Lite's SRFANWM (sold separately). The top and bottom panels are additionally equipped with cutout ports for cable routing.

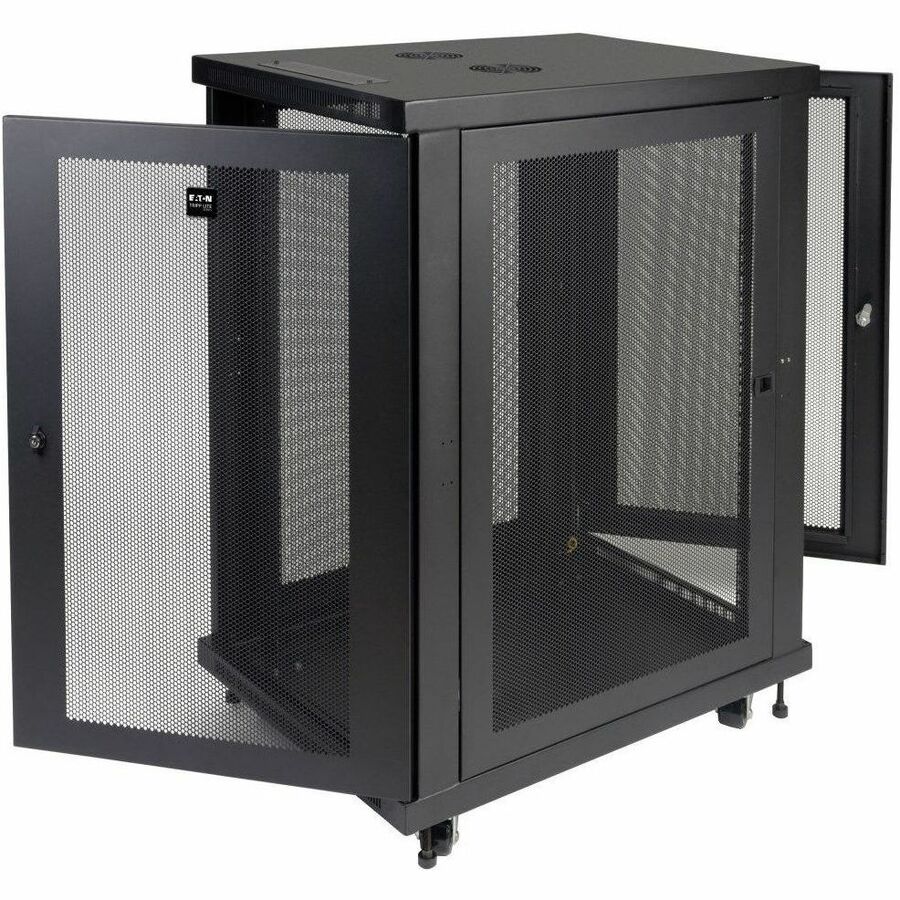

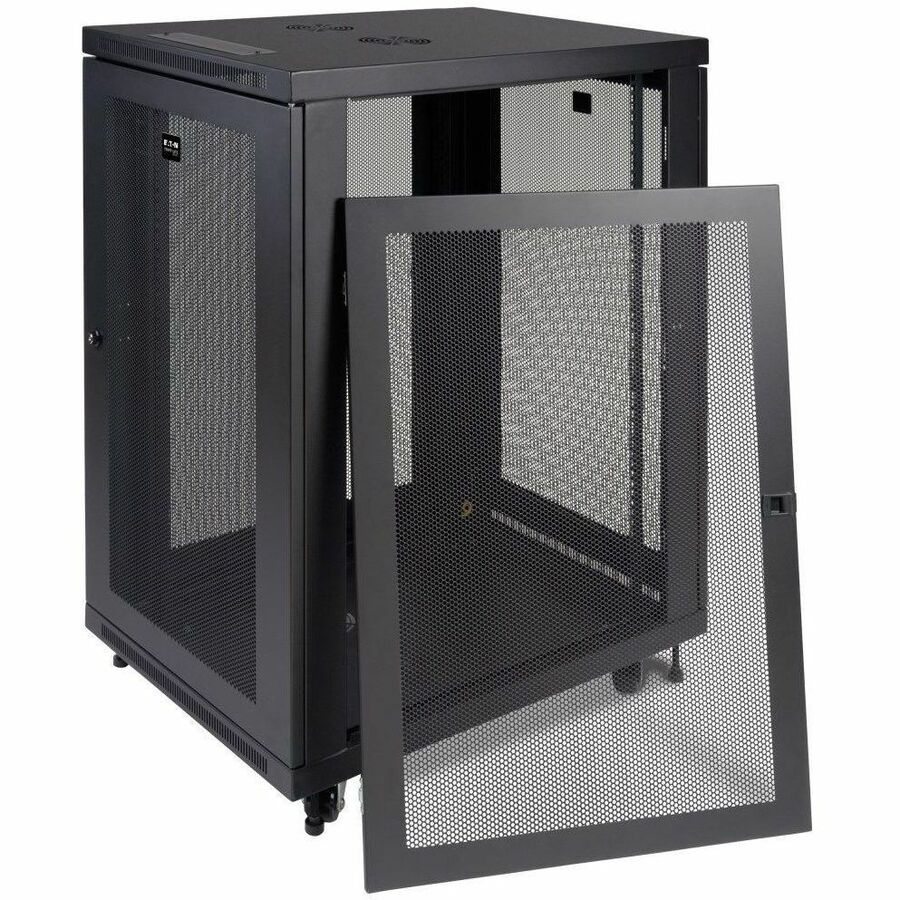

A locking, reversible front door and locking, removable side panels restrict unwanted access to installed equipment while still allowing authorized personnel to perform inspections, maintenance and equipment replacement.

The SR18UB's heavy-duty, cold-rolled steel construction securely stores up to 1000 pounds of standard 19 inches rackmount equipment.

Fully Assembled with Preinstalled Caster Kit and 5-Year Warranty

To simplify deployment, the SR18UB ships fully assembled along with a preinstalled accessory caster kit and all required installation hardware. With casters installed, the SR18UB can be taken out of the box and easily maneuvered to its desired location, followed by securing the rack in place by adjusting the unit’s levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.

For peace of mind, the SR18UB comes backed by a 5-year warranty. This rack is also manufactured to meet strict RoHS specifications reflecting Tripp Lite's commitment to environmental responsibility. The SR18UB is a safe, secure installation solution that meets all requirements toward PCI DSS (Payment Card Industry Data Security Standard) compliance.
