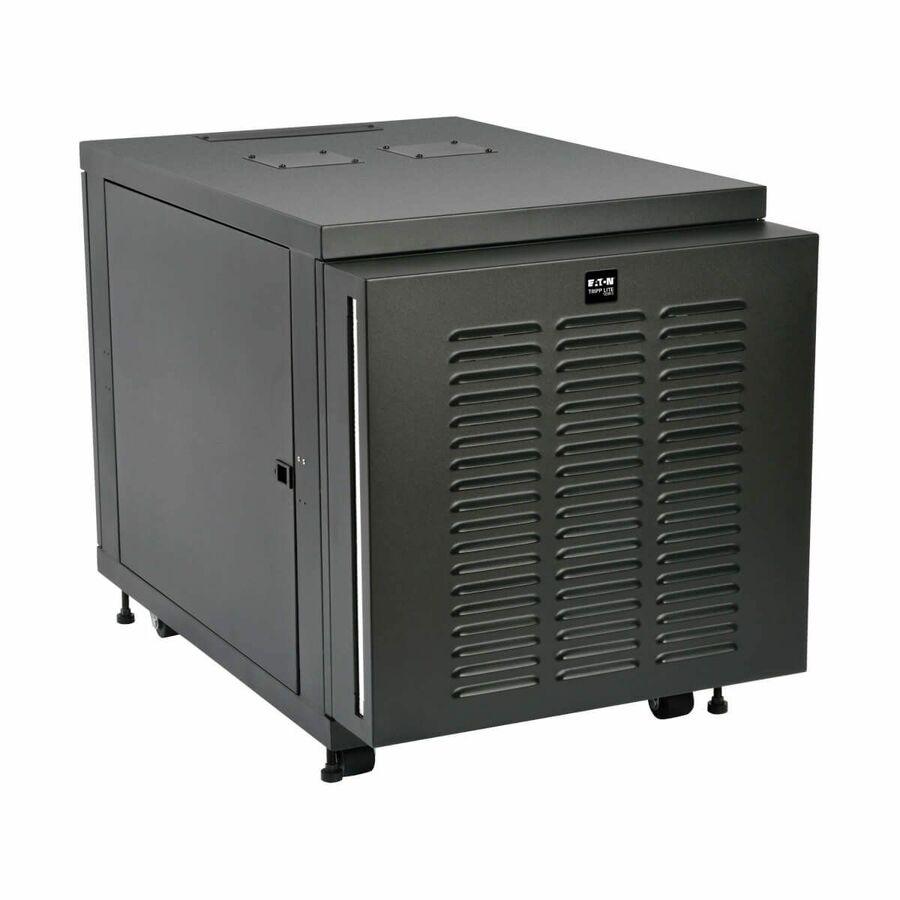

Tripp Lite by Eaton SmartRack 12U Mid-Depth Small Rack Enclosure for Harsh Environments

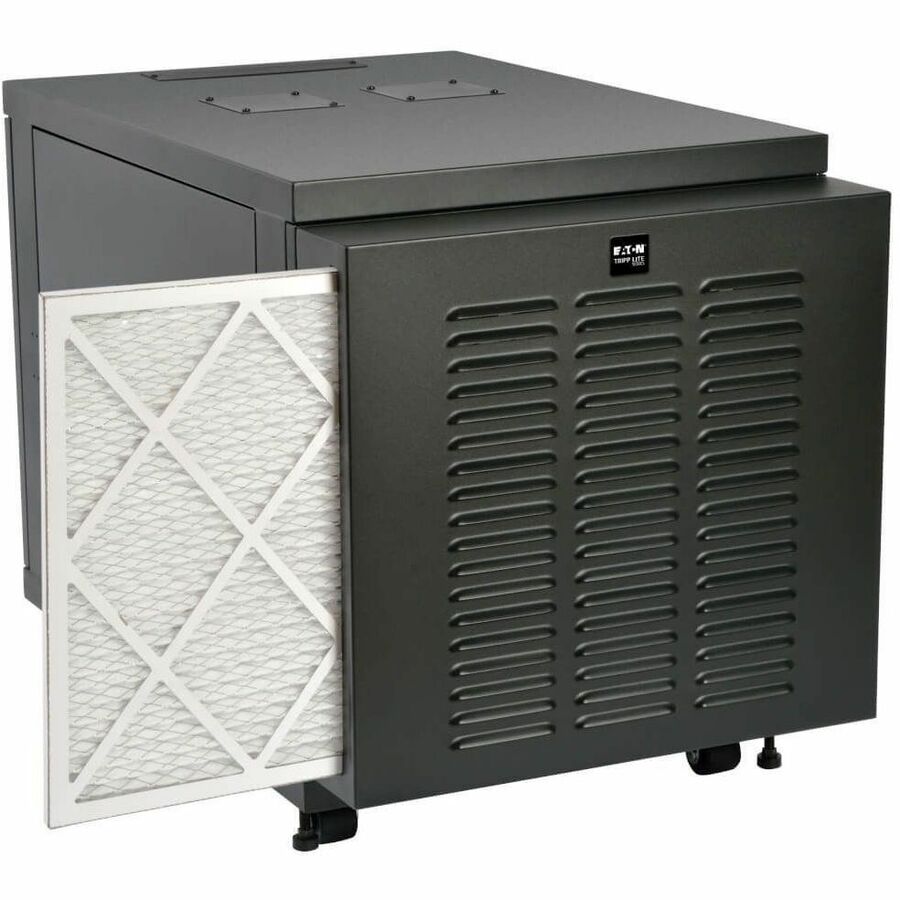

This SmartRack 12U Mid-Depth Rack Enclosure Cabinet protects sensitive electronic equipment from harsh conditions that would overwhelm a typical rack enclosure. It is deal for use in factories, construction areas, utility plants, warehouses and other areas with limited space that are high in moisture, dust and debris. It can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. On the front door there is a built-in dust filter. The filter is removable and can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 1000 lbs of equipment. More from the Manufacturer

Optimized for Harsh Environments, Easy Setup, Vented Top and Bottom Panels

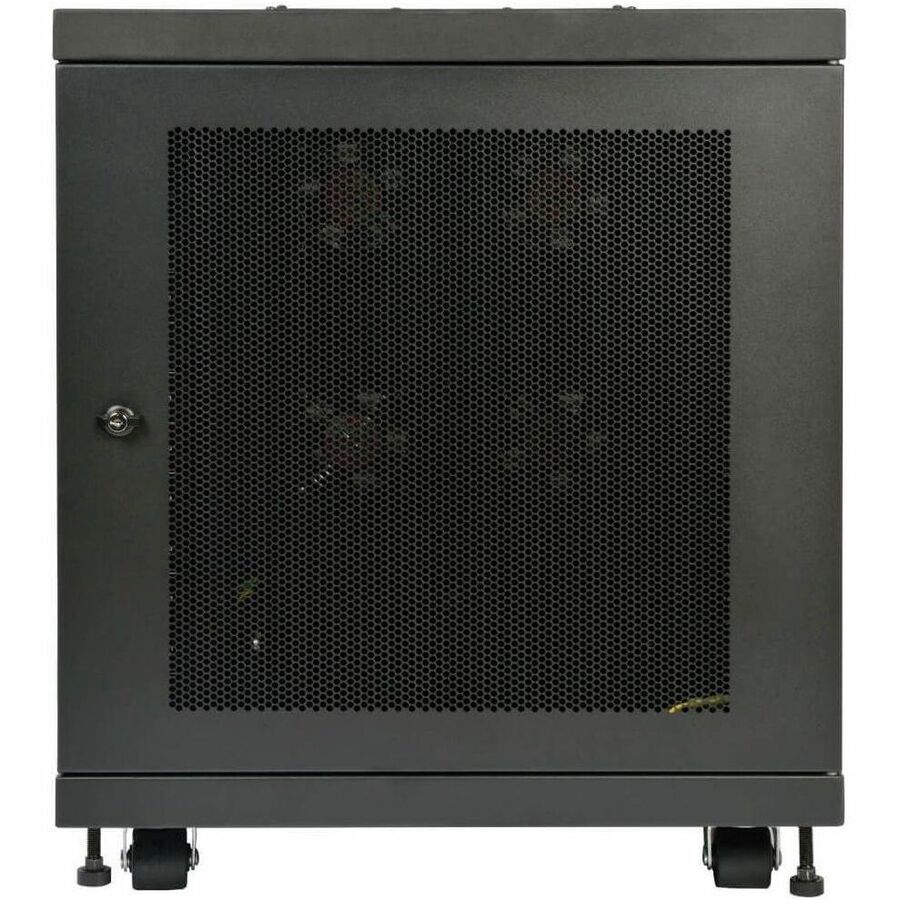

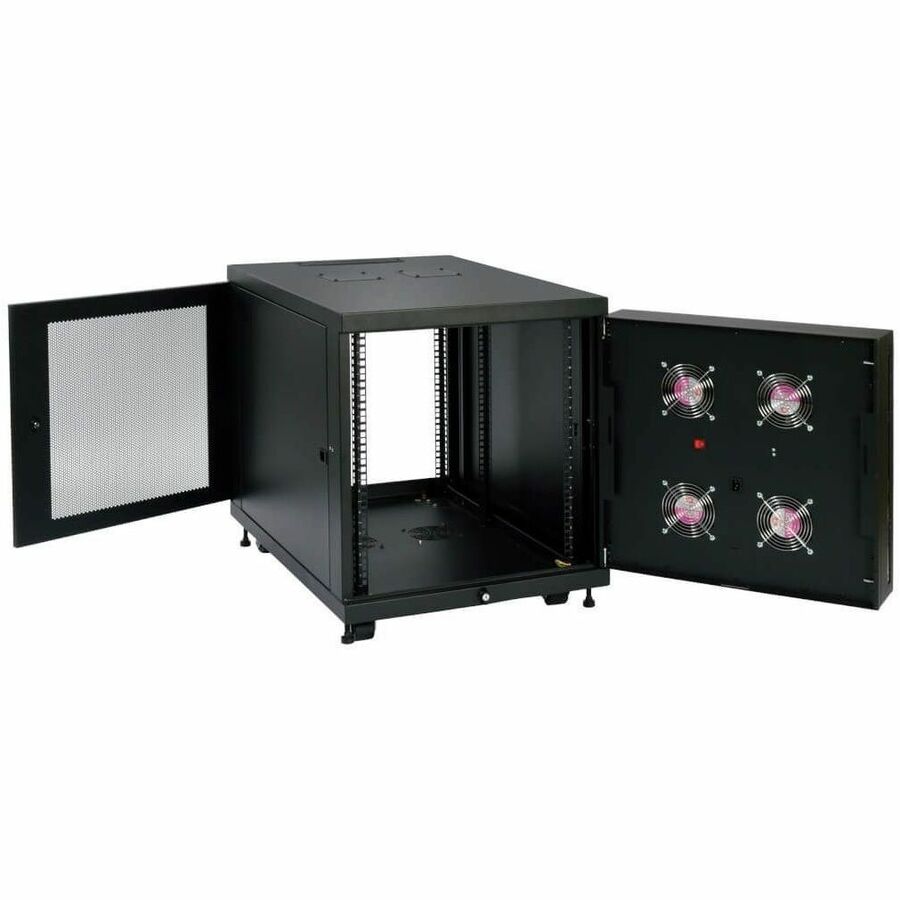

The SR12UBFFD prevents moisture and dust particles from damaging sensitive equipment with a louvered front door and built-in dust filter that uses an easily replaceable standard furnace filter to restrict the flow of airborne contaminants. To compensate for the louvered door and air filter’s added air resistance, four large, high-performance fans are mounted on the front door to pull air from the front to rear of the enclosure cabinet.

The SR12UBFFD is compatible with all standard 19 inches rack equipment. The SR12UBFFD uses front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. An easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.

The top and bottom panels of the SR12UBFFD are furnished with vents designed to help remove warm air from the enclosure cabinet and draw in cool air by convection. The top and bottom panels also include ports for cable routing. Removable covers block unused cable ports.

The enclosure cabinet’s heavy-duty steel construction can support a maximum 1000 lbs. of equipment in 12U of rack space.

Secure Equipment Access, Preinstalled Casters and 2-Year Warranty

The SR12UBFFD is designed to provide a safe, secure installation solution for mission-critical rackmount equipment. It contains locking front and rear doors and locking, removable side panels that prevent unauthorized access to installed equipment. This enclosure cabinet also meets all PCI DSS (Payment Card Industry Data Security Standard) compliance requirements for physical security.

To simplify deployment, the SR12UBFFD comes with casters for minor position adjustments and leveling feet to stabilize the rack once positioned. The SR12UBFFD ships fully assembled and ready for use.

The SR12UBFFD comes with a 2-year warranty. The SR12UBFFD also meets all requirements towards Payment Card Industry Data Security Standard (PCI DSS) compliance and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
