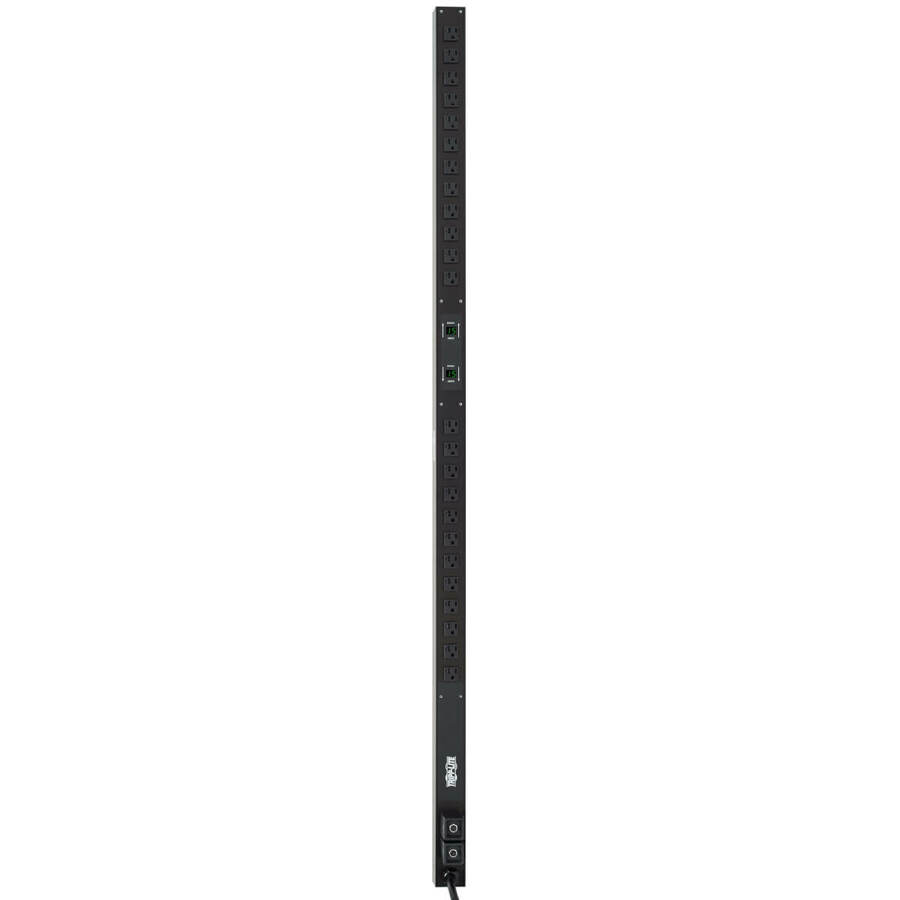

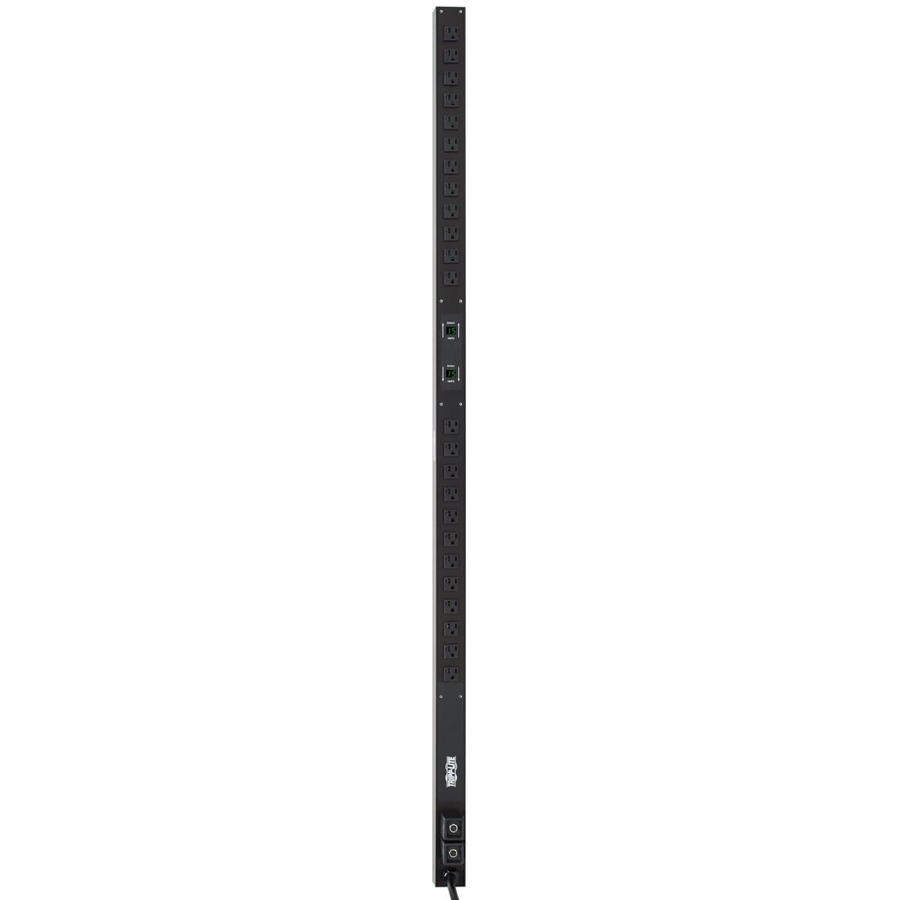

Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered PDU 120V Outlets (24 5-15/20R) L5-30P 10 ft. (3.05 m) Cord 0U Vertical

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Toolless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV30 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 120V (agency derated to 24A). Includes 10-ft. attached line cord with L5-30P input plug. 24 5-15/20R outlets support networking equipment with 5-15P or 5-20P input plugs. Outlets are arranged in two separately metered and breakered 20A load banks (each with 12 5-15/20R outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading bank

More from the Manufacturer

Reliable IT Power Distribution and Versatile Installation Options

The PDUMV30 provides 24 front-facing 5-15/20R outlets arranged in two individually breakered and metered 20A load banks and a 10-ft. power cord with L5-30P plug for distribution of alternate waveform AC power to supported equipment from a UPS system, generator or utility wall outlet. (Maximum PDU capacity is 30A, agency derated to 24A.) The PDUMV30 features a rugged all-metal case, high-quality outlets and plug, switch-less design and dual 20A circuit breakers (one per outlet bank, protected to prevent them from being tripped accidentally).

The PDUMV30 is easy to integrate with a wide range of data center and network applications. It is configured for toolless button-mount 0U (vertical) installation in compatible rack enclosures. Included mounting hardware can be used to adapt the PDUMV30 for standard 2- and 4-post rack enclosures, raceway, wall-mount, workbench, under-counter and similar installations.

Digital Current Meters and 2-Year Warranty

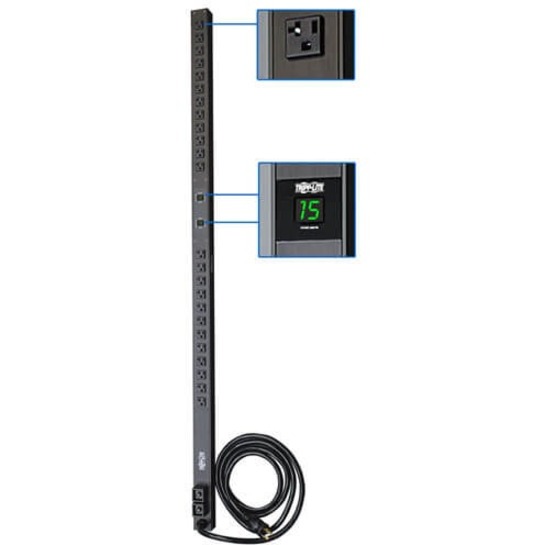

The PDUMV30 is equipped with dual digital LED meters, one for each individually breakered bank of 12 outlets. These meters enable IT personnel to visually monitor the load on each PDU outlet bank in real time, helping to prevent utility, generator, UPS or PDU overloads and ensuring proper load balance in complex redundant power applications.

The PDUMV30 comes backed by a 2-Year Warranty. As a part of Tripp Lite's commitment to environmental responsibility, the PDUMV30 is manufactured in compliance with strict RoHS specifications.
