Tripp Lite by Eaton PDU 2kW Single-Phase Local Metered PDU 100-127V Outlets (36 5-15/20R) L5-20P/5-20P adapter 0U Vertical 72-in.
72 Inch Height Vertical Rackmount 0URM
- SKU
- PDUMV20-72
- Category
- PDUs
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PDUMV20-72
- Category
- PDUs
Overview
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer
Lorem ipsum dolor sit amet
Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra. Curabitur placerat nibh eu lacinia sagittis. Praesent ut laoreet lectus. Morbi lacinia nec mi non dignissim. Vivamus arcu massa, iaculis sed vehicula a, suscipit id leo. Aenean at imperdiet arcu. Pellentesque in elit risus. Phasellus interdum rutrum sem, non efficitur urna tristique quis.
Reliable Network-Grade Power Distribution
Unfiltered electrical pass-through makes the PDUMV20-72 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures and network closets. The PDUMV20-72 provides reliable 120V single-phase power service via 36 NEMA 5-15/20R outlets. This PDU has a rugged all-metal housing and a 15 ft. cord with NEMA L5-20P, 20A input (5-20P adapter included). Load capacity is 1.9kW.
Versatile Installation Options Including Toolless Mounting
The PDUMV20-72 is easy to integrate with a wide range of data center and network applications. It can be configured for 0U (vertical) rack installation with the included mounting brackets, and it also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.

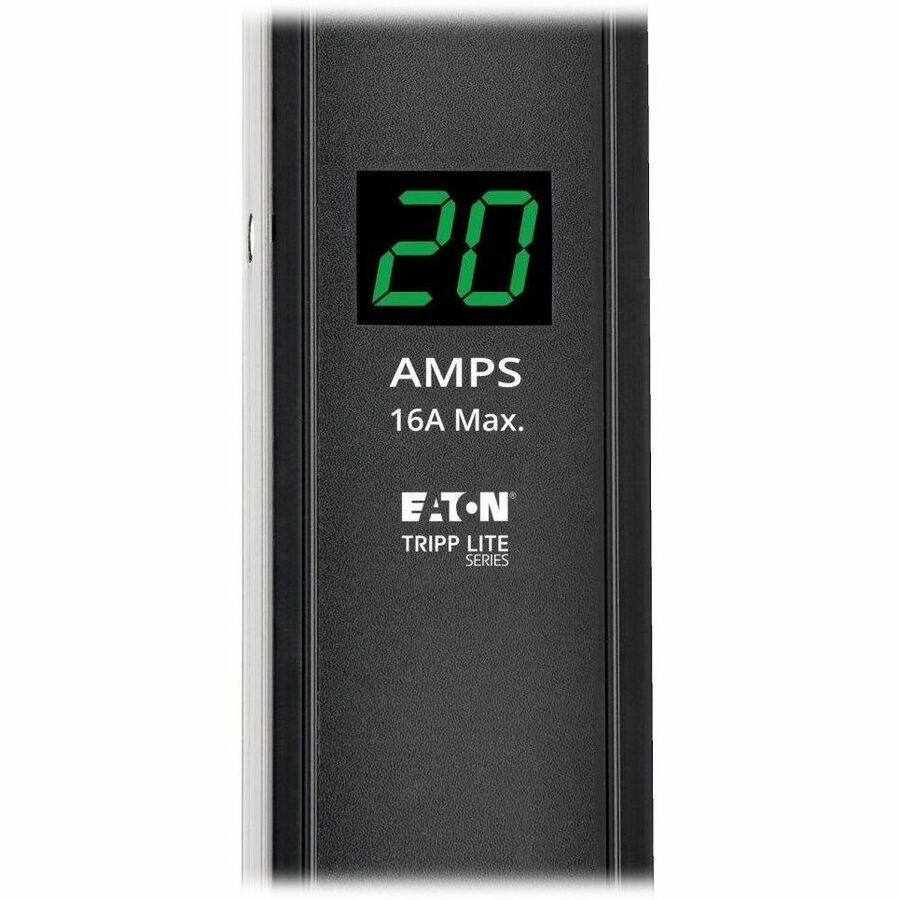

Digital Load Meter for Visual Monitoring
The PDUMV20-72 is equipped with a two-digit digital meter that allows IT personnel to visually monitor the total load in real time. The meter helps ensure that the PDU is used at maximum capacity with no danger of overload as equipment is added.
2-Year Warranty and Environmentally Responsible Design
The PDUMV20-72 comes backed by a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Tripp Lite PDUMV20-72 Product Summary:
Reliable power distribution in high-density IT environments
Digital meter enables monitoring of total PDU load

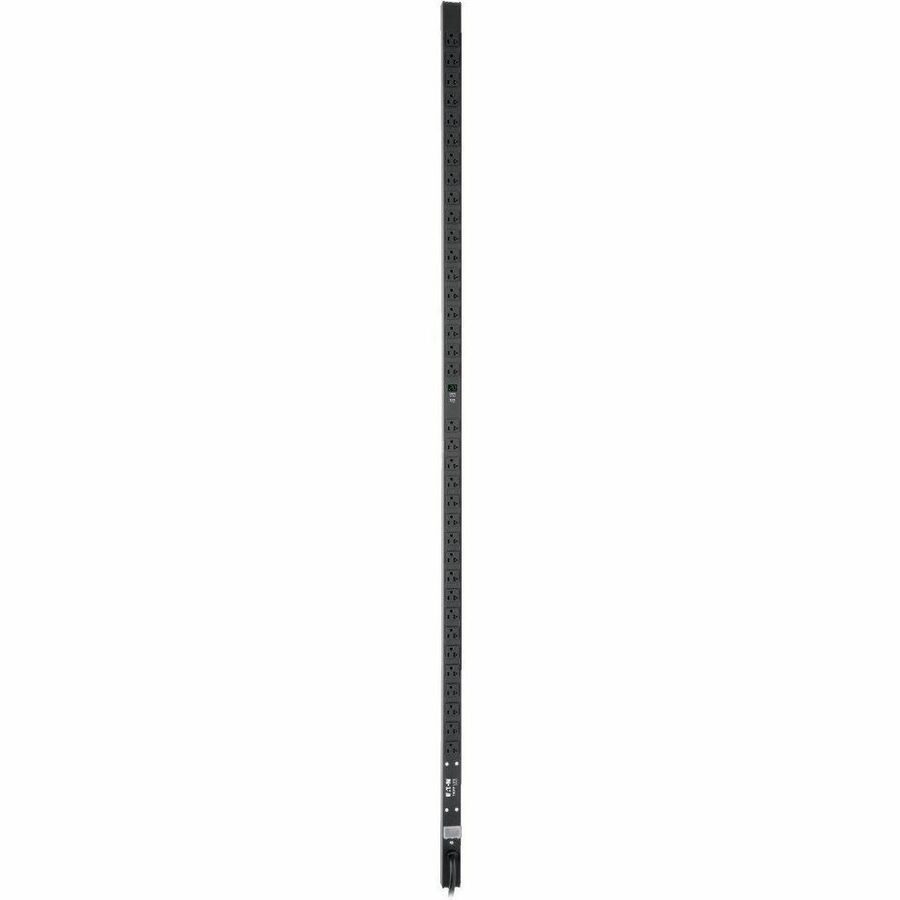

72-inch PDU with rugged all-metal housing
36 NEMA 5-15/20R outlets
Compact, 0U vertical rack installation
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights

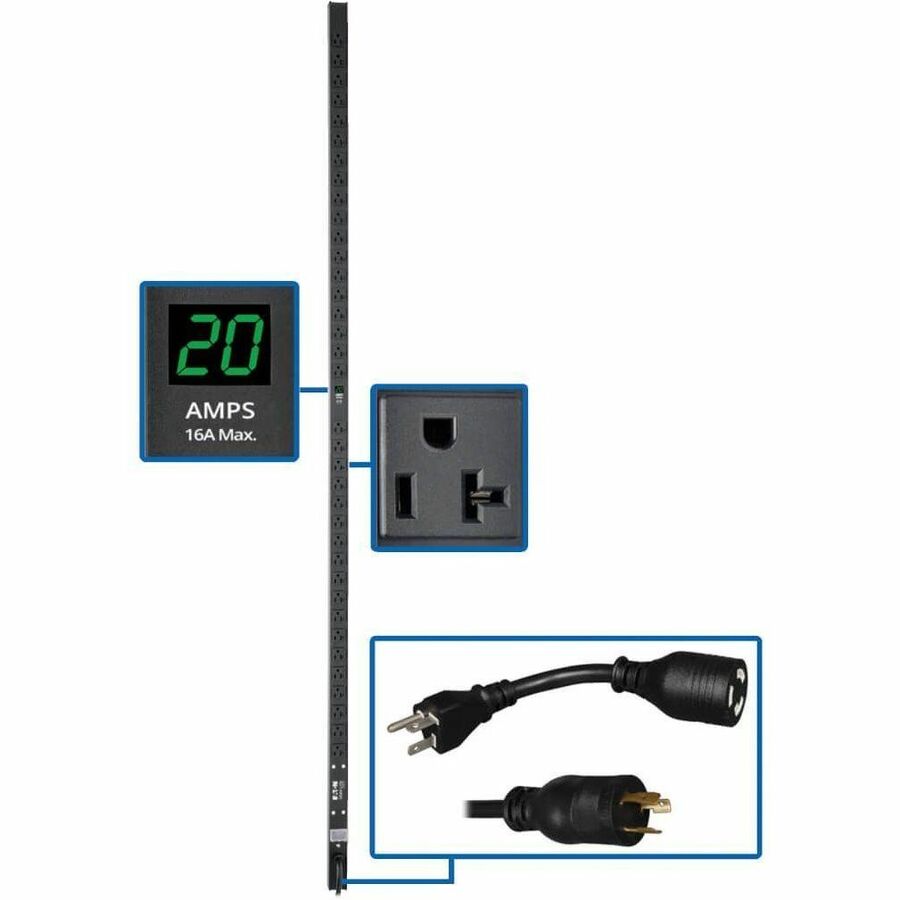

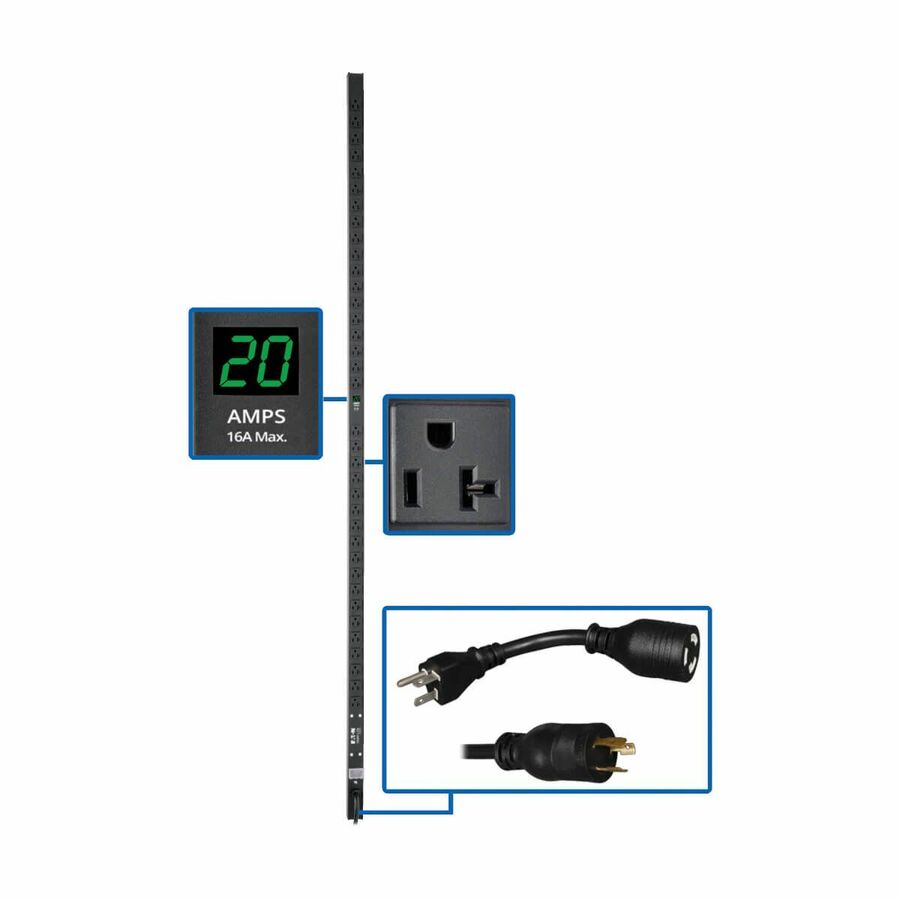

- Metered single phase 120V 20A 0U 72-in. / 61cm vertical rackmount PDU
- Two-digit current meter reports output current in amps

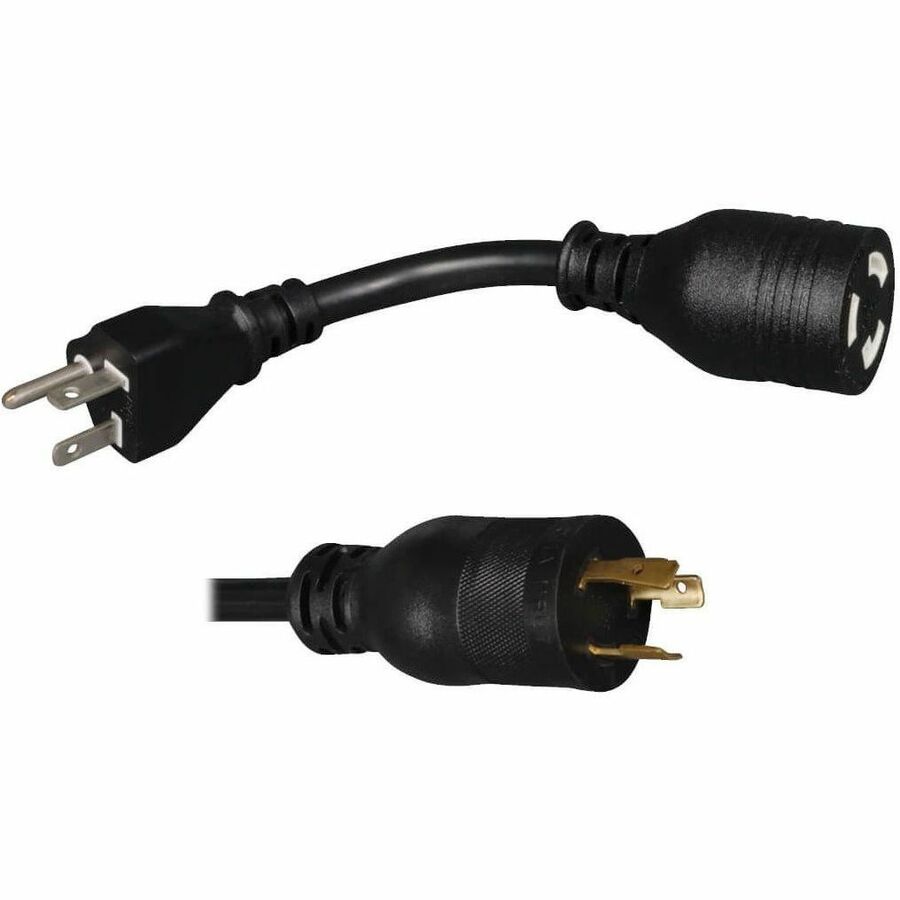

- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter

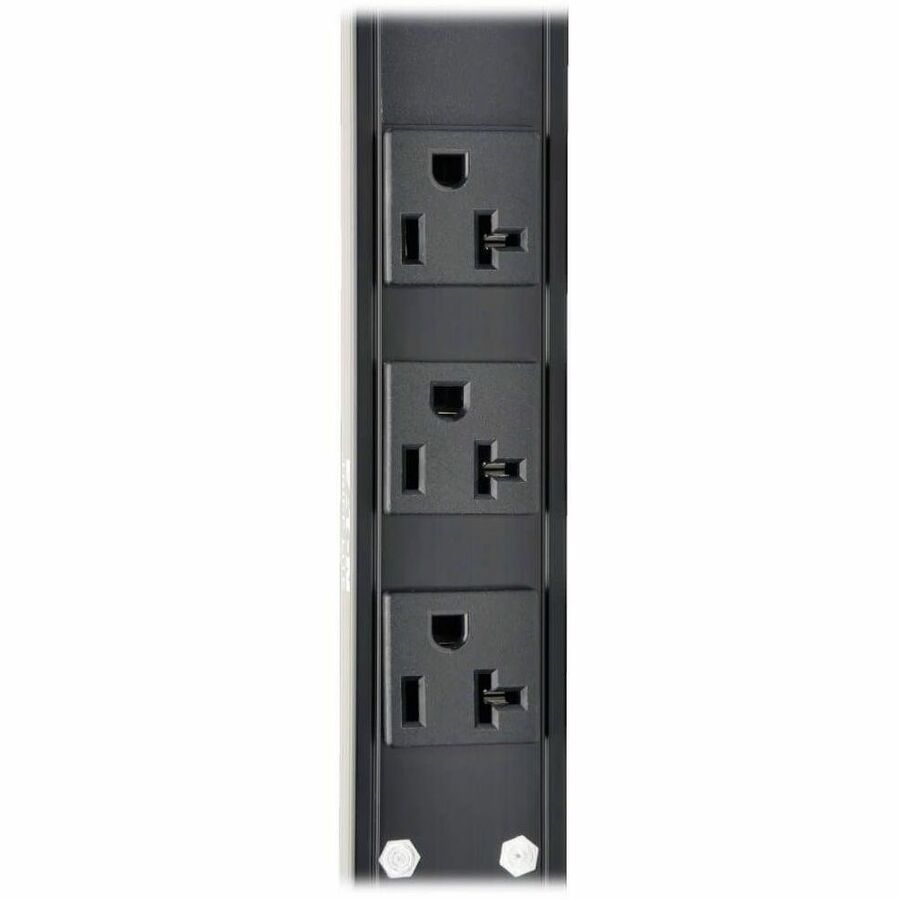

- 36 NEMA 5-15/20R outlets
- Toolless button mount and bolt-down bracket installation hardware included
Specifications
| Package Contents |
|
|---|---|
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PDUMV20-72 |
| Limited Warranty | 2 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 5.51 lb |
| Input Current | 20 A |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV20-72 |
| Product Name | PDUMV20-72 Metered Vertical PDU |
| Mount Type | Rack-mountable |
| Product Line | Metered |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA L5-20P |
| Country of Origin | China |
| Cord Length | 15 ft |
| Height | 72" |
| Width | 1.8" |
| Depth | 1.3" |
| Receptacle Type | NEMA 5-15/20R |
| Environmentally Friendly | Yes |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 2000 W |
| Receptacle Detail | 36 x NEMA 5-15/20R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
