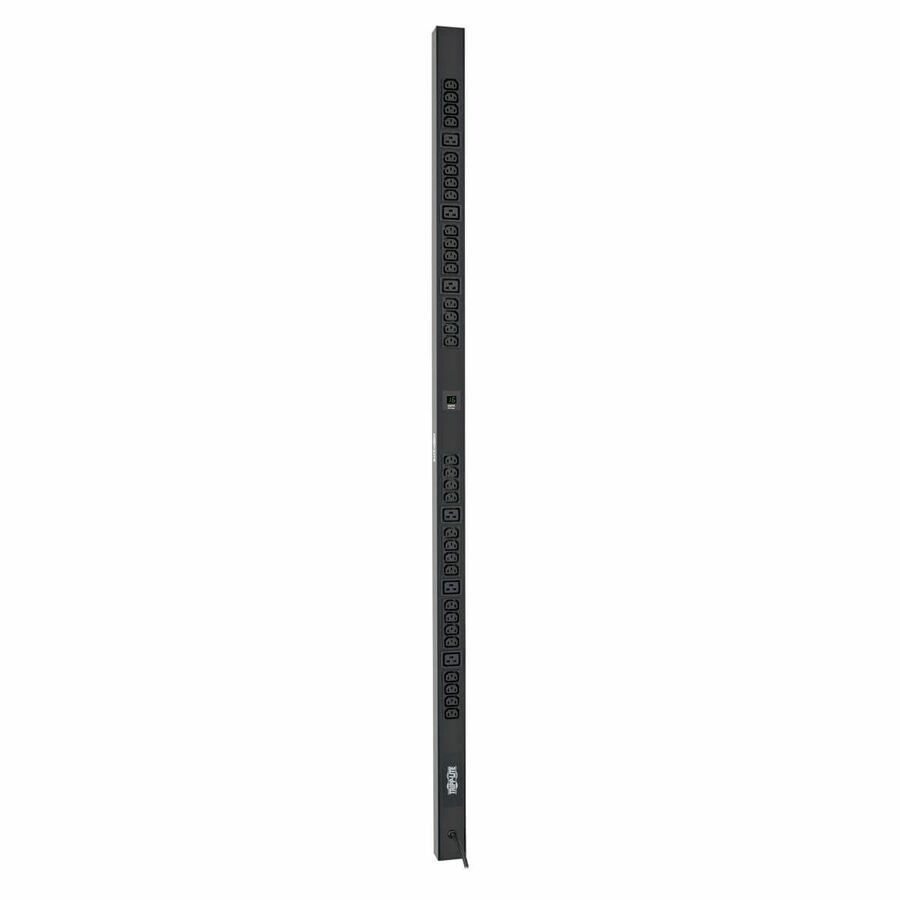

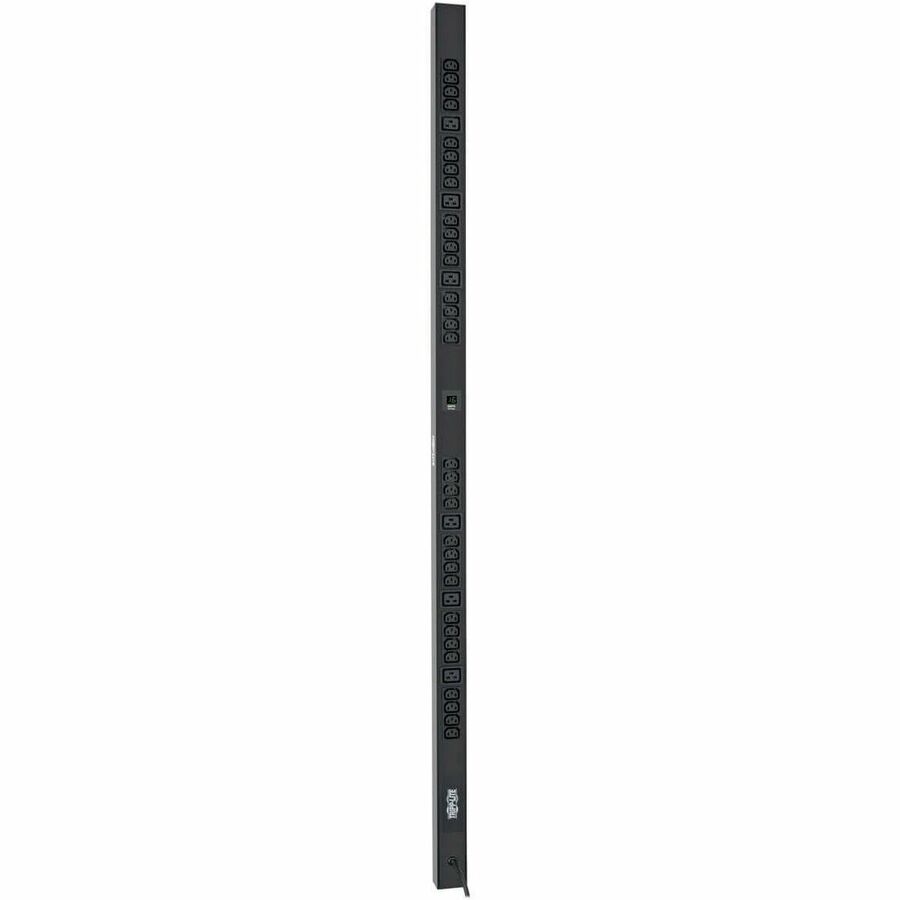

Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (32-C13, 6-C19), IEC309 16A Blue 16A, 0U Vertical

Metered - IEC 60309 16A Blue (2P+E) - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 10.01 ft Cord Length - 0U - Vertical - Rack-mountable, Button Mount - Vertical

SKU: PDUMV16HV
Category: PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: PDUMV16HV
Category: PDUs

Overview

This single-phase Local Metered PDU offers real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rack-mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rack-mount installation with included mounting accessories.

Features

• 3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU

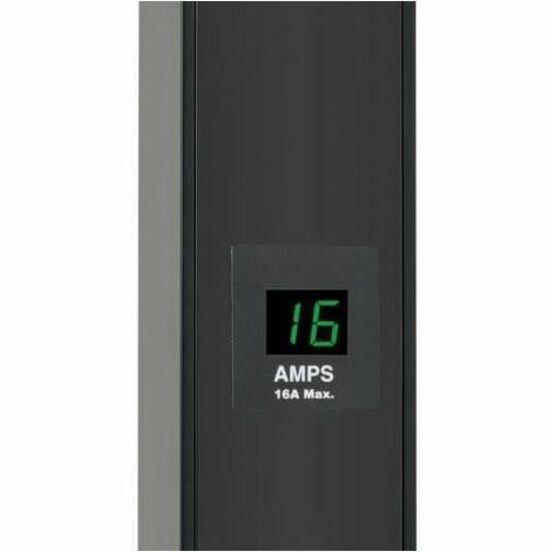

• Two-digit lighted meter reports combined total output current in amps

• 10ft / 3m input cable with Blue IEC309 16A input plug

• 0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces

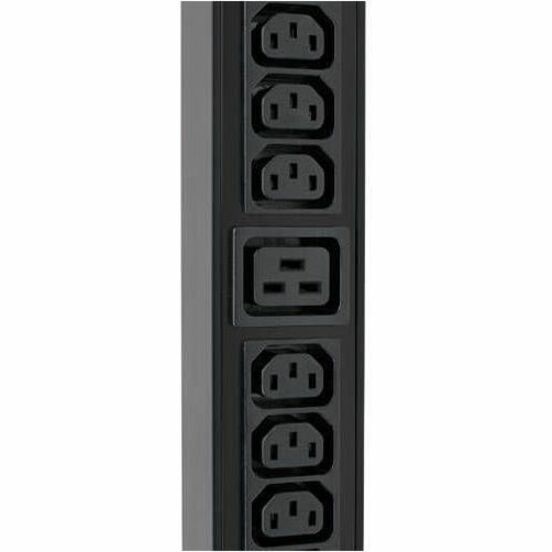

• 38 total outlets (6 C19, 32 C13)

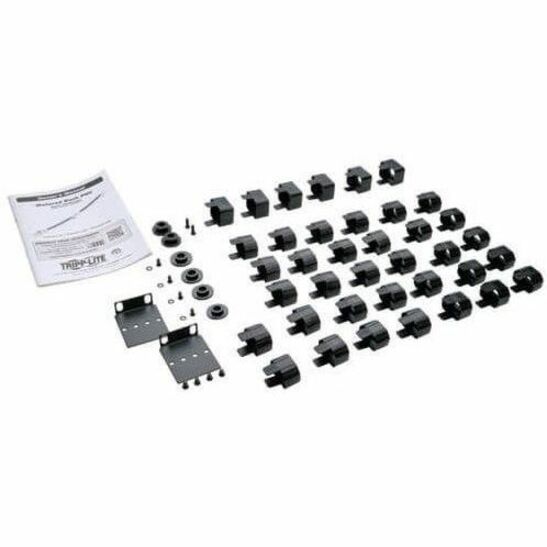

• Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection

• Toolless installation supported in button-mount compatible equipment racks

• Bolt-down installation brackets support installation in other racks and additional surfaces

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

A device fitted with multiple outputs for the distribution of electric power
Metered PDU offers reliable, rack-mount and multi-outlet power source
IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
Single Phase phase PDU provides optimal power output with added usability
IEC 60309 16A Blue (2P+E) plug/connector type for efficient connectivity and feasible power output
230 V AC input voltage for maximum feasibility and added productivity
208 V AC output voltage for optimal performance with maximum feasibility

Specifications

Product Type	PDU
Input Voltage	230 V AC
Manufacturer Part Number	PDUMV16HV
Power Source	UPS
Output Voltage	208 V AC, 230 V AC
Weight (Approximate)	5.29 lb
Features	LCD Display
Form Factor	Vertical
Input Current	16 A
Manufacturer	Eaton Corporation
Product Model	PDUMV16HV
Product Name	PDUMV16HV 38-Outlets PDU
Mount Type	Rack-mountable, Button Mount
Rack Height	0U
Brand Name	Tripp Lite series
Plug/Connector Type	IEC 60309 16A Blue (2P+E)
Country of Origin	China
Cord Length	10.01 ft
Height	63.8"
Width	2.2"
Depth	3.7"
Phase	Single Phase
Receptacle Type	IEC 60320 C13, IEC 60320 C19
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	-22°F (-30°C)
Maximum Storage Temperature	122°F (50°C)
PDU Type	Metered
Mounting Orientation	Vertical
Power Rating (Watt)	3700 W
Locking Receptacles	P-Lock
Receptacle Detail	32 x IEC 60320 C13, 6 x IEC 60320 C19
