Eaton Tripp Lite Series 7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Eaton

Eaton Tripp Lite Series 7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

4 x IEC 60320 C19, 12 x IEC 60320 C13 - 7.30 kVA - 2U - Horizontal Rackmount"

SKU
PDUMNH32HV
Category
PDUs

MSRP$1,150.00

$726.31

Save 37%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDUMNH32HV
Category
PDUs

Overview

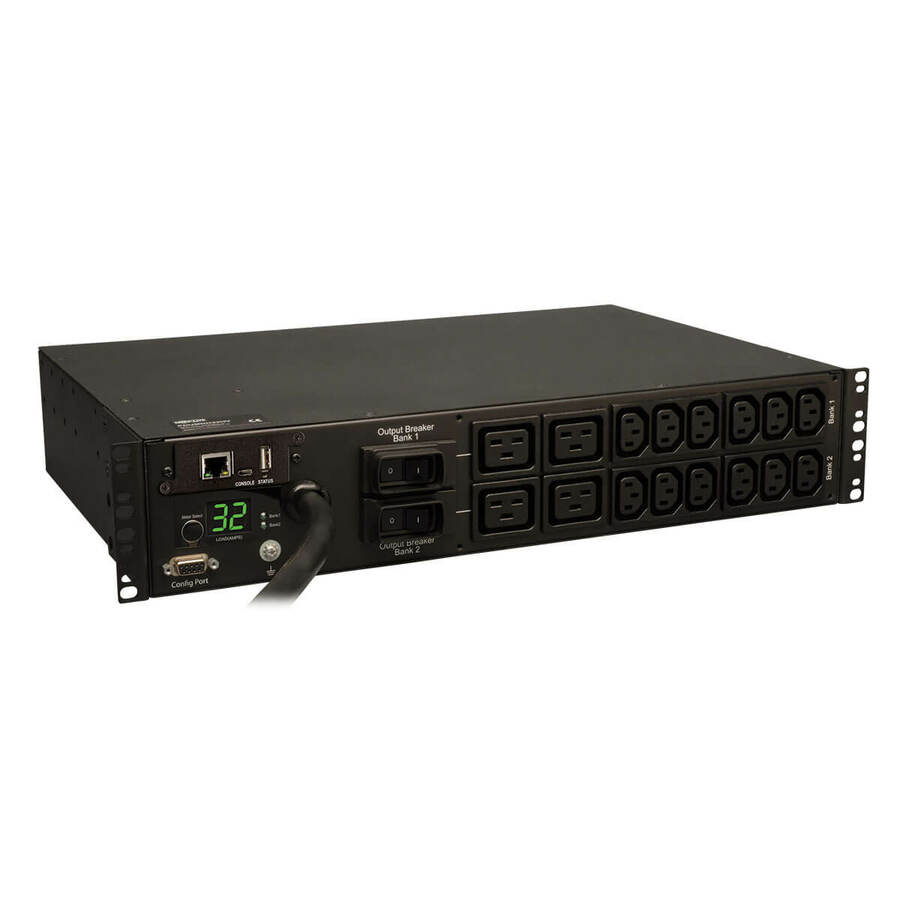

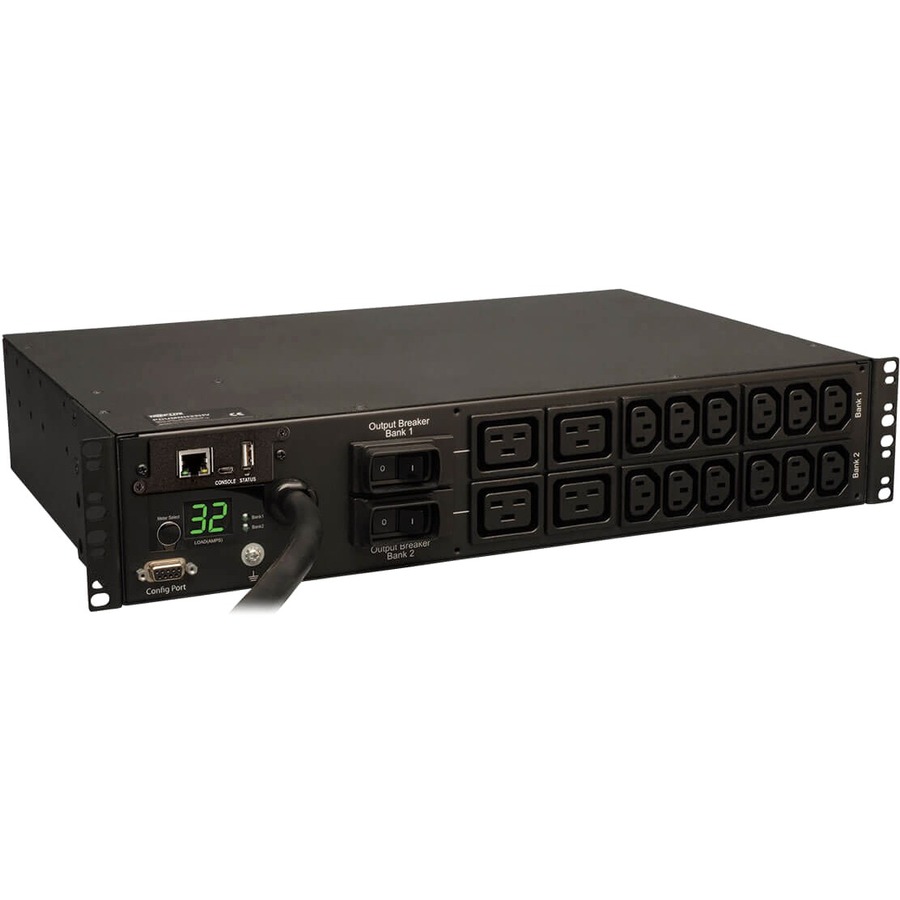

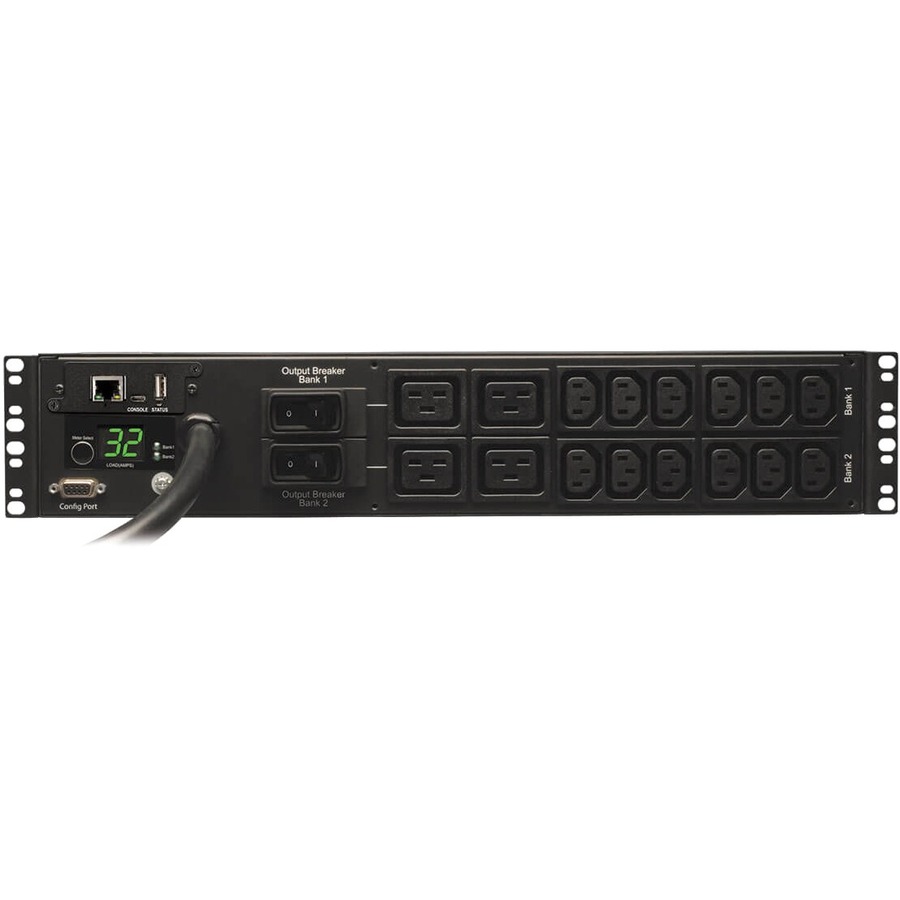

PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Monitored 32A 230V PDU, 2U horizontal rackmount
  • Reports voltage, frequency & load level via ethernet interface
  • Visual current meter, Reversible housing

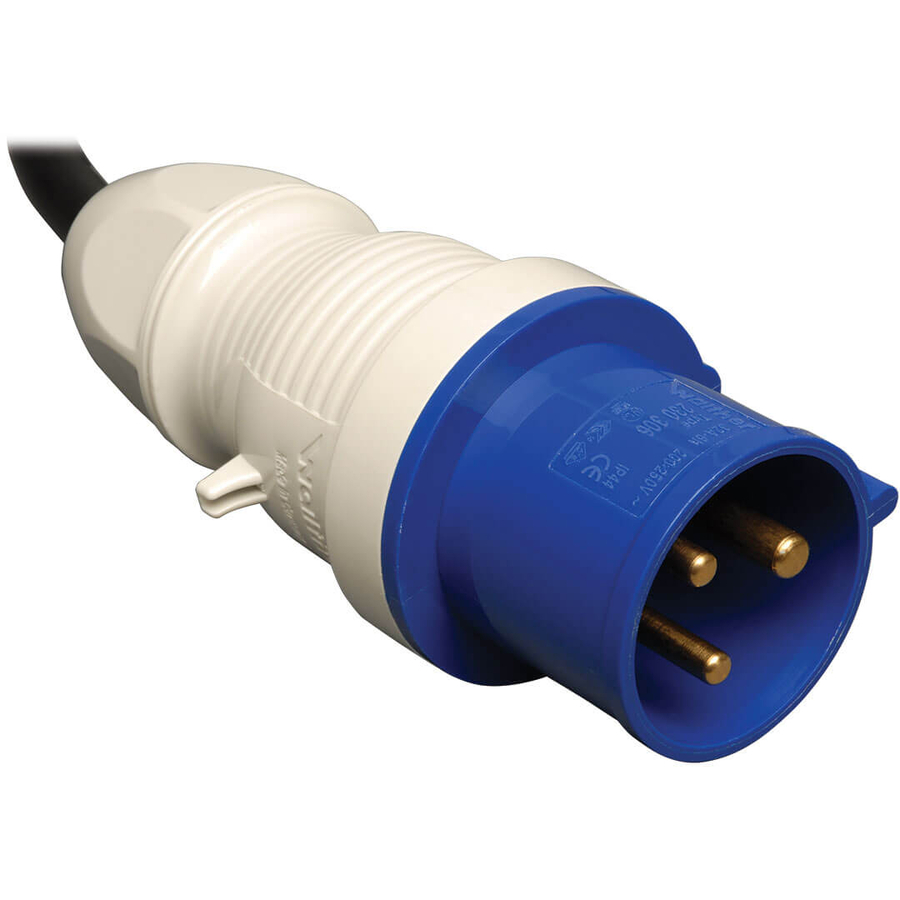

  • Blue 230V IEC-309 32A (2P+E) input plug
  • 16 outlets (12 C13, 4 C19) with included cord retention brackets
  • Temperature, humidity and contact-closure monitoring options

Specifications

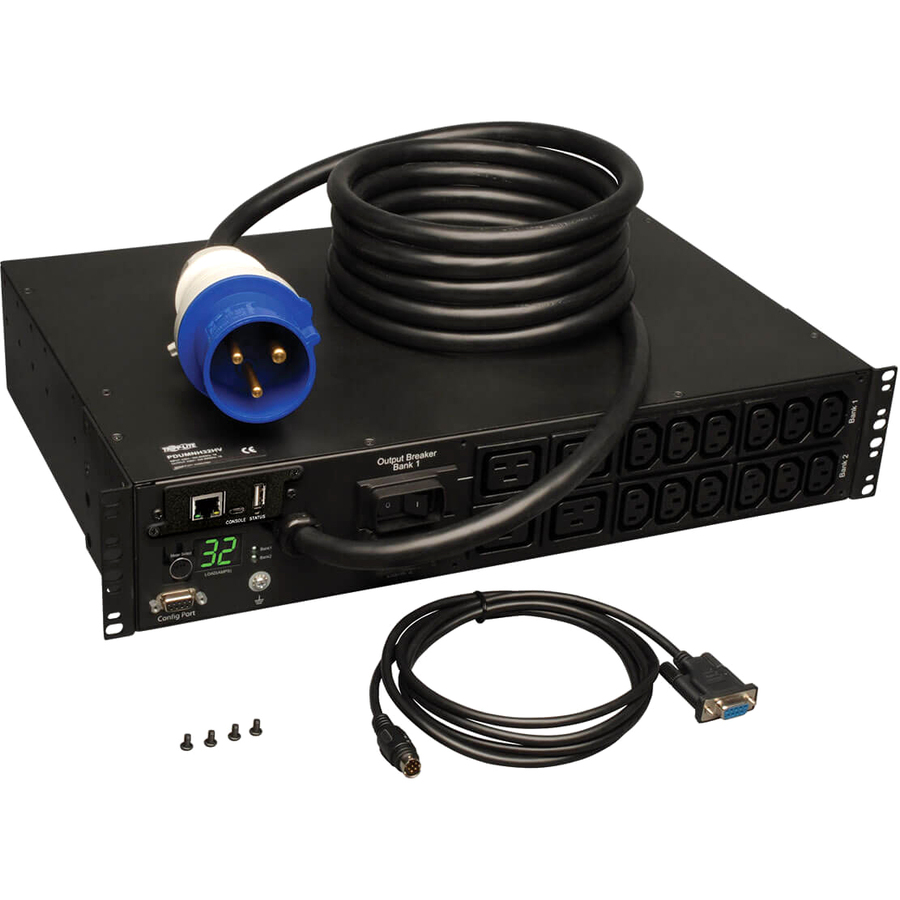

Package Contents
  • Metered PDUMNH32HV 16-Outlets 7.4kW PDU
  • Rack Installation Brackets
  • Cable Retention Brackets
  • SNMPWEBCARD Configuration Cable
  • PowerAlert Software Kit
  • User Manual
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDUMNH32HV
Limited Warranty2 Year
Output Voltage230 V AC
Weight (Approximate)13.70 lb
ManagementProtocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 Telnet FTP DHCP BOOTP NTP
ManufacturerEaton Corporation
Product ModelPDUMNH32HV
Product NameMetered PDUMNH32HV 16-Outlets 7.4kW PDU
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesMetered
Rack Height2U
Brand NameTripp Lite series
Country of OriginTaiwan
Height3.5"
Width17.5"
Depth12.5"
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Environmentally FriendlyYes
TAA CompliantYes
Mounting OrientationHorizontal
Power Rating (Watt)7400 W
Receptacle Detail4 x IEC 60320 C19, 12 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
