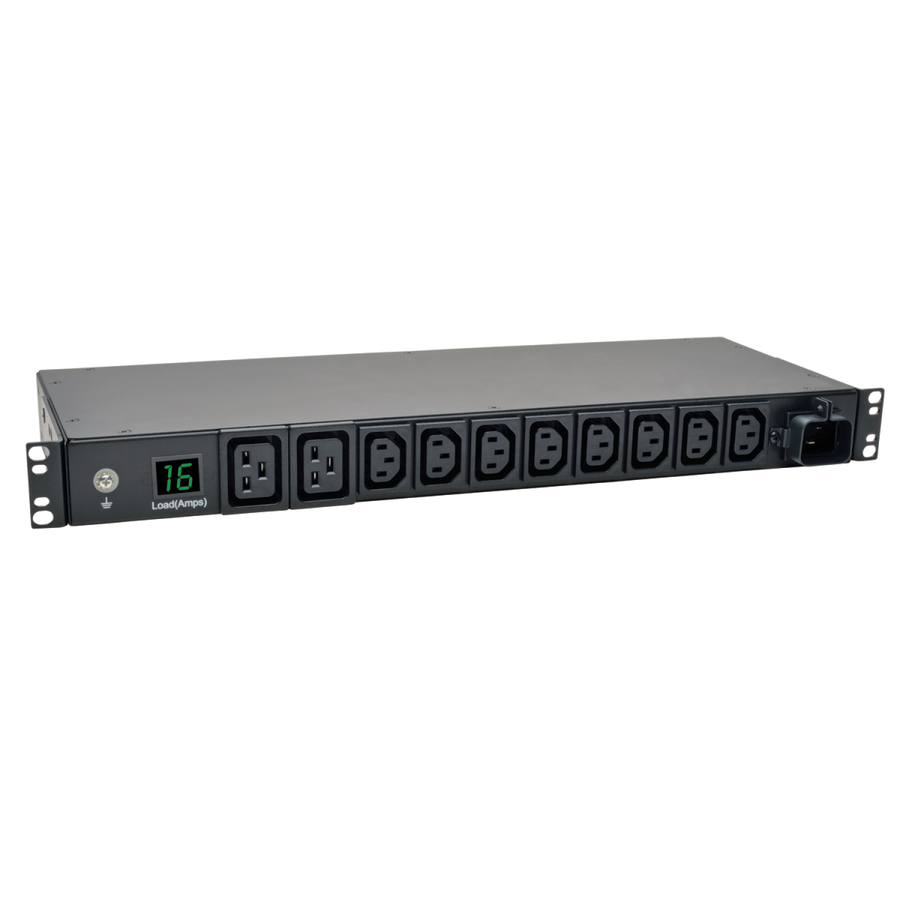

Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (8 C13, 2 C19) IEC-309 16A Blue, 8 ft. (2.43 m) Cord, 1U Rack-Mount, TAA

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer

Network-Grade 200/220/230/240V Power Distribution and Versatile Mounting Options

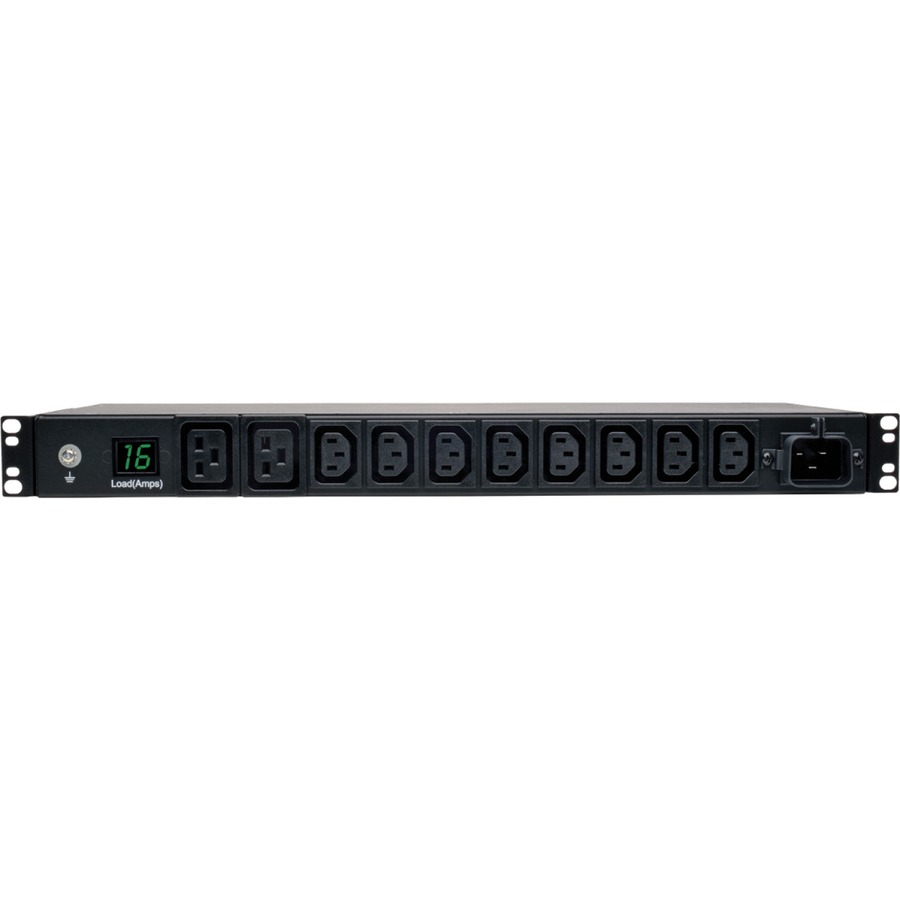

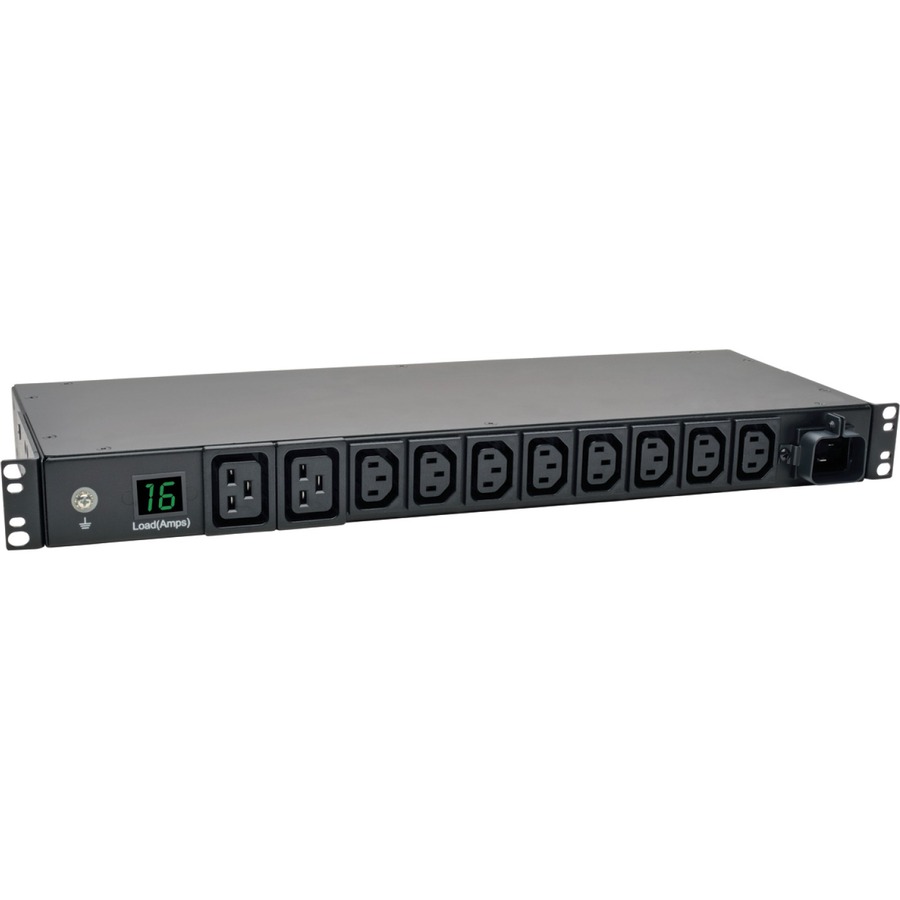

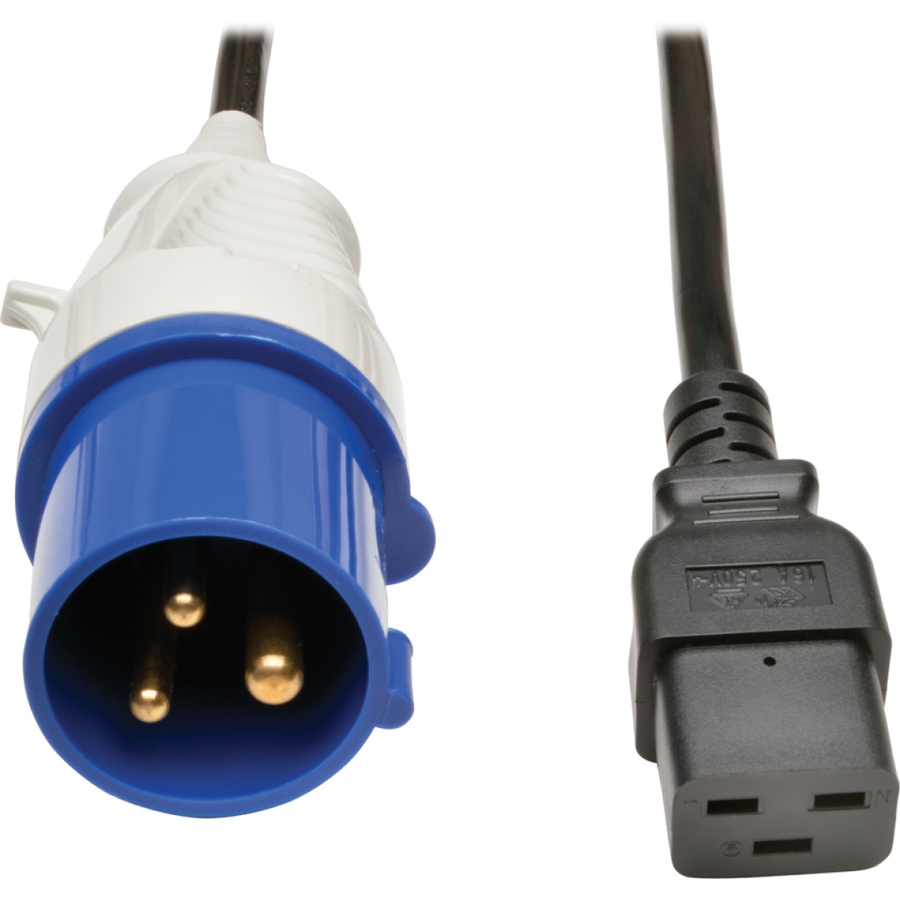

With a rugged all-metal housing, the PDUMH16HV is well-equipped for power distribution in rack enclosures and network closets. It provides selectable 200V, 220V, 230V or 240V power to 10 outlets (8 x C13, 2 x C19). This PDU has a C20 inlet and includes an 8 ft. detachable power cord with IEC-309 16A Blue (2P+E) plug. Recommended electrical service input is 230V, 16A. The front panel has a grounding lug.

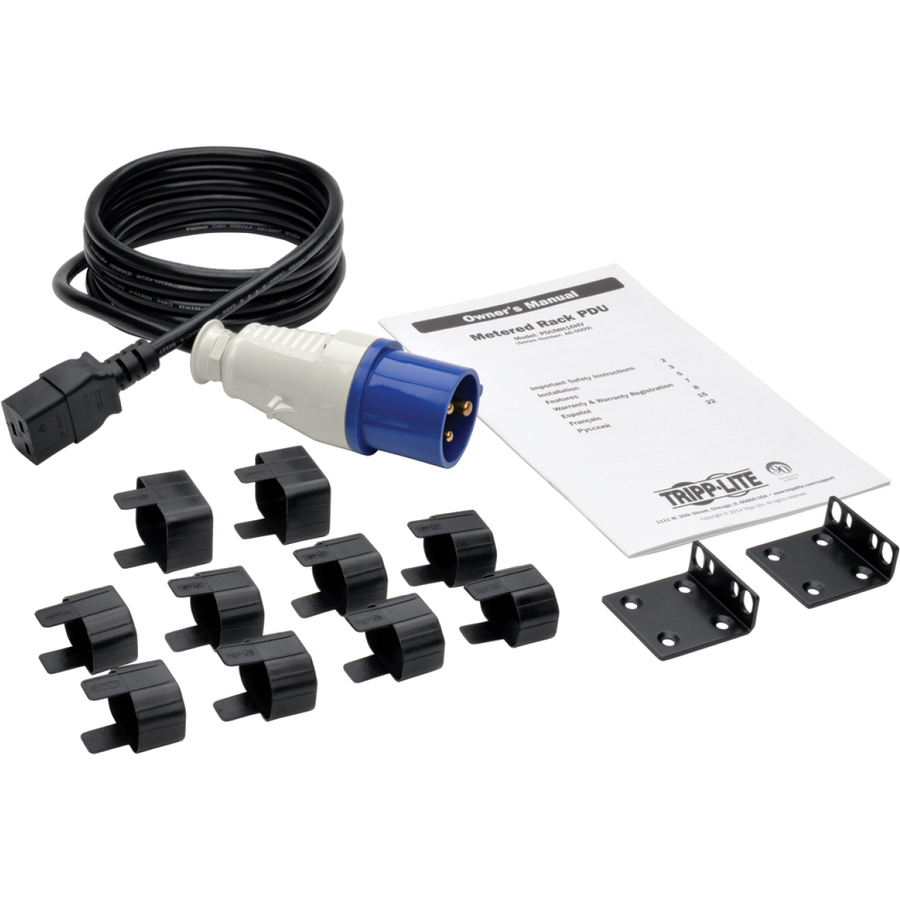

The PDUMH16HV has removable mounting flanges that support 1U (horizontal) mounting in 2 and 4-post racks. It’s also suitable for wall-mounting and under-counter mounting. The housing is reversible to face the front or back of the rack.

Digital Load Meter and 2-Year Warranty

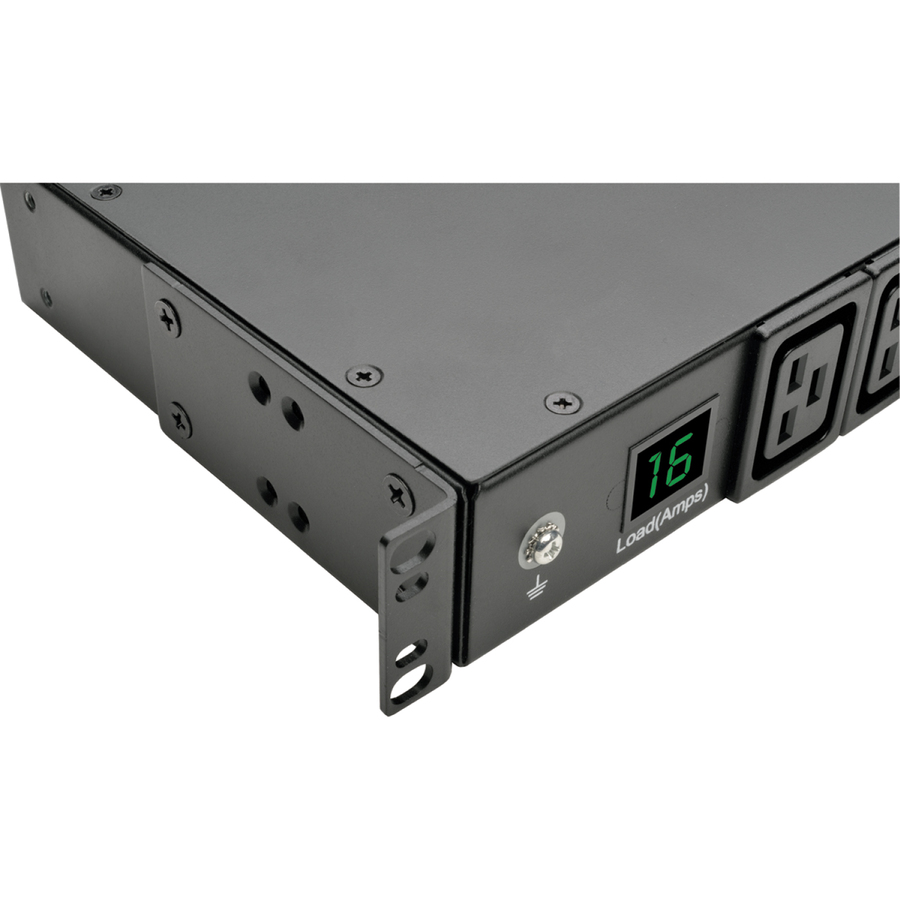

A load meter provides the real-time load level (in amps) of connected equipment to help ensure that the PDU is used at maximum capacity without danger of overload. Total output capacity is 16A (12A/10A CE max per C13 outlet and 16A max per C19 outlet).

The PDUMH16HV comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
