Tripp Lite by Eaton PDU 11.5kW 3-Phase Basic PDU - 45 208-240V Outlets (36 C13 9 C19) IEC 309 16/20A Red 360-415V Input 6 ft. Cord 70 in. 0U TAA
Eaton

Tripp Lite by Eaton PDU 11.5kW 3-Phase Basic PDU - 45 208-240V Outlets (36 C13 9 C19) IEC 309 16/20A Red 360-415V Input 6 ft. Cord 70 in. 0U TAA

Basic - IEC 60309 16/20A RED (3P+N+E) - 36 x IEC 60320 C13, 9 x IEC 60320 C19 - 360 V AC, 380 V AC, 400 V AC, 415 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant

SKU
PDU3XV6G20
Category
PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU3XV6G20
Category
PDUs

Overview

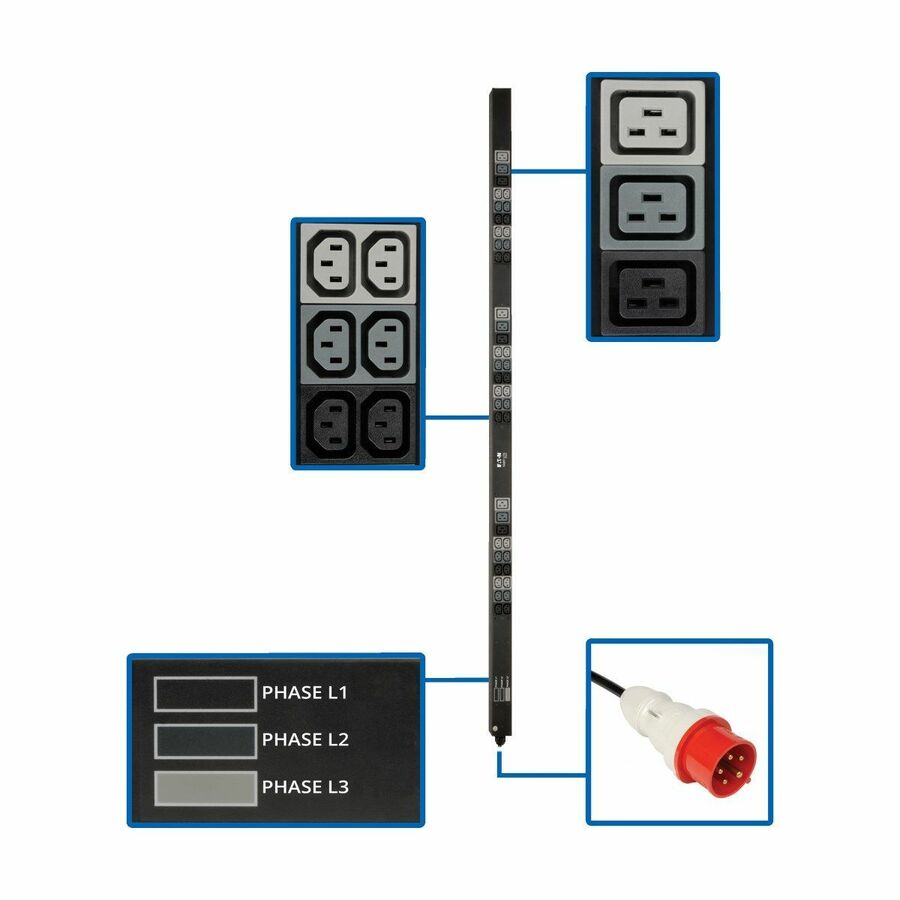

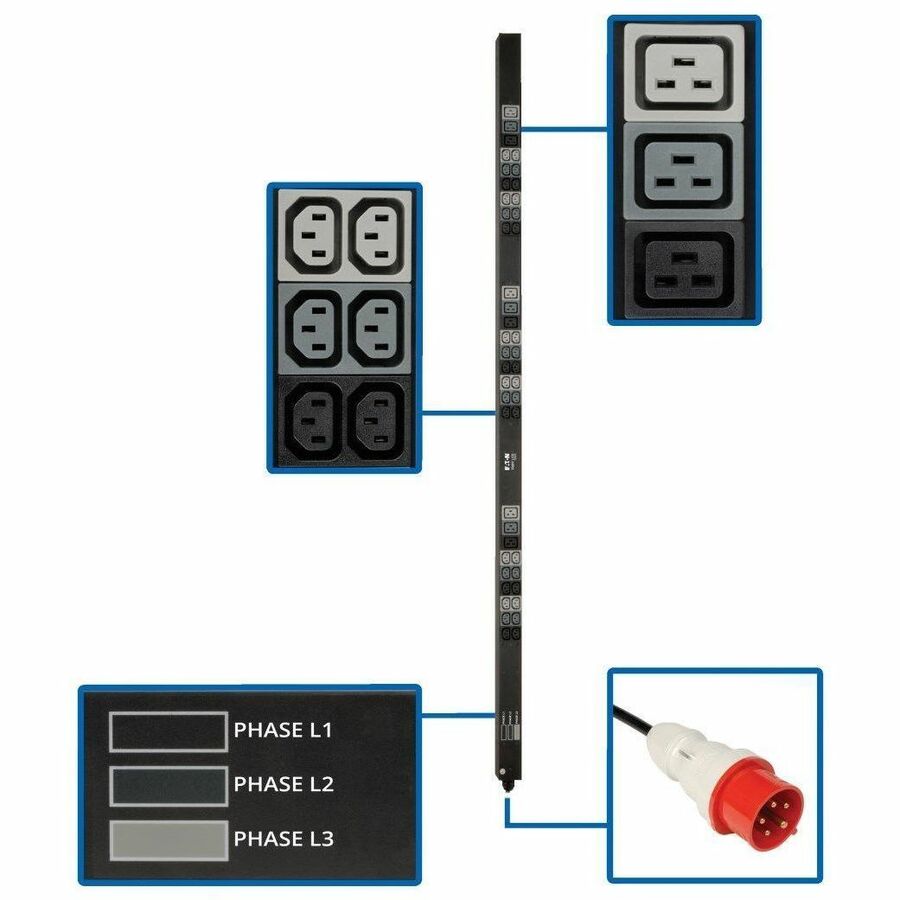

3-Phase 360-415V input / 208V-240V output PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3XV6G20 features 36 C13 and six C19 (208-240V) outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with IEC 309 16/20A Red 360-415V (3P+N+E) 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

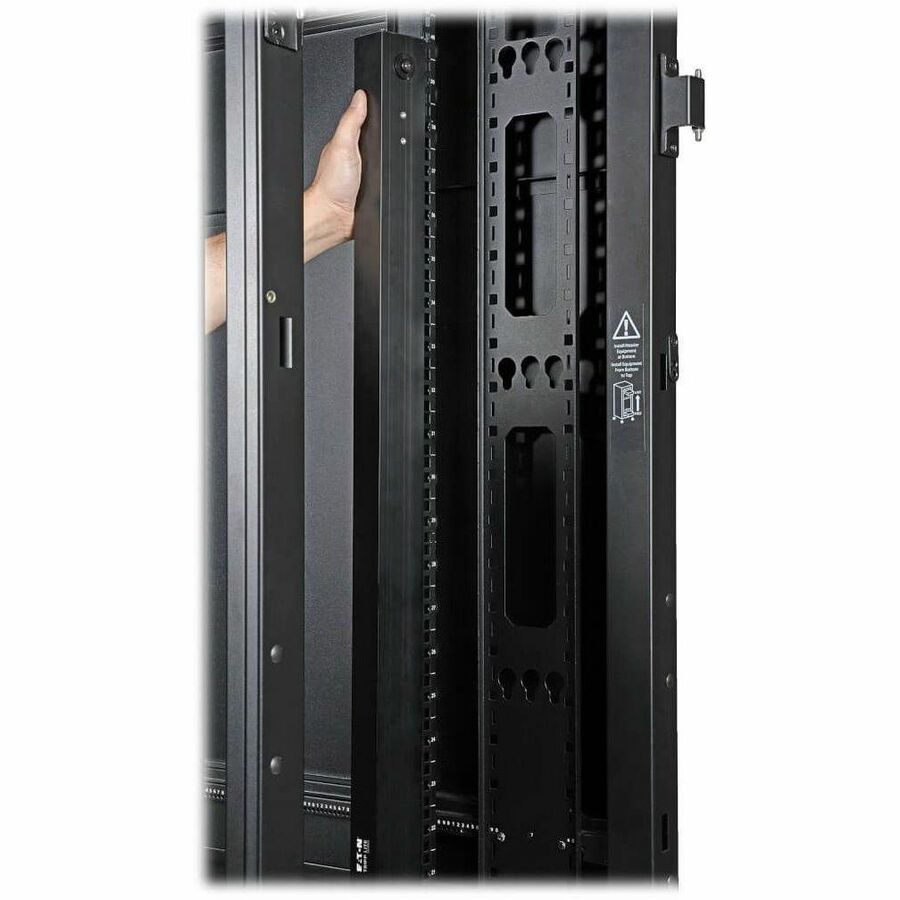

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

TAA-Compliant for GSA Schedule Purchases

The PDU3XV6G20 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Ideal no-frills PDU for telecom, security, audio/video and other network applications

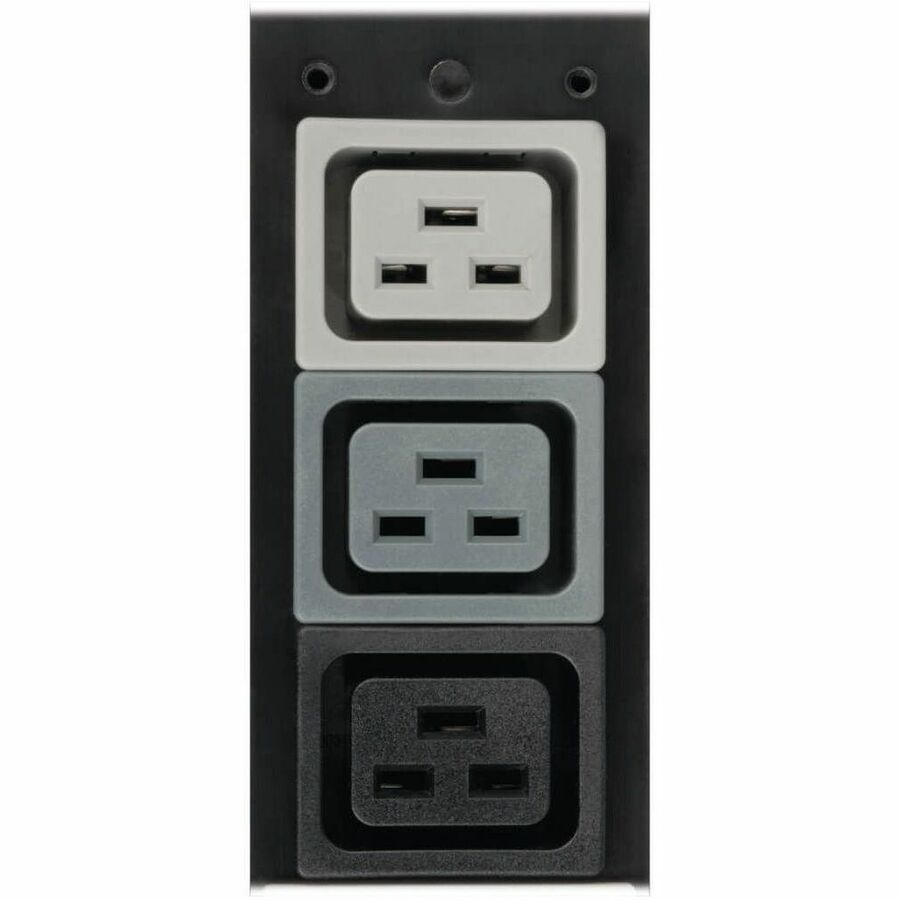

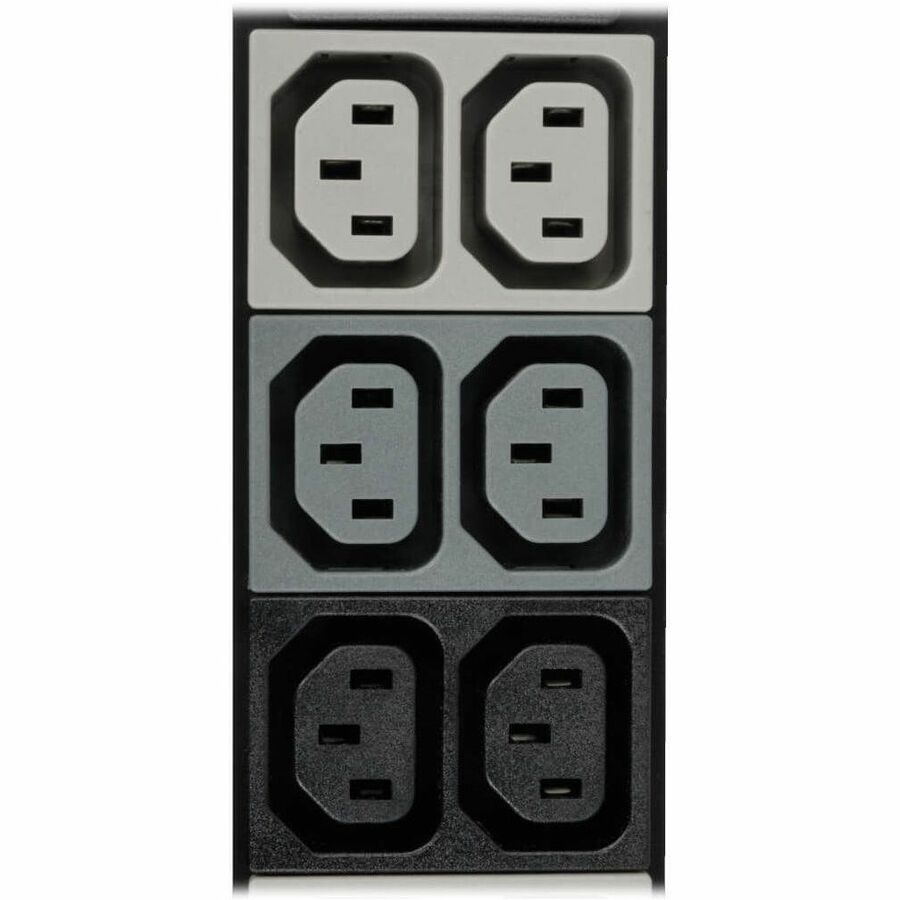

  • 36 C13 and 6 C19 single-phase outlets distribute AC power to connected equipment
  • Switchless design helps prevent accidental shutdowns that can lead to costly downtime
  • 6 ft. power cord with IEC 309 16/20A Red 3-phase input connects to AC source
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 2-year limited warranty

Specifications

Package Contents
  • PDU3XV6G20 45-Outlets PDU
  • Cable Retention Brackets With Installation Hardware
  • Rack-mounting Hardware
  • Owner's Manual
Product TypePDU
Manufacturer Part NumberPDU3XV6G20
Limited Warranty2 Year
Output Voltage208 V AC, 220 V AC, 230 V AC, 240 V AC
Weight (Approximate)9 lb
Input Current16 A
ManufacturerEaton Corporation
Product ModelPDU3XV6G20
Product NamePDU3XV6G20 45-Outlets PDU
Mount TypeRack-mountable
Protection TypeAccidental Power Shutdown
Rack Height0U
Brand NameTripp Lite series
Plug/Connector TypeIEC 60309 16/20A Red (3P+N+E)
Input Voltage Range360 V AC - 415 V AC
Country of OriginTaiwan
Height70"
Width2.2"
Depth1.9"
PhaseThree Phase
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Environmentally FriendlyYes
TAA CompliantYes
PDU TypeBasic
Mounting OrientationVertical/Toolless
Power Rating (Watt)11.50 kW
Locking ReceptaclesCord Retention Bracket
Receptacle Detail36 x IEC 60320 C13, 9 x IEC 60320 C19
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
