Tripp Lite by Eaton PDU 14.5kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets IEC 309 60A Blue Input LCD 1.8 m Cord 0U 1.8 m Height TAA

The PDU3EVSR6G60 14.5kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

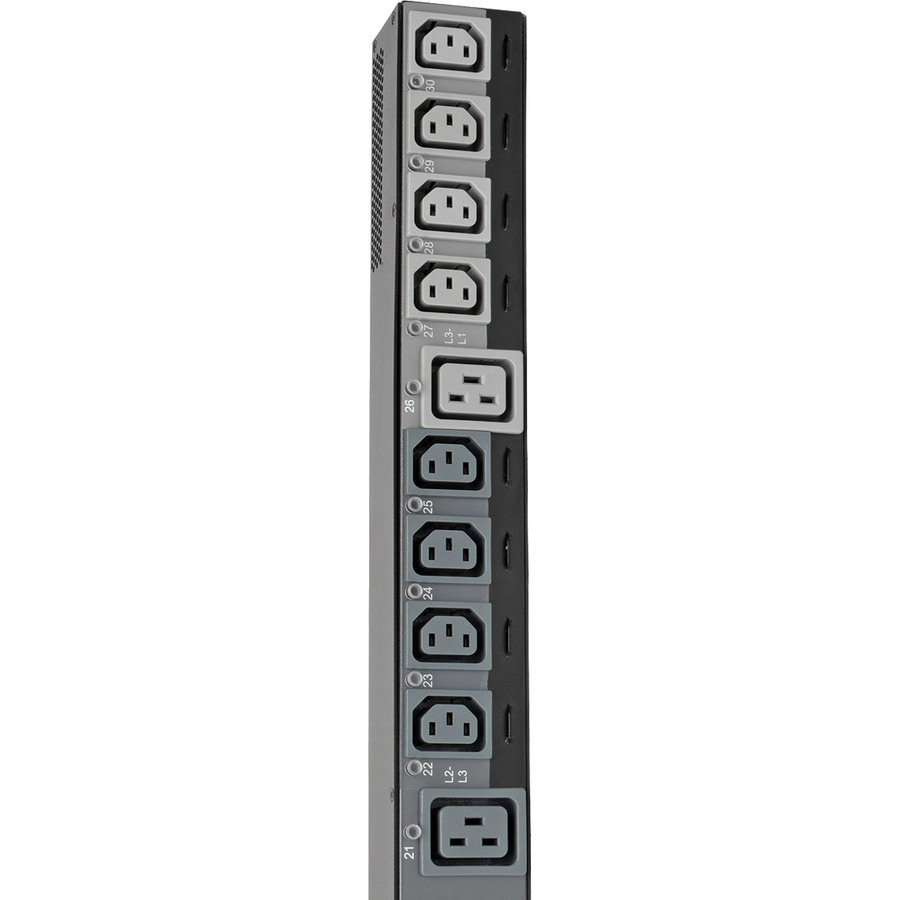

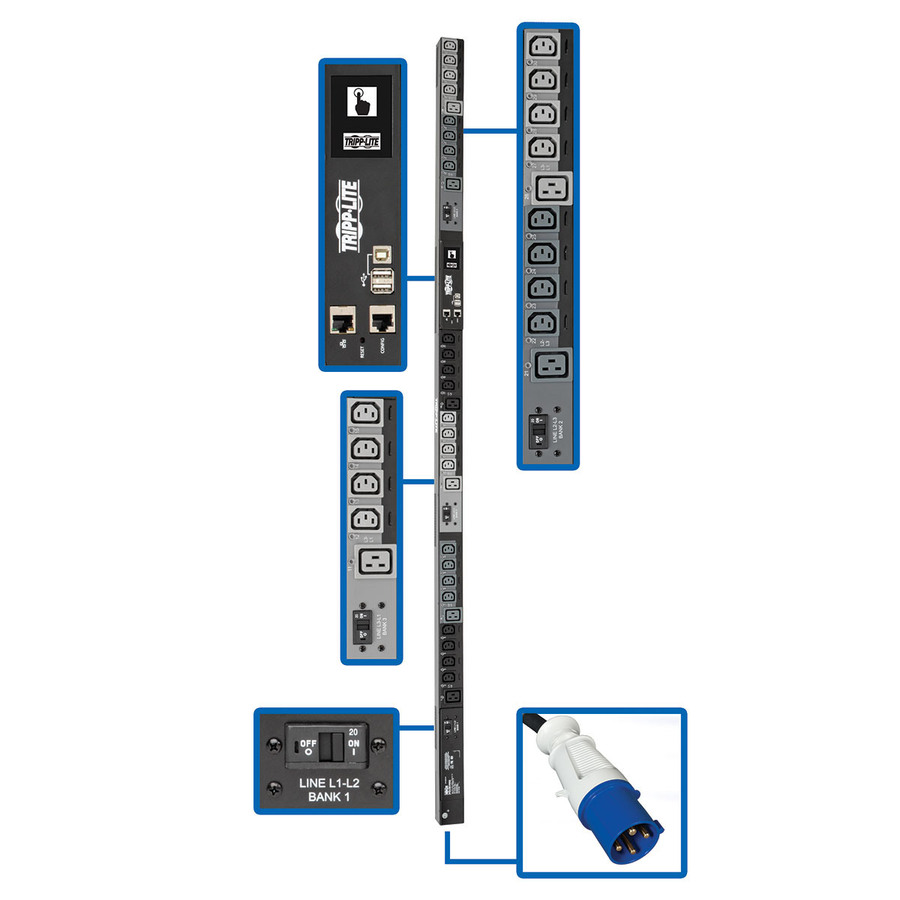

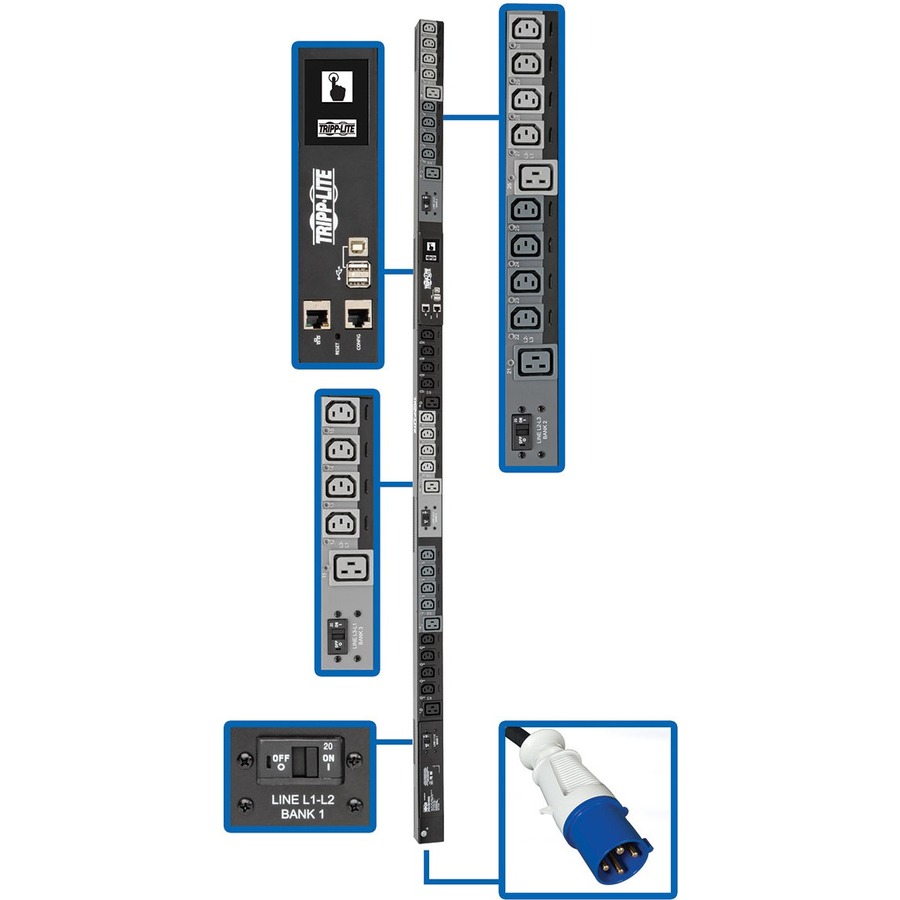

The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 60A Blue plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, SSH, or CLI. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

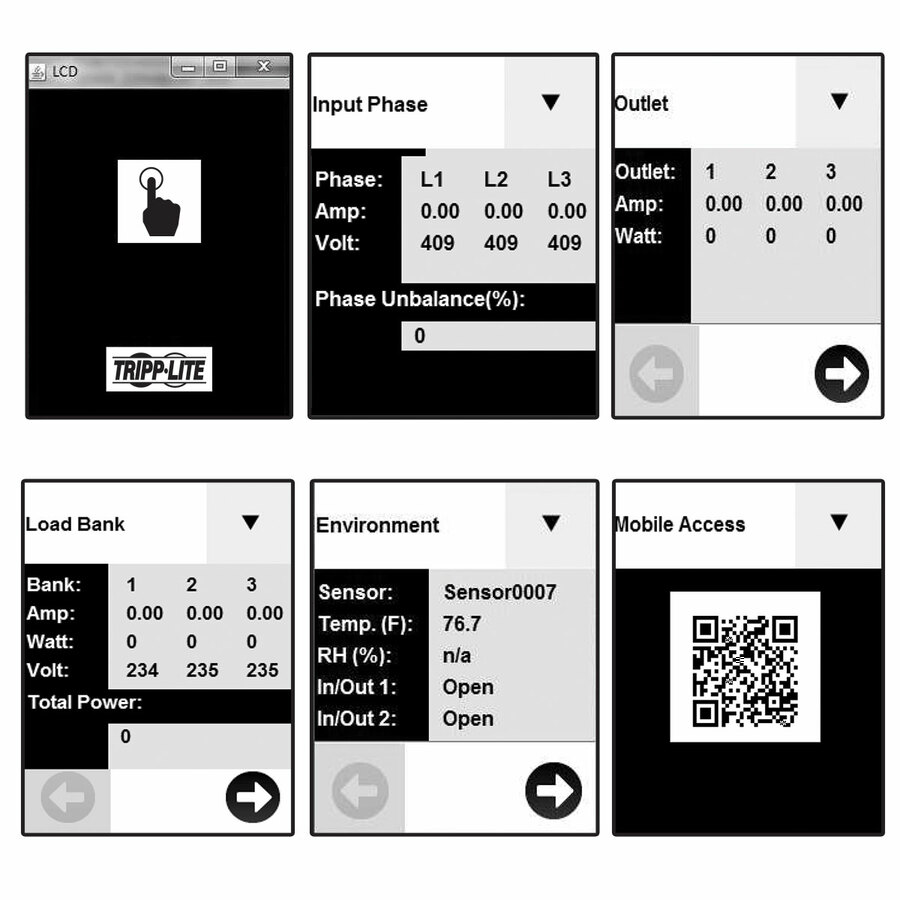

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

More from the Manufacturer

3-Phase Switched PDU Distributes, Monitors and Manages Network-Grade Power, No Java Required

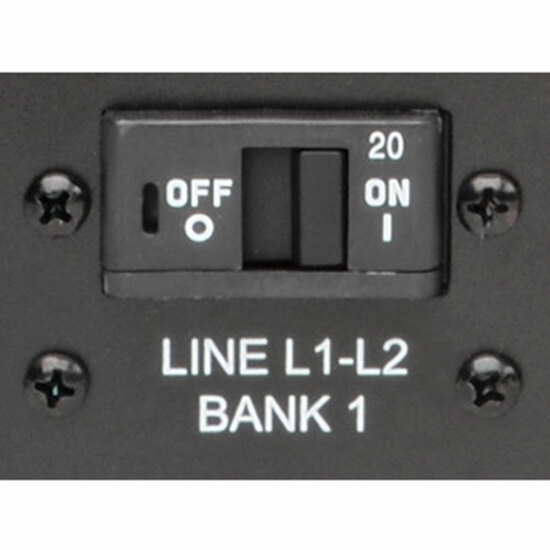

Tripp Lite’s PDU3EVSR6G60 distributes, monitors and manages 200/208/240V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in LX Platform network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. This PDU has a capacity of 10kW and features 30 switched outlets (24 C13 and six C19) in three separately breakered 20A load banks. A 6 ft. power cord with IEC 309 60A Blue plug connects the PDU to a compatible AC power source, generator or protected UPS system.

Typical Applications

Provide 200/208/240V power for up to 30 network devices

Simplify rack setups with organized power distribution

Remotely monitor and manage power to connected equipment in a data center, server room or network closet

Advanced Network Management Interface with HTML5-Based Platform

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities; up to three EnviroSense2 modules can be daisy-chained together. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

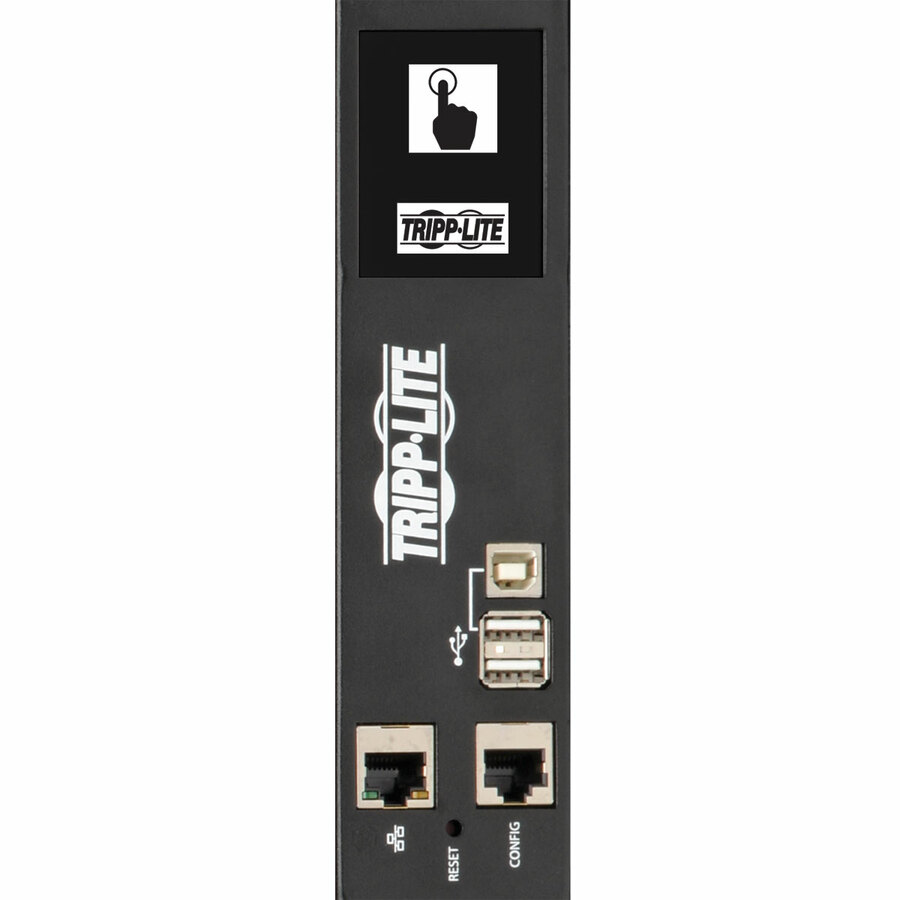

Color Touchscreen LCD for Local Control at Your Fingertips

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. The LCD also generates a unique QR code to allow access to the free downloadable PowerAlert® Device Manager through a mobile device. Full access is available by logging into PowerAlert via web browser as a user with read/write credentials.

Remote Individual Outlet Control Saves On-Site Visits

For a higher level of network power control, the 24 C13 and six C19 outlets can be individually controlled in real time. These controllable outlets enable power management tasks, including load shedding, load ramping, programming power-on and power-off sequences, and rebooting of locked-up network devices to be performed remotely. Unused outlets can be disabled to prevent the connection of unauthorized equipment loads. Each outlet has an LED that illuminates to confirm power on/off status.

Optimized for Demanding Applications

The all-metal case is designed to endure in demanding IT and industrial environments. The included plug-lock insert sleeves for the outlets help prevent the PDU and its connected equipment from becoming accidentally disconnected.

Versatile Installation Options and Upgradable Firmware

The PDU3EVSR6G60 mounts vertically in 0U of space in EIA-standard 19 in. 2-post and 4-post racks using the included toolless mounting buttons or rack-mounting brackets. Using the included mounting accessory, you can install the PDU with outlets facing either the front or rear, whichever direction offers better airflow or equipment access. To support any future product enhancements, the PDU’s firmware can be upgraded manually.

2-Year Warranty and Environmentally Responsible Design

For peace of mind, the PDU3EVSR6G60 comes with a 2-year warranty. It’s also manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

TAA-Compliant for GSA Schedule Purchases

The PDU3EVSR6G60 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
