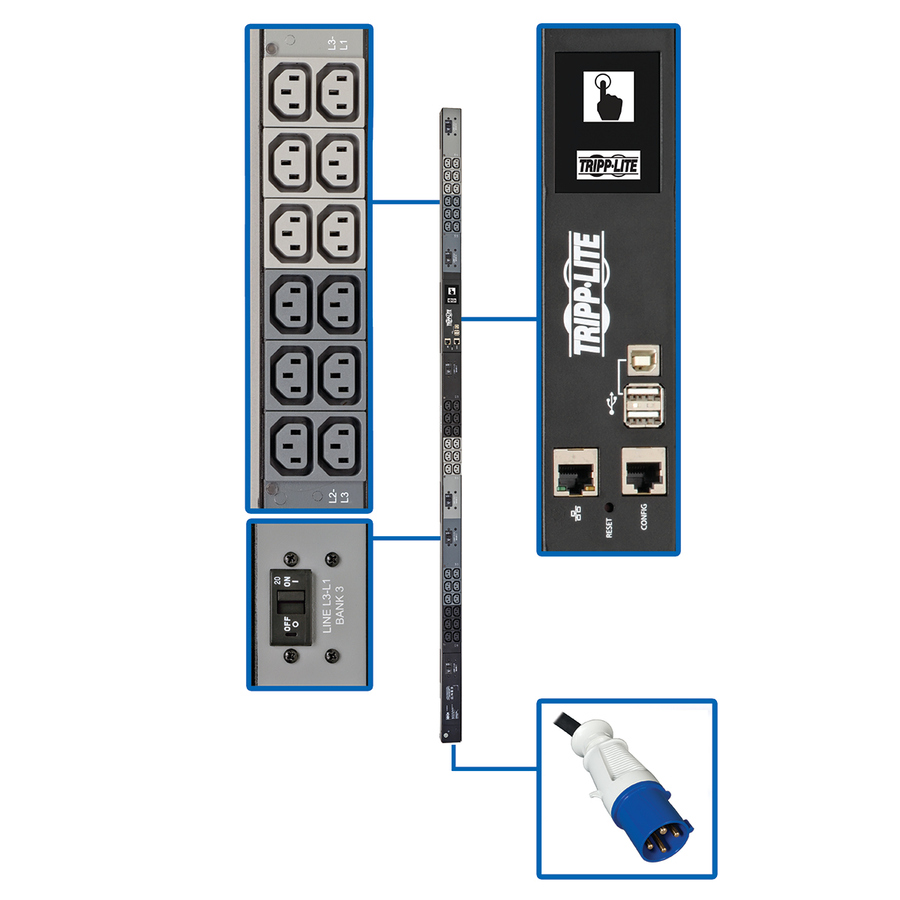

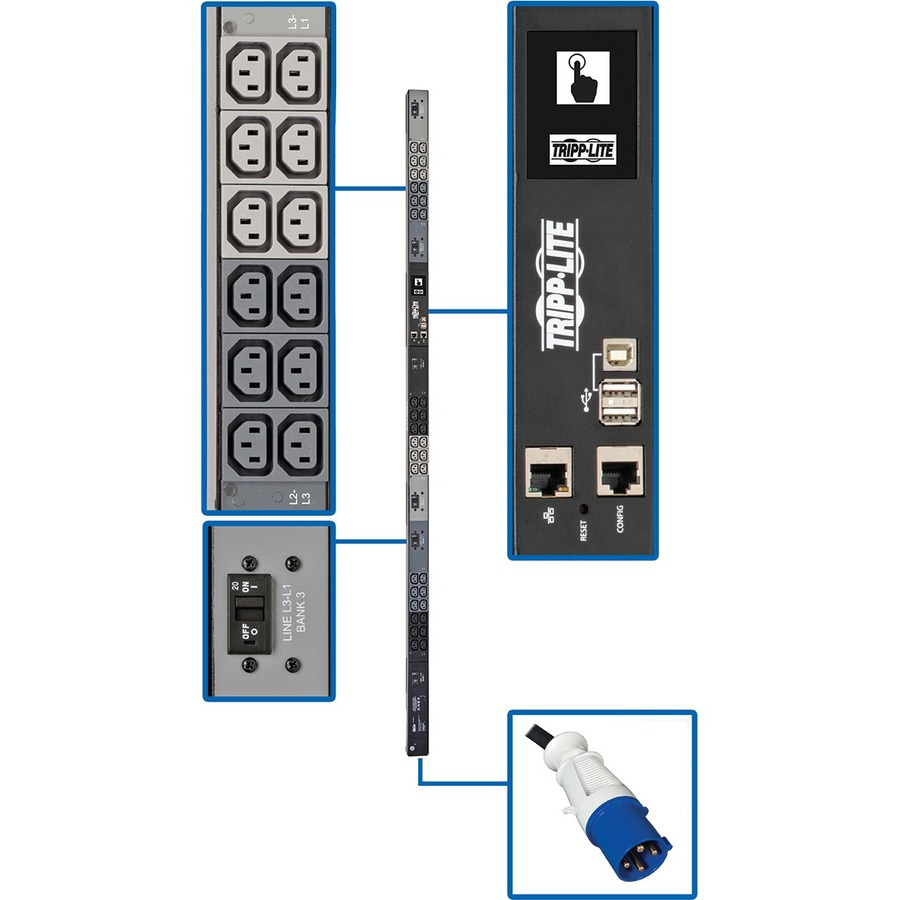

Tripp Lite by Eaton PDU 18.7kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 36 C13 Outlets IEC 309 60A Blue Input LCD 1.8 m Cord 0U 1.8 m Height TAA

3-Phase PDU Distributes and Monitors Network-Grade Power

Recommended for data centers, server rooms and network closets, the 18.7kW PDU3EVN6G60C provides real-time remote monitoring of voltage and load levels via built-in network connection. A six-foot (1.8-meter) cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS. The firmware can be easily upgraded to ensure the 0U PDU continues to perform at its best as connected equipment adds new features.

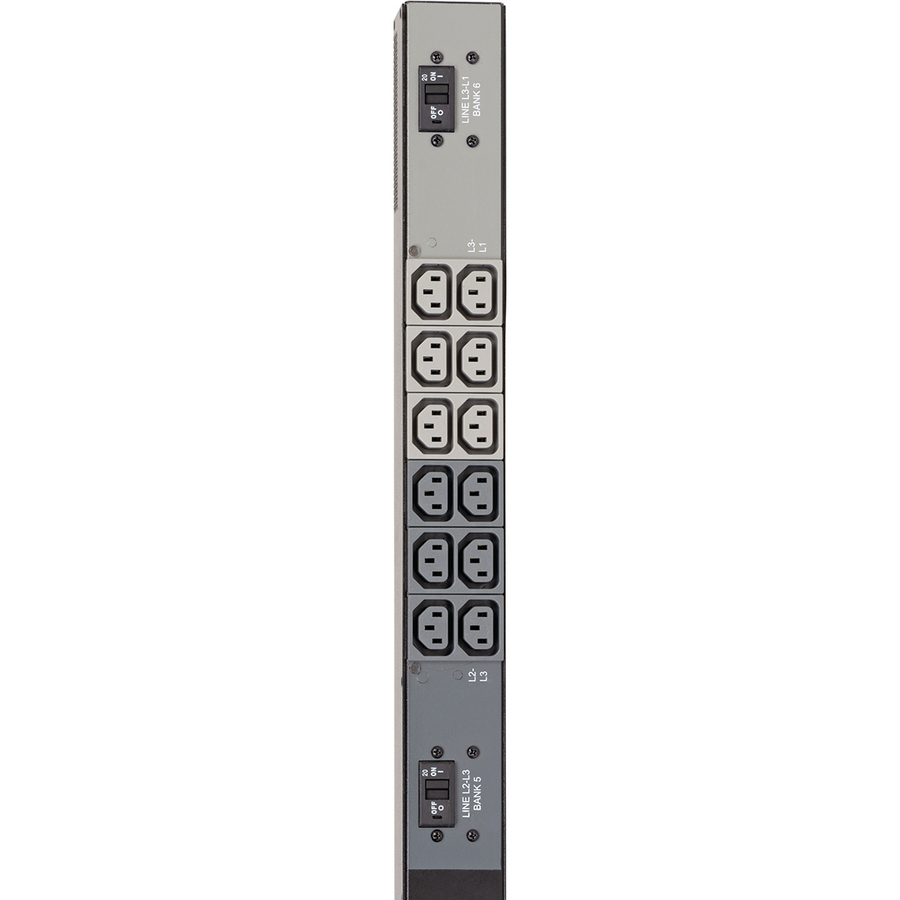

36 Outlets Dispense AC Power

During normal operation, 36 C13 outlets distribute AC power to connected equipment. Each 200/208/240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into six load banks, each protected by a 20A circuit breaker that trips if the bank's connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Offers Important Data at a Glance

An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity.

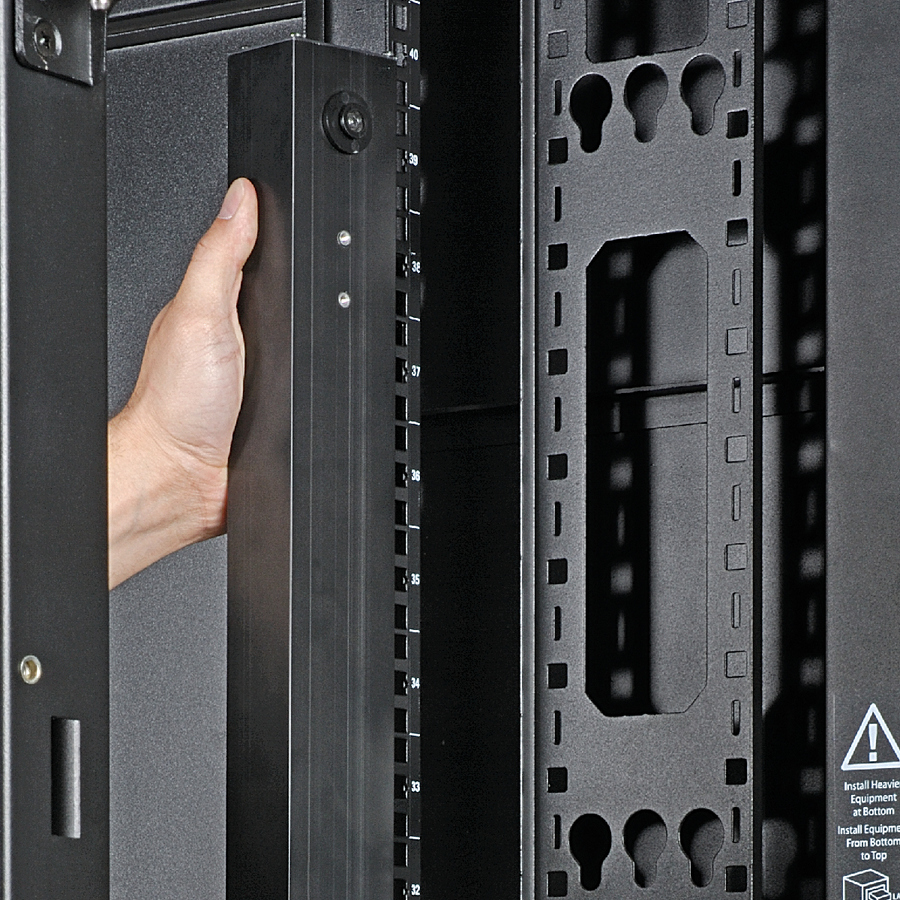

Easy to Install Vertically in an EIA-Standard 19 in. Rack

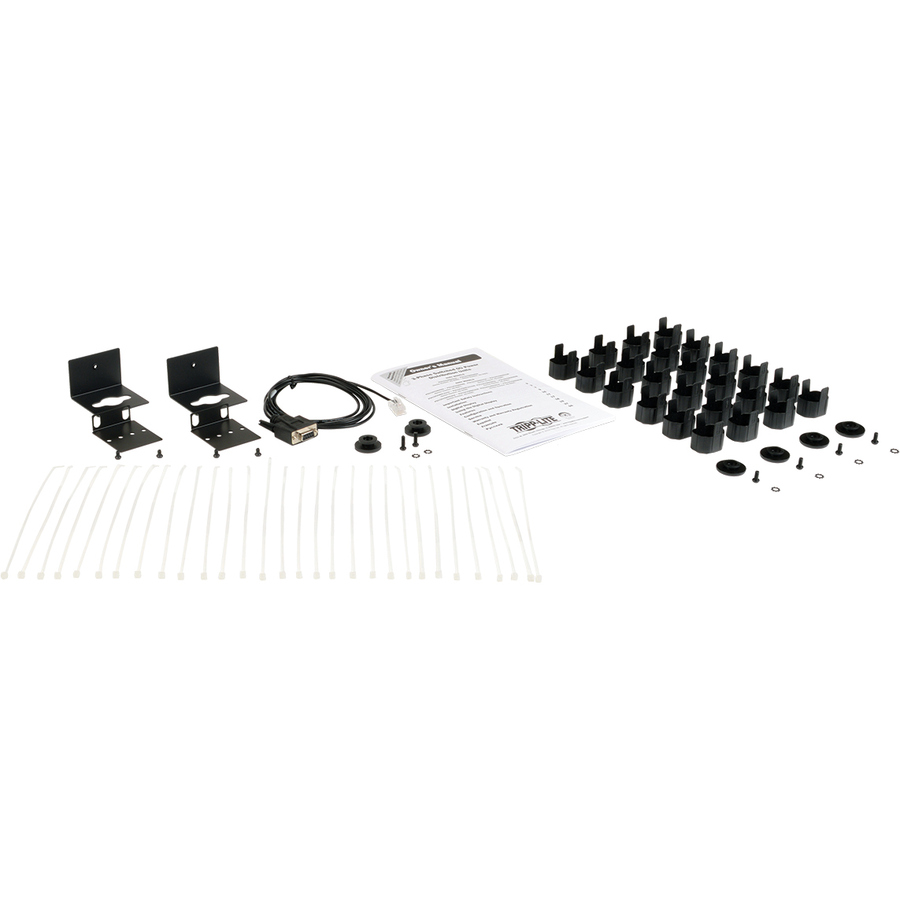

The 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the 3- phase PDU with outlets facing the rear for better airflow or equipment access.

TAA-Compliant for GSA Schedule Purchases

The PDU3EVN6G60C is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

2-Year Warranty

The PDU3EVN6G60C is backed by a 2-year warranty, ensuring reliability and performance. More from the Manufacturer

18.7kW 3-Phase Monitored PDU with Advanced Network Monitoring and Touchscreen LCD

Tripp Lite’s PDU3EVN6G60C distributes AC power and provides real-time remote monitoring of voltage and load levels via built-in network interface. Recommended for data centers, server rooms and network closets, this PDU features 36 C13 outlets split evenly into six individually monitored load banks. A six-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

Typical Applications

Power a major data center with hundreds of server racks running mission-critical applications

Monitor power loads from various computers, switches, servers and other networking equipment

Distribute power to a computer network in a large commercial or industrial facility

Maintain Complete Remote Access to Your Connected Devices from Anywhere 24/7

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. When used with an optional EnviroSense2 (E2) environmental module (sold separately), it can also perform temperature/humidity and dry contact monitoring, providing IT personnel with enhanced oversight of facility power and environmental conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Keeps Important Data at Your Fingertips

An easy-to-navigate touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data, configuration settings and network information. The LCD also generates a unique QR code to allow read-only access to the free downloadable PowerAlert® Device Manager through a mobile device. Full access is available by logging into PowerAlert via web browser as a user with read/write credentials.

Reduces the Cost of Data Center Maintenance

Remote monitoring capabilities lower the PDU3EVN6G60C’s total cost of ownership by reducing the frequency of on-site visits.

Upgradable Firmware

To support any future product enhancements, the PDU’s firmware can be manually upgraded.

Optimized for Demanding Applications

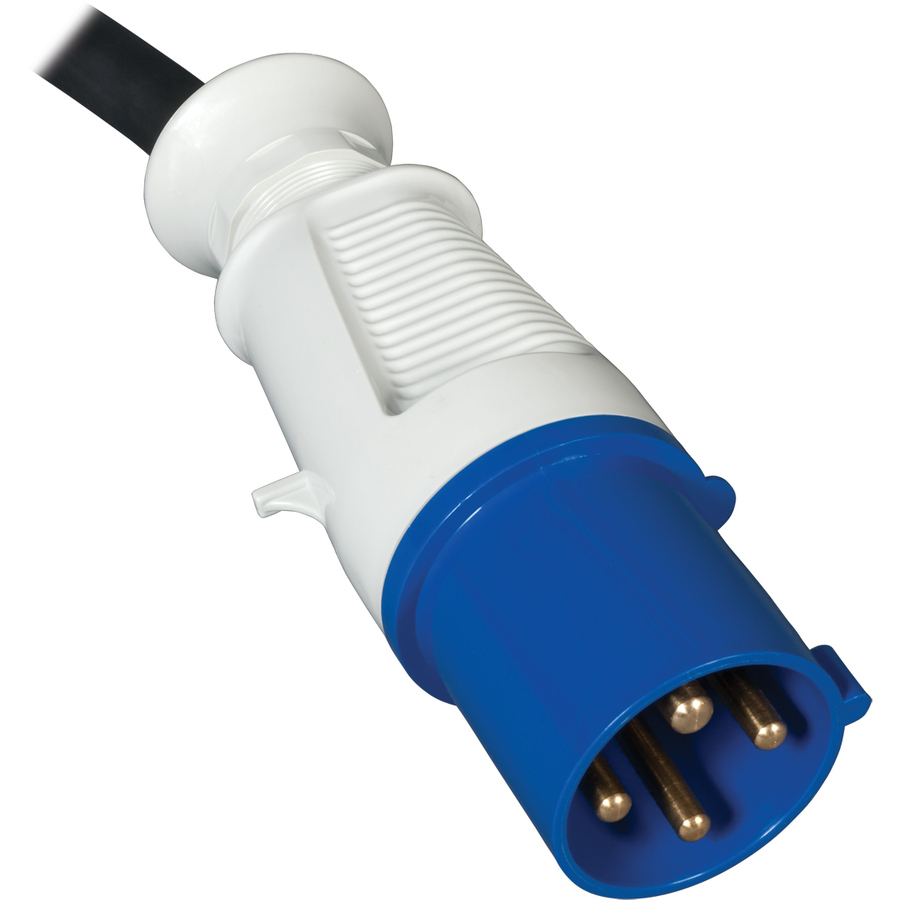

The all-metal housing is designed to endure in demanding IT and industrial environments. The IEC 309 60A Blue (3P+E) plug and included plug-lock insert sleeves for the outlets help prevent the PDU and its connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered. An LED next to each outlet illuminates when the outlet is ready to distribute live AC power.

Versatile Installation Options

The PDU3EVN6G60C mounts vertically in 0U of space in EIA-standard 19-inch 2-post and 4-post racks using the included toolless mounting buttons or rack-mounting brackets. Spare buttons are also included. Vertical 0U installation frees up space in the rack and promotes efficient airflow. You can install the PDU with outlets facing either the front or rear, whichever direction offers better airflow or equipment access.

2-Year Warranty and Environmentally Responsible Design

The PDU3EVN6G60C comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

TAA-Compliant for GSA Schedule Purchases

The PDU3EVN6G60C is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
