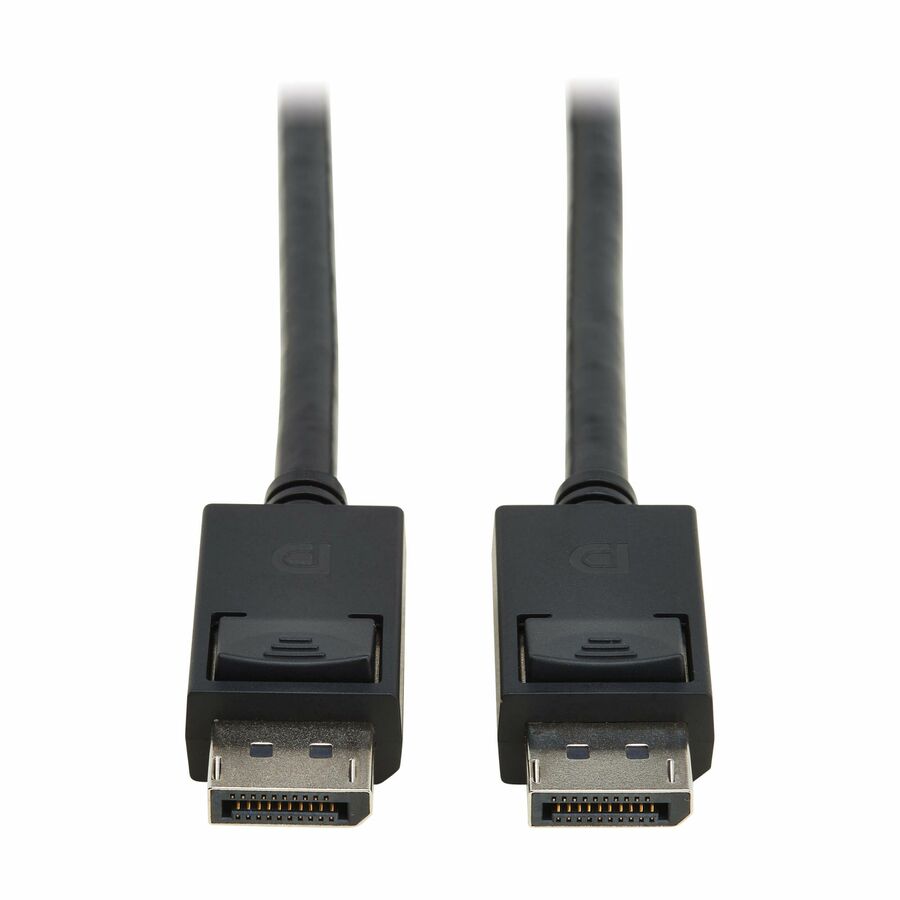

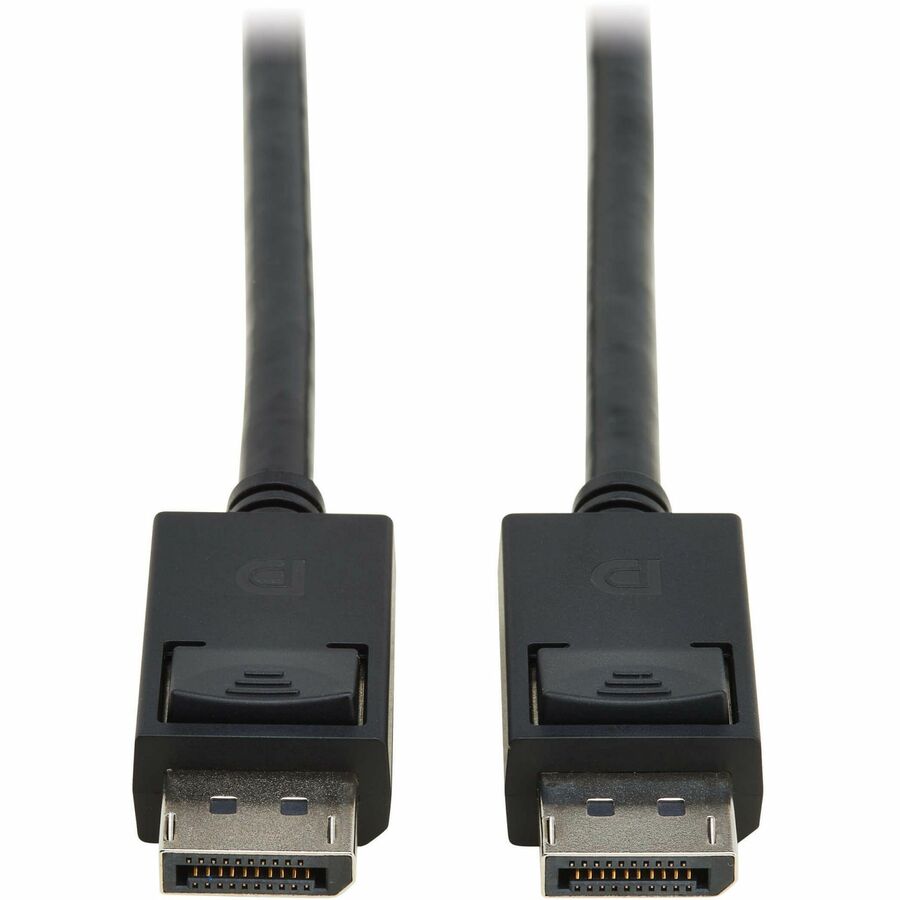

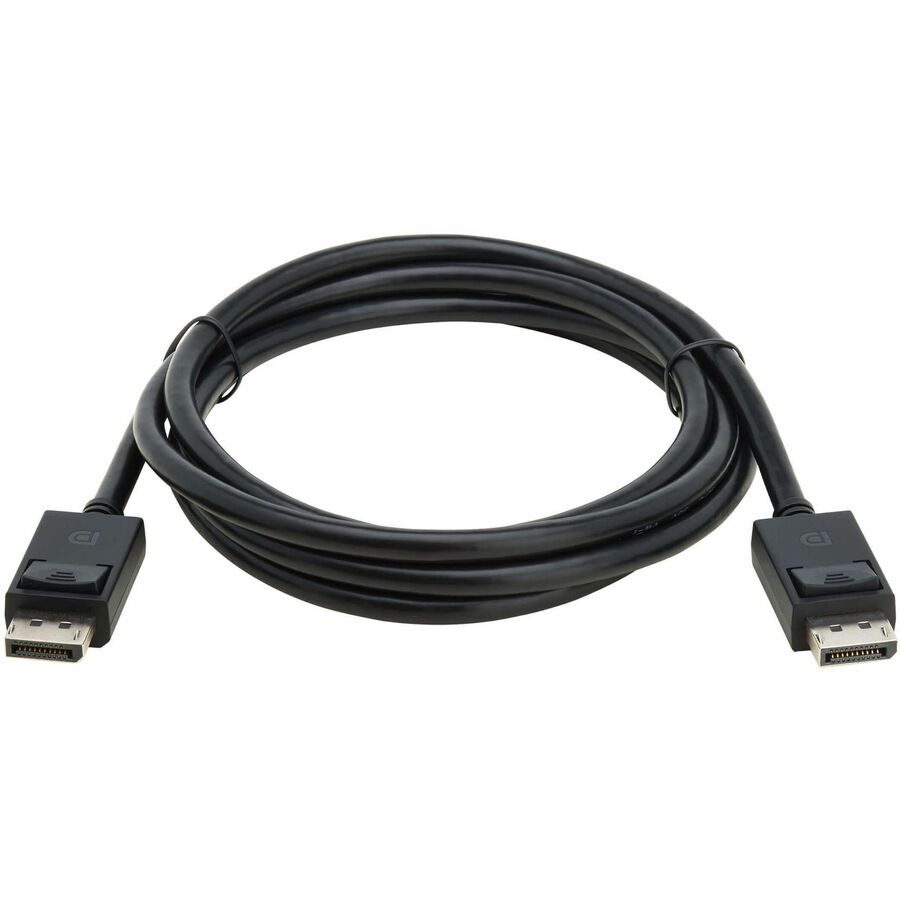

Tripp Lite by Eaton series DisplayPort 2.1 Cable with Latching Connectors (M/M), 8K 60 Hz, 40 Gbps, HDR, HBR3, MST, 4:4:4, HDCP 2.2, Black, 6 ft. (1.8 m)
6 ft DisplayPort A/V Cable for Audio/Video Device, Home Theater System, Gaming Console, Blu-ray Player, HDTV, Monitor - First End: 1 x DisplayPort 2.1 Digital Audio/Video - Male - Second End: 1 x DisplayPort 2.1 Digital Audio/Video - Male - 40 Gbit/s - Supports up to 7680 x 4320 - Nickel Plated Connector - Gold Plated Contact - VW-1 - 30 AWG - Black
- SKU
- P5800068K62
- Category
- Connector Cables
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- P5800068K62
- Category
- Connector Cables
Overview
DisplayPort 2.1 Cable Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready
This high-speed DisplayPort (DP) cable (M/M) securely connects source and display devices compatible with DP 2.1 audio/video signals. Backward compatible with all your existing DisplayPort devices, including Blu-ray players, gaming/VR consoles and 4K televisions, the P580-006-8K6-2 is ideal for future-proofing your high-definition or Ultra HD application in anticipation of an 8K upgrade. It transmits 10 Gbps per lane over four lanes to provide bandwidth up to 40 Gbps for sharper resolution and brighter color.
Enjoy the Clarity of 4K/8K Video with Multi-Channel Audio and 4:4:4 Color
The P580-006-8K6-2 supports 8K UHD resolutions up to 7680 x 4320 at 60 Hz and 32 audio channels. It's compatible with DisplayPort 2.1 standards for HDR, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream 4K content with no complications. This cable also supports 4:4:4 chroma subsampling for top-level online gaming or using your HDTV as a PC monitor.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting this cable to a source that supports DisplayPort MST mode, you may connect two 8K displays simultaneously. This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall. The P580-006-8K6-2 supports video extenders for connecting source and display devices over long distances.
Invest in Quality Construction for Reliable Performance

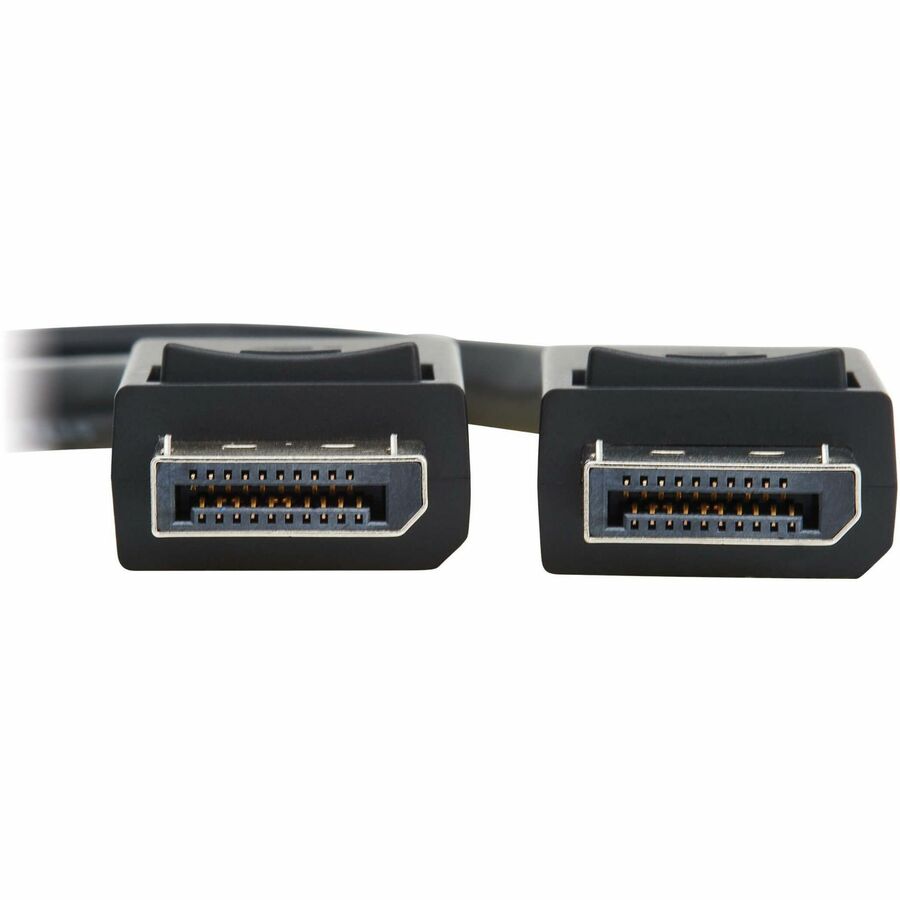

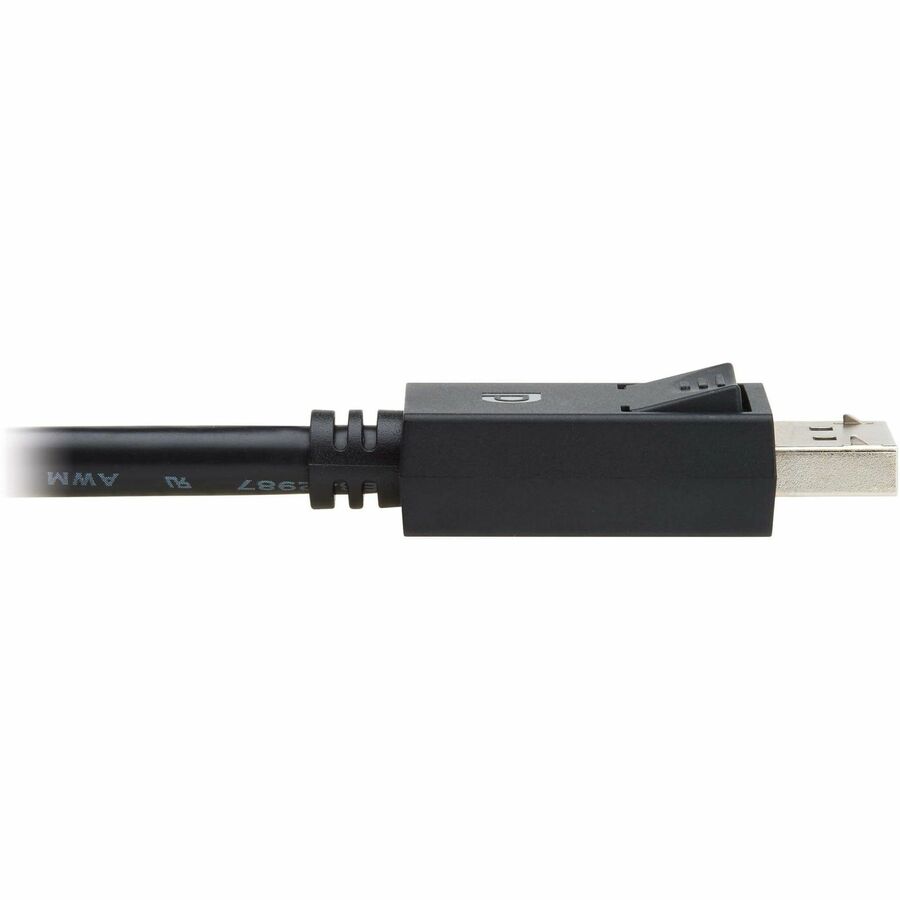

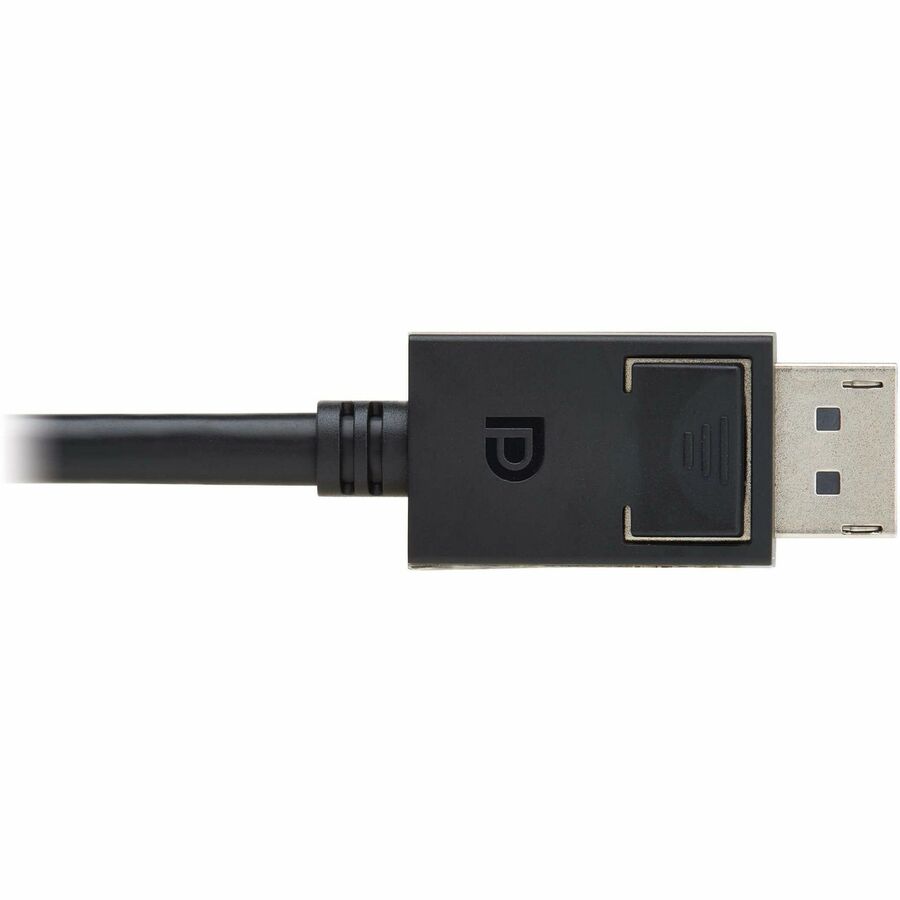

You're expecting this 8K cable to last a long time, which is why it has been constructed with high-quality materials, such as a rugged PVC jacket. Contacts are gold-plated to resist corrosion. The male connectors latch securely to help prevent the cable from becoming accidentally disconnected and disrupting a continuous audio/video signal.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) for state-of-the-art video quality
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Complies with HDCP 2.2 standards to display up-to-date 4K video content
- Supports DisplayPort MST mode for extending video to a second display
- Plug-and-play operation with no software required for easy, immediate installation
- This product is covered by a Lifetime Limited Warranty
Specifications
| Cable Length | 6 ft |
|---|---|
| Product Type | A/V Cable |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Audio/Video Device, Home Theater System, Gaming Console, Blu-ray Player, HDTV, Monitor |
| Jacket Type | VW-1 |
| Manufacturer Part Number | P5800068K62 |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.21 lb |
| Features | Latching Connector, HDR Support, Multi-Stream Transport (MST) Support, HDCP 2.2, High Bit Rate 3 (HBR3), Passive, Plug & Play, Rugged, Corrosion Resistant |
| Manufacturer | Eaton Corporation |
| Product Model | P580-006-8K6-2 |
| Product Name | DisplayPort Audio/Video Cable |
| Brand Name | Tripp Lite series |
| Country of Origin | Vietnam |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male, DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 7680 x 4320 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Contact Plating | Gold |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Product Material | PVC |
| Jacket Color | Black |
| Connector Color | Black |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
