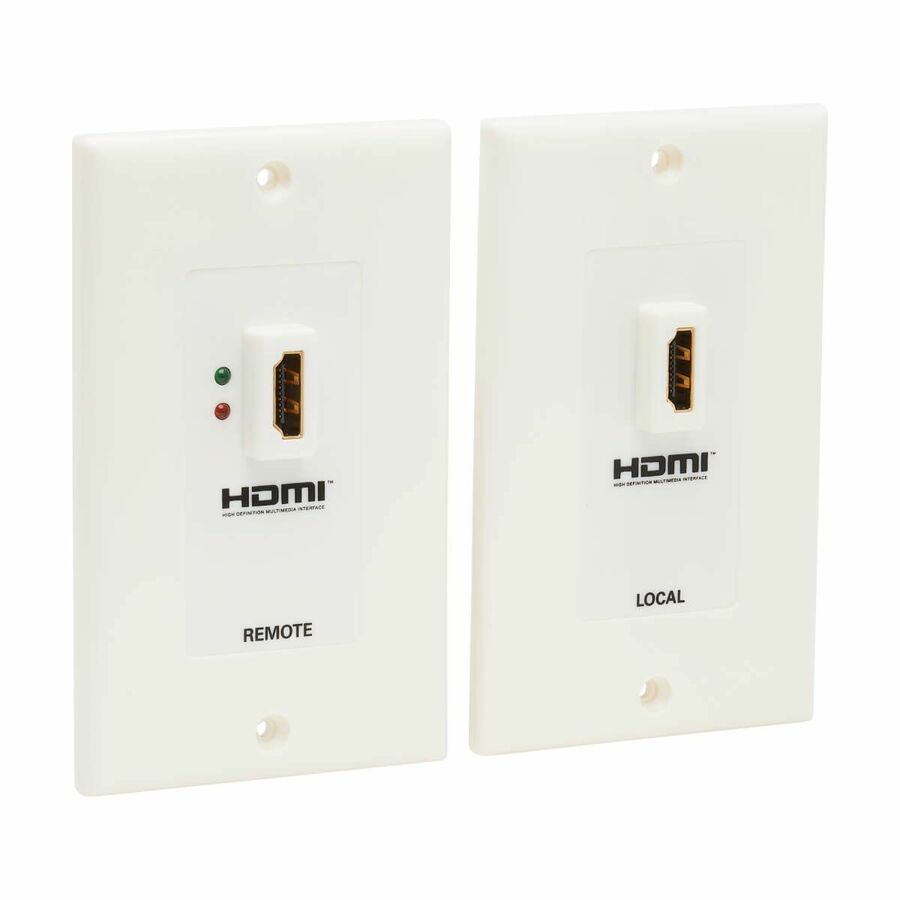

Tripp Lite by Eaton HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver TAA

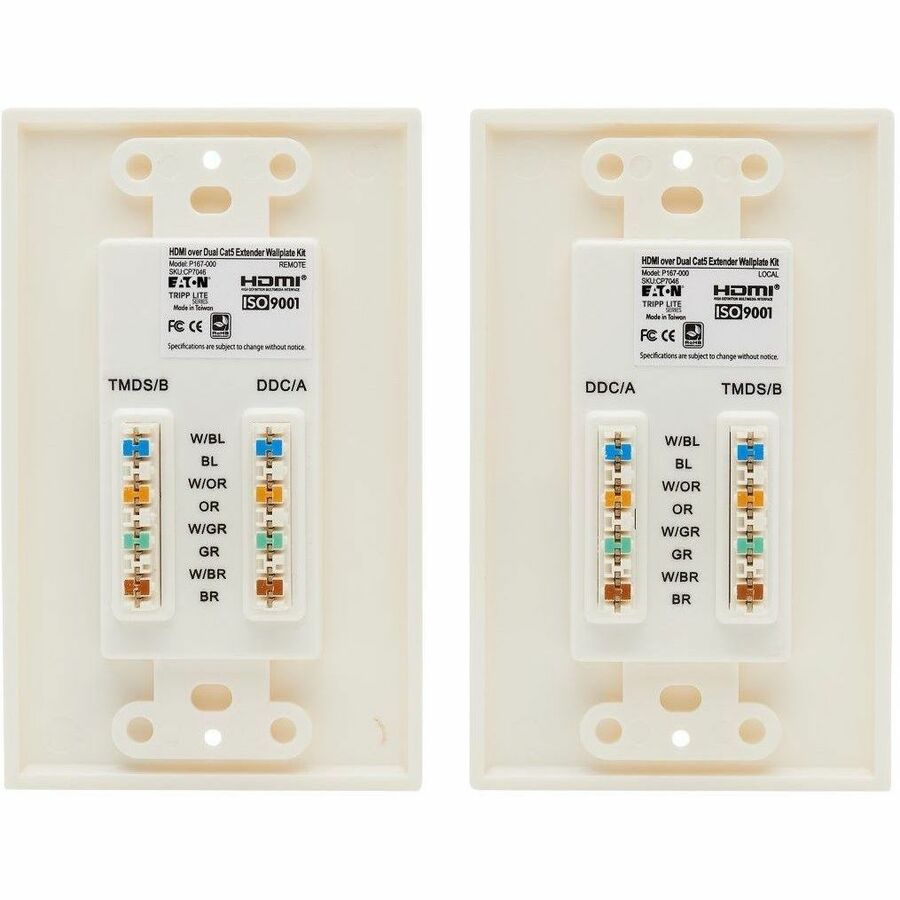

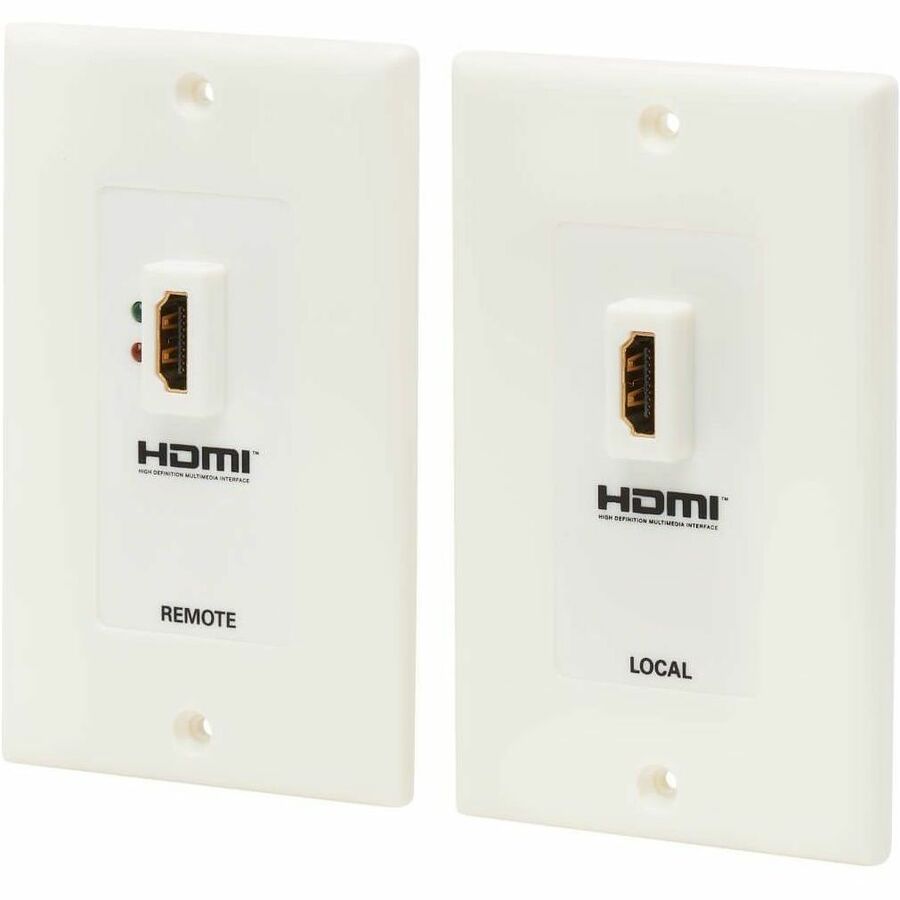

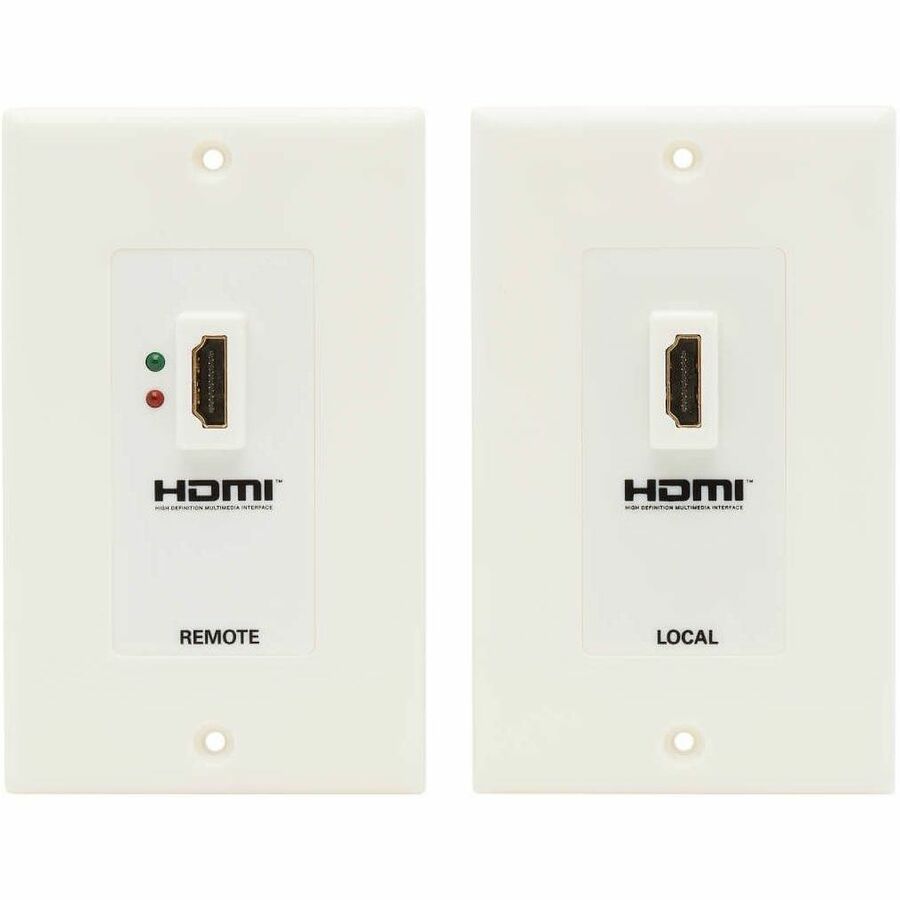

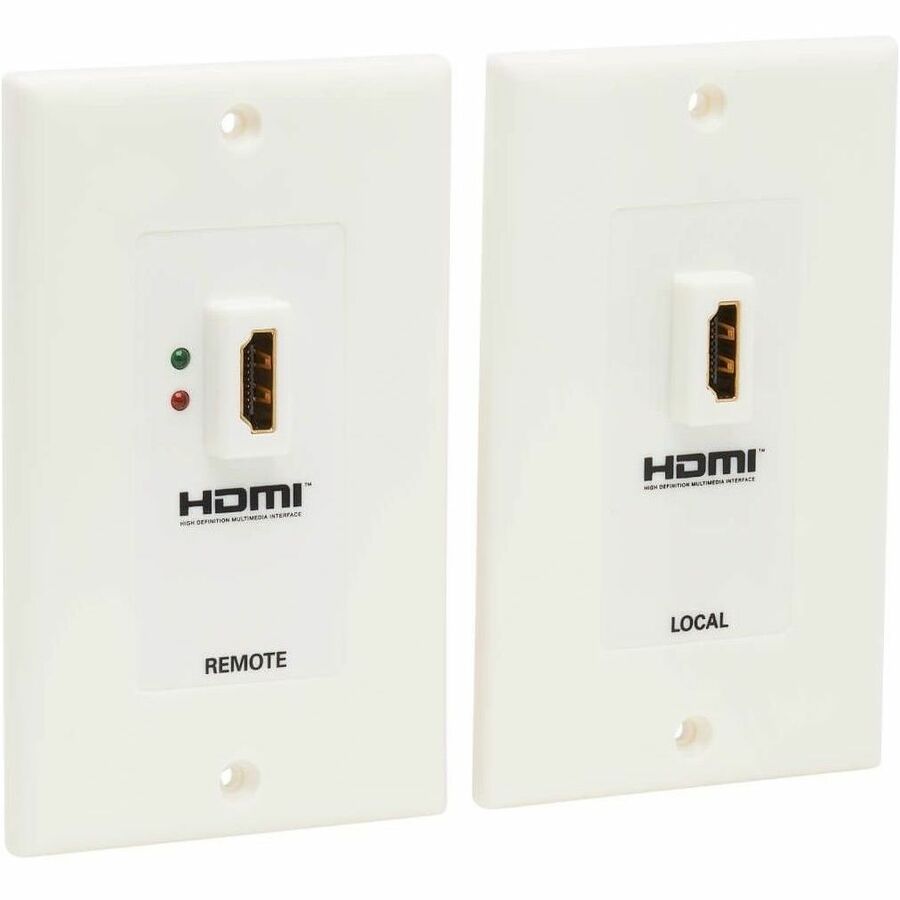

With Tripp Lites HDMI Over Cat5/Cat6 Wallplate Extender Kit, you can locate a HDMI enabled display up to 230 ft. away from the HDMI source, using readily available Cat5 or Cat6 UTP cable (for best performance, use Solid wire Cat6). The kit consists of a Passive wallplate at the source side, and an Active wallplate (with built-in signal regenerator) at the display side. Simply run two Cat5/6 UTP cables between the two wallplates, and plug in standard Tripp Lite HDMI patch cables to the HDMI source and the display. The Green LED on the Display wallplate lets you know that power and a signal are coming from a connected source. The Red LED indicates only a signal is being received. The kit is functioning properly when the unit is connected to a display and the Green LED is lit.

More from the Manufacturer

Product Specifications

Support Higher Bandwidths with Premium Multimode OM5 Fiber Optic Cabling (LC/LC)

Tripp Lite’s N820-10M-OM5 is a 10 m (33 ft.) multimode fiber cable that provides a cost-effective, high-bandwidth solution over extended distances in the 850-950 nm wavelength range. This 40 Gb/100 Gb Duplex Multimode 50/125 OM5 LSZH Fiber Patch Cable is rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm).

A Generation of Fiber Cable, with Compatibility for Legacy Installations

With 100 Gb Ethernet becoming more widespread and network traffic ever increasing, a new generation of fiber cables is needed to support the demand for higher bandwidths and greater speeds. For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable is backward compatible with existing OM3- and OM4-rated installations and will be compatible with short wavelength division multiplexing (SWDM) solutions in future networks. The lime-green color of the cable jacket makes the N820-10M-OM5 easy to identify as an OM5-rated cable.

rror-Free Signal Transfer

The N820-07M-OM5 features dual male LC connectors, which are widely compatible and thoroughly tested to meet stringent insertion loss standards. This cable has a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making the N820-07M-OM5 perfect for poorly ventilated areas. This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It’s commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.
