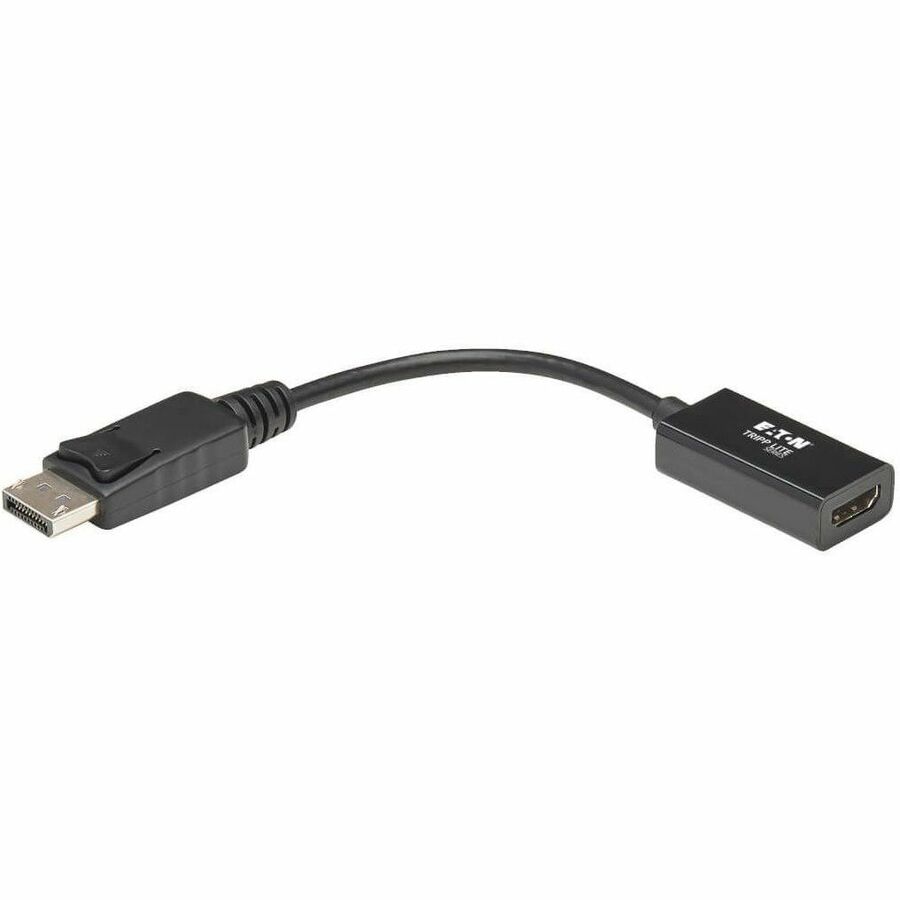

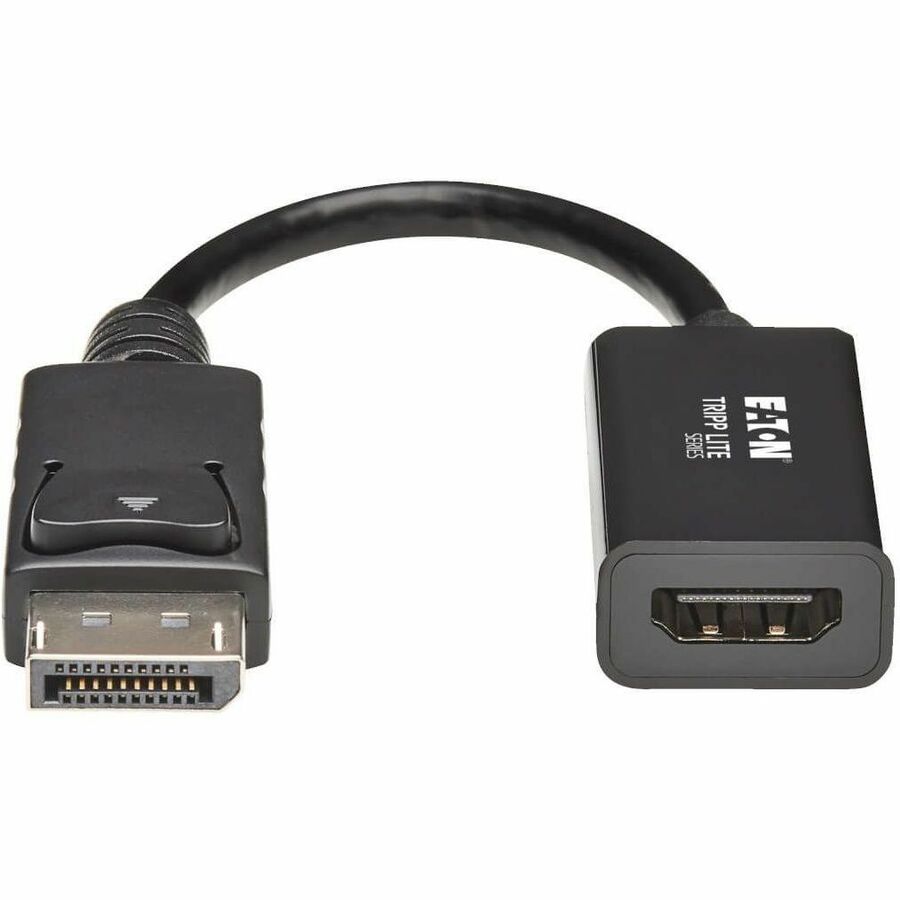

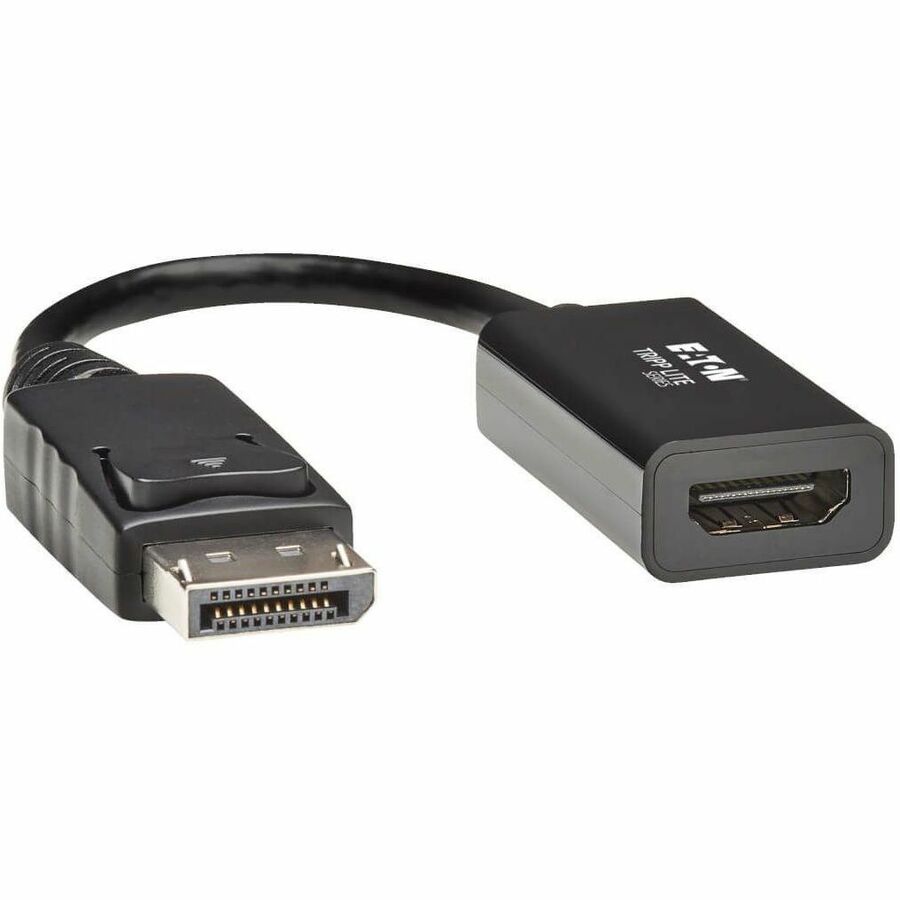

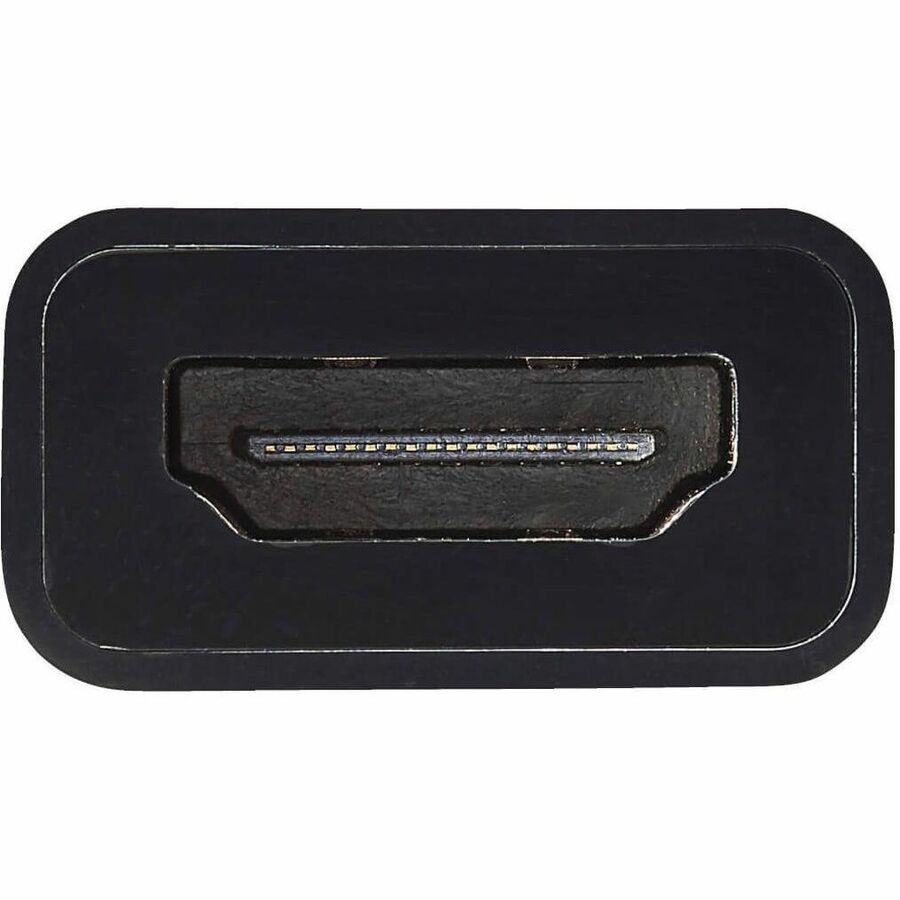

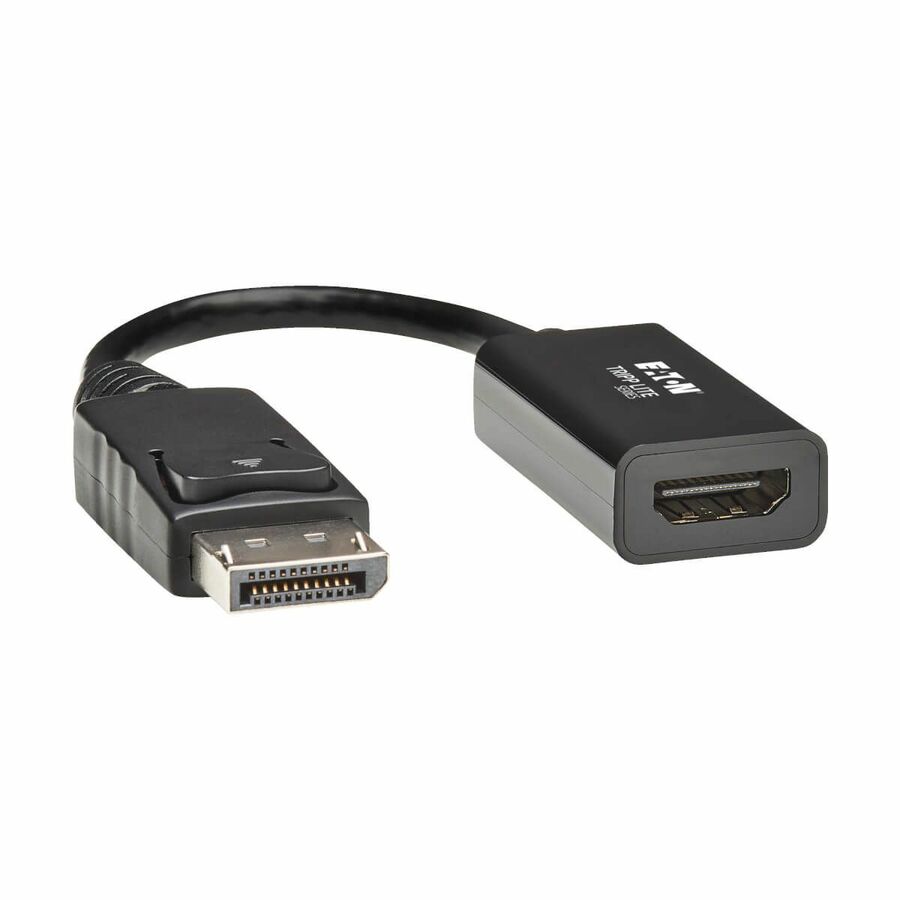

Eaton Tripp Lite Series DisplayPort to HDMI Active Adapter (M/F), Latching Connector, 4K 60 Hz, DP1.2, HDCP 2.2,Black, 6 in.

Features

More Convenient, Less Expensive Way to Watch 4K Video

This DisplayPort to HDMI 2.0 active converter expands the potential of your DP computer or laptop by allowing it to transmit UHD video and audio to a 4K monitor, projector or HDTV. This allows you to continue using your existing HDMI 2.0 display with a DisplayPort 1.2 source device.

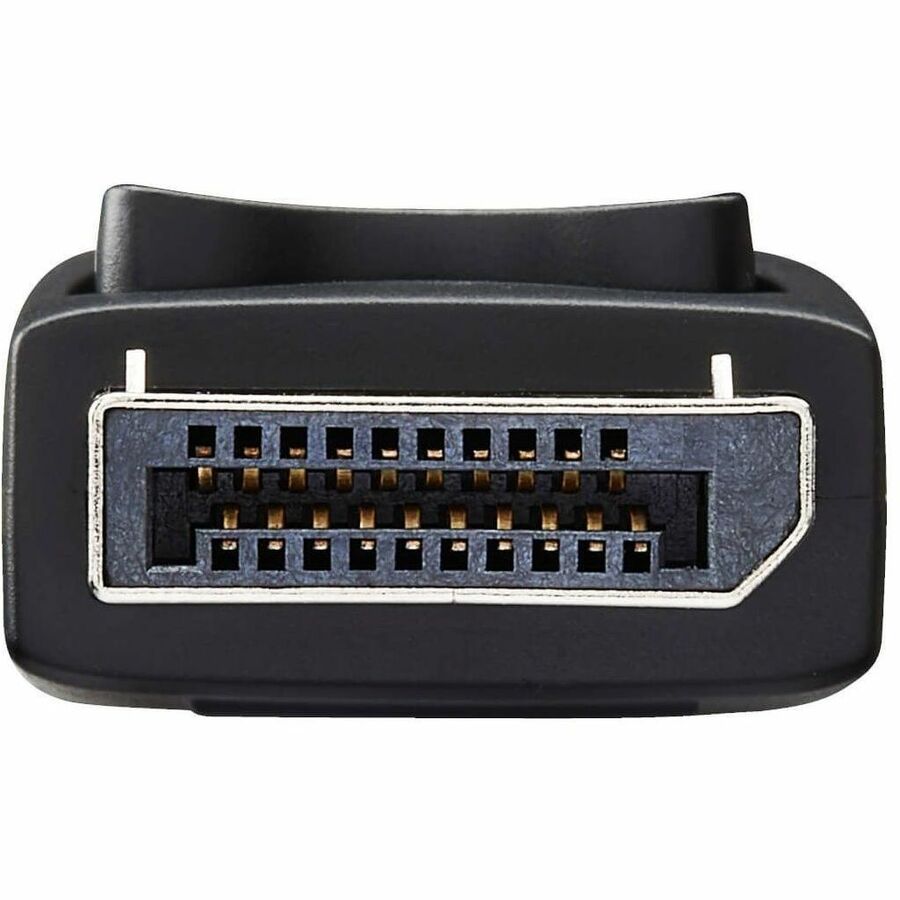

Latching DisplayPort Plug Provides a Secure Connection

The molded DP connector features special latches, which help prevent the DP to HDMI 2.0 adapter from becoming loose or accidentally dislodged from the source device and causing signal loss.

Outstanding 4K x 2K Picture Quality at 60 Hz

This adapter cable supports HDMI 2.0 bandwidth up to 18 Gbps, allowing you to enjoy 4K video on a large HDMI monitor or digital sign. It supports video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz and DisplayPort 1.2 audio (if your DP card supports audio pass through). It is backward compatible with all previous HDMI versions.

Ready to Use Right Out of the Package

The plug-and-play DisplayPort to HDMI active converter requires no software, drivers or external power. It's compatible with both Single- and Dual-Mode (DP++) DP output, and recommended for use with graphics cards that do not output DP++ signals. The compact unit fits easily into a briefcase or laptop bag for connecting on the go.

Premium Construction for Premium Performance

Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Molded connectors with corrosion-resistant gold-plated contacts provide maximum conductivity and minimize data loss. Integral strain relief reduces stress and helps the cable and connectors move freely without cracking.

3-Year Warranty and Environmentally Responsible Design

The P136-06N-H2V2LB comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

More from the Manufacturer

Connect an HDMI 2.0 Monitor to a DisplayPort 1.2 Computer

This active adapter allows you to connect an HDMI 2.0 monitor to a desktop or laptop computer with DisplayPort 1.2 video output. Simply plug the adapter into your DisplayPort computer and connect your HDMI cable between the adapter and your display.

Typical Applications

Play video from a DisplayPort 1.2 laptop on a 4K HDTV

Design and edit graphics files or production video on a large HDMI monitor

Look at high-definition photos from your DisplayPort computer on an HDMI TV

Display menus, ads and other digital signage applications on an HDMI monitor

What’s Required

Computer with DisplayPort (full-size port)

Monitor with HDMI port

HDMI cable, such as Tripp Lite’s P568 series

DisplayPort 1.2 and HDMI 2.0 required for 4K video

Save Money without Sacrificing Image Quality

Using this adapter helps you save money by making your HDMI monitor compatible with a DisplayPort-equipped computer. High-quality connectors provide maximum conductivity to ensure a clean, consistent video signal.

Supports video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz

Supports audio (when DisplayPort source supports audio)

Supports HDMI 2.0 bandwidth up to 18 Gbps

Backward compatible with previous HDMI versions

Latching DisplayPort Plug Provides a Secure Connection

The DisplayPort connector features special latches to help prevent the adapter from becoming loose or accidentally dislodged from the source device and causing signal loss. This active adapter supports both single-mode and dual-mode (DP++) DisplayPort.

Enjoy Easy Travel and Setup

Bring this adapter with you for compatibility with an HDMI display in BYOD (Bring Your Own Device) environments.

Compact adapter fits easily into a backpack or laptop bag

Plug-and-play; no software or drivers to install

Flexible cord for optimal adjustment in tight spaces

No external power required
