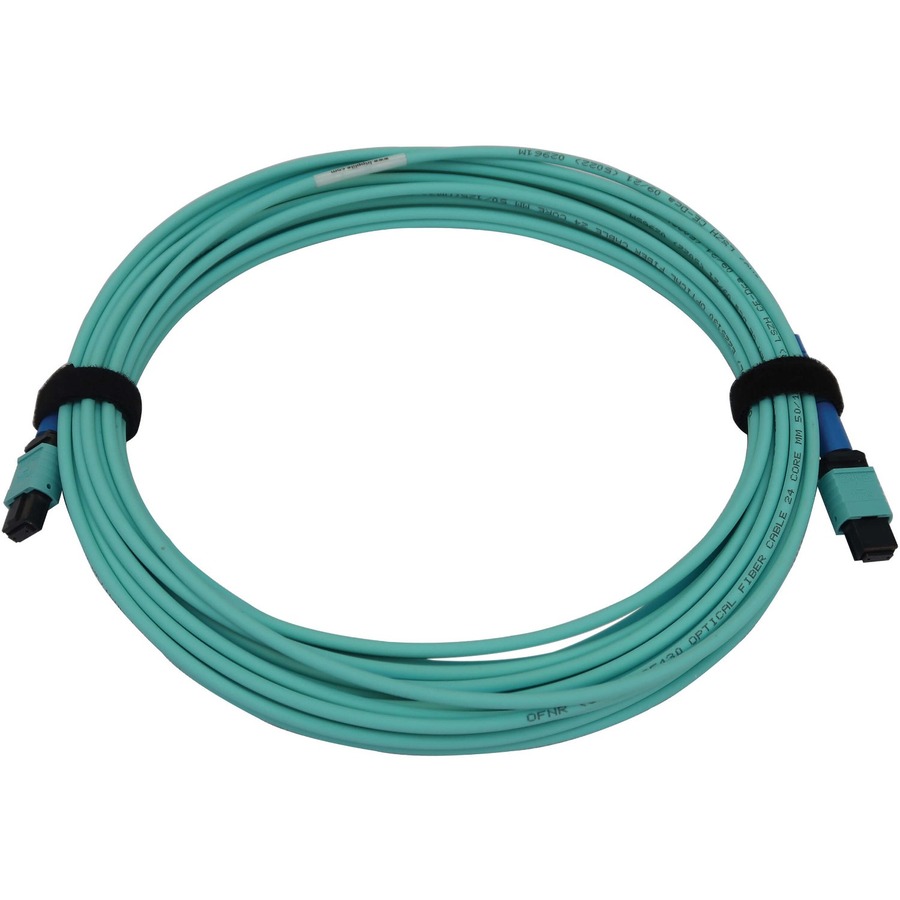

Eaton Tripp Lite Series 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua, 10 m (32.8 ft.)
32.81 ft Fiber Optic Network Cable for Network Device, Patch Panel, Switch - First End: 1 x MTP/MPO Network - Female - Second End: 1 x MTP/MPO Network - Female - 400 Gbit/s - LSZH, OFNR - 50/125 µm - 1 Piece
- SKU
- N846B-10M-24-P
- Category
- Connector Cables
MSRP$465.38
$303.50
Save 35%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- N846B-10M-24-P
- Category
- Connector Cables
Overview
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N846B-10M-24-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb, 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
100% Tested for Low Insertion Loss and Attenuation Loss

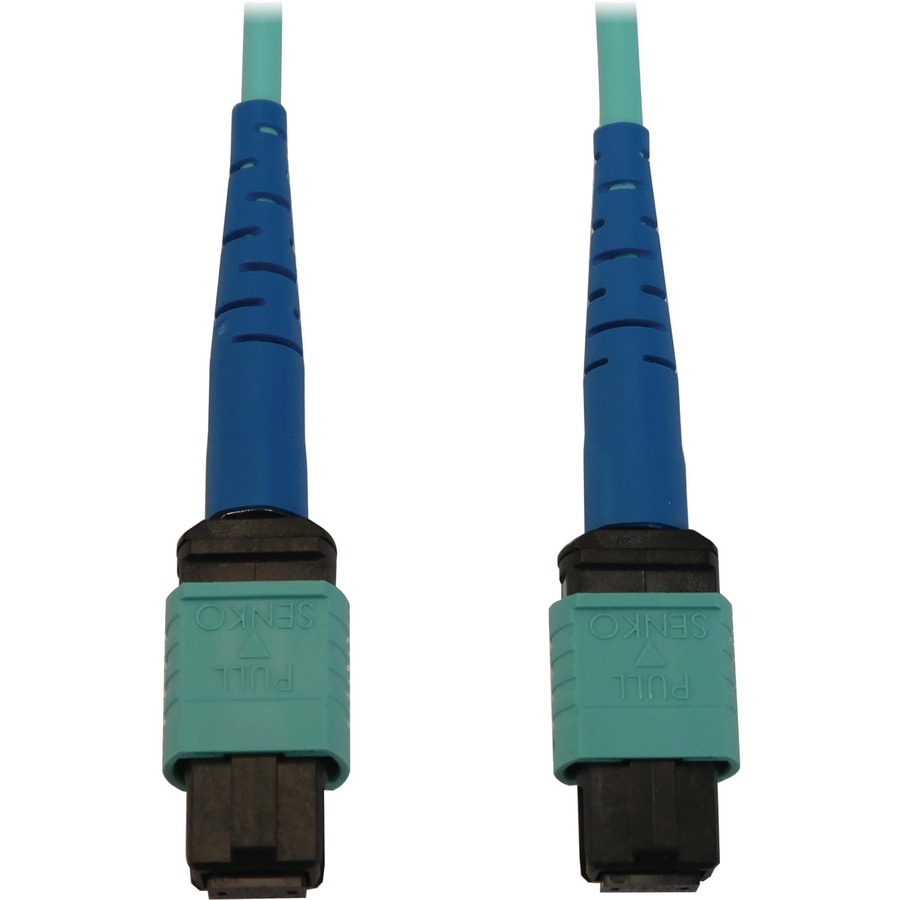

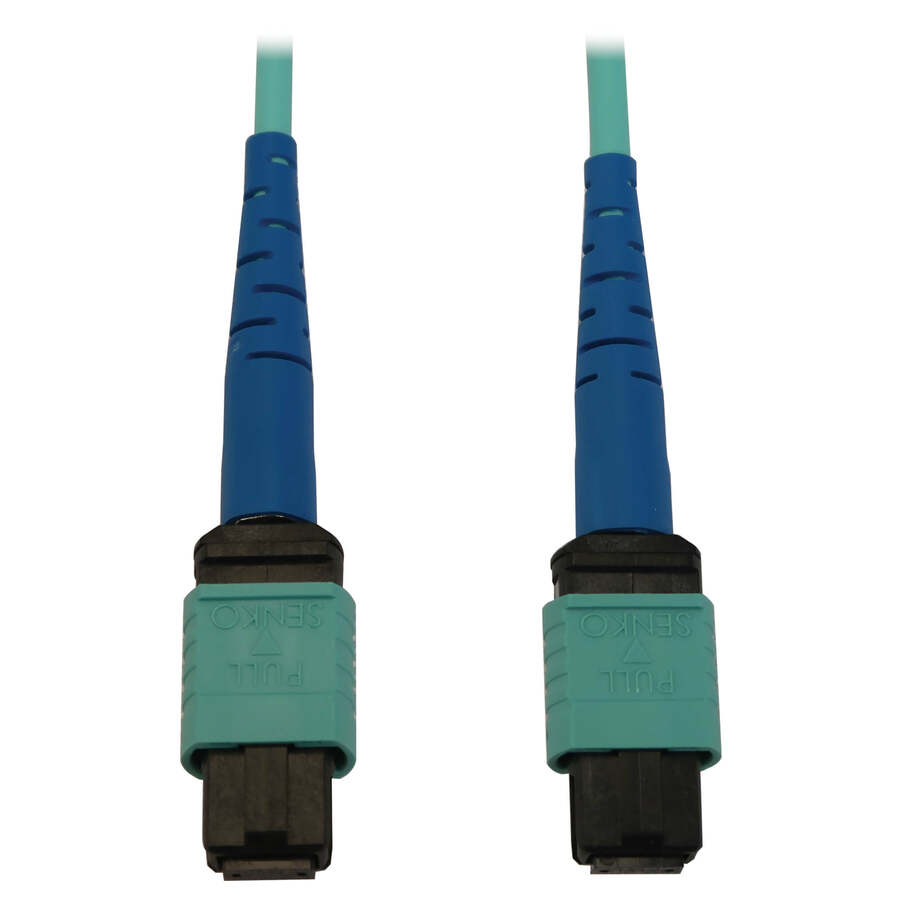

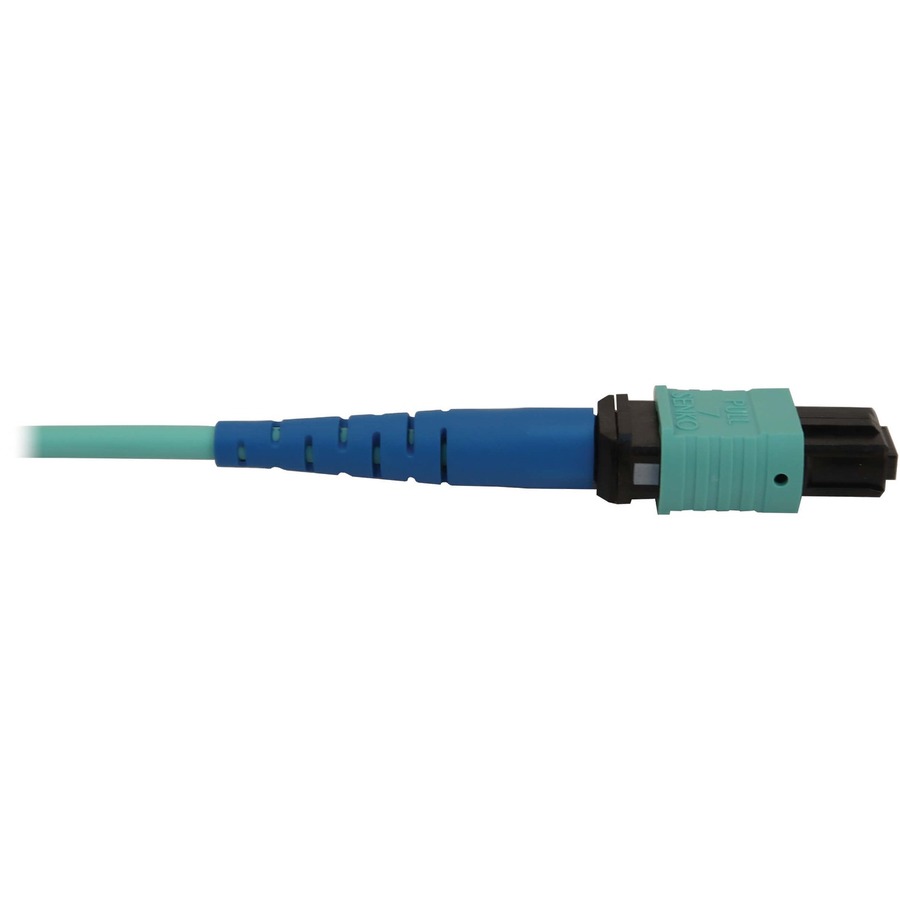

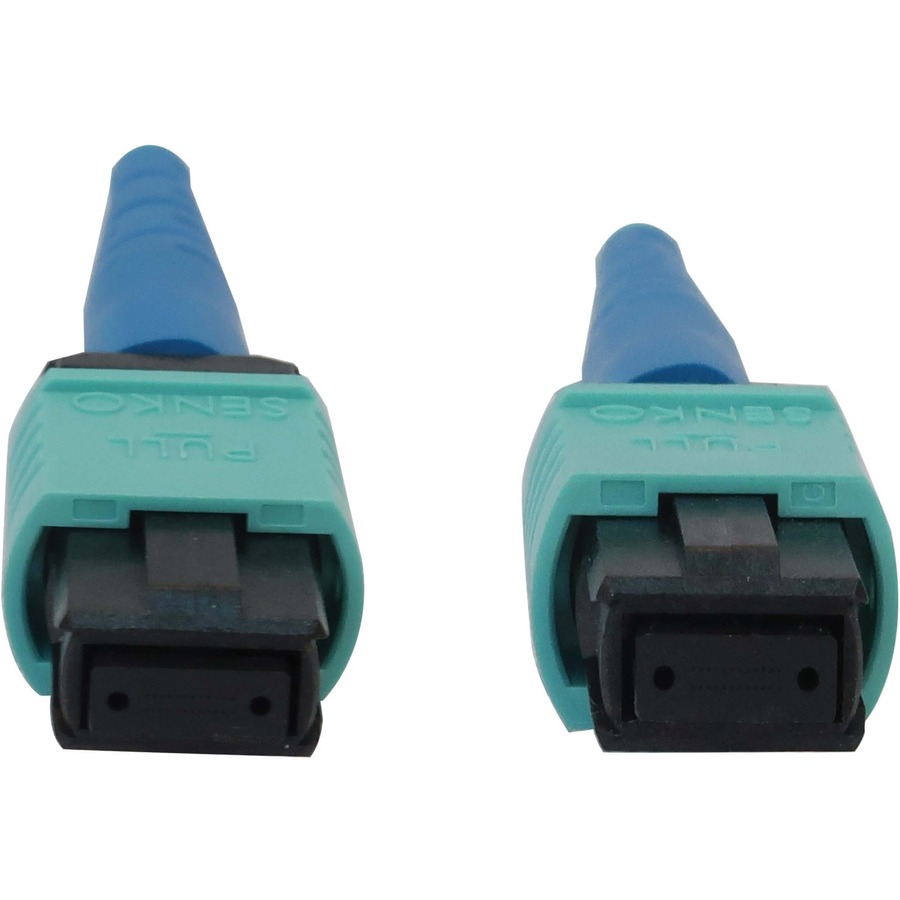

The cable is tested for low insertion loss on the factory-terminated 24-fiber MTP/MPO connectors and attenuation loss that meets or exceeds current standards. The connectors' slim boots allow easy one-handed installation and removal of the cable.
Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- OM3-rated cable recommended for 400 Gb speeds up to 100 meters (@ 850 nm)
- Backward compatible with 10/25/40/100 Gb networks to facilitate future-proofing
- Tested for low insertion loss and attenuation loss that meets or exceeds current standards
- Aqua LSZH jacket allows fast, easy identification in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty
Specifications
| Cable Length | 32.81 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Network Device, Patch Panel, Switch |
| Jacket Type | LSZH, OFNR |
| Manufacturer Part Number | N846B-10M-24-P |
| Packaged Quantity | 1 Piece |
| Limited Warranty | Lifetime |
| Features | Stranded, Bendable, Polished Connector (PC) |
| Manufacturer | Eaton Corporation |
| Product Model | N846B-10M-24-P |
| Product Name | N846B-10M-24-P Fiber Optic Network Cable |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EcoLogo |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Jacket Color | Aqua |
| Connector Color | Blue, Black, Aqua |
| Boot Type | Slim |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
