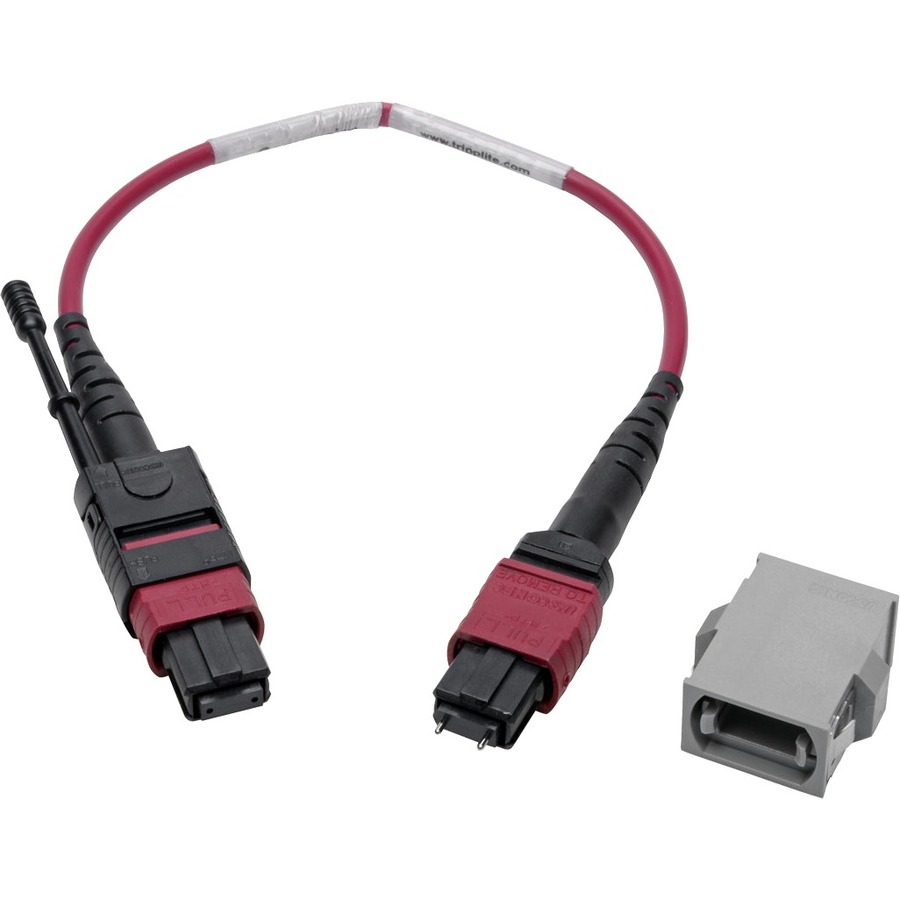

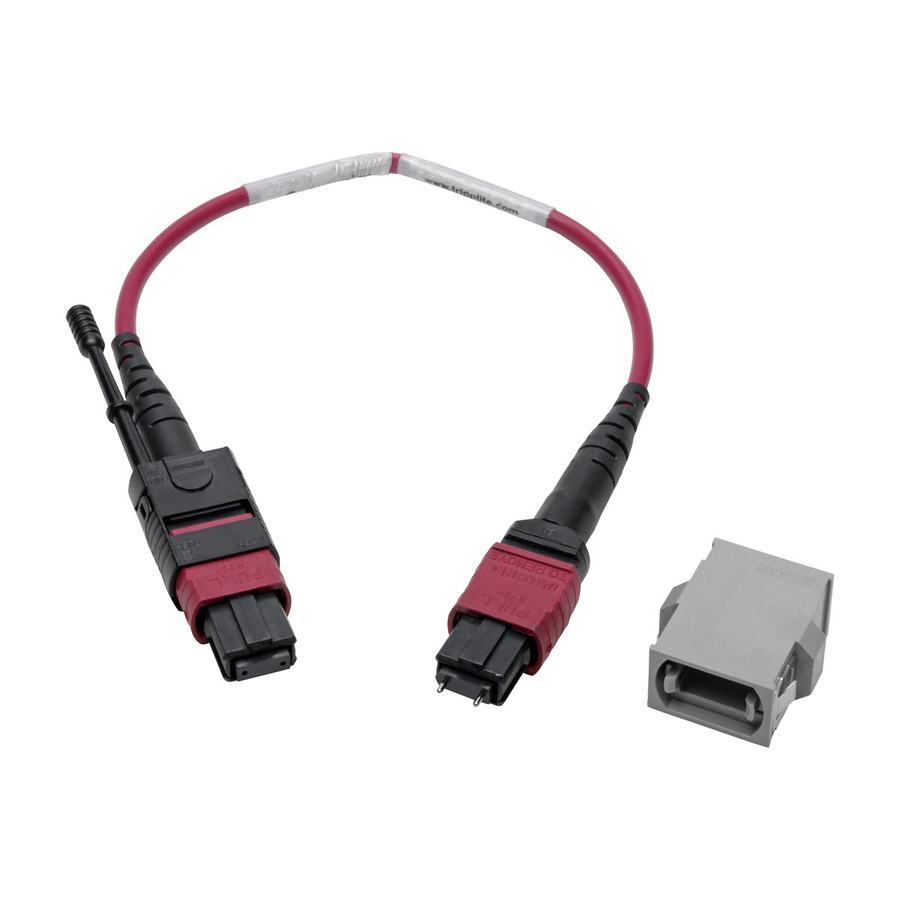

Eaton Tripp Lite Series MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter, Polarity C to B, 12 Fiber, 40GB/100GB, OM4 M/F, Magenta, 8 in.

The N846-08N-C2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter (M/F) is an eight-inch patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. It saves you time and money by converting legacy 12-fiber Method C cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications.

It's colored magenta for instant identification as an OM4 cable. The N846-08N-C2B is ideal for use with high-density feed-through cassettes, such as Tripp Lite's N482 and N484 Series.

The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. The push/pull tab connector makes the cable easy to install and remove with one hand.

Backward compatible with existing 50/125 fiber, the N846-08N-C2B has 50/125 duplex (zipcord) fiber made from glass, as well as a plenum-rated OFNP jacket for connecting network components in drop ceilings, walls and ducts.

Features

OM4-Rated for 40 Gb Ethernet Applications

• Designed to extend high-density connections between network equipment in telecommunication rooms and data centers

• Converts legacy 12-fiber Method C Polarity cables to Method B Polarity for use in Base-8 applications

• Supports speeds up to 40 GbE/100 GbE

• Backward compatible with existing 50/125 fiber

• Magenta-colored for identification as an OM4 cable

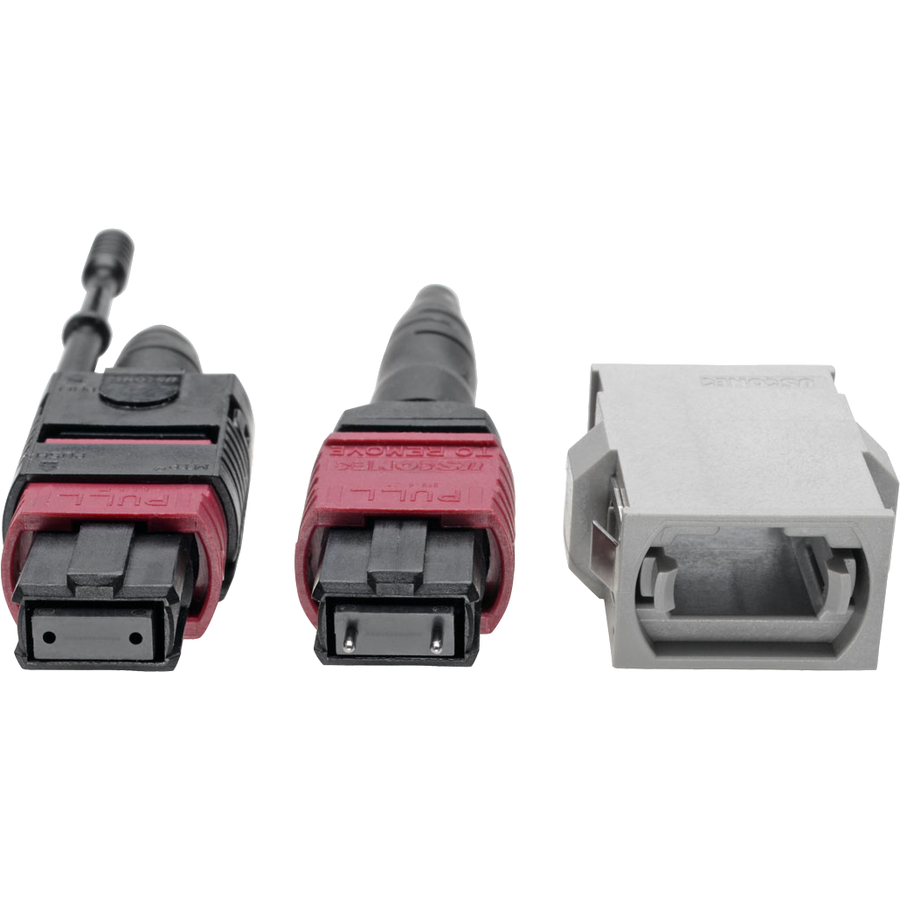

MTP/MPO Connectors with Push/Pull Tab

• 12-fiber male/female connectors

• Push/pull tab connector easy to install and remove with one hand

• 100% tested for low insertion loss and back reflection

Error-Free Signal Transfer

• 50/125 duplex glass fiber construction

• Meets current IEEE 802.3ae and TIA standards

• Plenum-rated OFNP jacket perfect for ceilings, walls and ducts

• Jacket features serial number for quality control and traceability

More from the Manufacturer

Extend High-Density Network Connections or Use with Breakout Cassettes

The N846-08N-C2B is an 8 in. OM4-rated patch cable that supports 40 Gb Ethernet speeds, making it ideal for high-density network connections in telecommunication rooms and data centers. It supports speeds up to 40 GbE / 100 GbE and is backward-compatible with existing 50/125 fiber.

Constructed for Ease of Use and Error-Free Signal Transfer

A magenta-colored jacket makes the N846-08N-C2B readily identifiable as an OM4 cable. A push/pull tab connector makes it easy to install and remove. Its 50/125 duplex glass fiber construction assures you of error-free signal transfer. This cable meets current IEEE 802.3ae and TIA standards. The cable’s plenum-rated jacket shows its serial number for quality control and traceability.

Lifetime Product Warranty and Environmentally Responsible Design

For peace of mind, the N846-08N-C2B comes with a lifetime warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
