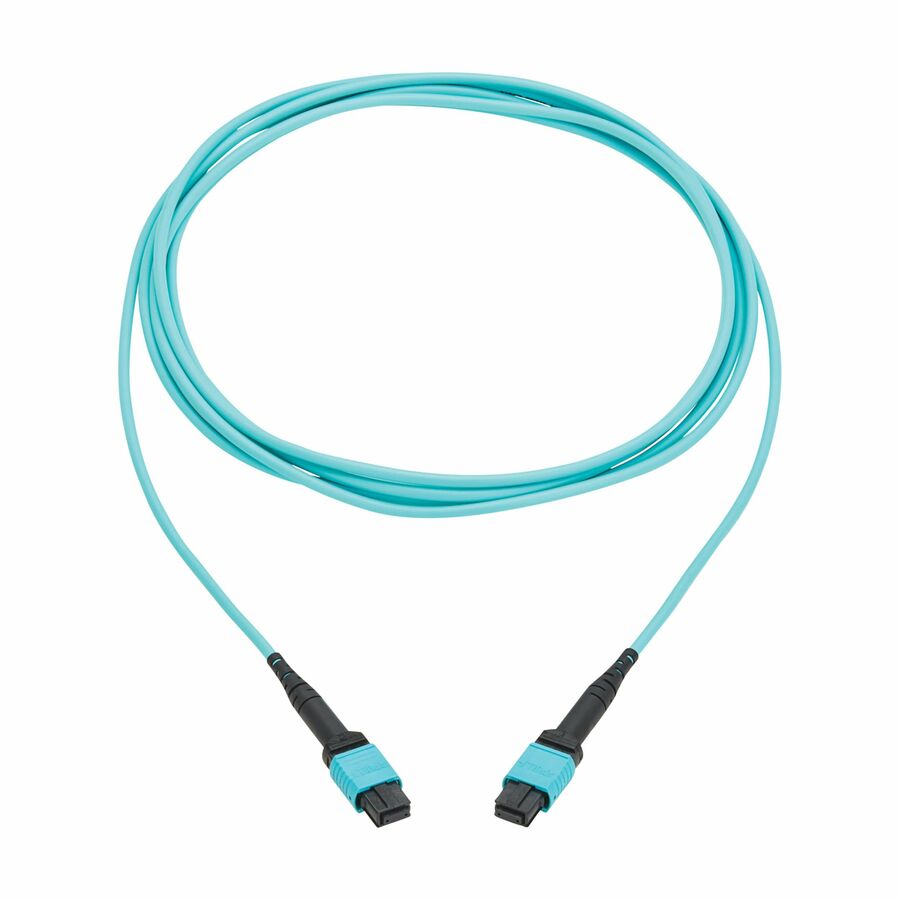

Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable (12F MPO/MPO-PC F/F), Type-A Polarity, OFNP, Aqua, 4 m (13.1 ft.), TAA
13.12 ft Fiber Optic Network Cable for Network Device, Switch, Patch Panel - First End: 1 x MPO Network - Female - Second End: 1 x MPO Network - Female - 400 Gbit/s - OFNP, Plenum - 50/125 µm - Aqua - TAA Compliant
- SKU
- N845A-04M-12TAA
- Category
- Connector Cables
MSRP$235.43
$153.55
Save 35%In stock: 130
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- N845A-04M-12TAA
- Category
- Connector Cables
Overview
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. The N845A-04M-12TAA is a Type-A cable, which is ideal for straight-through fiber applications.
Recommended for 100 Gb Ethernet Applications
This multimode 50/125 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845A-04M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Type-A polarity ideal for straight through fiber applications
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| Cable Length | 13.12 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Network Device, Switch, Patch Panel |
| Jacket Type | OFNP, Plenum |
| Manufacturer Part Number | N845A-04M-12TAA |
| Limited Warranty | Lifetime |
| Features | Fire Resistant |
| Manufacturer | Eaton Corporation |
| Product Model | N845A-04M-12TAA |
| Product Name | N845A-04M-12TAA Fiber Optic Network Cable |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Cable Type | Fiber Optic |
| Connector Type on First End | MPO Network |
| Connector Type on Second End | MPO Network |
| Fiber Optic Mode | Multi-mode |
| Jacket Material | Polyvinyl Chloride (PVC) |
| TAA Compliant | Yes |
| Product Color | Aqua |
| Color Family | Green |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector on Second End Details | 1 x MPO Network - Female |
| Jacket Color | Aqua |
| Connector Color | Black, Aqua |
| Boot Type | Slim |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Female |
| Fiber Count | 12 |
| Fiber Category | OM4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
