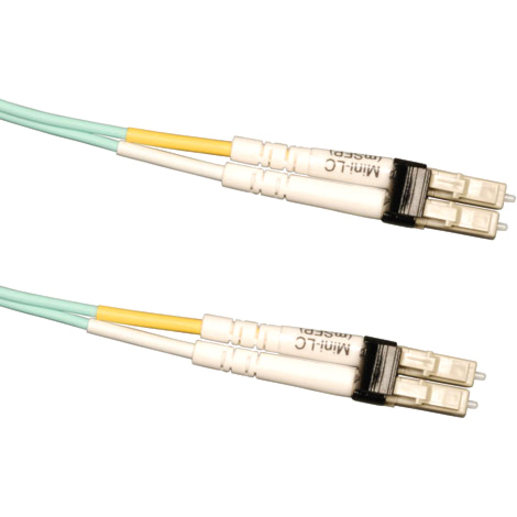

Tripp Lite by Eaton 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (Mini-LC / Mini-LC) - Aqua, 1M (3 ft.)

3.30 ft Fiber Optic Network Cable for Network Device - First End: Mini-LC Network - Male - Second End: Mini-LC Network - Male - Patch Cable - Aqua

SKU: N838-01M
Category: Connector Cables

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: N838-01M
Category: Connector Cables

Overview

Tripp Lite introduces it's new, Mini-LC to Mini-LC, OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications, utilizing mini SFP transceivers, such as Brocade FC8-64 High Density 64-port Fibre Channel Blade. These new technology, 50/125um, mini-LC/ mini-LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.

Warranty

Limited Warranty: Lifetime

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

Mini-LC to Mini-LC Fiber Patch Cable, 1 Meter
Designed for 10-Gig Ethernet applications...OM3 Rated
For use with networking hardware employing mini-LC SFP transceivers
Max 10Gb distance of 300 meters @850nm

Specifications

Cable Length	3.30 ft
Product Type	Network Cable
Compatibility	Brocade FC8-64 Blade
Device Supported	Network Device
Jacket Type	LSZH
Manufacturer Part Number	N838-01M
Limited Warranty	Lifetime
Manufacturer	Eaton Corporation
Product Model	N838-01M
Product Name	N838-01M Fiber Optic Duplex Patch Cable
Brand Name	Tripp Lite series
Country of Origin	China
Cable Characteristic	Patch Cable
Environmentally Friendly	Yes
Cable Type	Fiber Optic
Connector Type on First End	Mini-LC Network - Male
Connector Type on Second End	Mini-LC Network - Male
Fiber Optic Mode	Multi-mode
Product Color	Aqua
Color Family	Green
Connector on First End Details	Mini-LC Network - Male
Connector on Second End Details	Mini-LC Network - Male
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Fiber Optic Cable Core/Cladding Specification	50/125 µm
