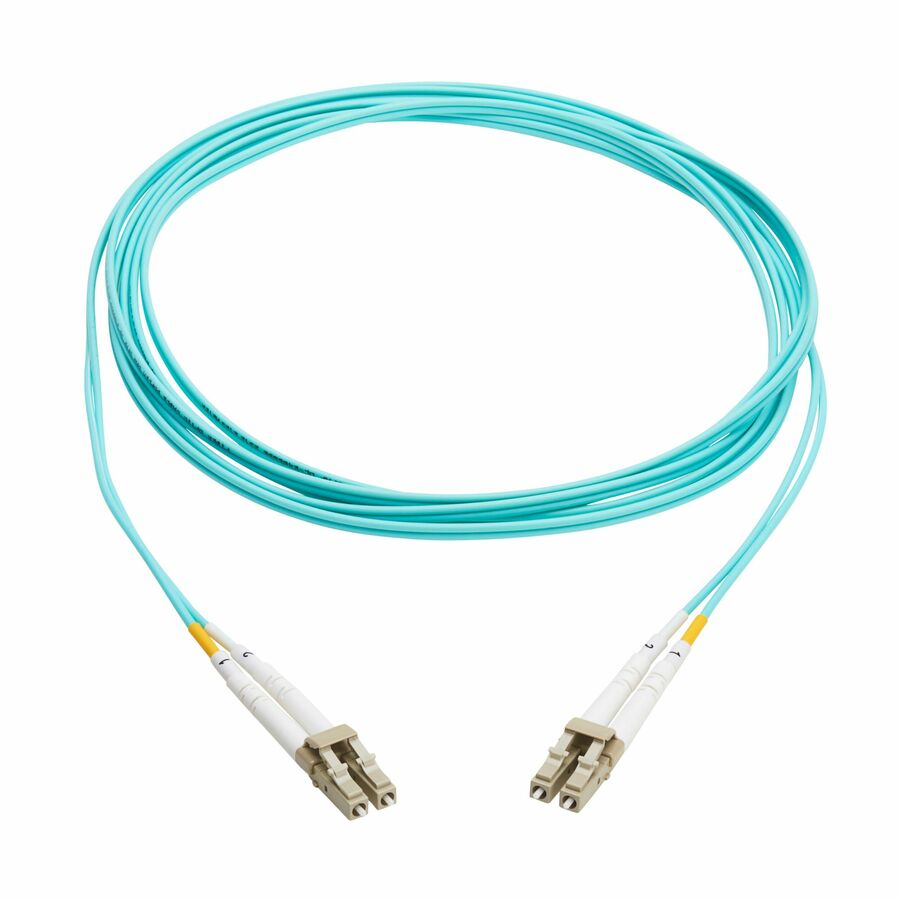

Eaton Tripp Lite Series 10Gb Duplex Multimode 50/125 OM3 OFNP Fiber Patch Cable (LC/LC) - Aqua, 3 m (9.8 ft.), TAA
9.84 ft Fiber Optic Network Cable for Network Device, Vertical Cavity Surface Emitting Laser (VCSEL), LED, Switch, Patch Panel - First End: 2 x LC Network - Male - Second End: 2 x LC Network - Male - 10 Gbit/s - Patch Cable - OFNP, LSZH - 50/125 µm - TAA Compliant
- SKU
- N820-03M-TAA
- Category
- Connector Cables
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- N820-03M-TAA
- Category
- Connector Cables
Overview
Support Higher Bandwidths in Data Networks with OM3 Multimode 50/125 Fiber Patch Cable
As the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. This LC-to-LC multimode fiber optic Ethernet cable is well-suited for 10/40 Gb Ethernet applications up to 300 meters (984 feet) at 850 nm.
Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution
The N820-03M-TAA is a laser-optimized multimode fiber (LOMMF) cable designed for use with verticalcavity surface-emitting lasers (VCSELs) and LED lasers to offer a cost-effective, high-bandwidth solution over extended distances in the 850 nm wavelength range. It is commonly used in LANs, SANs and highspeed parallel interconnects for head-ends, central offices and data centers.
Experience Reliable Performance with Premium Construction

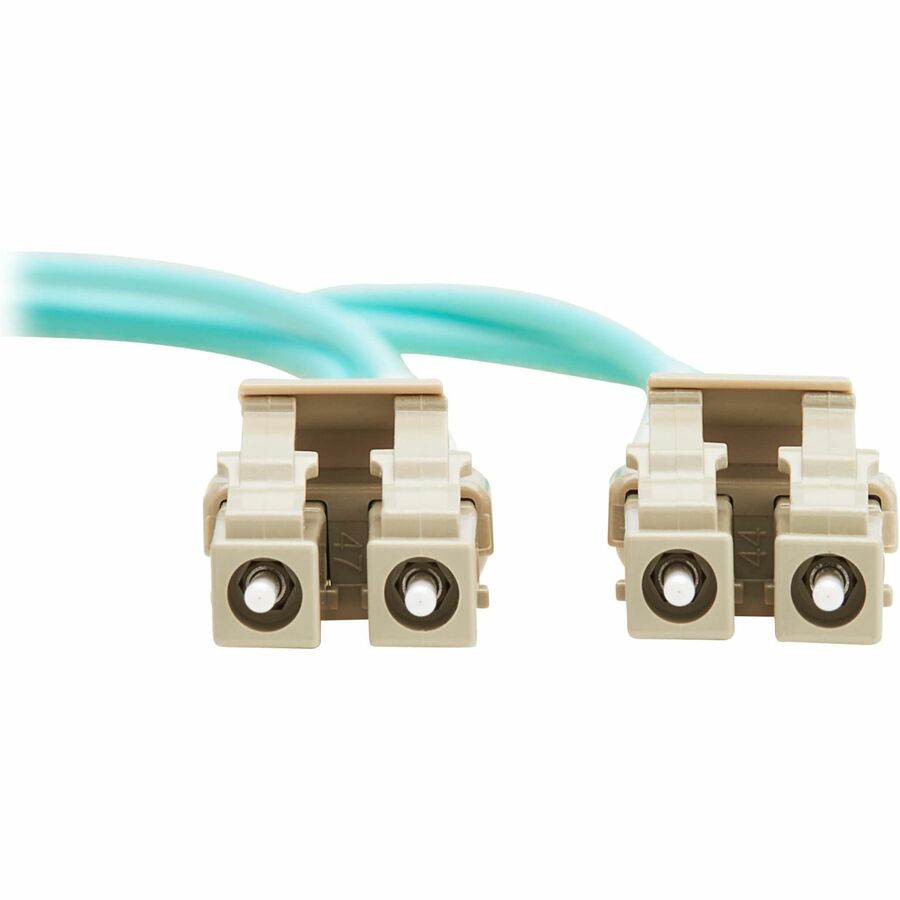

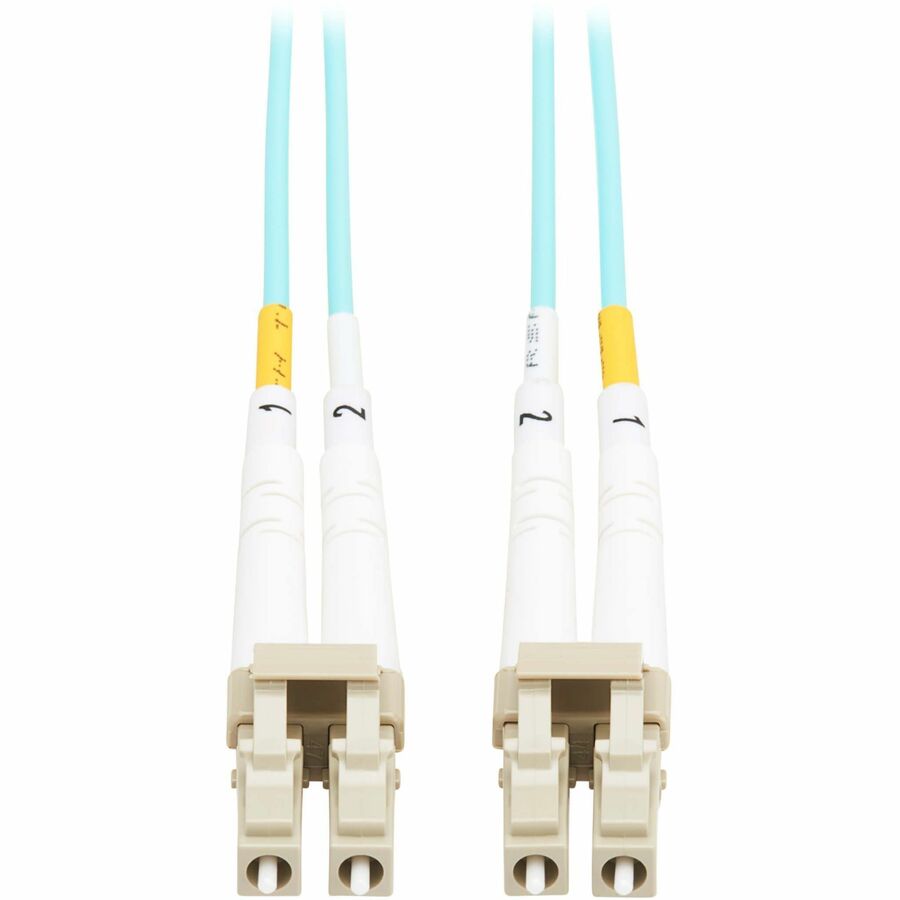

Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The N820- 03M-TAA has duplex male LC connectors on each end. The aqua OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. It meets current IEEE 802.3ae and TIA LOMMF standards, and is compatible with existing OM3-rated 50/125 fiber solutions.
TAA-Compliant for GSA Schedule Purchases
The N820-03M-TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Rated OM3 to offer a highspeed 50/125 multimode fiber solution
- High-bandwidth fiber cable reaches 10 Gb speeds up to 300 m at 850 nm
- Laser-optimized for use with cost-effective VCSEL and LED laser light sources
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| Cable Length | 9.84 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device, Vertical Cavity Surface Emitting Laser (VCSEL), LED, Switch, Patch Panel |
| Jacket Type | OFNP, LSZH |
| Manufacturer Part Number | N820-03M-TAA |
| Limited Warranty | Lifetime |
| Features | Fire Resistant, Polished Connector (PC) |
| Manufacturer | Eaton Corporation |
| Product Model | N820-03M-TAA |
| Product Name | N820-03M-TAA Fiber Optic Duplex Patch Network Cable |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| TAA Compliant | Yes |
| Fiber Type | Duplex |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Color | Aqua |
| Connector Color | White, Beige, Yellow |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Count | 2 |
| Fiber Category | OM3 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
