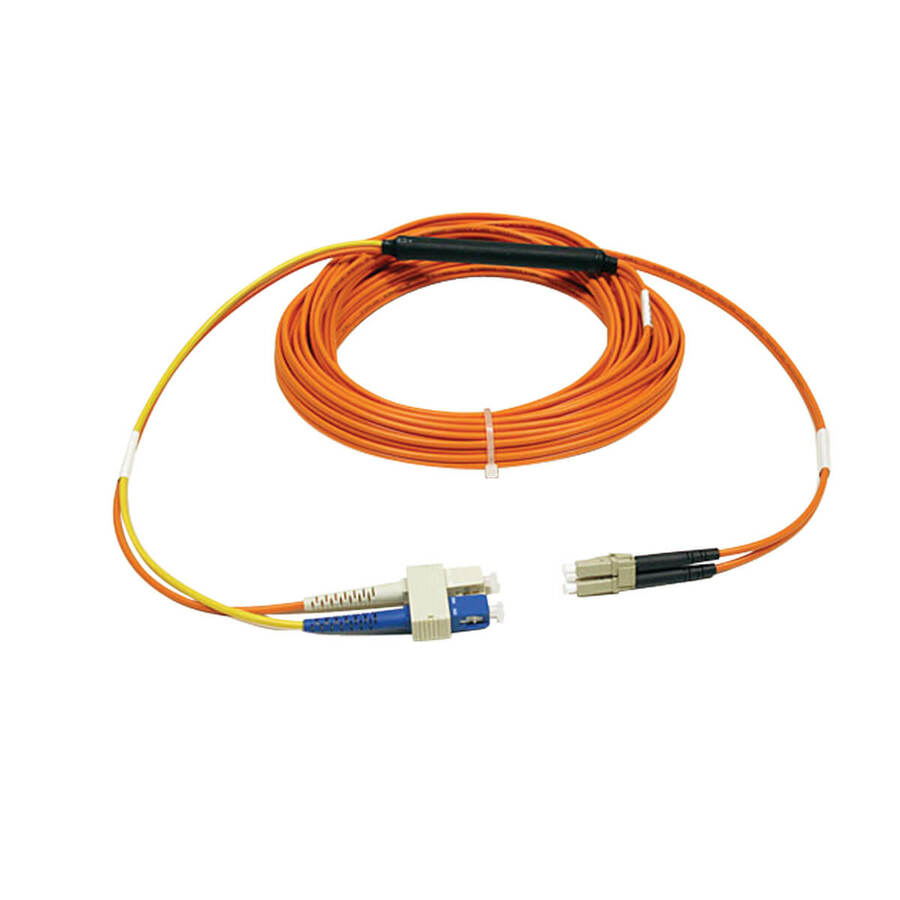

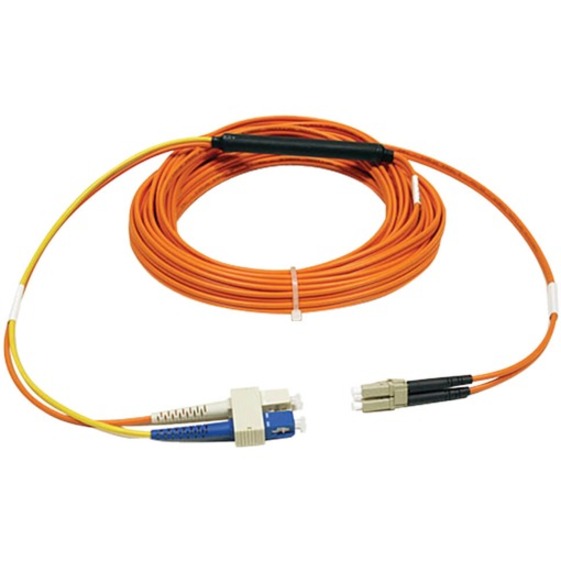

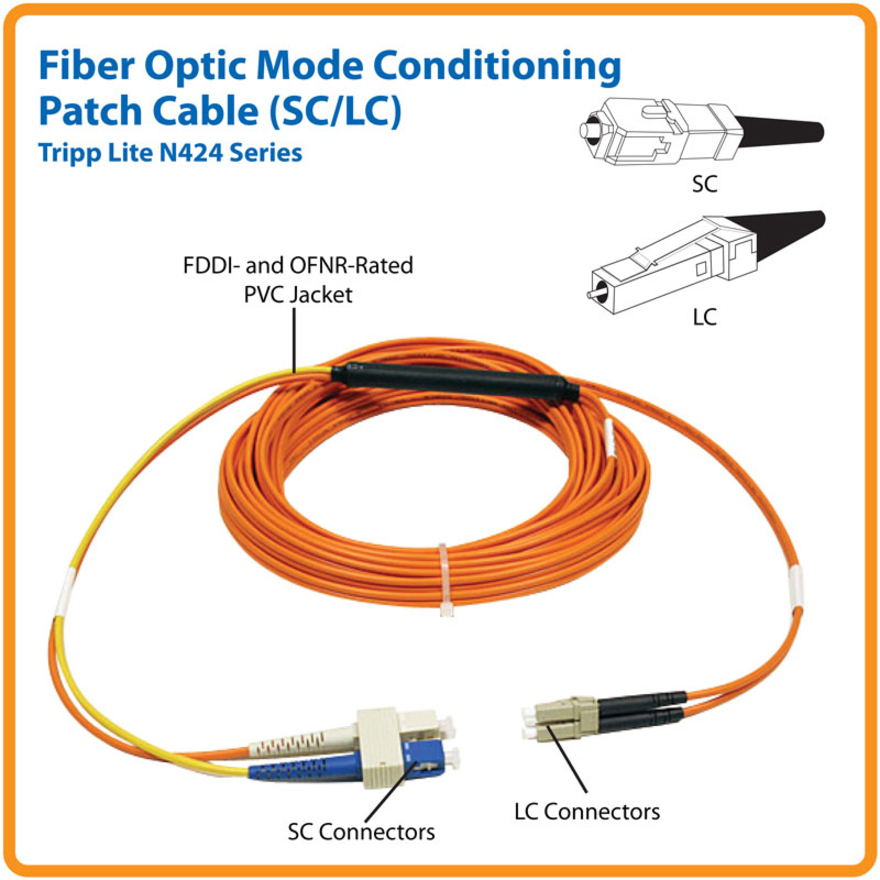

Eaton Tripp Lite Series Fiber Optic Mode Conditioning Patch Cable (SC/LC), 1M (3 ft.)

Tripp Lites Mode Conditioning Cables are designed for use in Gigabit Ethernet 1000BASE-LX applications. They are fully compliant with IEEE 802.3z application standards. Mode Conditioning Cables are needed in applications where new high-speed Gigabit 1000BASE-LX routers and switches are being deployed into existing multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.

More from the Manufacturer

15-ft. USB/PS2 Combo Cable for Tripp Lite’s B020-U08/U16 Series KVM Switches

Quickly and easily connect a USB or PS/2 computer to a Tripp Lite B020-U08 or B020-U16 Series NetDirector

KVM Switch. Tripp Lite’s P778-015 USB-PS/2 Combo Cable consists of a 15-ft. cable with a modified HD18 (male) connector on one end to attach to your KVM switch and four connectors on the computer end: an HD15 (male) connector, a USB A (male) connector and two PS/2 (male) connectors for a mouse and keyboard. All connectors are color coded. For peace of mind, the P778-015 comes backed by a lifetime product warranty and has an eco-friendly, RoHS-compliant design.

All-in-One Design for Easy Cable Management

The P778-015 provides the ability to connect your computer, mouse and keyboard to your Tripp Lite B020-U08/U16 Series KVM Switch with only one cable. The result is low-profile, clutter-free cable runs for easy cable management.

Superior Materials for Superior Signal Transfer

Made of top-quality materials, the P778-015 has gold-plated copper contacts for superior conductivity. Double-shielding with foil and braid provides maximum EMI/RFI protection and superior signal quality. The P778-015 also has molded connectors and integral strain-relief for durability and long life. A flexible PVC jacket makes this cable easy to install, even in tight corners and other space-restricted areas.

Tripp Lite P778-015 Product Summary

Connect a USB or PS/2 computer to a Tripp Lite B020-U08/U16 Series KVM Switches

15-ft. length

Lifetime product warranty

Lifetime Product Warranty and Environmentally Responsible Design

The P778-015 comes backed by a lifetime product warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
