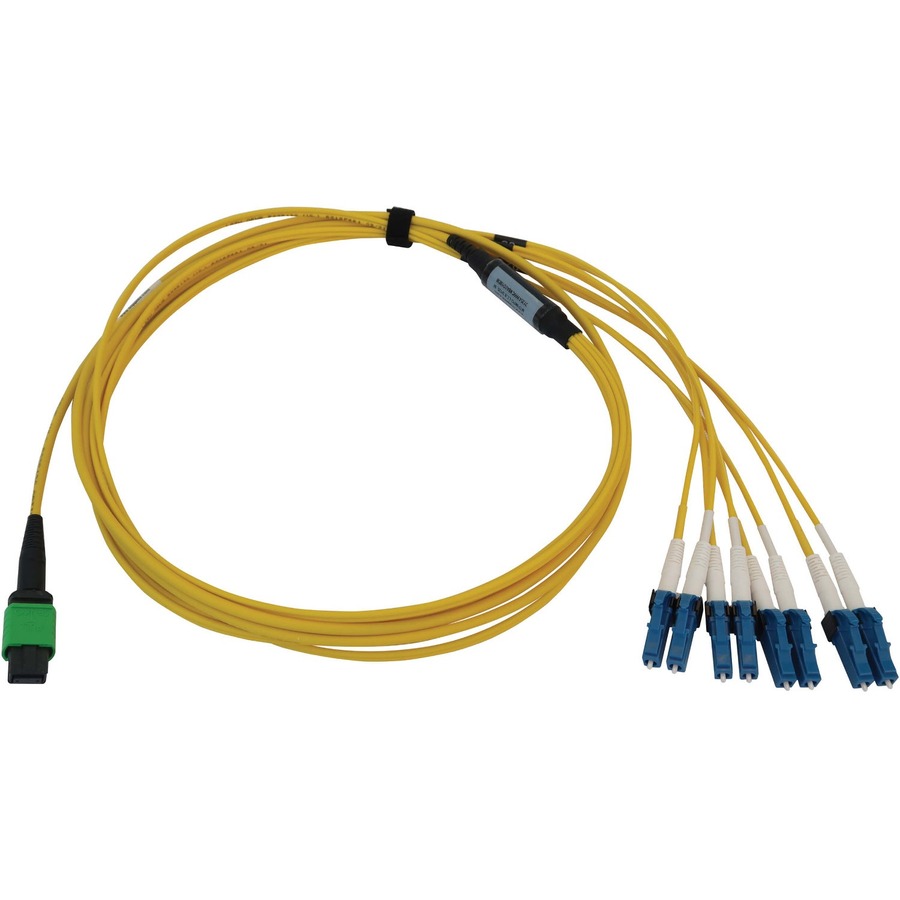

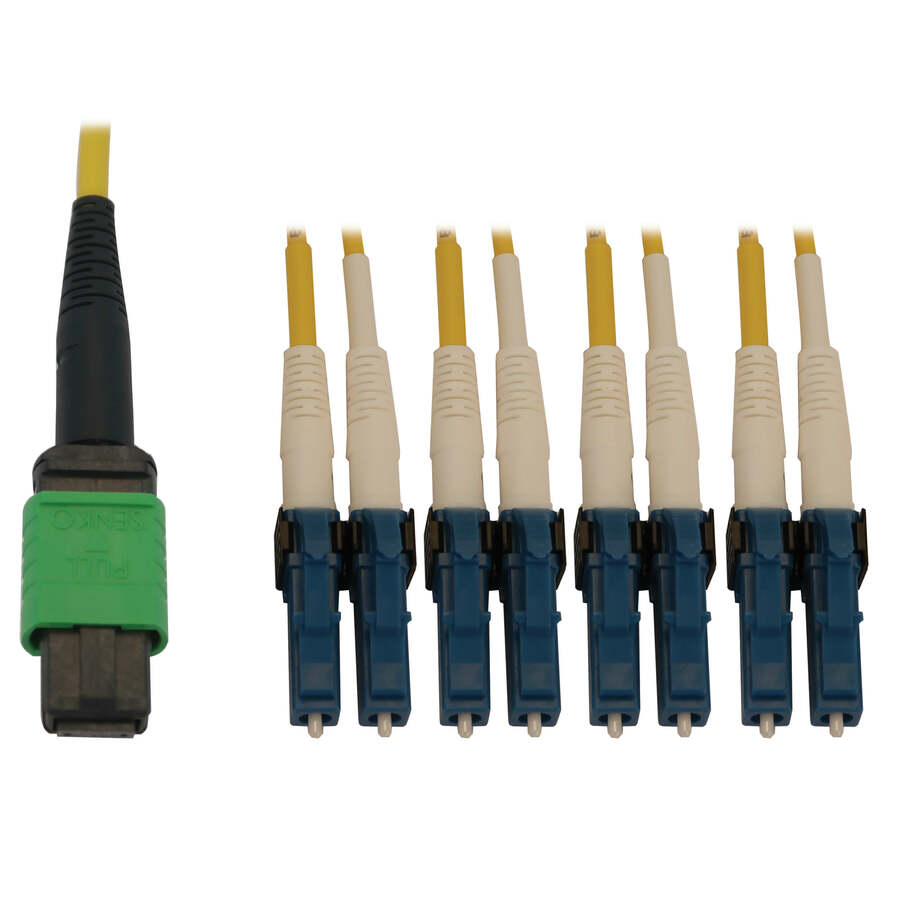

Eaton Tripp Lite Series 400G Singlemode 9/125 OS2 Switchable Fiber Optic Cable (12F MTP/MPO-APC to 4x Duplex LC/UPC F/M), LSZH, Yellow, 2 m (6.6 ft.)
6.56 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Network - Female - Second End: 8 x LC/UPC Network - Male - 400 Gbit/s - LSZH, OFNR - 9/125 µm
- SKU
- N390X-02M-8L-AP
- Category
- Connector Cables
MSRP$226.67
$147.84
Save 35%In stock: 89
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- N390X-02M-8L-AP
- Category
- Connector Cables
Overview
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N390X-02M-8L-AP is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. The breakout cable also eliminates the need for long fan-out cables or long individual duplex cable runs.
Switchable Connectors Allow Easy Polarity Conversions

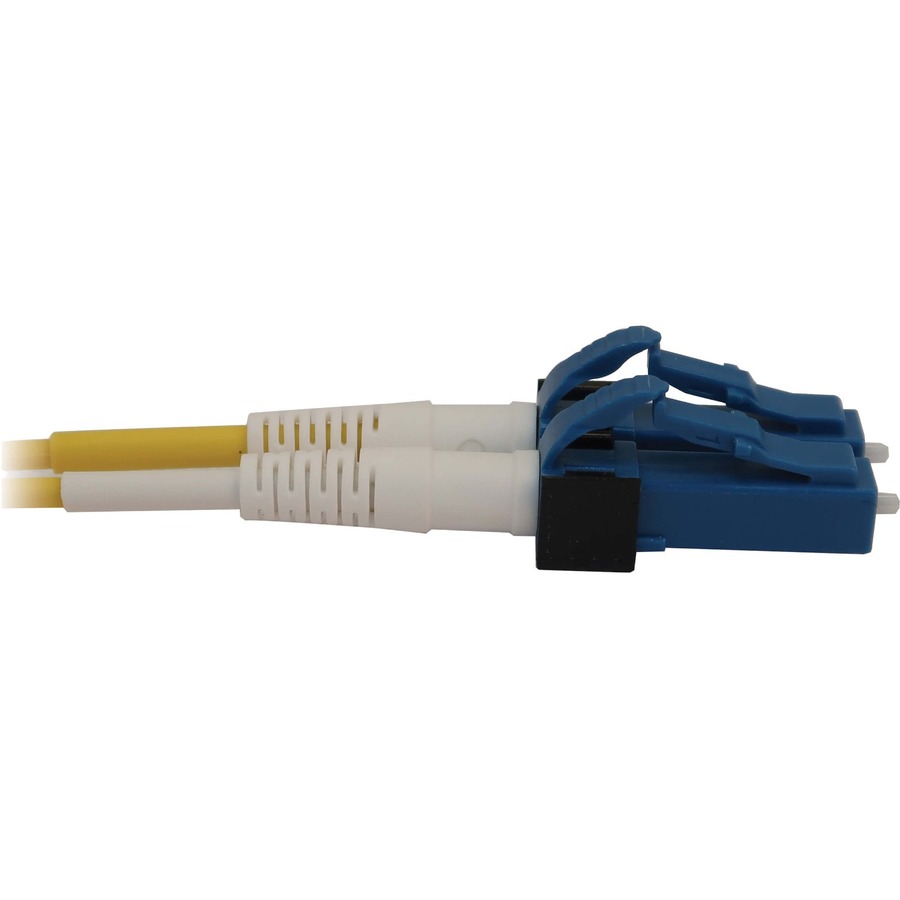

The switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors.
100% Tested for Low Insertion Loss and Back Reflection

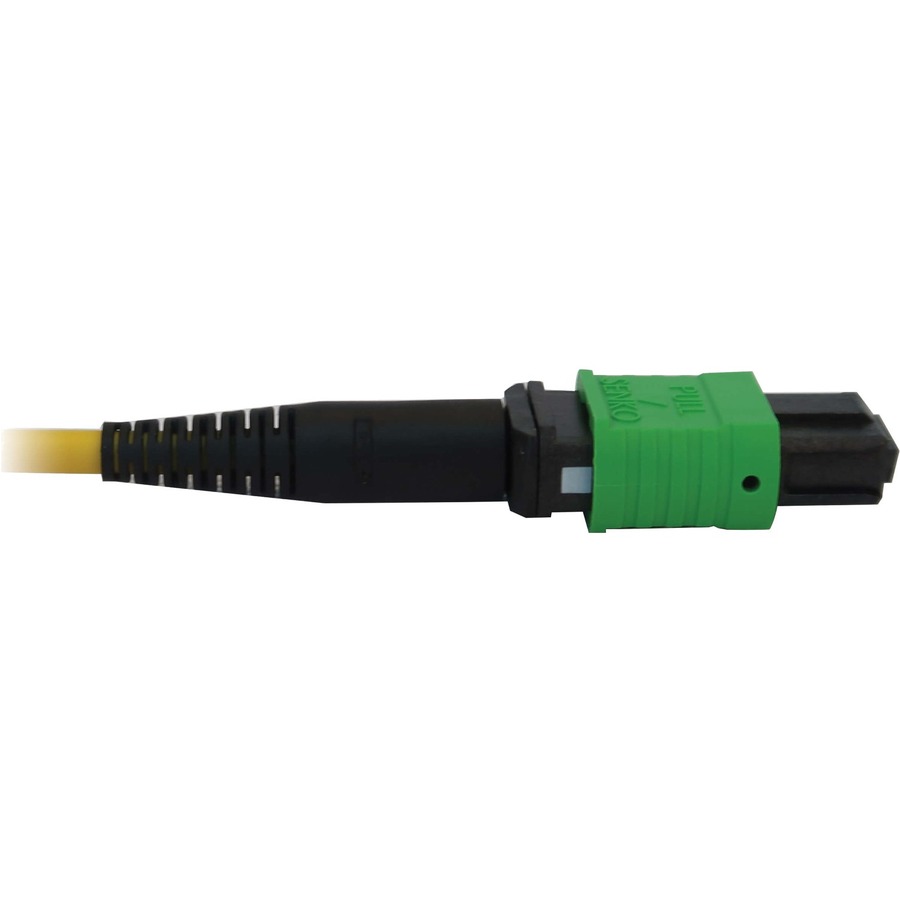

The 12-fiber MTP/MPO APC connector with a green housing helps minimize back reflection with low insertion loss. The connector's slim boot is designed for easy cable management.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Switchable LC connectors allow polarity conversion without tools or re-termination
- MTP/MPO APC connector minimizes back reflection with low insertion loss
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Yellow LSZH jacket allows fast, easy identification in a crowdedswitch or patch panel
Specifications
| Cable Length | 6.56 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 400 Gbit/s |
| Device Supported | Switch, Patch Panel, Network Device |
| Jacket Type | LSZH, OFNR |
| Manufacturer Part Number | N390X-02M-8L-AP |
| Limited Warranty | Lifetime |
| Features | Bendable, Stranded, Angled Physical Contact (APC), Push-Pull Tab |
| Manufacturer | Eaton Corporation |
| Product Model | N390X-02M-8L-AP |
| Product Name | N390X-02M-8L-AP Fiber Optic Duplex Network Cable |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC/UPC Network - Male |
| Fiber Optic Mode | Single-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC/UPC Network - Male |
| Jacket Color | Yellow |
| Connector Color | Black, Green, Blue |
| Boot Type | Slim |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
