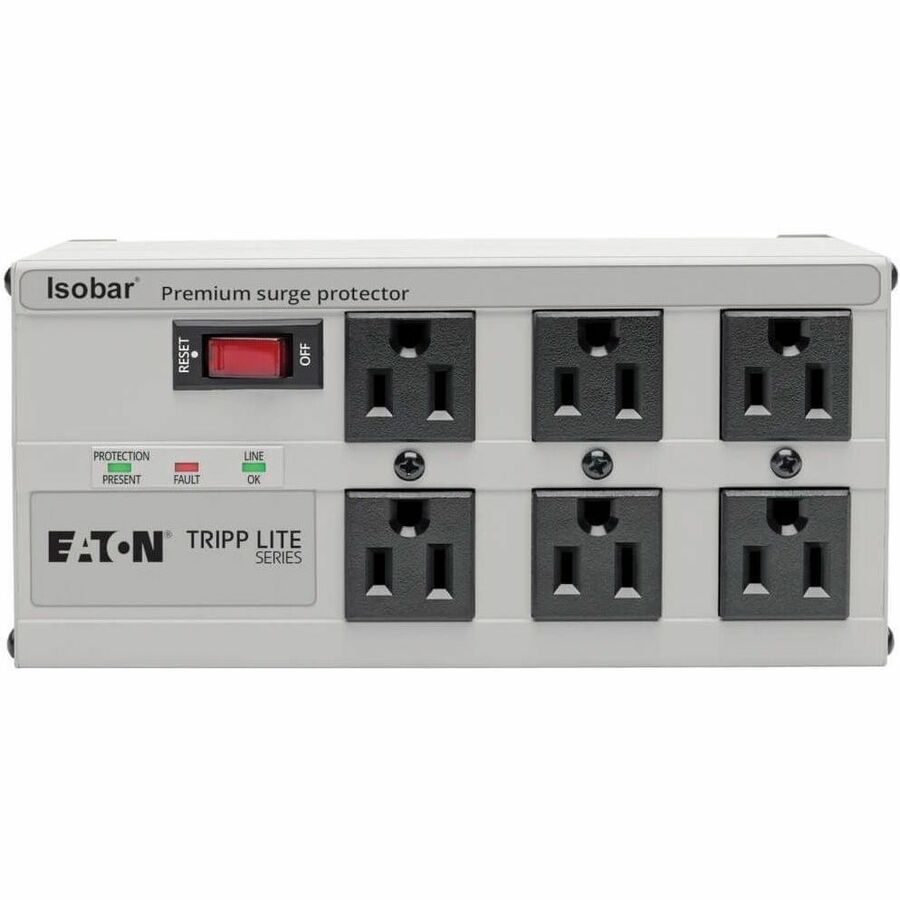

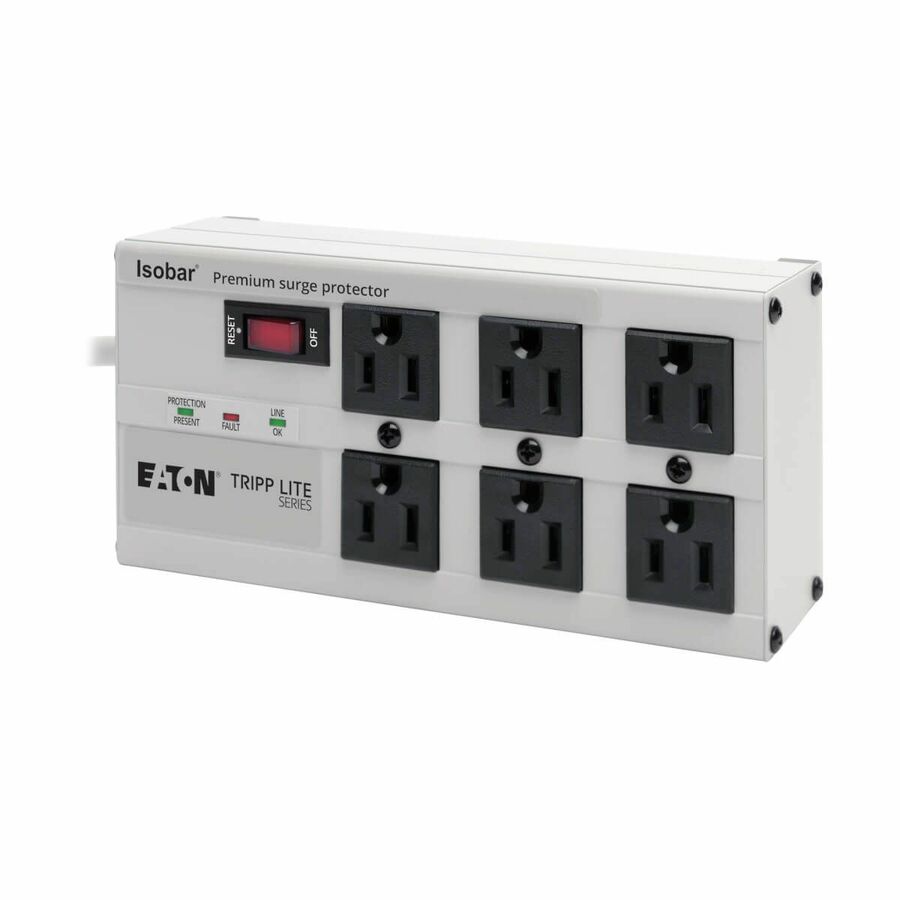

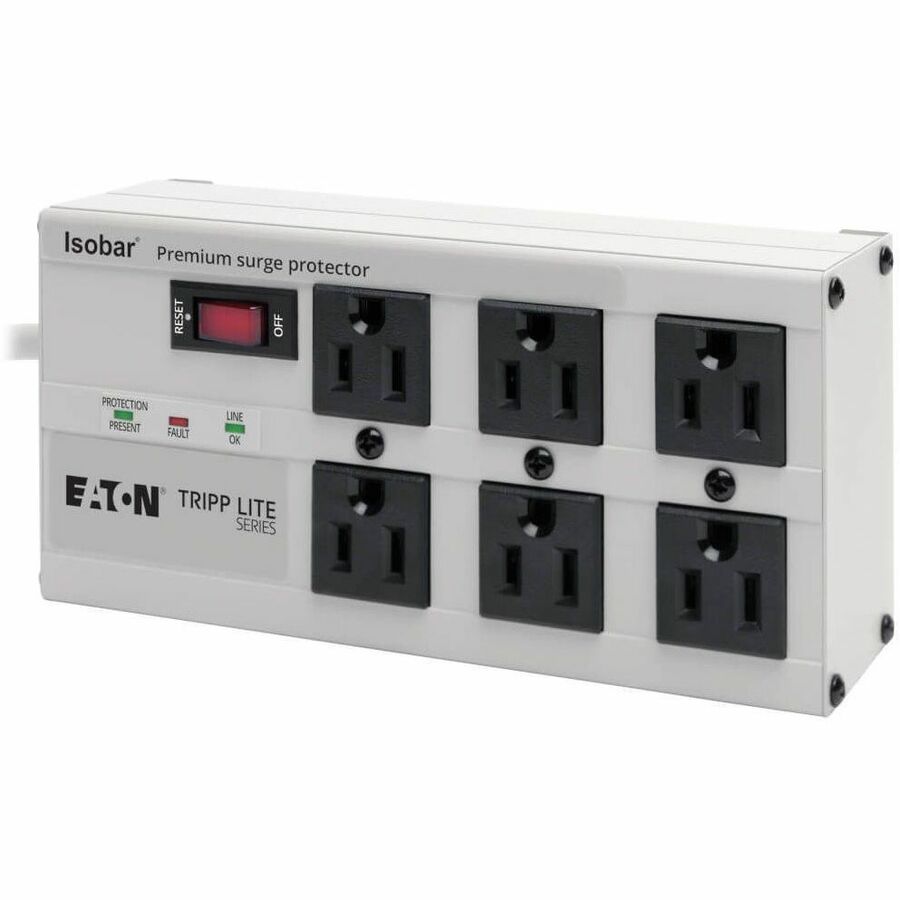

Eaton Tripp Lite Series Isobar 6-Outlet Surge Protector, 6 ft. Cord with Right-Angle Plug, 3330 Joules, Diagnostic LEDs, Metal Housing

Premium protection for essential network workstations, telecom systems, point-of-sale equipment and audio/video systems, the ISOBAR6 Isobar® 6-Outlet Surge Protector features a network-grade surge protection rating of 3300 joules to defend your sensitive electronics against even the strongest surges and spikes. The ISOBAR6 features six NEMA 5-15R outlets, which are arranged in three exclusive isolated filter banks that prevent equipment connected to one bank from interacting with equipment connected to the other. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems.

Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the ISOBAR6 protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

Included safety covers protect against dust while blocking accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected component. Diagnostic LEDs show power, protection and line fault status at a glance. A six-foot (1.8-meter) AC power cord with right-angle 5-15P plug reaches nearby outlets and allows furniture to be placed flush against the wall. An all-metal stands up to rugged environments.

Network-Grade 3300-Joule Surge Protection for Home or Office Electronics

• Protects your essential network workstations, telecom systems, point-of-sale equipment, audio/video systems and other expensive electronics against surges and spikes

• Recommended for home, corporate, retail, telecom and industrial applications requiring AC line protection

• Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression

• Exceeds IEEE 587 Category A and B surge suppression specifications

6 Outlets Accept Wide Range of Electronic Devices

• 6 NEMA 5-15R AC outlets accept most computer equipment, electronics, appliances and power tools

• Outlets accommodate up to 3 bulky transformers without blocking other outlets

• Included safety covers block accidental contact with unused outlets

Isolated Filter Banks Provide Extra Protection

• Outlets arranged in 3 exclusive isolated filter banks to limit noise interaction among connected equipment

• Block disruptive EMI/RFI line noise up to 80 dB that can cause equipment damage or data loss

• Combine large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors to block interference

Premium Safety Features

• Lighted on/off switch provides one-touch control over connected equipment

• Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required

• Diagnostic LEDs confirm power, protection and line fault status at a glance

• Conforms to current UL 1449 3rd Edition safety standards

More from the Manufacturer

Ultra-Premium Isobar Protection

With independently verified surge-stopping power fully tested and certified to meet strict UL standards, this Tripp Lite Isobar® surge protector is the smart choice to protect your valuable equipment. Compared to other surge protectors, Isobar models have a substantially larger and more robust surge-blocking architecture.

3330-joule surge protection rating – More joules mean more protection!

EMI/RFI noise filtering protects against external interference

Exclusive isolated filter banks protect against internal interference

Resettable circuit breaker protects against overloads

Metal housing won’t crack, burn or melt

Multi-Component Surge “Firewall”

Compared to other surge protectors, Isobar models have a substantially larger and more robust surge-blocking and noise-filtering architecture.

VHF (very-high-frequency) and high-frequency capacitors remove noise interference

Heavy-duty ferrite-core inductors increase noise suppression and reduce let-through voltage

Toroidal balanced chokes remove noise interference

Isolated filter banks block interference between connected devices

Metal oxide varistors (MOVs) absorb surges

Safe thermal fusing provides fail-safe system protection

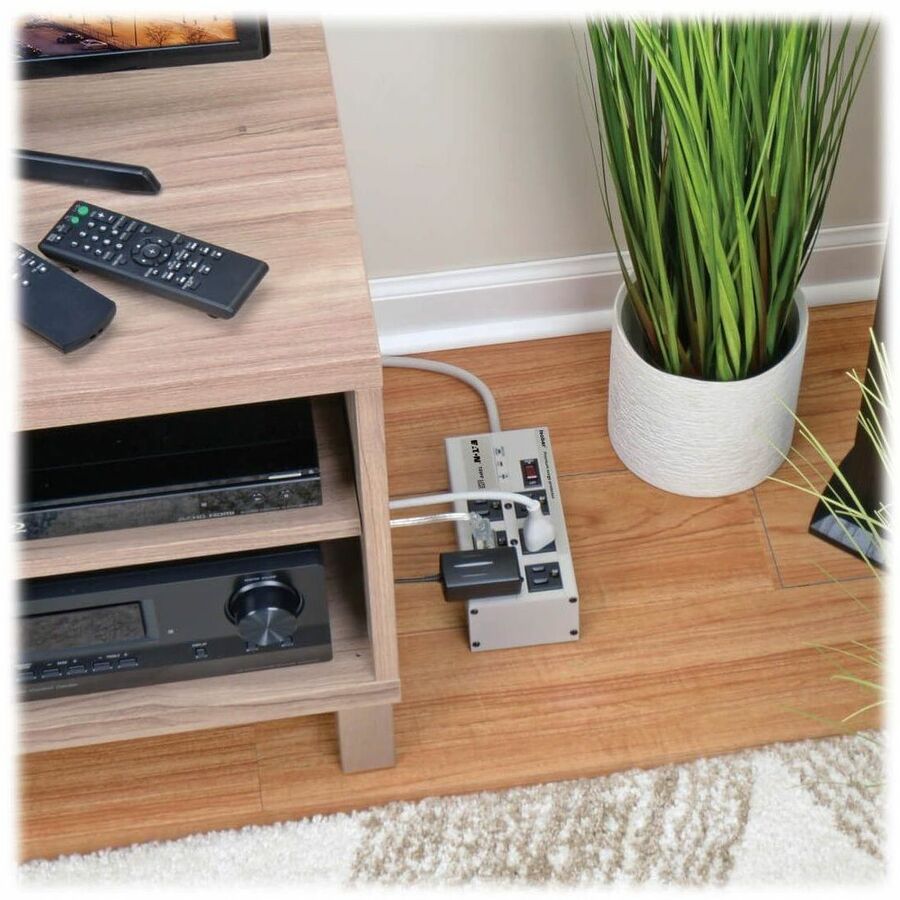

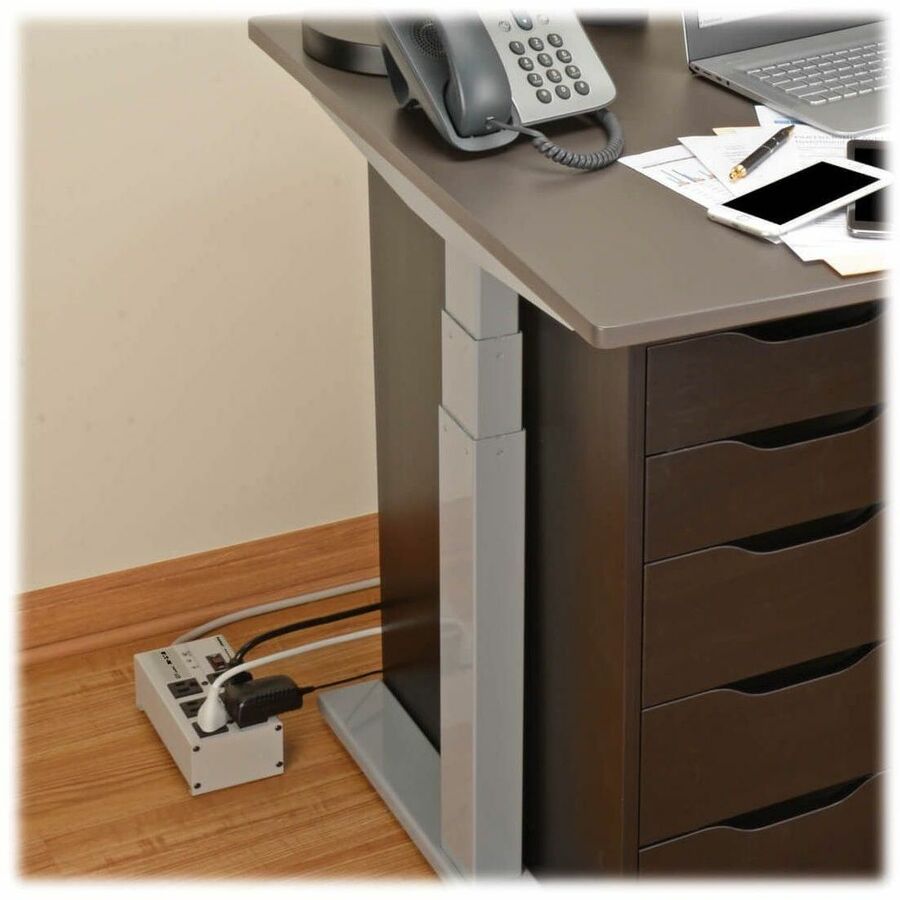

Ready for Home and Office

This surge protector is perfect for home and office electronics of all kinds, including computers, monitors, printers, wireless routers, televisions, video game consoles, streaming media players, sound systems, device chargers, desk lamps and small appliances.

6 AC outlets, including transformer outlets optimized for bulky AC adapters

High-quality 6-foot AC input cord with 5-15P right-angle plug that allows furniture and equipment to be moved flush against the wall

Durable and fire-resistant metal housing

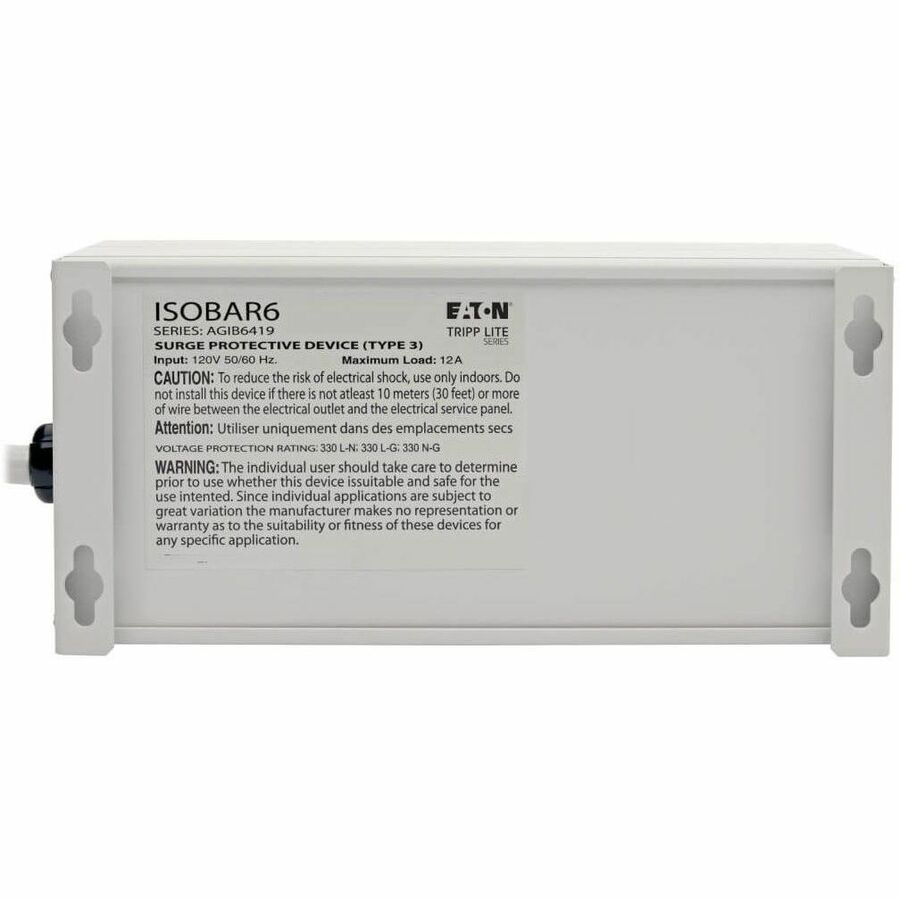

Keyhole mounting slots

Diagnostic LEDs

Lifetime Warranty, Insurance and Support

If your connected equipment is damaged by a surge—even a direct lightning strike—Tripp Lite will repair or replace it up to the value of the Ultimate Lifetime Insurance. If the “Protection Present” LED ever goes out, simply return the surge protector to Tripp Lite for a free replacement. And if you ever have a question, our Chicago-based tech support team is standing by ready to assist you free of charge.

Lifetime limited warranty

$50,000 connected equipment insurance

Free Chicago-based tech support
