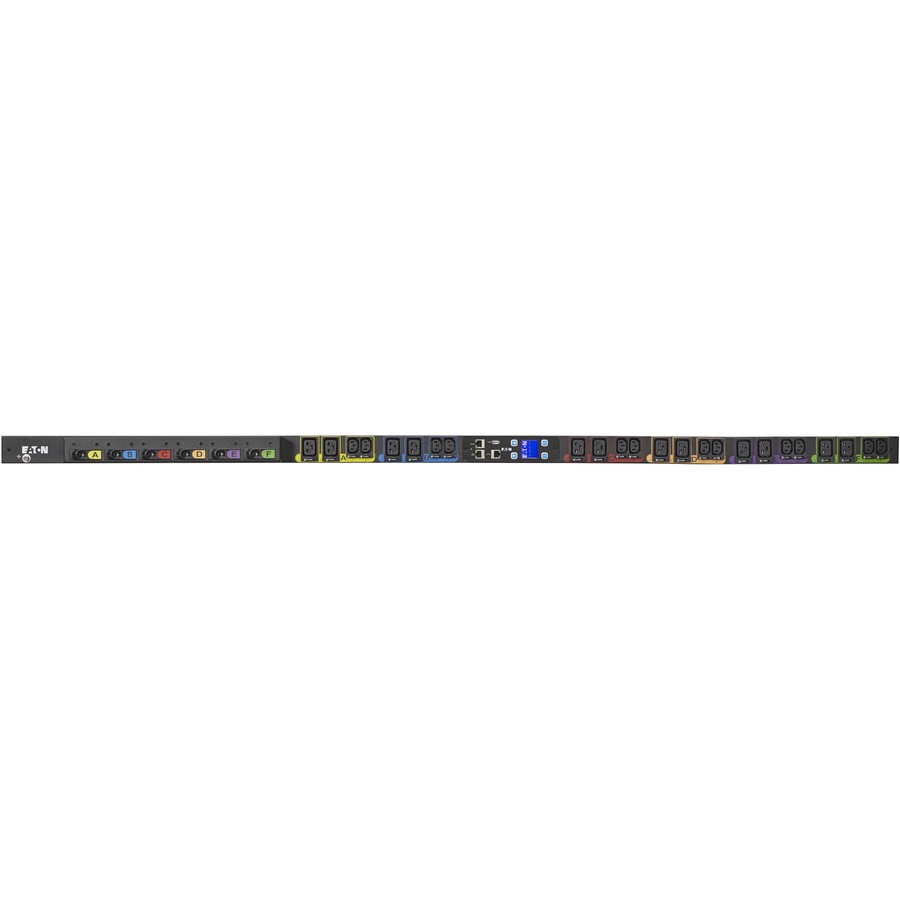

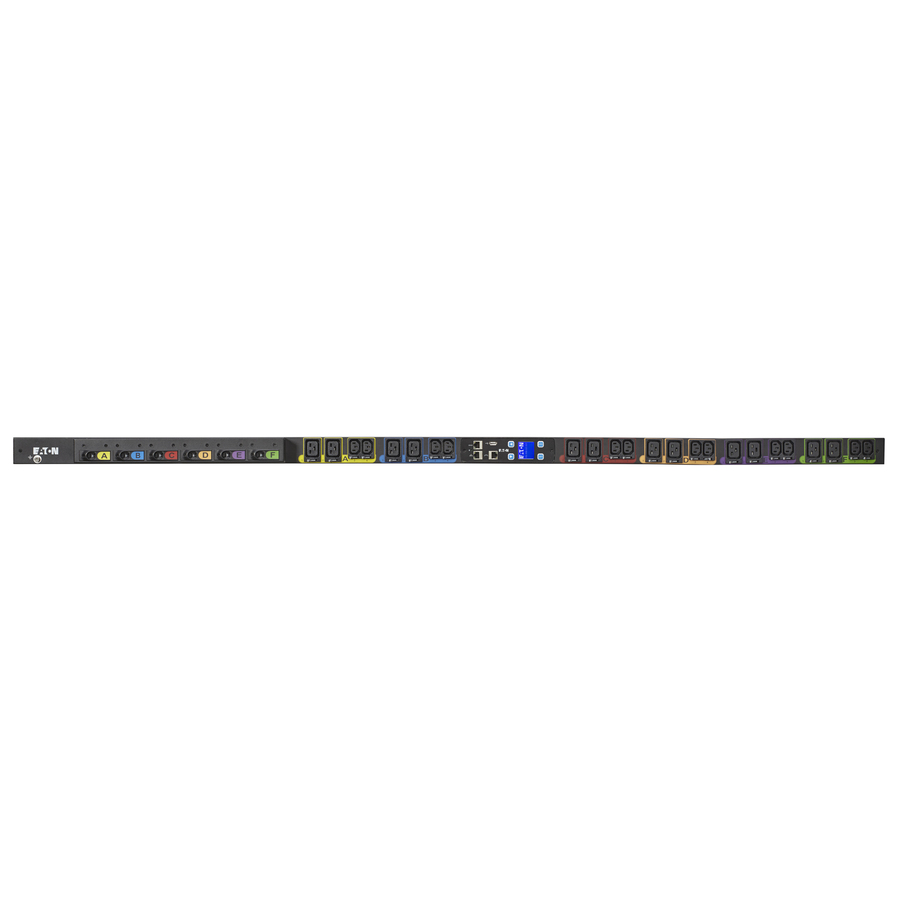

Eaton Metered Outlet Rack PDU, 0U, CS8365 input, 14.4 kW max, 200-240V, 40A, 6 ft cord, Three-phase, Outlets: (12) C13 Outlet grip, (12) C19 Outlet grip
Eaton

Eaton Metered Outlet Rack PDU, 0U, CS8365 input, 14.4 kW max, 200-240V, 40A, 6 ft cord, Three-phase, Outlets: (12) C13 Outlet grip, (12) C19 Outlet grip

CS8365 - 12 x IEC 60320 C19, 12 x IEC 60320 C13 - 230 V AC - 14.40 kW - Network (RJ-45) - 38U - Vertical - Rack-mountable

SKU
EMO329-06
Category
PDUs

MSRP$1,768.00

$1,438.00

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMO329-06
Category
PDUs

Overview

Metered Outlet ePDUs allow you to measure power consumption at the outlet level, gain Level 3 power usage effectiveness (PUE), and to perform accurate department and customer billing. Metered Outlet models are the perfect solution for anyone requiring the benefits of outlet level monitoring without needing to control individual outlets.

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Monitors entire environment remotely over the network from a single interface
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
  • Provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain eight ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Specifications

Package Contents
  • ePDU Metered EMO329-06 24-Outlet PDU
  • ePDU G3 Installation Spare Pack
  • ePDU G3 Network Spare Part Pack
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberEMO329-06
Output Voltage230 V AC
Input Current40 A
ManufacturerEaton Corporation
Product ModelEMO329-06
Product NameePDU Metered EMO329-06 24-Outlet PDU
Mount TypeRack-mountable
Product LineePDU
Product SeriesMetered
Rack Height38U
Brand NameEaton
Plug/Connector TypeCS8365
Country of OriginUnited States
Height66.5"
Width2.1"
Depth2.1"
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Network (RJ-45)Yes
Mounting OrientationVertical
Power Rating (Watt)14.40 kW
Receptacle Detail12 x IEC 60320 C19, 12 x IEC 60320 C13
Plug/Connector Detail1 x CS8365
