Eaton Metered Input Rack PDU 200-240V 5.76kW max L6-30P 2U Single-Phase PDU
Eaton

Eaton Metered Input Rack PDU 200-240V 5.76kW max L6-30P 2U Single-Phase PDU

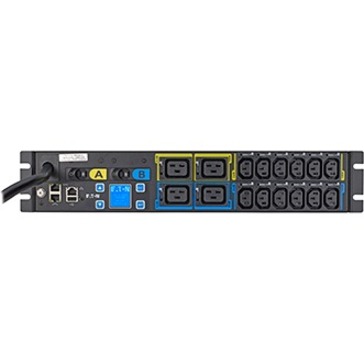

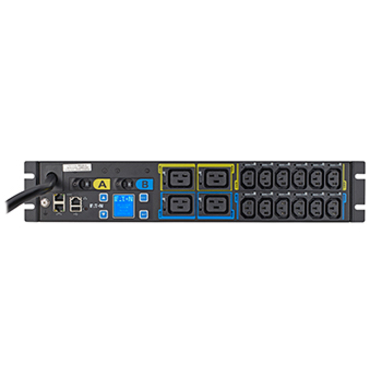

NEMA L6-30P - 12 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 2U - Horizontal - Rack-mountable

SKU
EMIU06-10
Category
PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMIU06-10
Category
PDUs

Overview

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • A device fitted with multiple outputs for the distribution of electric power
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for maximum feasibility and added productivity

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberEMIU06-10
Limited Warranty3 Year
Input Current24 A
ManufacturerEaton Corporation
Product NameePDU Metered 16-Outlet PDU
Mount TypeRack-mountable
Product LineePDU
Product SeriesMetered
Rack Height2U
Brand NameEaton
Plug/Connector TypeNEMA L6-30P
Country of OriginPhilippines
Height19"
Width3.4"
Depth8.4"
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Network (RJ-45)Yes
Mounting OrientationHorizontal
Power Rating (Watt)5760 W
Receptacle Detail12 x IEC 60320 C13, 4 x IEC 60320 C19
Plug/Connector Detail1 x NEMA L6-30P
