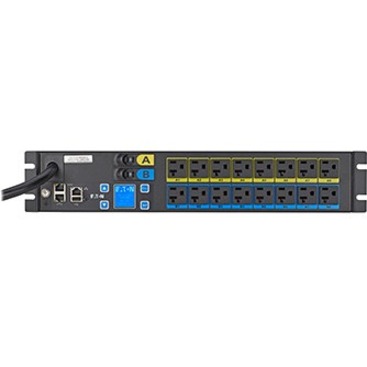

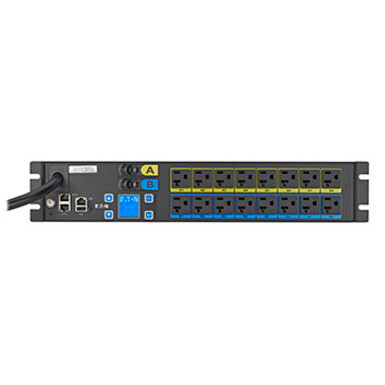

Eaton Metered Input Rack PDU 100-127V 2.88kW max L5-30P 2U Single-Phase PDU

NEMA L5-30P - 16 x NEMA 5-20R - 120 V AC - 2880 W - Network (RJ-45) - 2U - Horizontal - Rack-mountable

SKU: EMIU05-10
Category: PDUs

MSRP$1,045.16

$846.98

Save 19%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: EMIU05-10
Category: PDUs

Overview

Eaton Metered Input ePDUs

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

PDU provides active metering enabling energy optimization and circuit protection
NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
NEMA L5-30P plug/connector type for better, dependable connectivity and desired power output
120 V AC input voltage for maximum feasibility and added productivity

Specifications

Product Type	PDU
Input Voltage	120 V AC
Manufacturer Part Number	EMIU05-10
Limited Warranty	3 Year
Input Current	24 A
Manufacturer	Eaton Corporation
Product Name	ePDU Metered 16-Outlet PDU
Mount Type	Rack-mountable
Product Line	ePDU
Product Series	Metered
Rack Height	2U
Brand Name	Eaton
Plug/Connector Type	NEMA L5-30P
Country of Origin	China
Height	19"
Width	3.4"
Depth	8.4"
Receptacle Type	NEMA 5-20R
Network (RJ-45)	Yes
Mounting Orientation	Horizontal
Power Rating (Watt)	2880 W
Receptacle Detail	16 x NEMA 5-20R
Plug/Connector Detail	1 x NEMA L5-30P
