Eaton Metered Input Rack PDU 1.92kW max 120V 16A 1U L5-20P Single-Phase PDU
Eaton

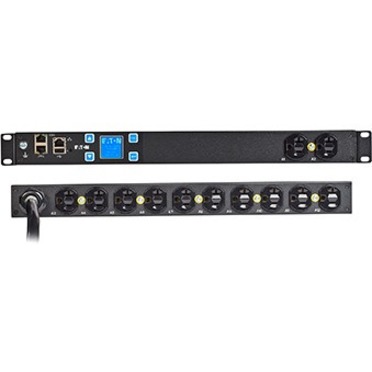

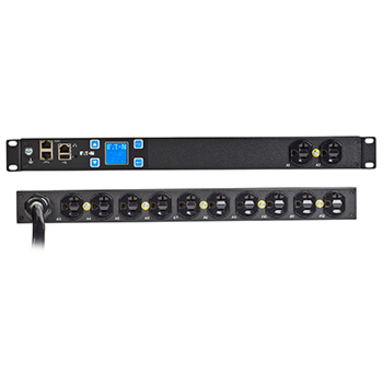

Eaton Metered Input Rack PDU 1.92kW max 120V 16A 1U L5-20P Single-Phase PDU

NEMA L5-20P - 12 x NEMA 5-20R - 120 V AC - 1920 W - Network (RJ-45) - 1U - Horizontal

SKU
EMIT02-10
Category
PDUs

MSRP$1,325.00

$1,078.25

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMIT02-10
Category
PDUs

Overview

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • PDU is reliable for power protection and management solutions
  • NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
  • NEMA L5-20P plug/connector type for reliable, productive connectivity and optimal power output
  • 120 V AC input voltage for better reliance and maximum dependability
  • 120 V AC output voltage for maximum dependability and added productivity

Specifications

Package Contents
  • ePDU Metered EMIT02-10 12-Outlet PDU
  • SPK021-Installation
  • SPK013-Network
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberEMIT02-10
Limited Warranty3 Year
Output Voltage120 V AC
Input Current16 A
ManufacturerEaton Corporation
Product ModelEMIT02-10
Product NameePDU Metered EMIT02-10 12-Outlet PDU
Product LineePDU
Product SeriesMetered
Rack Height1U
Brand NameEaton
Plug/Connector TypeNEMA L5-20P
Country of OriginUnited States
Height19"
Width1.7"
Depth8"
Receptacle TypeNEMA 5-20R
Network (RJ-45)Yes
Mounting OrientationHorizontal
Power Rating (Watt)1920 W
Receptacle Detail12 x NEMA 5-20R
Plug/Connector Detail1 x NEMA L5-20P
