Eaton Metered Input rack PDU, 1U, 5-15P input, 1.44 kW max, 120V, 12A, 10 ft cord, Single-phase, Outlets: (12) 5-15R
Eaton

Eaton Metered Input rack PDU, 1U, 5-15P input, 1.44 kW max, 120V, 12A, 10 ft cord, Single-phase, Outlets: (12) 5-15R

NEMA 5-15P - 12 x NEMA 5-15R - 120 V AC - 1440 W - Network (RJ-45) - 1U - Horizontal

SKU
EMIT00-10
Category
PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMIT00-10
Category
PDUs

Overview

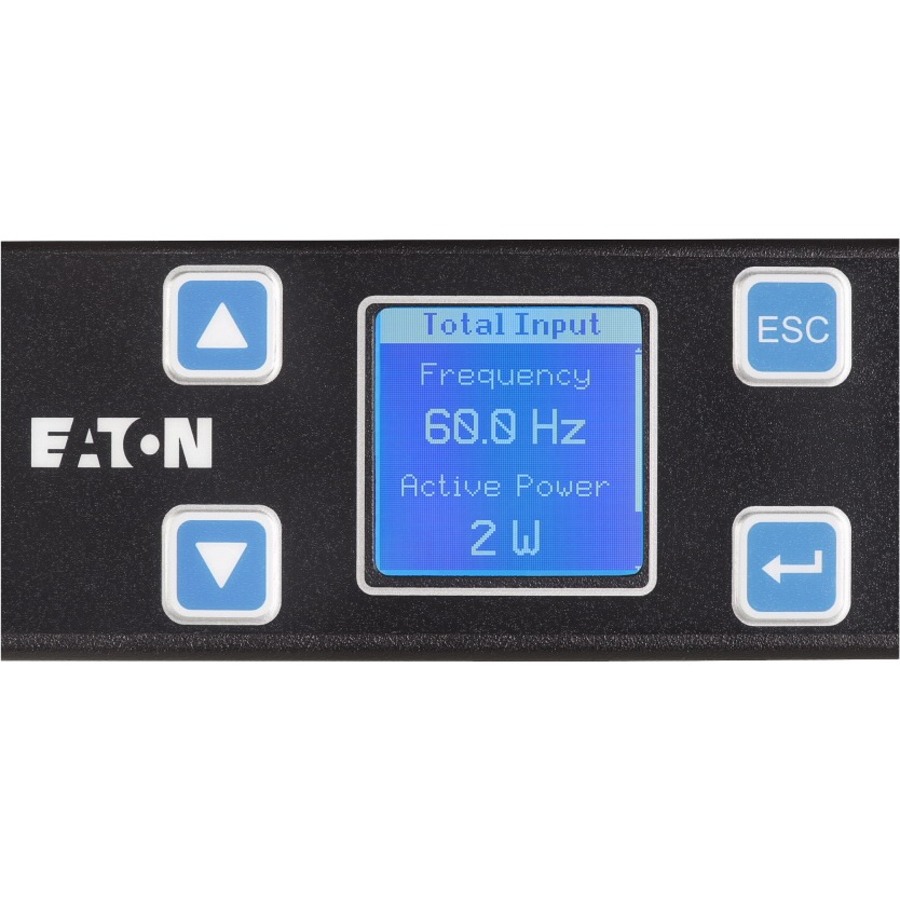

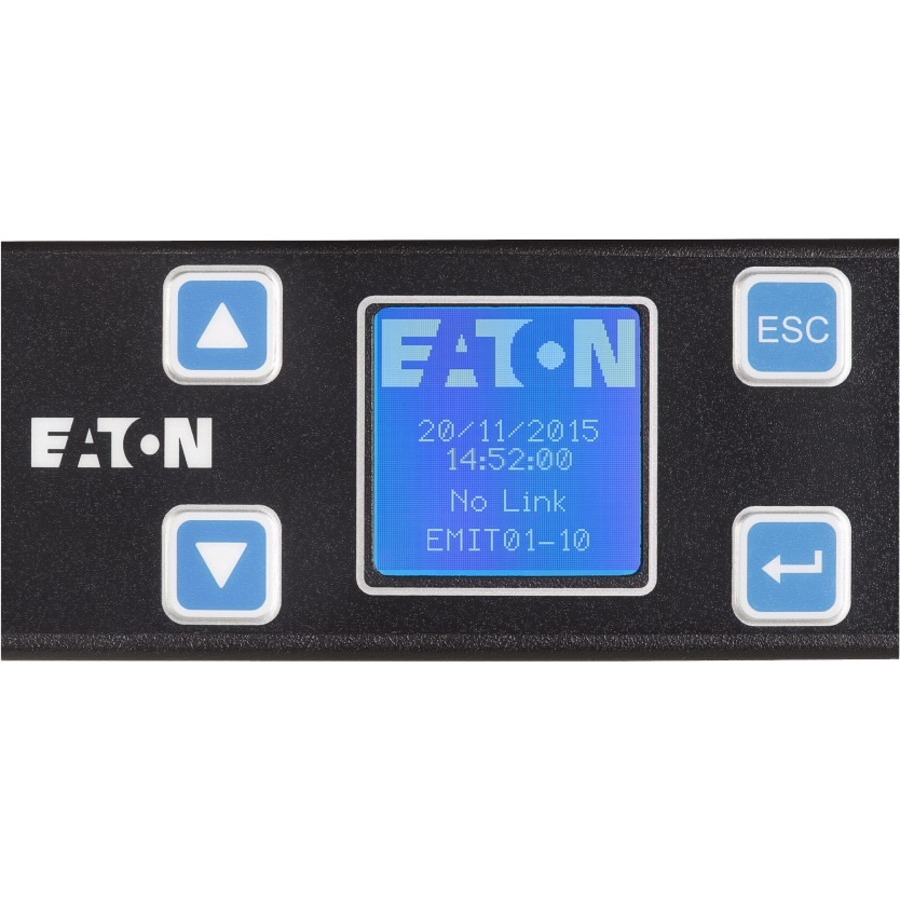

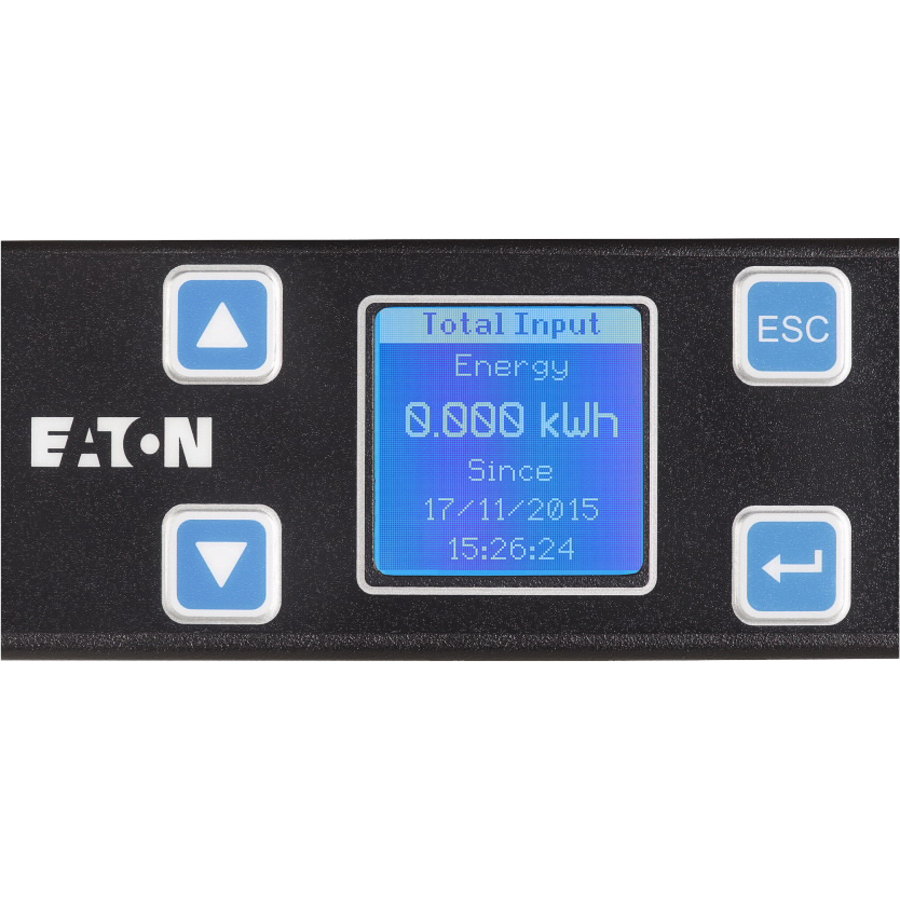

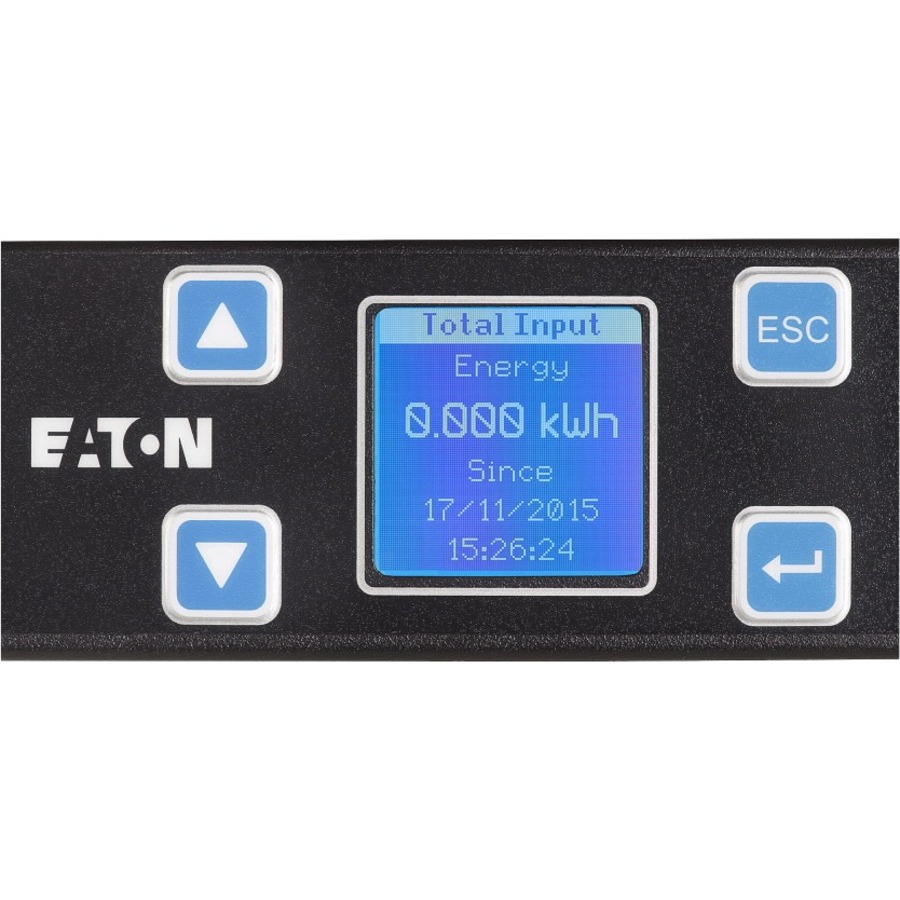

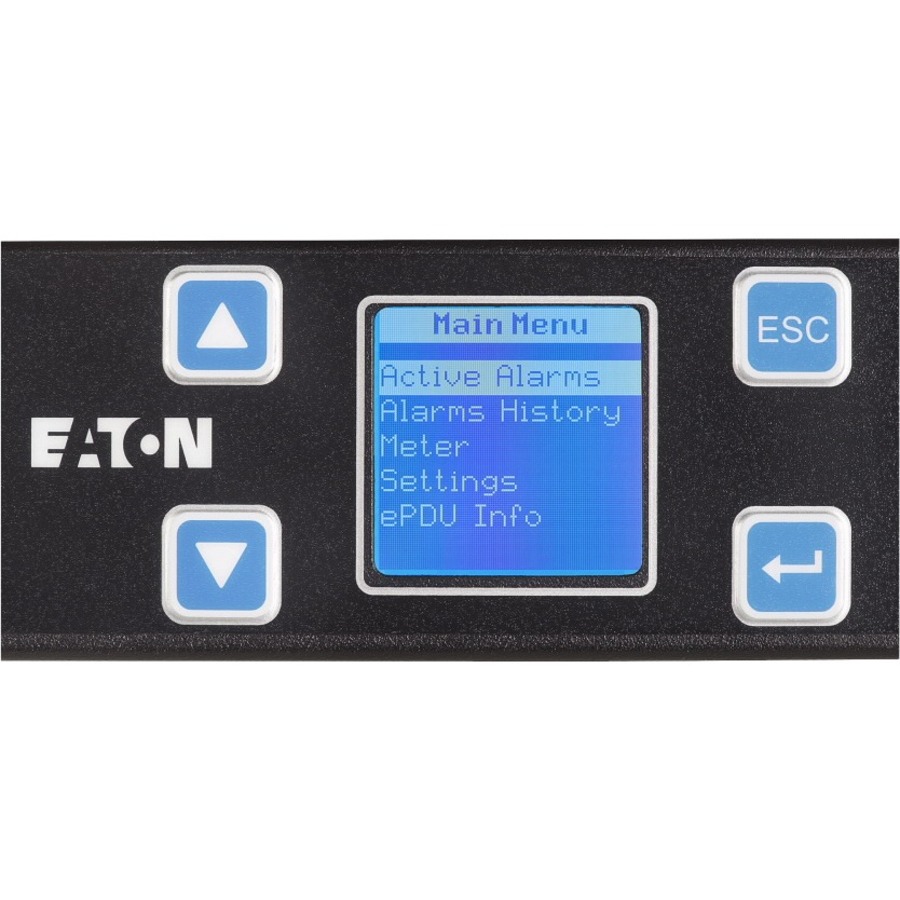

Eaton Metered Input rack PDUs give you remote monitoring capabilities and provide access to your power data whenever you want it, wherever you are. You also can monitor your critical equipment within each color-coded outlet section from a single interface, achieve±1% billing grade accuracy and daisy chain four PDUs to share the same network connection and IP address.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Eaton Hydraulic Magnetic Circuit Breakers with accidental trip protection
  • Colour-coded outlet and branch circuits for simple load balancing
  • Highly secure with user access control, password protection and SSL configurable to 1024 or 2048 bit
  • IEC outlet eGrip plug retention: retains all standard IEC plugs
  • Allows phase branch level metering for load balancing

Specifications

Package Contents
  • ePDU Metered EMIT00-10 12-Outlet PDU
  • SPK021-Installation
  • SPK013-Network
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberEMIT00-10
Limited Warranty3 Year
Output Voltage120 V AC
Input Current12 A
ManufacturerEaton Corporation
Product ModelEMIT00-10
Product NameMetered Input Rack PDU
Product LineePDU
Product SeriesMetered
Rack Height1U
Brand NameEaton
Plug/Connector TypeNEMA 5-15P
Country of OriginUnited States
Height19"
Width1.7"
Depth8"
Receptacle TypeNEMA 5-15R
Network (RJ-45)Yes
Mounting OrientationHorizontal
Power Rating (Watt)1440 W
Receptacle Detail12 x NEMA 5-15R
Plug/Connector Detail1 x NEMA 5-15P
