Eaton fuse disconnect rack PDU, 0U, 309-460P9 input, 17.3 kW max, 200-240V, 48A, 6 ft cord, Three-phase, Outlets: (48) C13 Outlet grip, (12) C19 Outlet grip
Eaton

Eaton fuse disconnect rack PDU, 0U, 309-460P9 input, 17.3 kW max, 200-240V, 48A, 6 ft cord, Three-phase, Outlets: (48) C13 Outlet grip, (12) C19 Outlet grip

IEC 60309 460P9 - 48 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 17.30 kW - Network (RJ-45) - 0U - Vertical

SKU
EMI359-06
Category
PDUs

MSRP$2,487.00

$2,022.79

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMI359-06
Category
PDUs

Overview

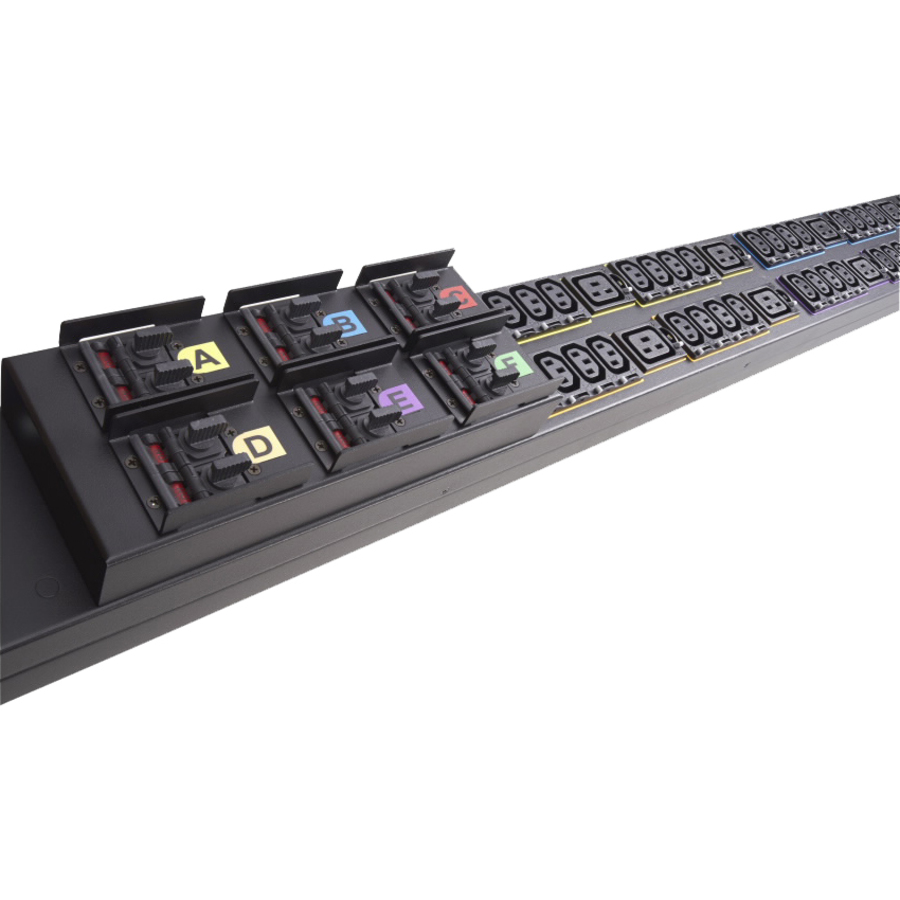

Eaton Fuse Disconnect ePDUs

Eaton's fuse disconnect ePDUs offer higher amp interrupt capacity compared to circuit breakers giving the ability to clear higher fault currents. Additionally, the fuses can be safely changed without removing power to the PDU. Offered in Basic, Metered Input, Metered Outlet and Managed technologies, the fuse disconnect models include all of the same best-in-class features of the G3 platform.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Higher amp interrupt rating compared to circuit breakers
  • Ability to clear higher fault current

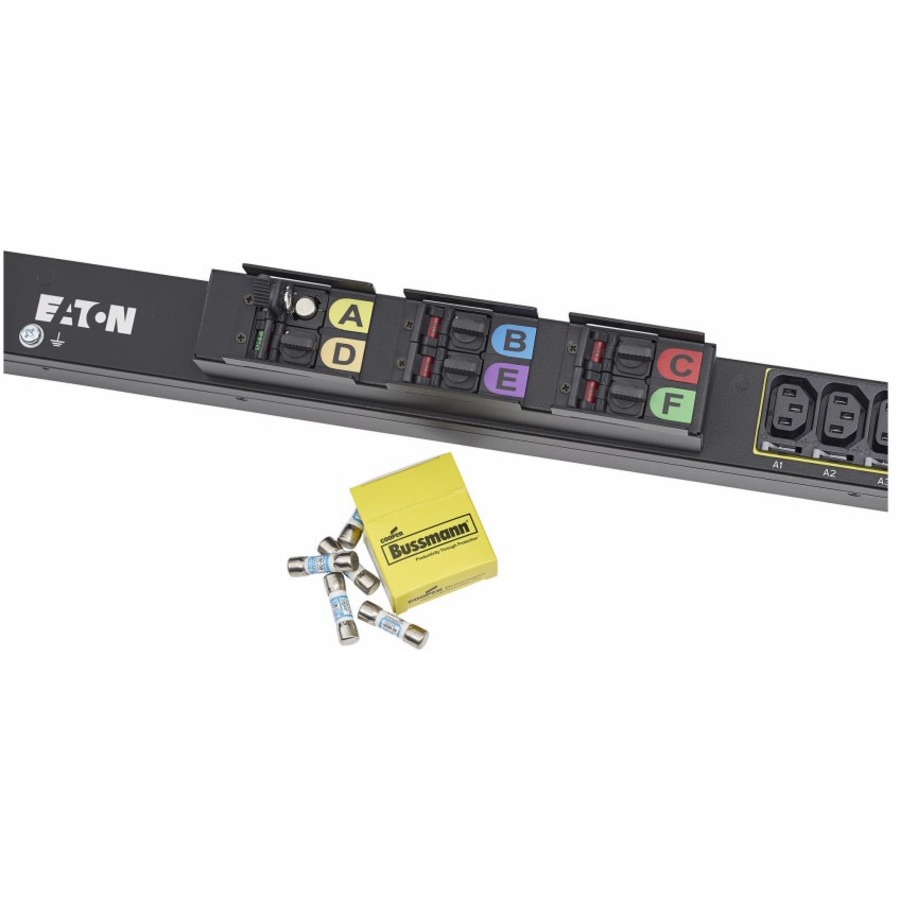

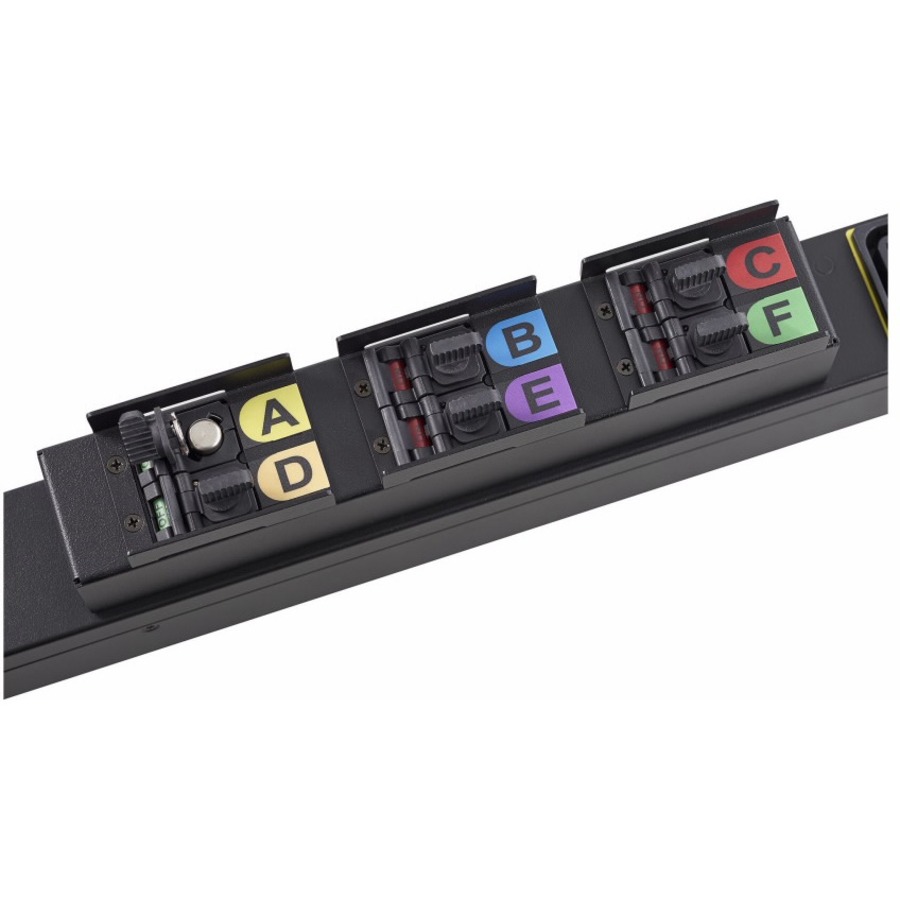

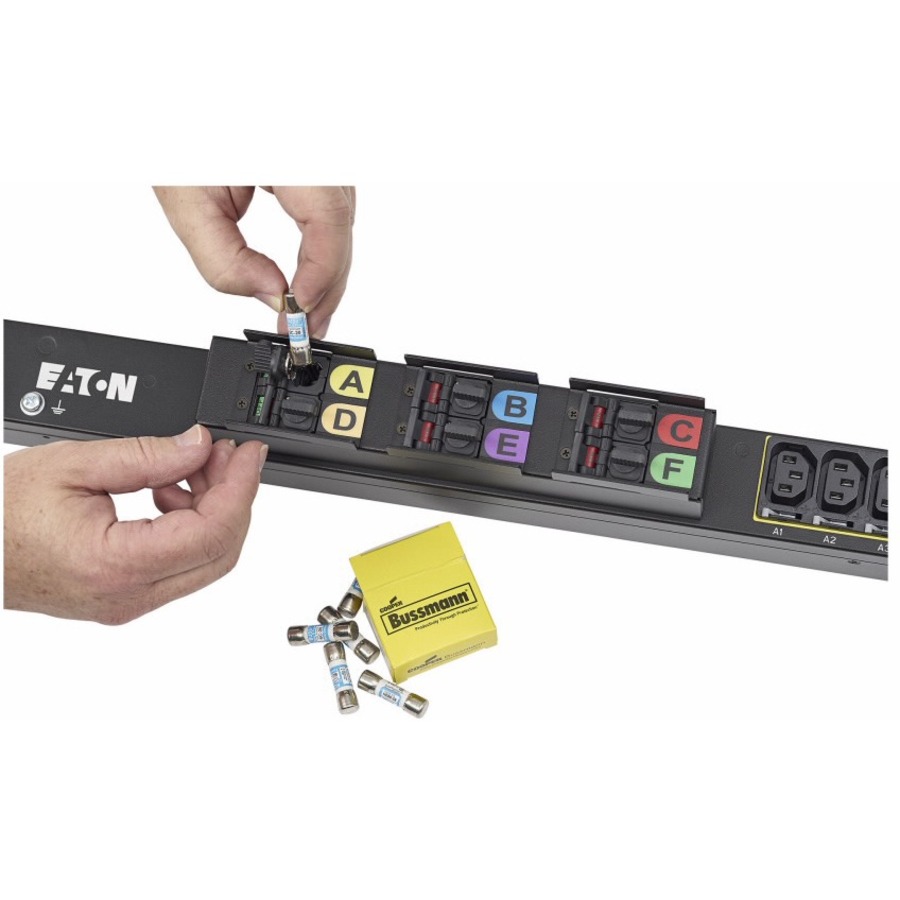

  • Uses patented Eaton/Bussmann low profile Compact Circuit Protector (CCP) for hot-swap, finger-safe fuse changes
  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain eight ePDUs to share the same network connection and IP address
  • Clearly labeled circuits simplify load balancing
  • Integrates with Eaton network closet, server room and data center solutions

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberEMI359-06
Limited Warranty3 Year
Output Voltage200 V AC, 240 V AC
Input Current48 A
ManufacturerEaton Corporation
Product NameePDU 60-Outlet PDU
Product LineePDU
Rack Height0U
Brand NameEaton
Plug/Connector TypeIEC 60309 460P9
Input Voltage Range200 V AC - 240 V AC
Country of OriginUnited States
Height63.1"
Width4.1"
Depth2.1"
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Network (RJ-45)Yes
Mounting OrientationVertical
Power Rating (Watt)17.30 kW
Receptacle Detail48 x IEC 60320 C13, 12 x IEC 60320 C19
Plug/Connector Detail1 x IEC 60309 460P9
