Eaton fuse disconnect rack PDU, 0U, 309-532P6W input, 17.3 kW max, 230/400V, 24A, 10 ft cord, Three-phase, TAA compliant, Outlets: (48) C13 Outlet grip, (12) C19 Outlet grip
Eaton

Eaton fuse disconnect rack PDU, 0U, 309-532P6W input, 17.3 kW max, 230/400V, 24A, 10 ft cord, Three-phase, TAA compliant, Outlets: (48) C13 Outlet grip, (12) C19 Outlet grip

Metered - 309-532P6W - 48 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC, 400 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

SKU
EMI356-10
Category
PDUs

MSRP$2,355.00

$1,915.43

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMI356-10
Category
PDUs

Overview

Eaton's fuse disconnect ePDUs offer higher amp interrupt capacity compared to circuit breakers giving the ability to clear higher fault currents. Additionally, the fuses can be safely changed without removing power to the PDU. Offered in Basic, Metered Input, Metered Outlet and Managed technologies, the fuse disconnect models include all of the same best-in-class features of the G3 platform.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Higher amp interrupt rating compared to circuit breakers
  • Ability to clear higher fault current

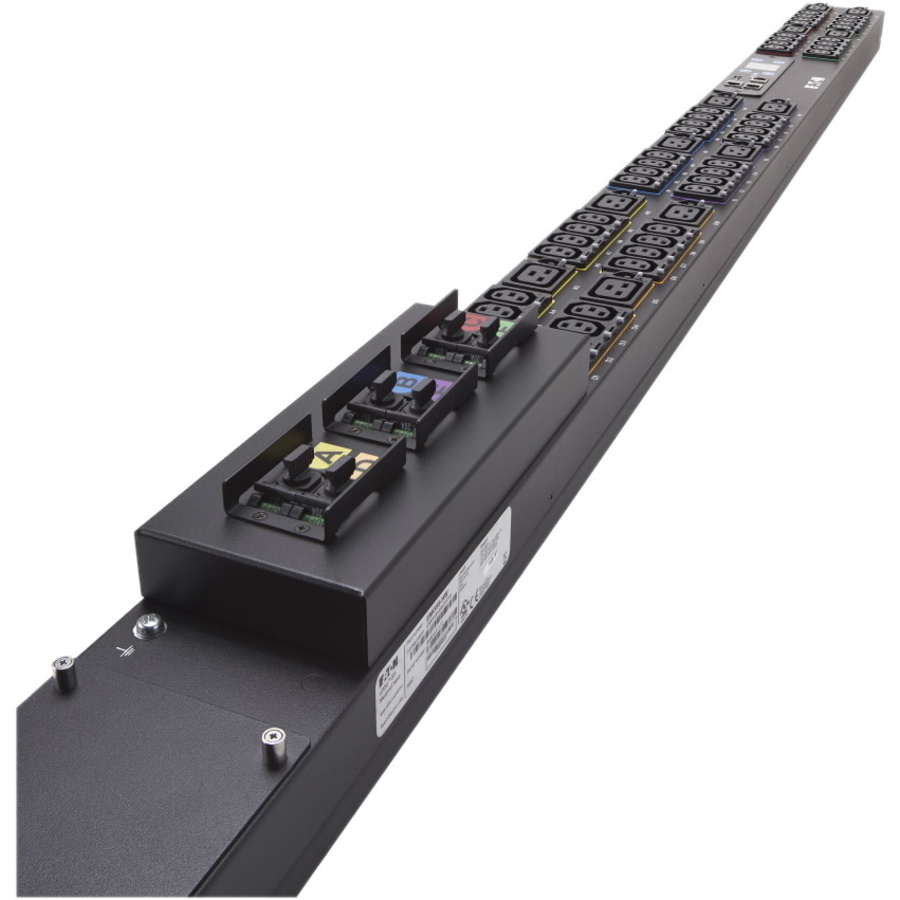

  • Uses patented Eaton/Bussmann low profile Compact Circuit Protector (CCP) for hot-swap, finger-safe fuse changes
  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain eight ePDUs to share the same network connection and IP address
  • Clearly labeled circuits simplify load balancing
  • Integrates with Eaton network closet, server room and data center solutions

Specifications

Product TypePDU
Input Voltage230 V AC, 400 V AC
Manufacturer Part NumberEMI356-10
Limited Warranty3 Year
Weight (Approximate)16.50 lb
Input Current24 A
ManufacturerEaton Corporation
Product NameePDU 60-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Protection TypeCircuit Protection
Rack Height0U
Brand NameEaton
Plug/Connector Type309-532P6W
Country of OriginUnited States
Height2.1"
Width4.1"
Depth63.2"
PhaseThree Phase
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Output Voltage Range200 V AC - 240 V AC
Network (RJ-45)Yes
TAA CompliantYes
PDU TypeMetered
Mounting OrientationVertical
Power Rating (Watt)17.30 kW
Receptacle Detail48 x IEC 60320 C13, 12 x IEC 60320 C19
Plug/Connector Detail1 x 309-532P6W
