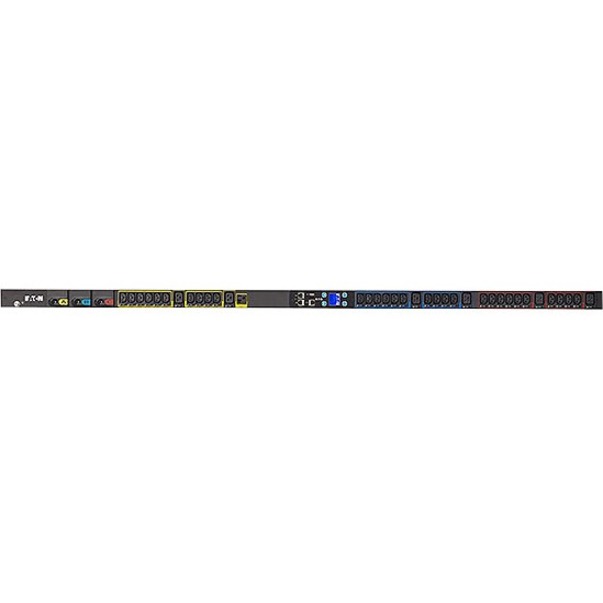

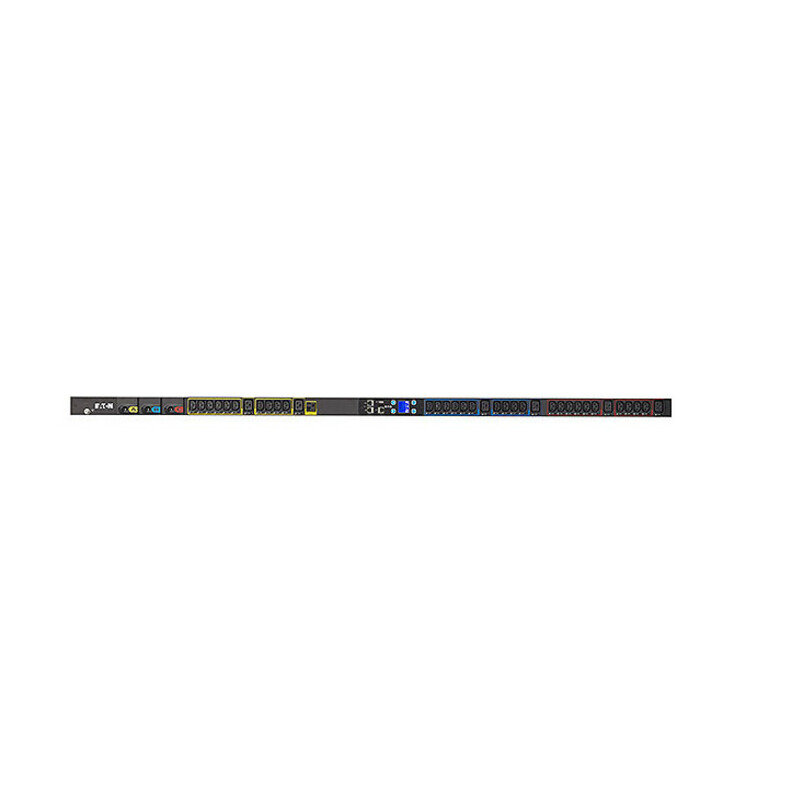

Eaton Metered Input rack PDU, 0U, 309-532P6W input, 17.3 kW max, 240/415V, 24A, 10 ft cord, Three-phase, Outlets: (24) C13, (6) C19
IEC 60309 532P6 - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 11.50 kW - Network (RJ-45) - 38U - Vertical - Rack-mountable
- SKU
- EMI319-10
- Category
- PDUs
MSRP$2,684.98
$2,183.82
Save 19%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EMI319-10
- Category
- PDUs
Overview
Eaton Metered Input ePDUs
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
- High density units support up to 25 1U/2U servers or three blade server chassis
- Easy read digital ammeter reduces local monitoring time
- Clearly labeled circuits simplify load balancing
- Reading available via Ethernet connection over a network
- UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Specifications
| Product Type | PDU |
|---|---|
| Manufacturer Part Number | EMI319-10 |
| Limited Warranty | 3 Year |
| Output Voltage | 230 V AC |
| Input Current | 24 A |
| Manufacturer | Eaton Corporation |
| Product Model | EMI319-10 |
| Product Name | ePDU Metered EMI319-10 30-Outlet PDU |
| Mount Type | Rack-mountable |
| Product Line | ePDU |
| Product Series | Metered |
| Rack Height | 38U |
| Brand Name | Eaton |
| Plug/Connector Type | IEC 60309 532P6 |
| Input Voltage Range | 230 V AC - 415 V AC |
| Country of Origin | United States |
| Cord Length | 10 ft |
| Height | 66.5" |
| Width | 2.1" |
| Depth | 2.1" |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Network (RJ-45) | Yes |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 11.50 kW |
| Product Color | Black |
| Color Family | Black |
| Receptacle Detail | 24 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Plug/Connector Detail | 1 x IEC 60309 532P6 |
