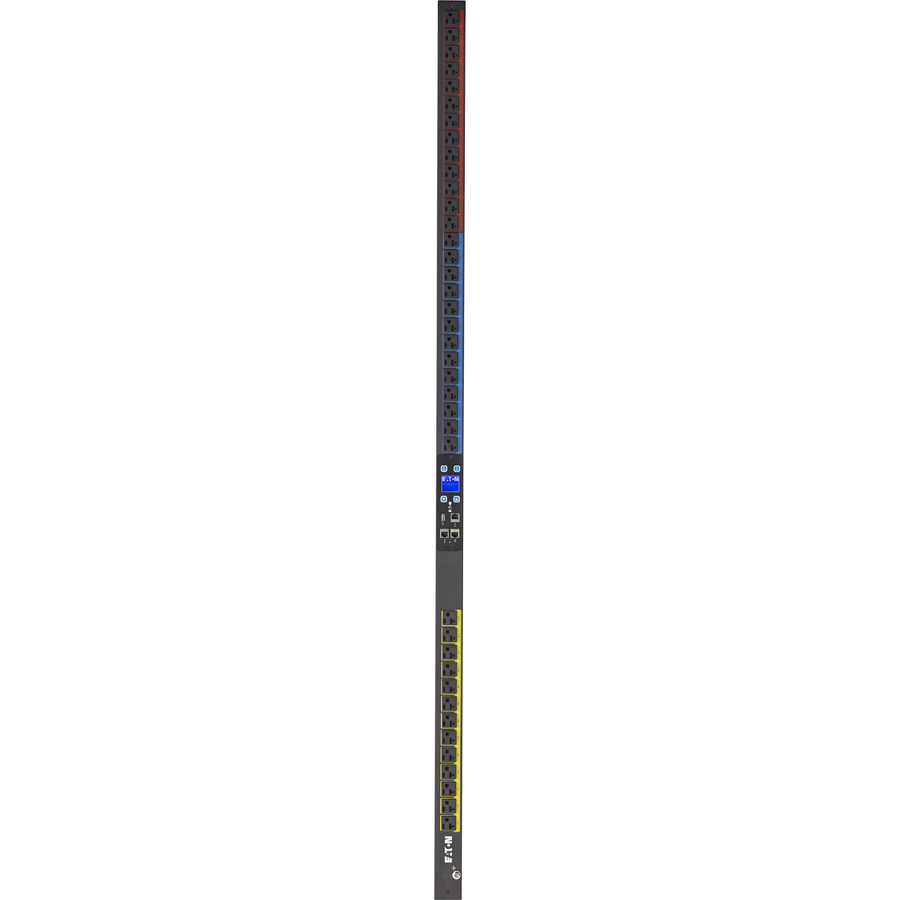

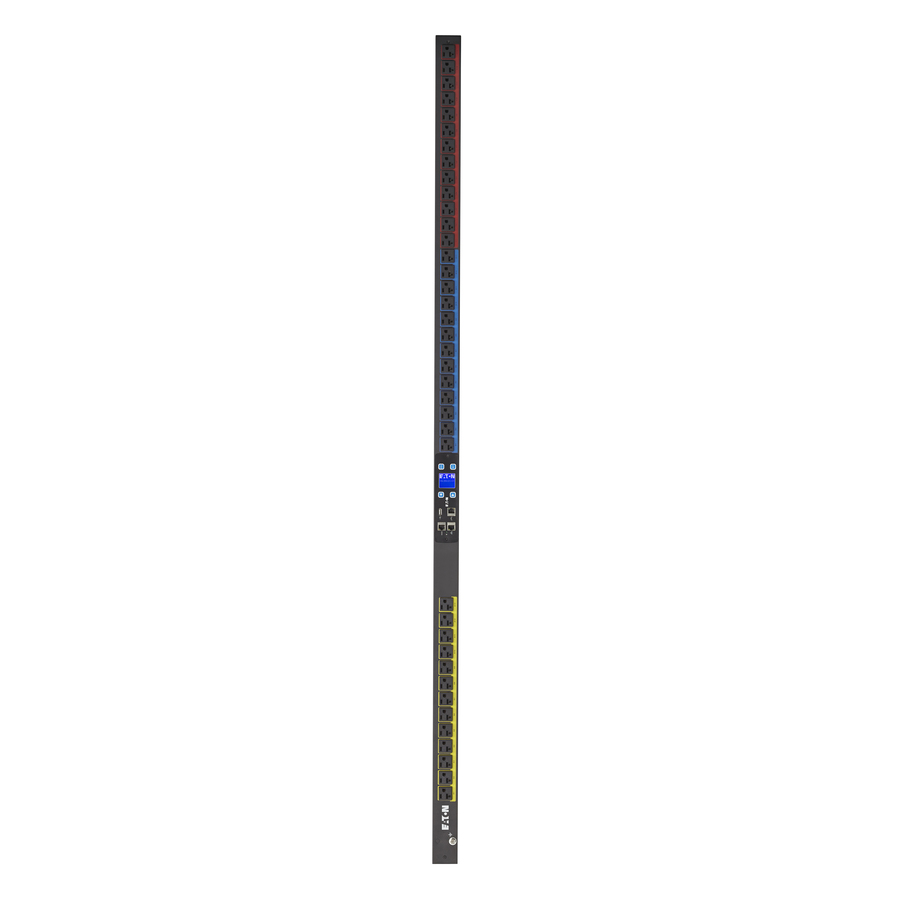

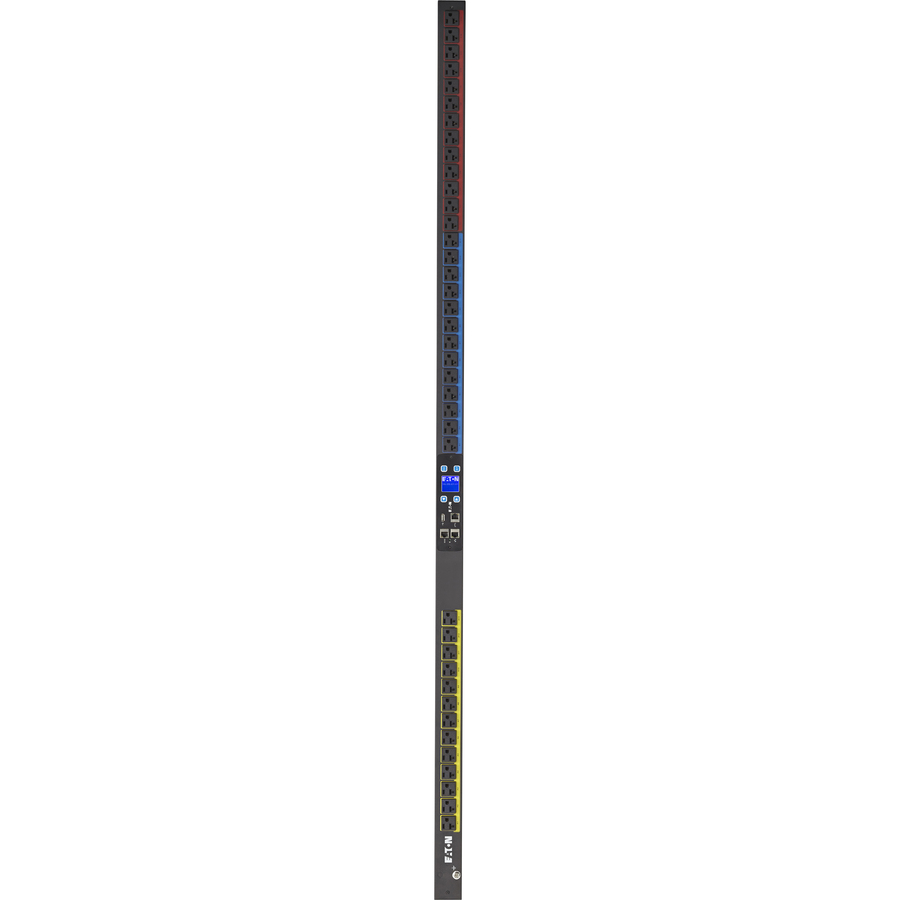

Eaton Metered Input rack PDU, 0U, L21-20P input, 5.76 kW max, 120/208V, 16A, 10 ft cord, Three-phase, Outlets: (39) 5-20R
NEMA L21-20P - 39 x NEMA 5-20R - 120 V AC, 230 V AC - 5760 W - Network (RJ-45) - 40U - Rack-mountable
- SKU
- EMI309-10
- Category
- PDUs
MSRP$822.00
$666.14
Save 19%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EMI309-10
- Category
- PDUs
Overview
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
• IEC outlet grip plug retention secures plugs in place using standard cables
• High operating temperature (140F / 60C) for containment or hot network closet environments
• Hot-swap meter for servicability of without removing power to the rack
• +/- 1% billing grade accuracy for high accuracy reporting of energy usage
• Daisy chain of IP addresses allows four devices to share one network connection
• Color coded outlet sections simplify load balancing
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
- High density units support up to 25 1U/2U servers or three blade server chassis
- Easy read digital ammeter reduces local monitoring time
- Clearly labeled circuits simplify load balancing
- Reading available via Ethernet connection over a network
- UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | EMI309-10 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 13.70 lb |
| Input Current | 16 A |
| Manufacturer | Eaton Corporation |
| Product Name | ePDU 39-Outlets PDU |
| Mount Type | Rack-mountable |
| Product Line | ePDU |
| Rack Height | 40U |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA L21-20P |
| Input Voltage Range | 120 V AC - 208 V AC |
| Country of Origin | China |
| Cord Length | 10 ft |
| Height | 66.5" |
| Width | 2.1" |
| Depth | 2.1" |
| Receptacle Type | NEMA 5-20R |
| Network (RJ-45) | Yes |
| Power Rating (Watt) | 5760 W |
| Receptacle Detail | 39 x NEMA 5-20R |
