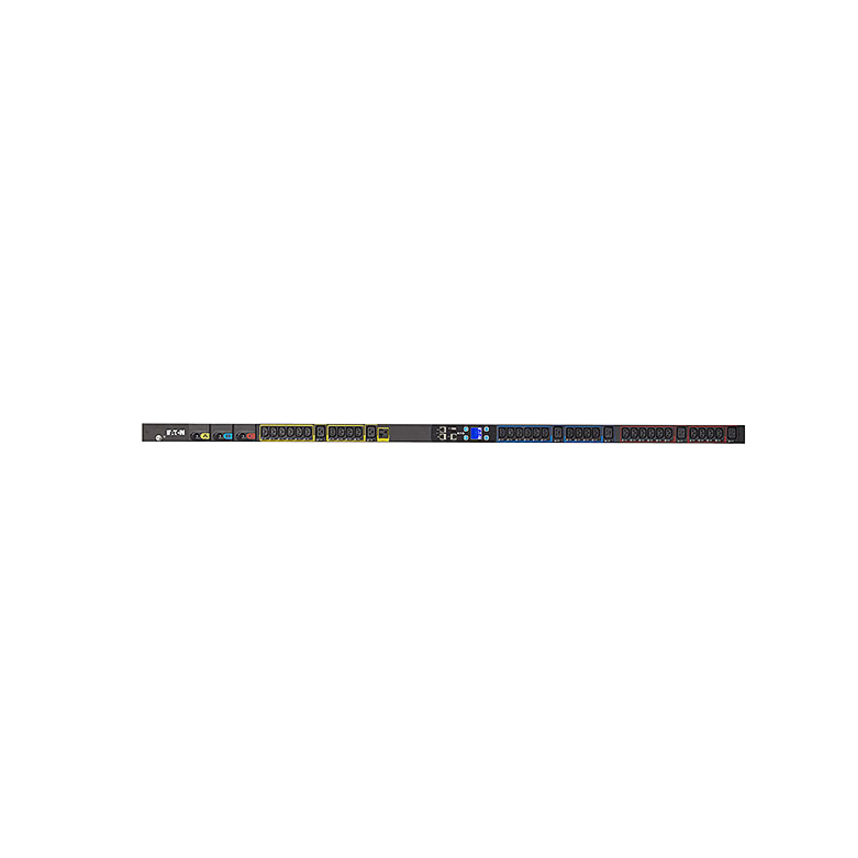

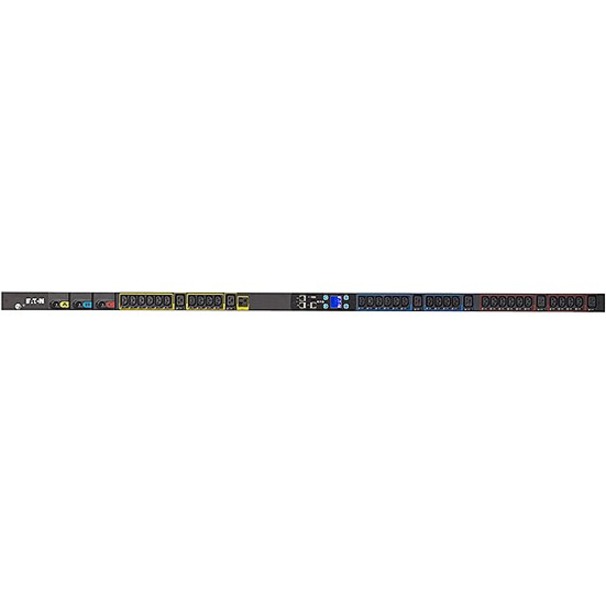

Eaton Metered Input rack PDU, 0U, 309-360P6W input, 11.5 kW max, 200-240V, 48A, 6 ft cord, Single-phase, Outlets: (30) C13 Outlet grip, (6) C19 Outlet grip
Eaton

Eaton Metered Input rack PDU, 0U, 309-360P6W input, 11.5 kW max, 200-240V, 48A, 6 ft cord, Single-phase, Outlets: (30) C13 Outlet grip, (6) C19 Outlet grip

30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 11.50 kW - Network (RJ-45) - 38U - Vertical - Rack-mountable

SKU
EMI105-06
Category
PDUs

MSRP$2,746.46

$2,233.82

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EMI105-06
Category
PDUs

Overview

Eaton Metered Input ePDUs

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberEMI105-06
Limited Warranty3 Year
Output Voltage230 V AC
Input Current48 A
ManufacturerEaton Corporation
Product ModelEMI105-06
Product NameePDU Metered EMI105-06 36-Outlet PDU
Mount TypeRack-mountable
Product LineePDU
Product SeriesMetered
Rack Height38U
Brand NameEaton
Country of OriginUnited States
Cord Length6 ft
Height66.5"
Width2.1"
Depth2.1"
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Network (RJ-45)Yes
Mounting OrientationVertical
Power Rating (Watt)11.50 kW
Product ColorBlack
Color FamilyBlack
Receptacle Detail30 x IEC 60320 C13, 6 x IEC 60320 C19
