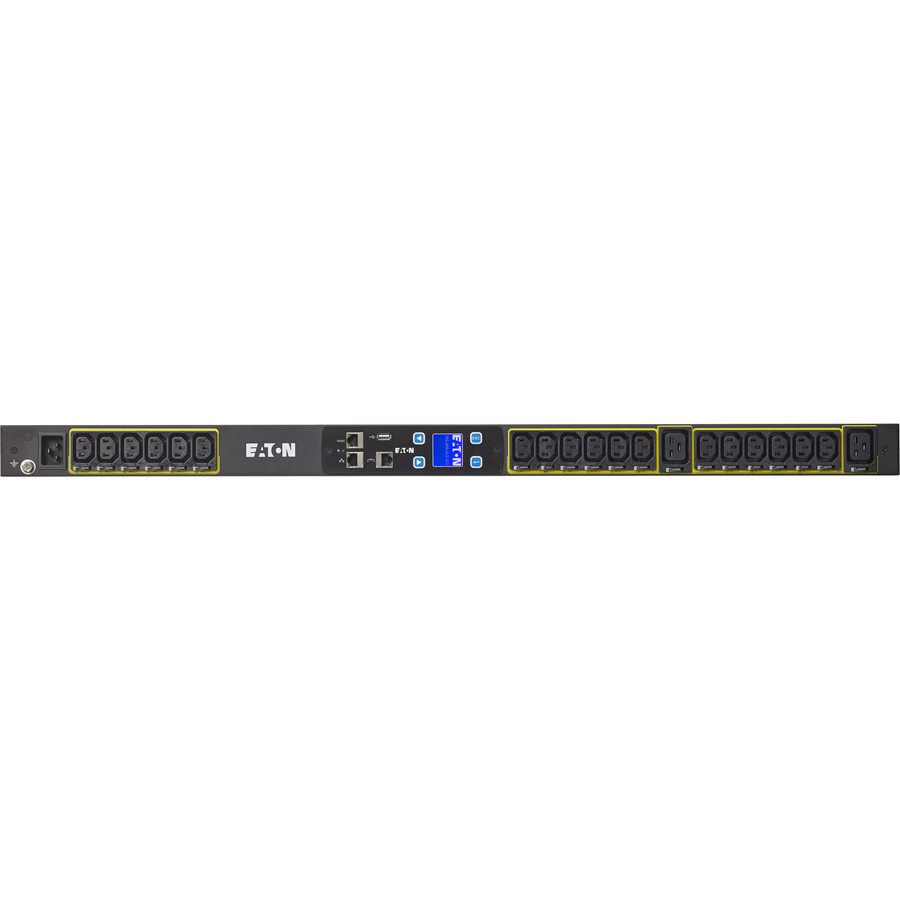

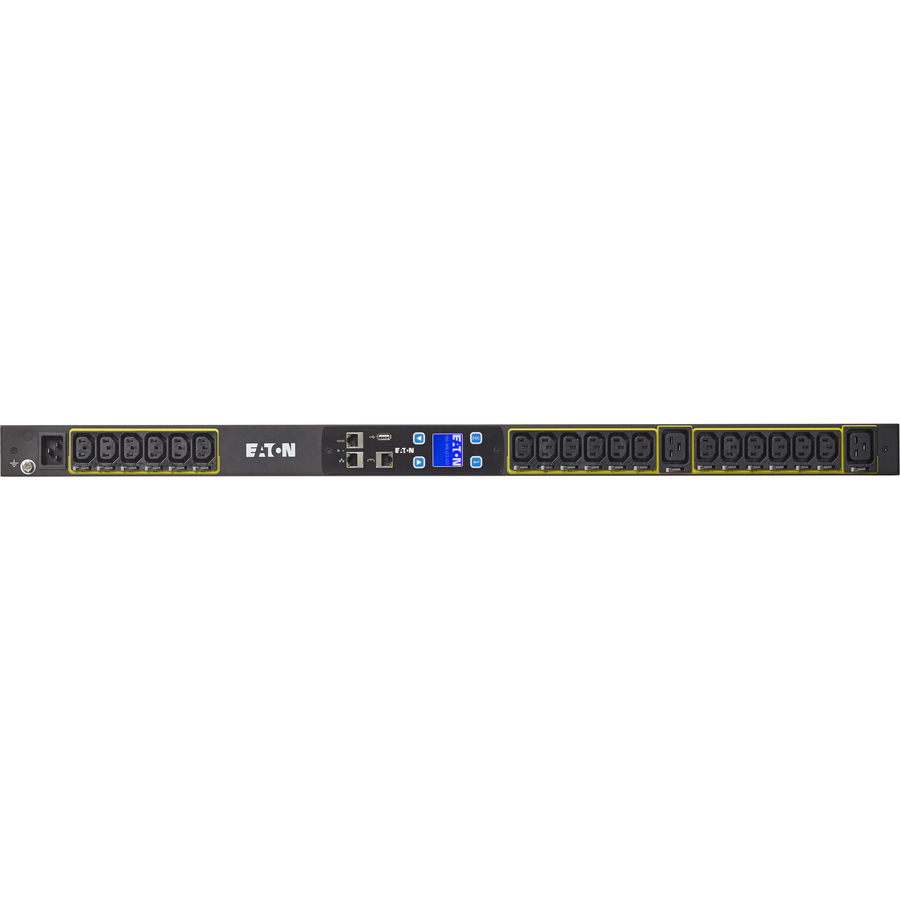

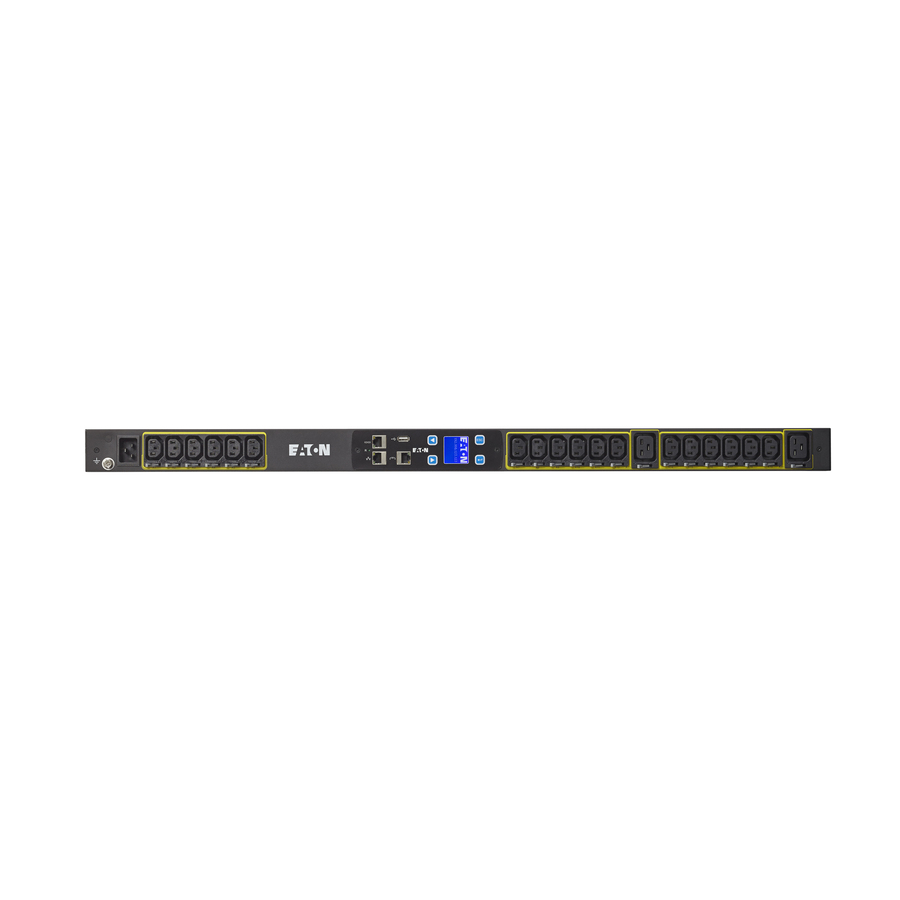

Eaton Metered Input Rack PDU 3.84 kW max 100-240V 16A 0U Single-Phase PDU
IEC 60320 C20 - 18 x IEC 60320 C13, 2 x IEC 60320 C19 - 120 V AC, 230 V AC - 3840 W - Network (RJ-45) - 21U - Rack-mountable
- SKU
- EMI103-10
- Category
- PDUs
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EMI103-10
- Category
- PDUs
Overview
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
• IEC outlet grip plug retention secures plugs in place using standard cables
• Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
• High operating temperature (140F / 60C) for containment or hot network closet environments
• Hot-swap meter for servicability of without removing power to the rack
• +/- 1% billing grade accuracy for high accuracy reporting of energy usage
• Daisy chain of IP addresses allows four devices to share one network connection
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
- High density units support up to 25 1U/2U servers or three blade server chassis
- Easy read digital ammeter reduces local monitoring time
- Clearly labeled circuits simplify load balancing
- Reading available via Ethernet connection over a network
- UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | EMI103-10 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 9.30 lb |
| Input Current | 16 A |
| Manufacturer | Eaton Corporation |
| Product Name | ePDU 20-Outlets PDU |
| Mount Type | Rack-mountable |
| Product Line | ePDU |
| Rack Height | 21U |
| Brand Name | Eaton |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage Range | 120 V AC - 208 V AC |
| Country of Origin | China |
| Cord Length | 10 ft |
| Height | 35.5" |
| Width | 2.1" |
| Depth | 2.1" |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Network (RJ-45) | Yes |
| Power Rating (Watt) | 3840 W |
| Receptacle Detail | 18 x IEC 60320 C13, 2 x IEC 60320 C19 |
