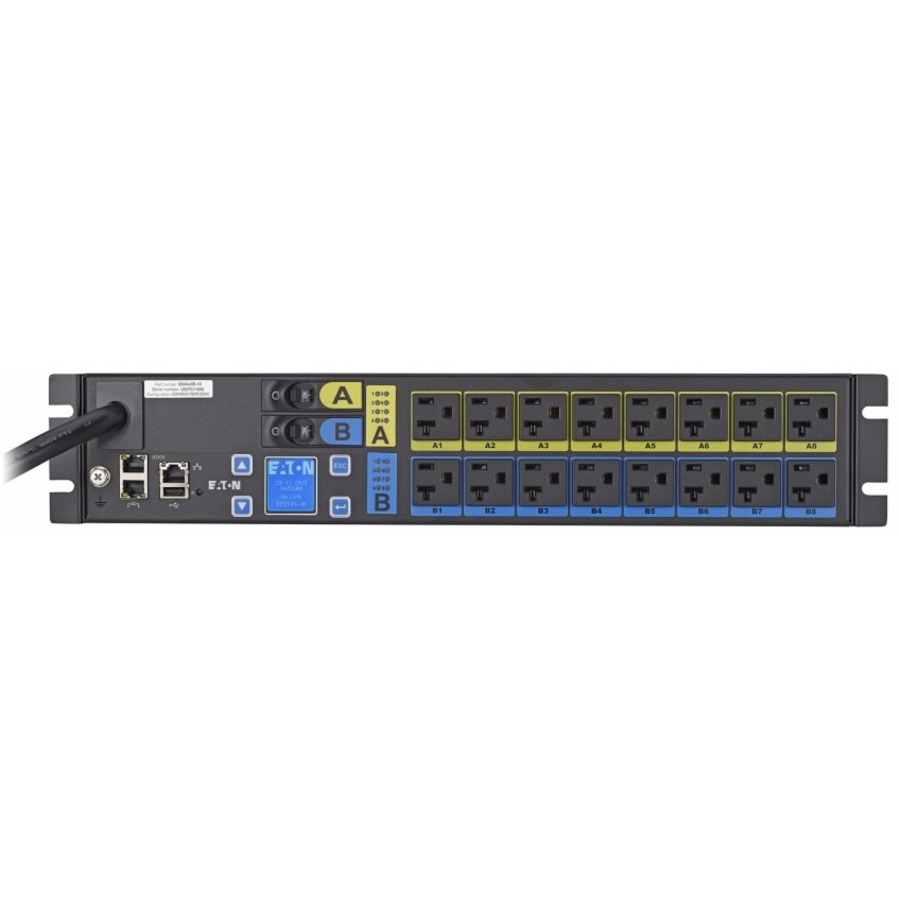

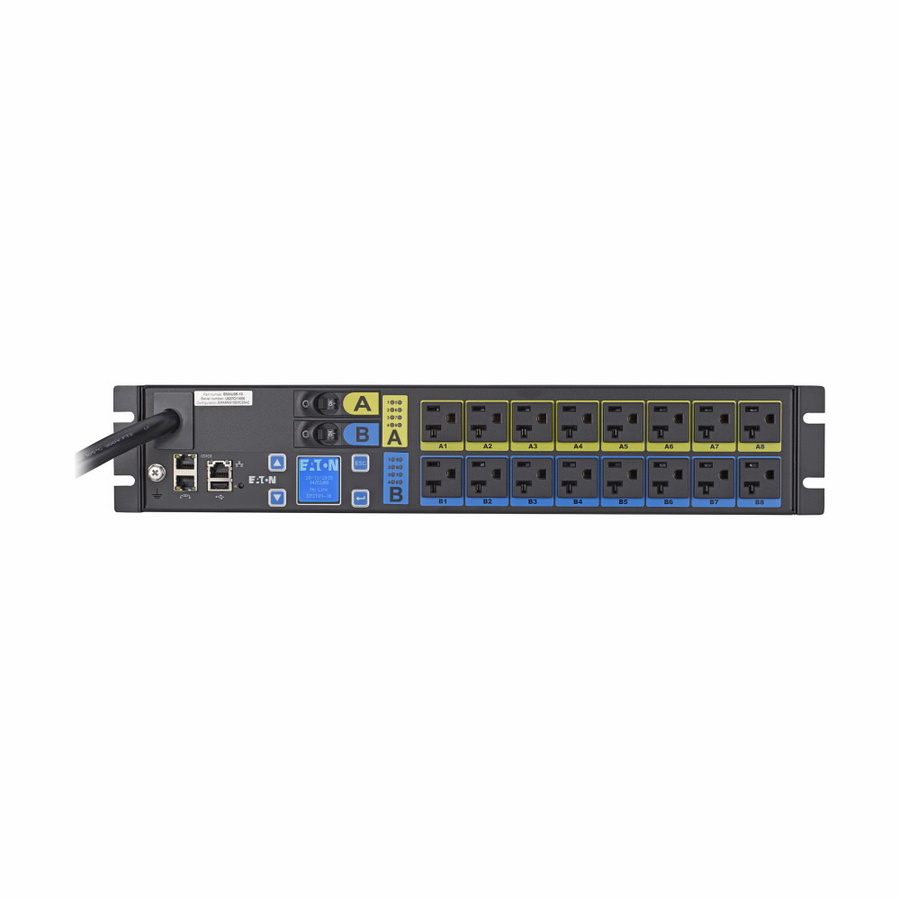

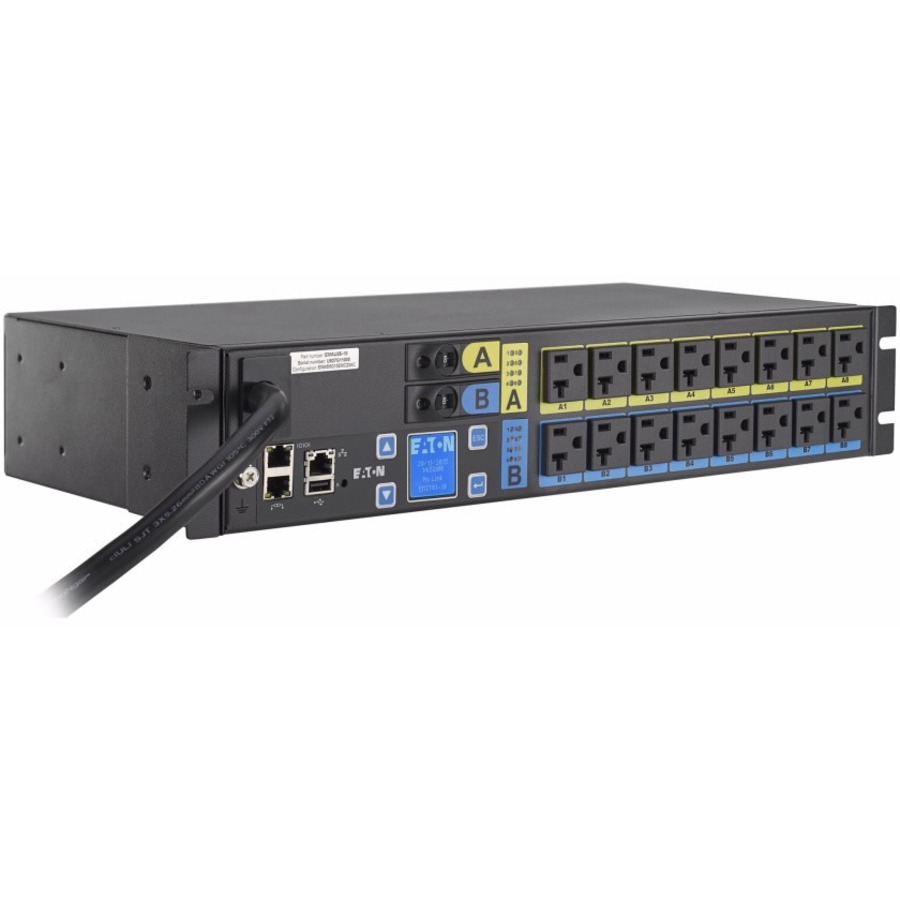

Eaton Managed Rack PDU 2.88 kW max 120V 24A 50-60Hz 2U Single-Phase PDU

Switched - NEMA L5-30P - 16 x NEMA 5-20R - 120 V AC - 2880 W - Network (RJ-45) - 2U - Horizontal - Rack-mountable

SKU: EMAU05-10
Category: PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: EMAU05-10
Category: PDUs

Overview

Eaton ePDU G3 Managed

Eaton Managed ePDUs allow you to monitor and control critical factors such as voltage, current and power factor. This level of information allows you to make the right decision when it comes to energy consumption in your data center. Integrated with Eaton's management software, you can control these units from any computer on the network server.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

PDU distributes AC power to multiple servers and balances the load on the servers
With a built-in digital current meter avoid potential overloads via switched PDUs
NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
NEMA L5-30P plug/connector type for efficient connectivity and feasible power output
120 V AC input voltage for better reliance and maximum dependability

Specifications

Product Type	PDU
Input Voltage	120 V AC
Manufacturer Part Number	EMAU05-10
Limited Warranty	3 Year
Input Current	24 A
Manufacturer	Eaton Corporation
Product Name	ePDU Managed 16-Outlet PDU
Mount Type	Rack-mountable
Product Line	ePDU
Product Series	Managed
Rack Height	2U
Brand Name	Eaton
Plug/Connector Type	NEMA L5-30P
Country of Origin	Philippines
Height	19"
Width	3.4"
Depth	8.4"
Receptacle Type	NEMA 5-20R
Network (RJ-45)	Yes
PDU Type	Switched
Mounting Orientation	Horizontal
Power Rating (Watt)	2880 W
Receptacle Detail	16 x NEMA 5-20R
Plug/Connector Detail	1 x NEMA L5-30P
