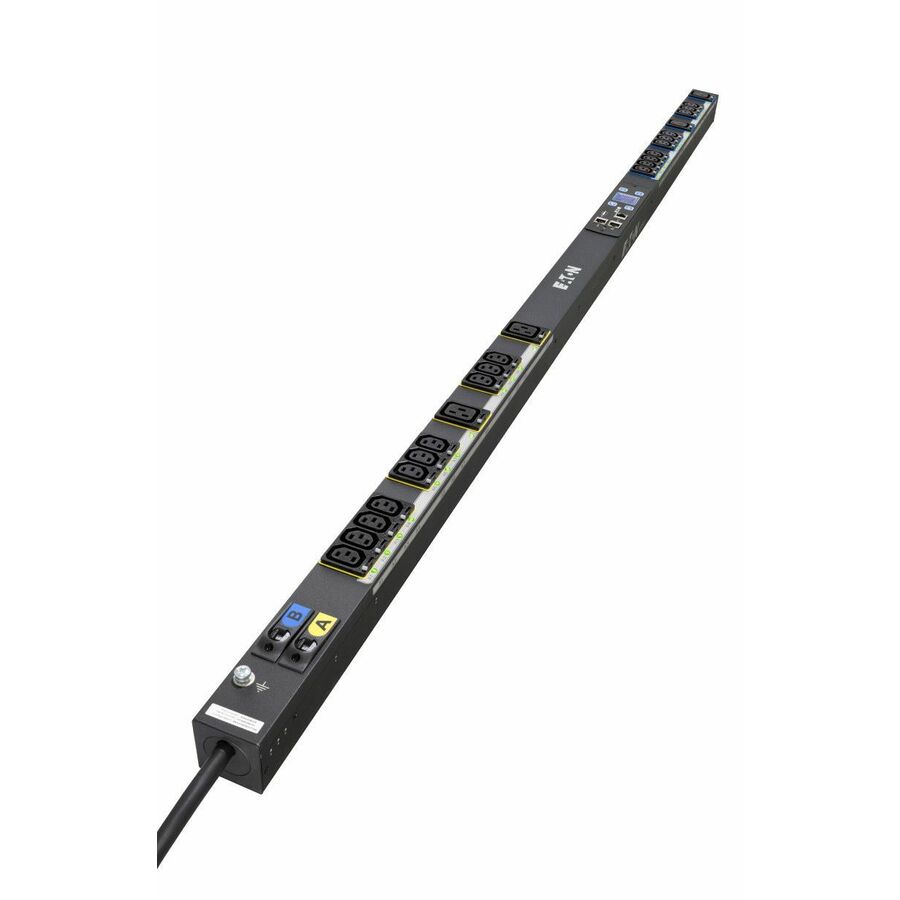

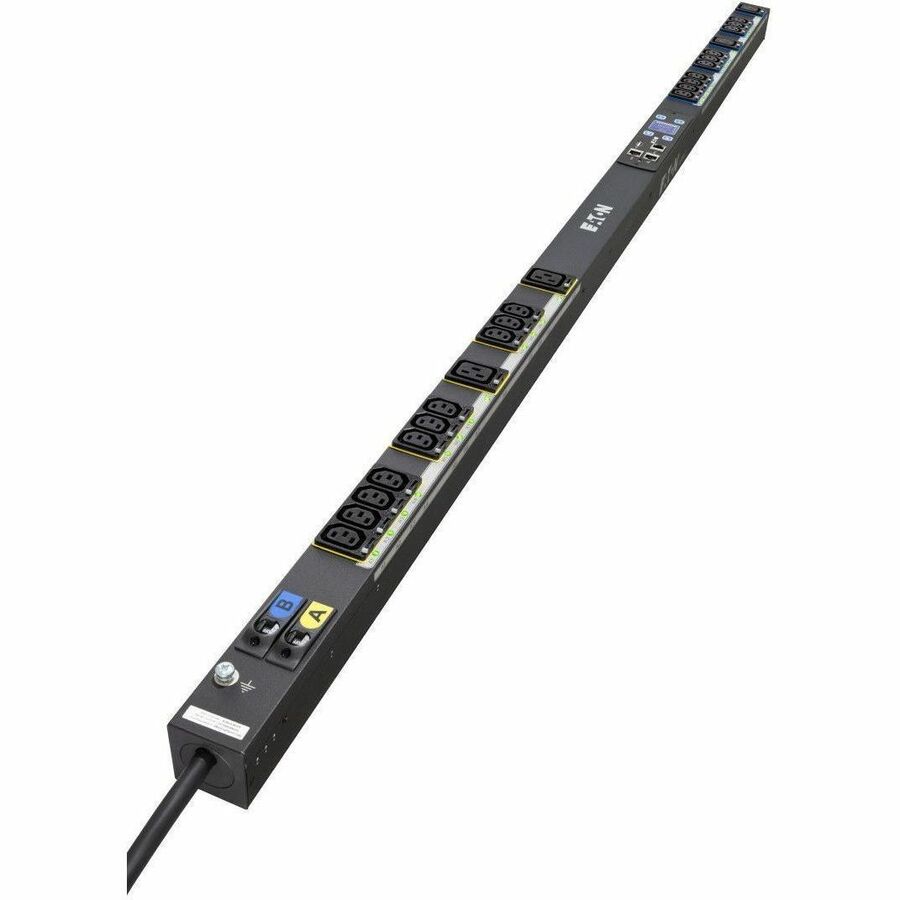

Eaton ePDU G3 24-Outlets PDU

Managed - 12 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 6 ft Cord Length - 38U - Vertical - Rack-mountable - Rack

SKU: EMACPH36JA4A4K2
Category: PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: EMACPH36JA4A4K2
Category: PDUs

Overview

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

PDU provides active metering enabling energy optimization and circuit protection
Easy to control and monitor with managed PDU
IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
Three Phase phase PDU for reliable performance with maximum productivity
230 V AC input voltage for better reliance and maximum dependability

Specifications

Application/Usage	Data Center, IT Equipment
Product Type	PDU
Input Voltage	230 V AC
Manufacturer Part Number	EMACPH36JA4A4K2
Packaged Quantity	1
Features	LCD Display
Form Factor	Rack
Input Current	40 A
Management	Web SNMP Telnet
Manufacturer	Eaton Corporation
Product Name	ePDU G3 24-Outlets PDU
Mount Type	Rack-mountable
Product Line	ePDU G3
Rack Height	38U
Brand Name	Eaton
Input Voltage Range	200 V AC - 240 V AC
Cord Length	6 ft
Height	66.5"
Width	2"
Depth	2.6"
Input Frequency	60 Hz
Phase	Three Phase
Receptacle Type	IEC 60320 C13, IEC 60320 C19
Output Voltage Range	208 V AC - 230 V AC
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Network (RJ-45)	Yes
UL Listed	Yes
Energy Star	No
PDU Type	Managed
Mounting Orientation	Vertical
Power Rating (Watt)	14.40 kW
Product Color	Black
Color Family	Black
Receptacle Detail	12 x IEC 60320 C13, 12 x IEC 60320 C19
