Eaton ATS Rack PDU 1U 208-240V 24A 5.76 kW max L6-30R Single-Phase PDU LCD
Eaton

Eaton ATS Rack PDU 1U 208-240V 24A 5.76 kW max L6-30R Single-Phase PDU LCD

2 x Network (RJ-45) Port(s)

SKU
EATS30P
Category
Remote Management Adapters

MSRP$1,752.00

$1,424.99

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EATS30P
Category
Remote Management Adapters

Overview

The Eaton EATS30 Monitored rack automatic transfer switch operates at 200-240 volt single-phase 24 amps. The dual inputs are through two 10-foot cords with L6-30P plugs and output is through a single L6-30R receptacle. The transfer switch features fast 10 ms transfer between sources, supports out-of-phase (non-synchronous) power sources and has remote monitoring through the included network card using SNMP or a web browser.

• Dual input rack automatic transfer switch with intelligent control and monitoring

• Fast transfer time of 10ms to ensure equipment uptime and reliability

• Intelligent control circuitry supports out-of-phase power sources (non-synchronized) for reliablity

• Network connectivity supports voltage, current and transfer monitoring over SNMP or using a standard web browser

• Supports high power devices or allows for connection of a rack power distribution unit to support multiple receptacles

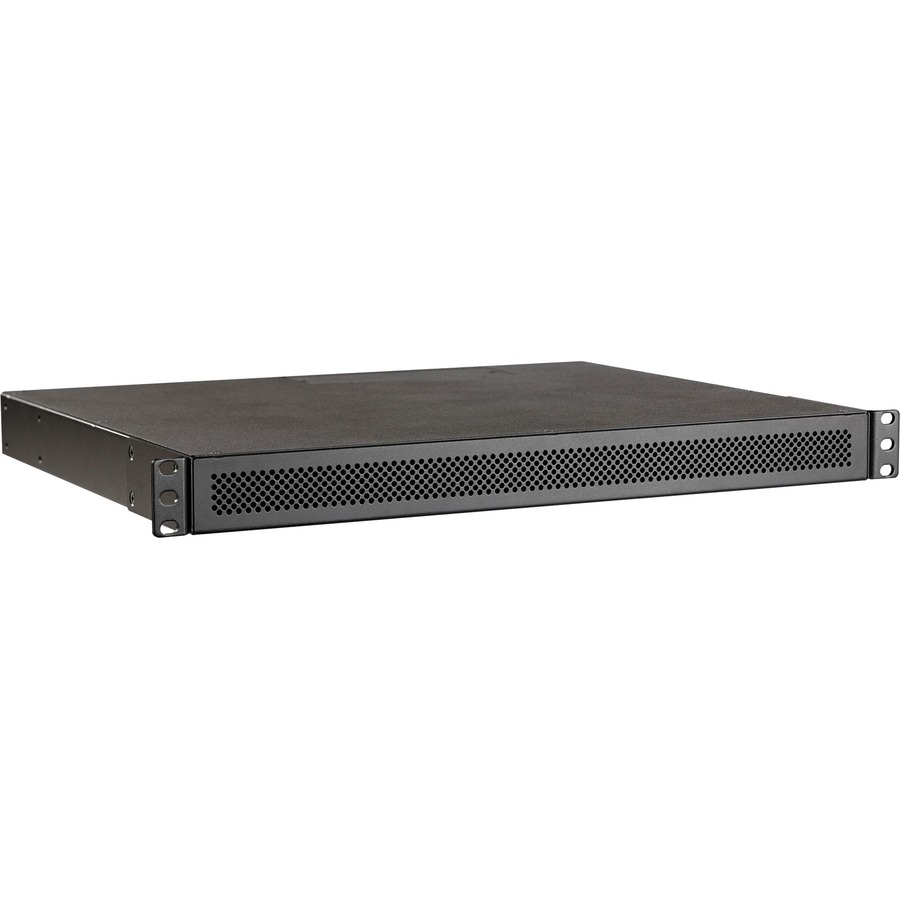

• Low profile, 1U rackmount design

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Provides power redundancy to equipment with 1 or 2 power supplies
  • Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
  • Power is transferred back to the primary source when it is automatically restored
  • Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
  • Offers remote monitoring and email alerts with included network card

Specifications

Product TypeRemote Power Management Switch
Manufacturer Part NumberEATS30P
ProtocolsIPv6, SNMP
ManufacturerEaton Corporation
Product ModeleATS30
Product NameeATS30 Remote Power Management Switch
Brand NameEaton
Country of OriginChina
Height1.7"
Width17.3"
Depth13.8"
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
